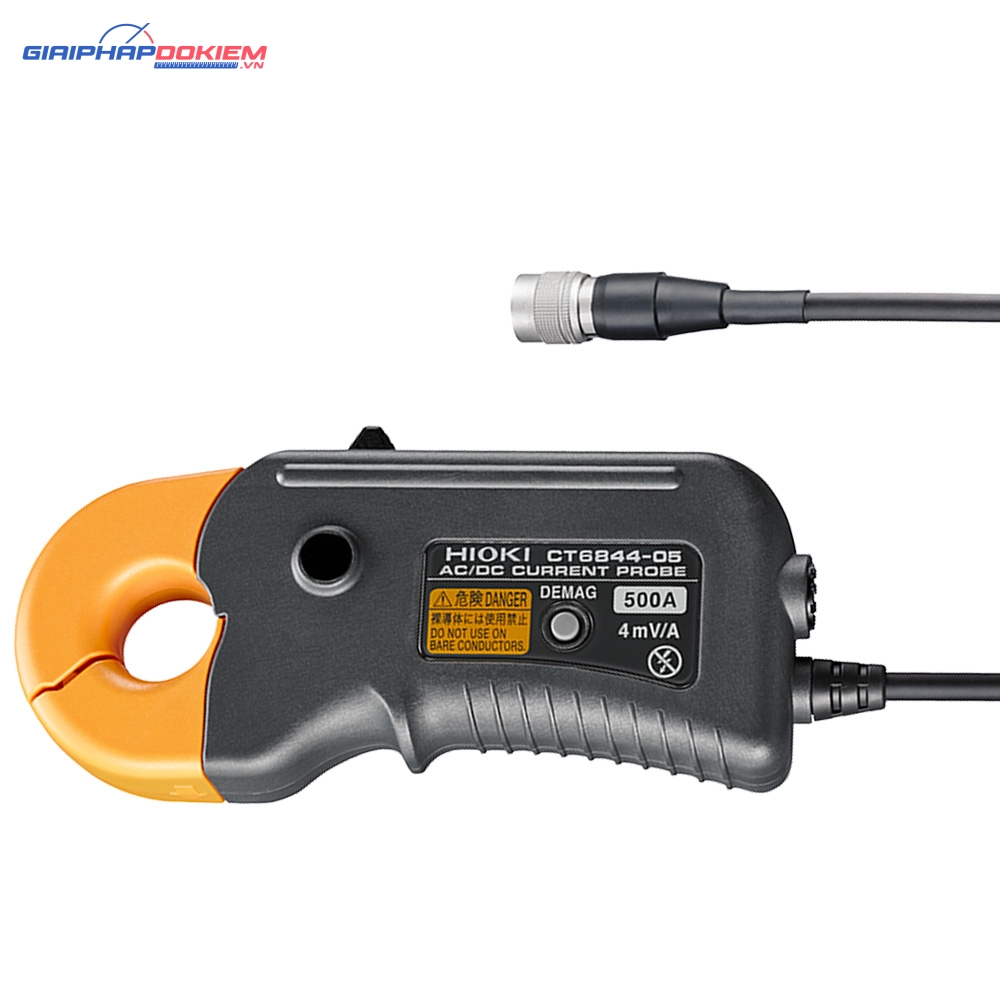

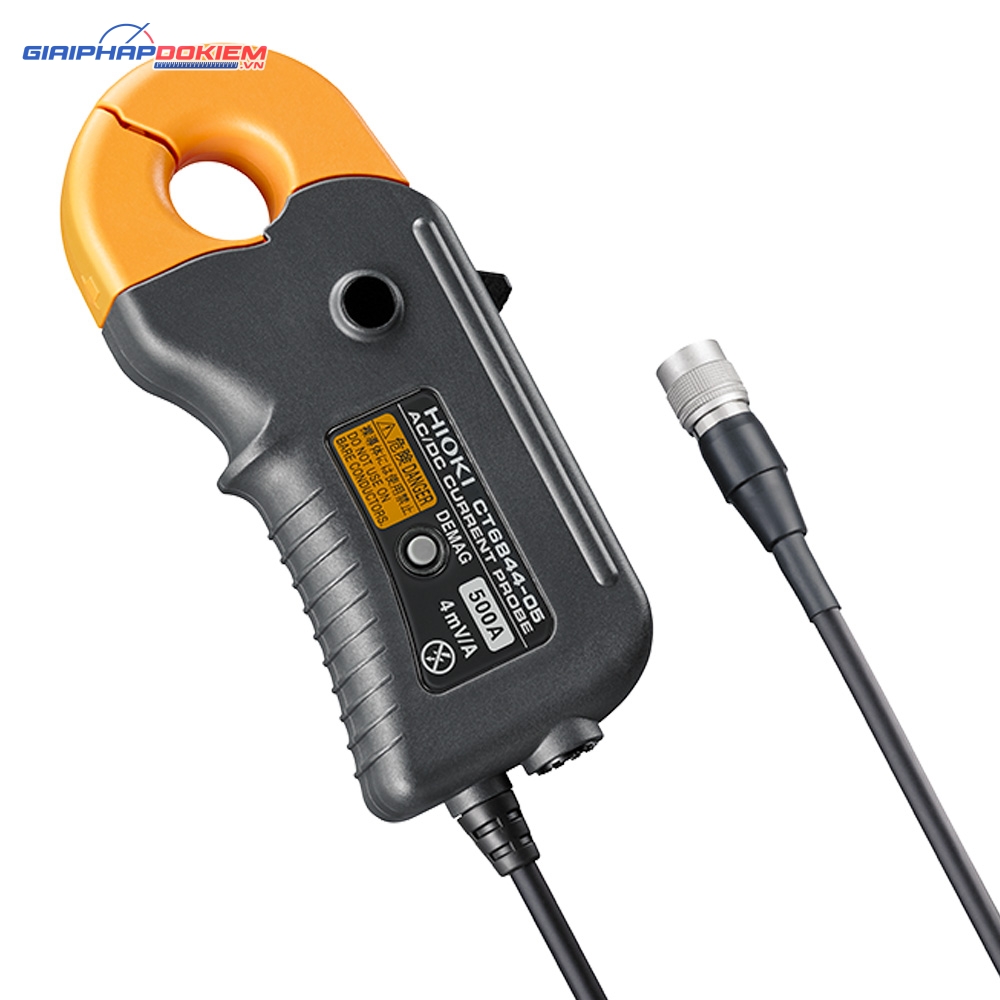

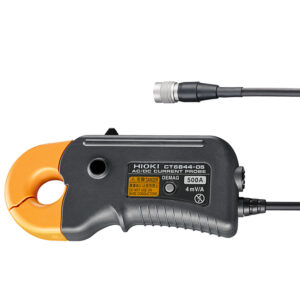

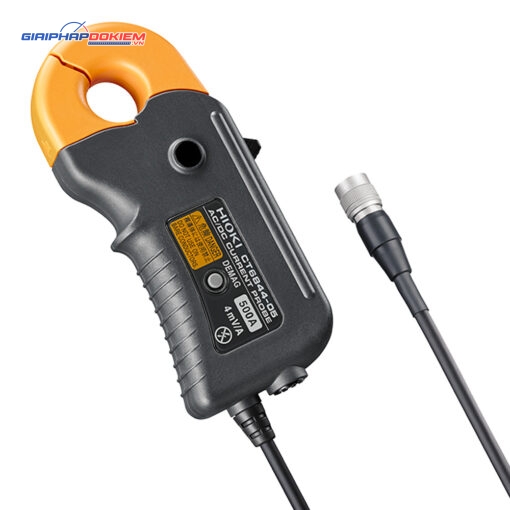

Đầu Đo Dòng Điện Dạng Kìm Hioki CT6844-05

Name: Đầu Đo Dòng Điện Dạng Kìm Hioki CT6844-05 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: CT6844-05
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: CT6844-05 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: PW6001, PW3390, PW3337, PW3336, MR8741, MR8740,…

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

AC/DC CURRENT PROBE HIOKI CT6844-05

500 A AC/DC Wideband and High-Precision Current Probe for Power Efficiency Testing

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Rated current	500 A AC/DC
Max. allowable input	720 A peak (requires derating)
Frequency characteristics	DC to 200 kHz Phase: DC to 200 kHz
Amplitude and phase accuracy	DC ±0.3 % rdg. ±0.02 % f.s. (Phase: Not defined) DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1°) Defined to 200 kHz
Output voltage Hioki CT6844-05	4 mV/A (voltage output with the Sensor Unit use with a device having a 1 MΩ input resistance or higher)
Core diameter	φ 20 mm (0.79 in)
Operating temperature, humidity	-40 °C to +85 °C (-40 °F to 185 °F), 80% RH or less (with no condensation)
Power supply	±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC)
Power consumption	7 VA max. (at 500 A/55 Hz, ±12 V power requirement)
Dimensions and mass	153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, 400 g (14.1 oz), cord length: 3 m (9.84 ft)
Accessories	Instruction manual ×1, Mark bands ×6, Carrying Case×1

Compatible models: CT6844, CT6844-05

Compatible models	CT6844	CT6844-05
Power Analyzer PW6001, PW3390	△ (Requires CT9900)	OK
Power Analyzer 3390	OK	△ (Requires CT9901)
Power HiTester 3193 series	OK	△ (Requires CT9901)
Current Unit 8971	△ (Requires the 9318)	△ (Requires the 9318, CT9901)
F/V Unit 8940	△ (Requires the 9318, 9705)	△ (Requires the 9318, 9705, CT9901)
