Đầu Đo Dòng Điện AC/DC Hioki CT6875

Name: Đầu Đo Dòng Điện AC/DC Hioki CT6875 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: CT6875
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: CT6875 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: PW6001, PW3390, PW3337, PW3336, PW3335, MR8741,…

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

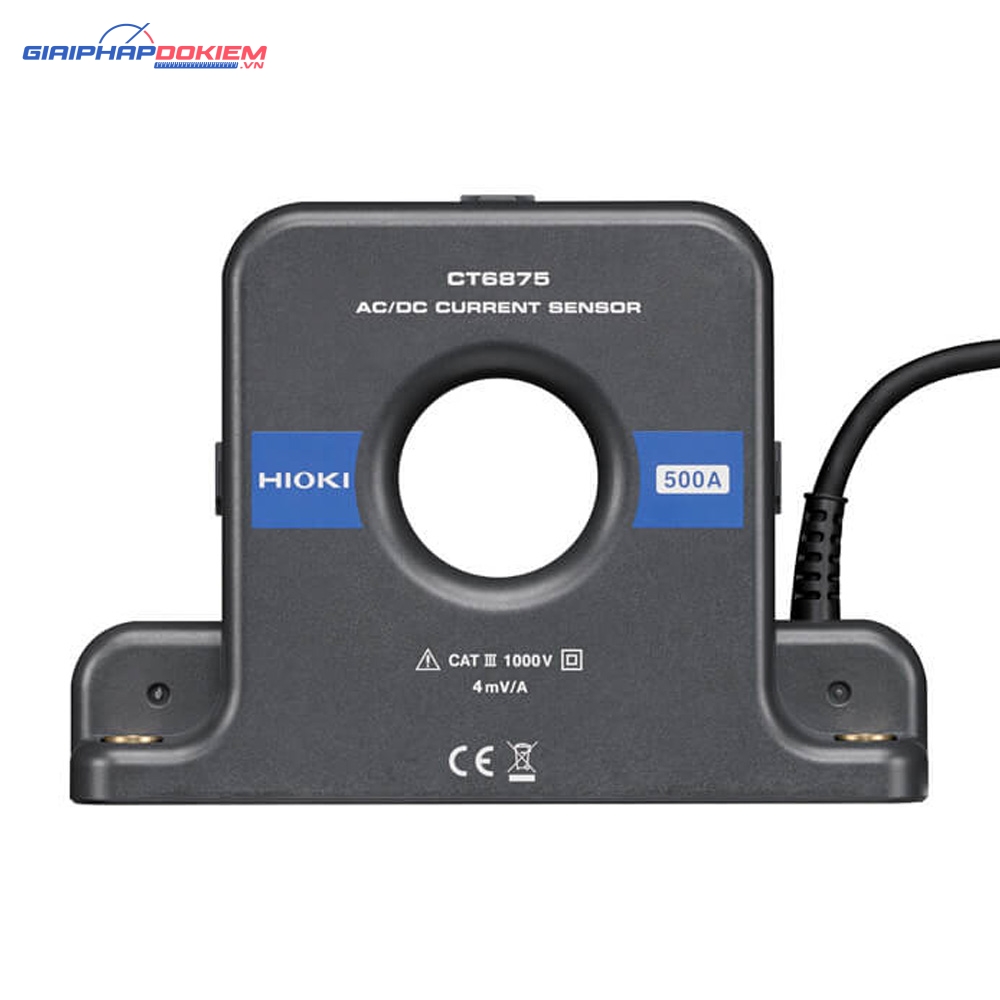

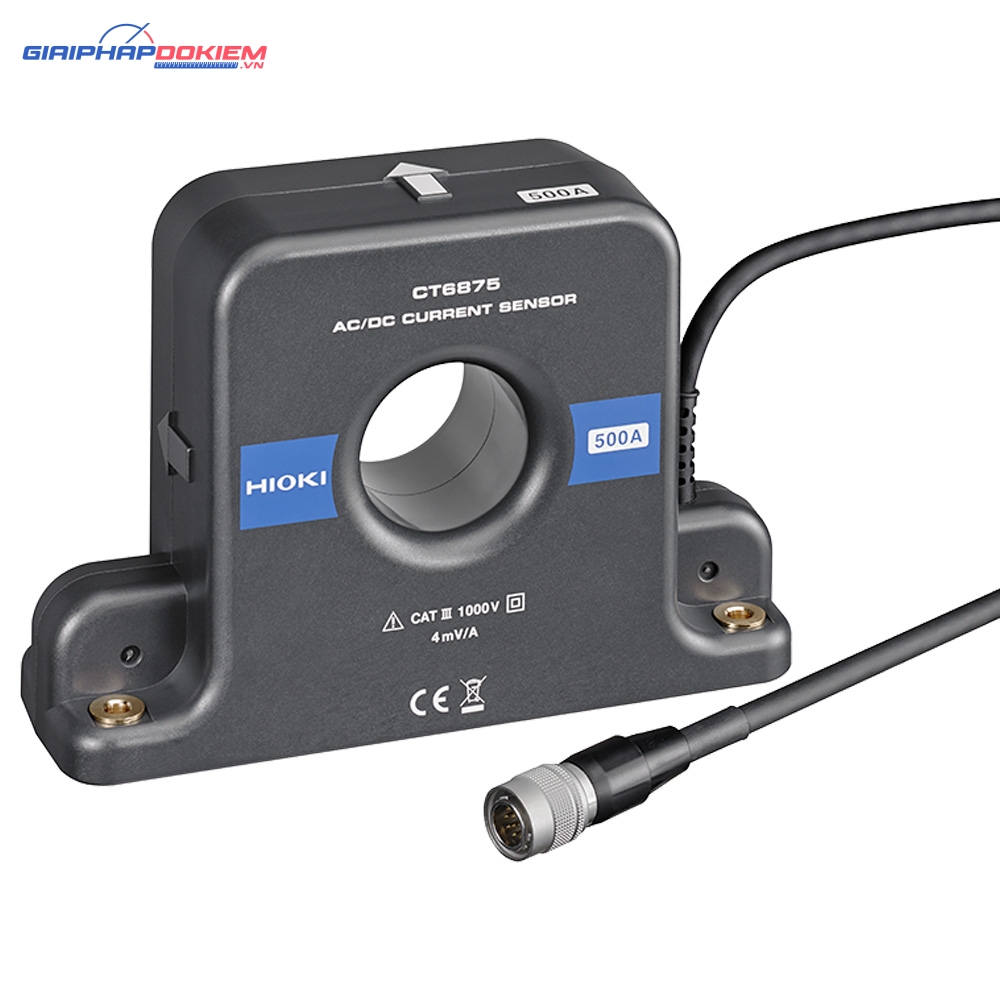

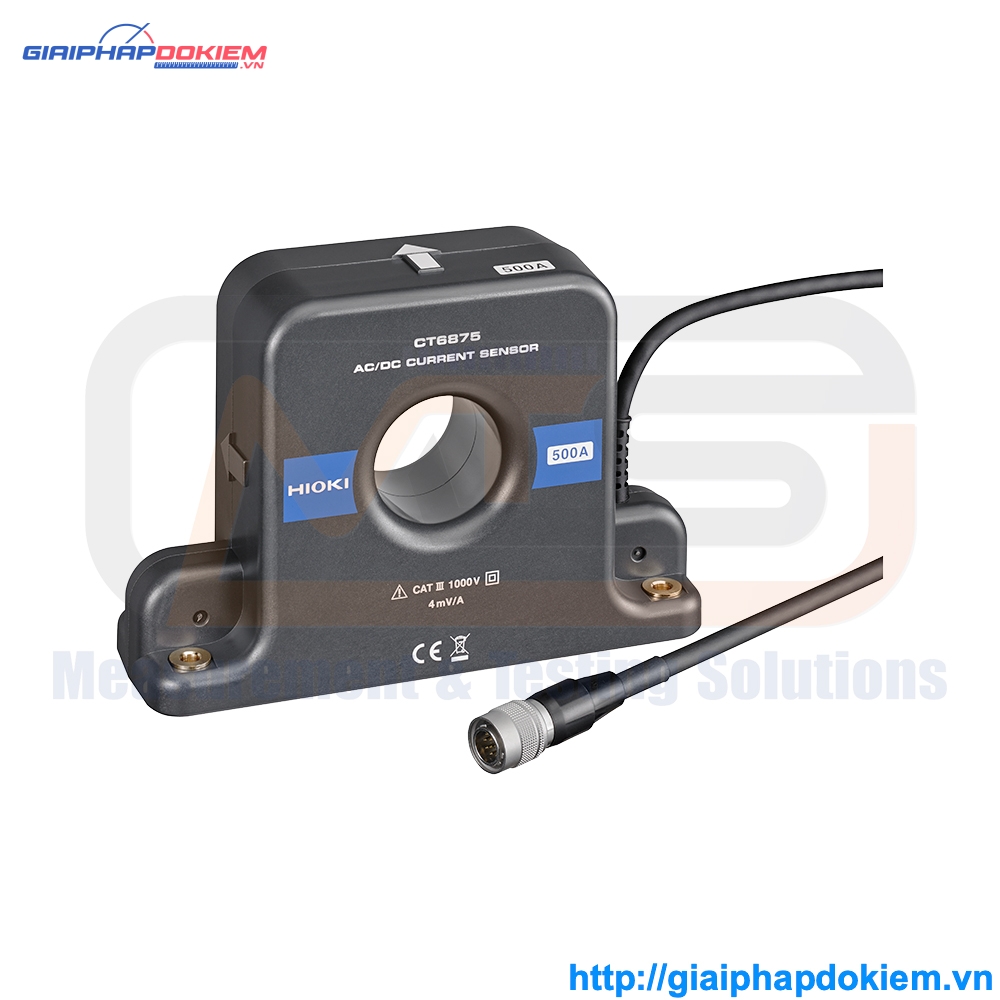

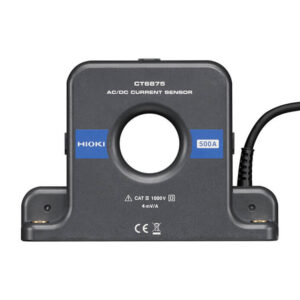

AC/DC CURRENT SENSOR HIOKI CT6875

Beyond High-Accuracy Measurement

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Rated current	500 A AC/DC
Max. allowable input	Within the derating range, up to ±1500 Apeak (design value) allowed at 40°C or less for 20 ms or less
Frequency bandwidth	Amplitude: DC to 2 MHz (CT6875), DC to 1.5 MHz (CT6875-01) Phase: DC to 1 MHz
Basic accuracy	(DC, 45 Hz ≤ f ≤ 66 Hz) Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.1°
Output voltage rate	4 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit. Use with voltage input equipment with high input impedance such as 1 MΩ)
Max. rated voltage to earth	1000 V AC/DC (50/60 Hz, CAT III )
Core diameter	φ 36 mm (1.42 in)
Operating temperature, humidity	-40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply	Power suppled via the Power Analyzer PW6001, PW3390, or Sensor Unit CT9555, CT9556, CT9557
Max. rated power	7 VA max. (at 500 A/55 Hz)
Dimensions and mass	160 mm (6.30 in)W × 112 mm (4.41 in)H × 50 mm (1.97 in)D, CT6875: 800 g (28.2 oz), cable length 3 m (9.84 ft), CT6875-01: 1100 g (38.8 oz), cable length 10 m (32.81 ft)
Accessories	Instruction manual ×1, Mark bands ×6, Operating precautions ×1
