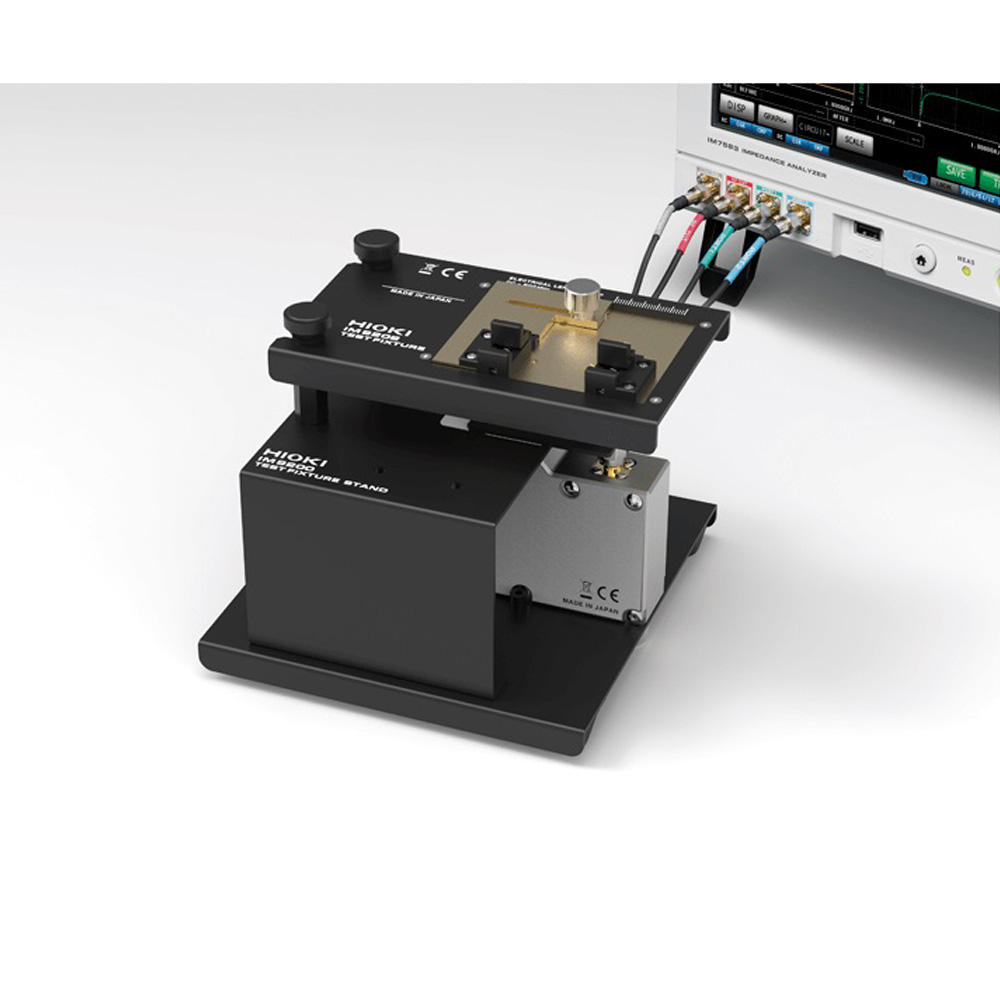

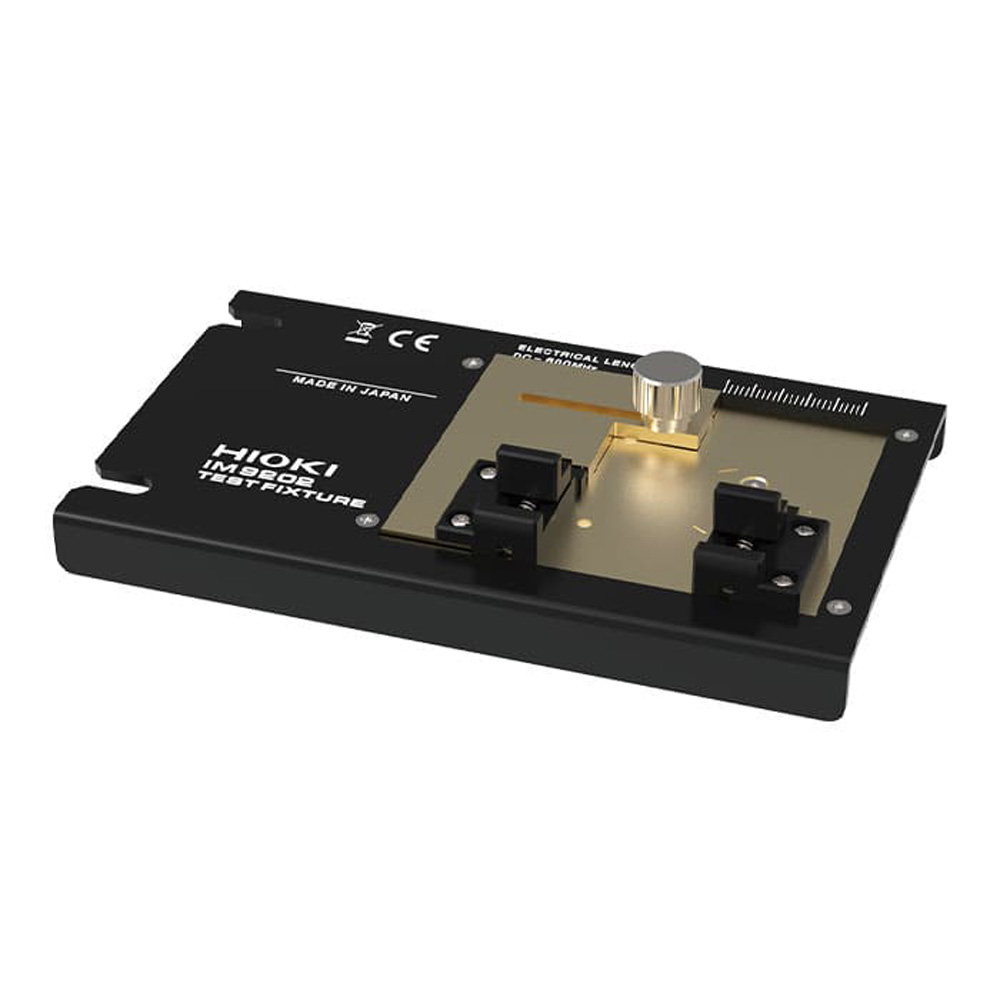

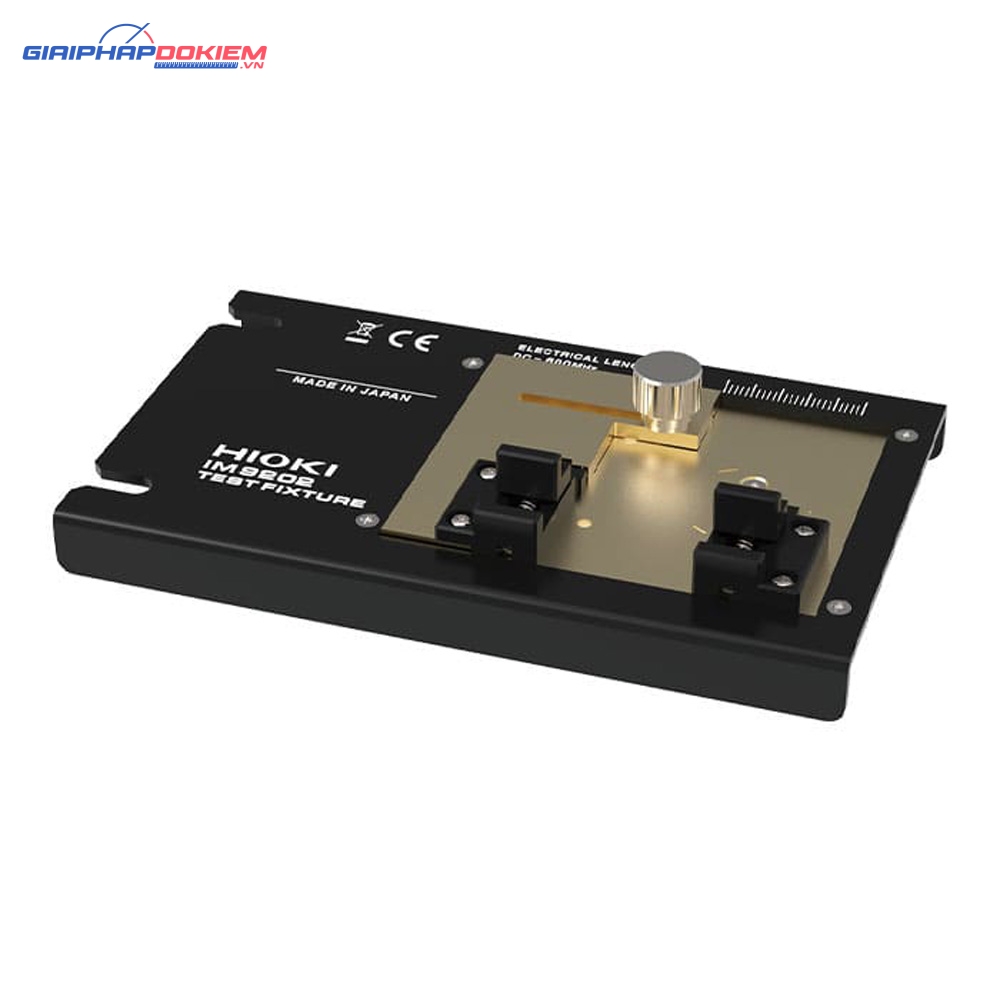

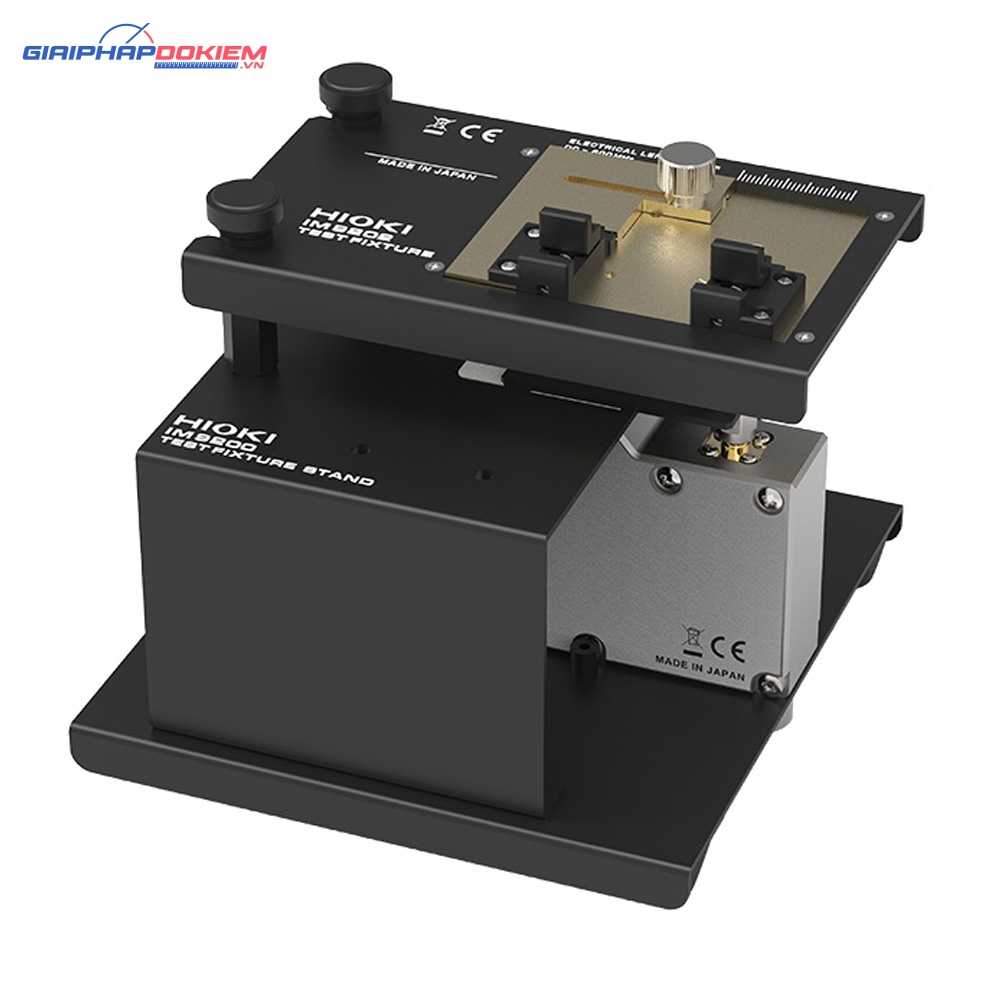

Đầu Đo Hioki IM9202

Đầu Đo Hioki IM9202 – TEST FIXTURE HIOKI IM9202

Name: Đầu Đo Hioki IM9202 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: IM9202
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: IM9202 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: IM7587, IM7585, IM7583, IM7581, IM7580A

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Frequency range

DC to 600 MHz

Measurable DUT

LEADED
Axial
• Distance between leads (component length): 1 mm to 25 mm (0.04 in. to 0.98 in.)
• Lead length: 2 mm to 10 mm (0.08 in. to 0.39 in.)
• Height to lead: 2.5 mm or shorter (0.10 in. or shorter)
Radial
• Distance between leads: 2 mm to 26 mm (0.08 in. to 1.02 in.)
• Lead length: 2 mm or longer (0.08 in. or longer)SMD
• Component length: 1.6 mm to 23 mm (0.06 in. to 0.91 in.)
• Component width: 0.8 mm or longer (0.03 in. or longer)
• Component height: 0.65 mm or longer (0.03 in. or longer)

Electrode structure

2-terminal connection to side electrodes

Maximum voltage

±42 Vpeak (AC+DC)

Supported units

IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587

Accessories

H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1

All-In-One Test Fixture for High Frequency 600 MHz Testing of a Diverse Range of Components

Basic specifications
