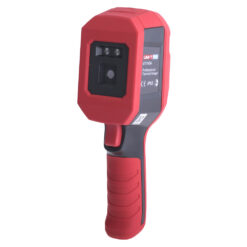

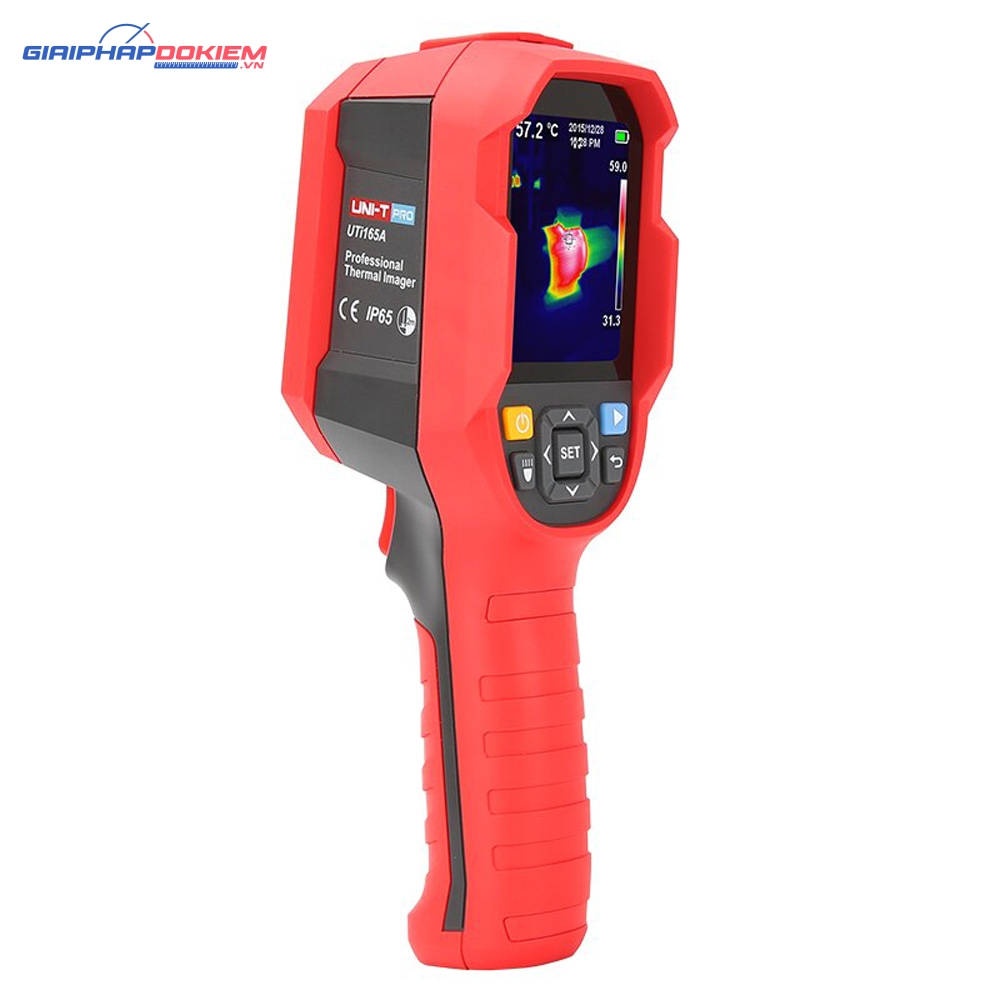

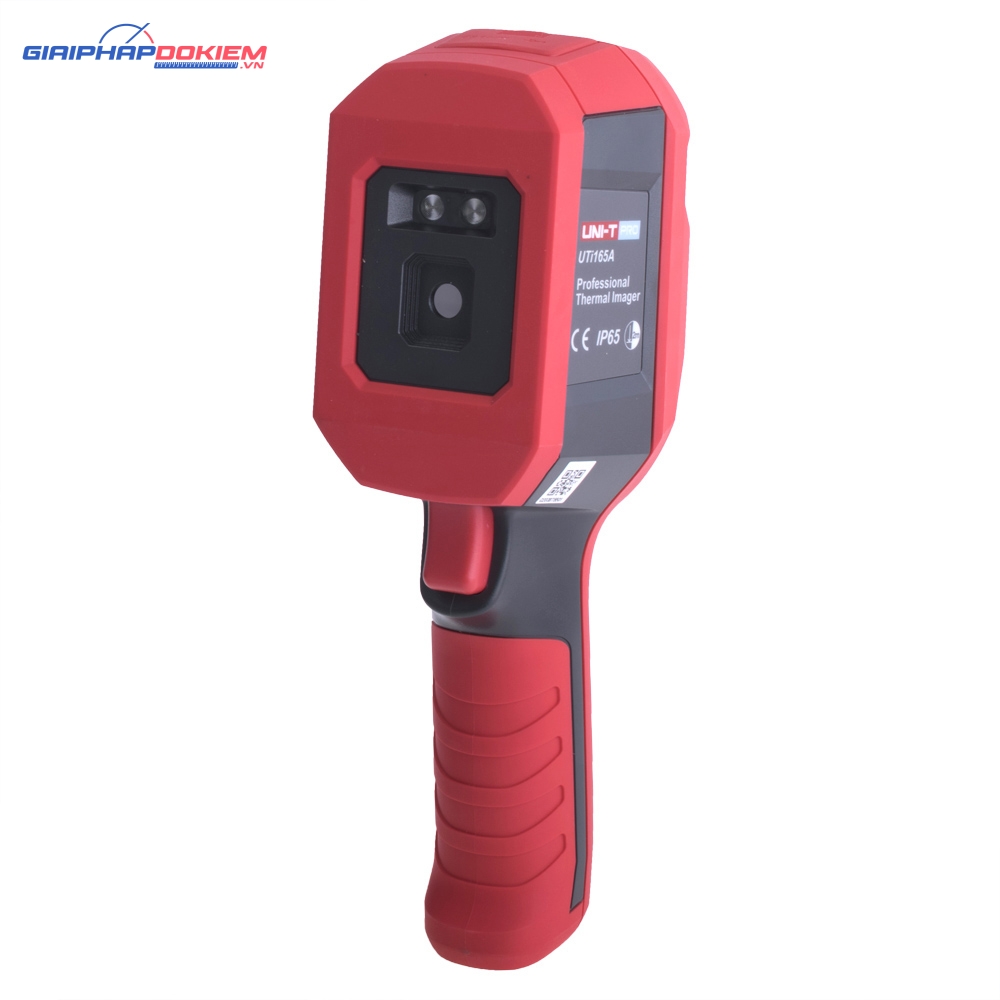

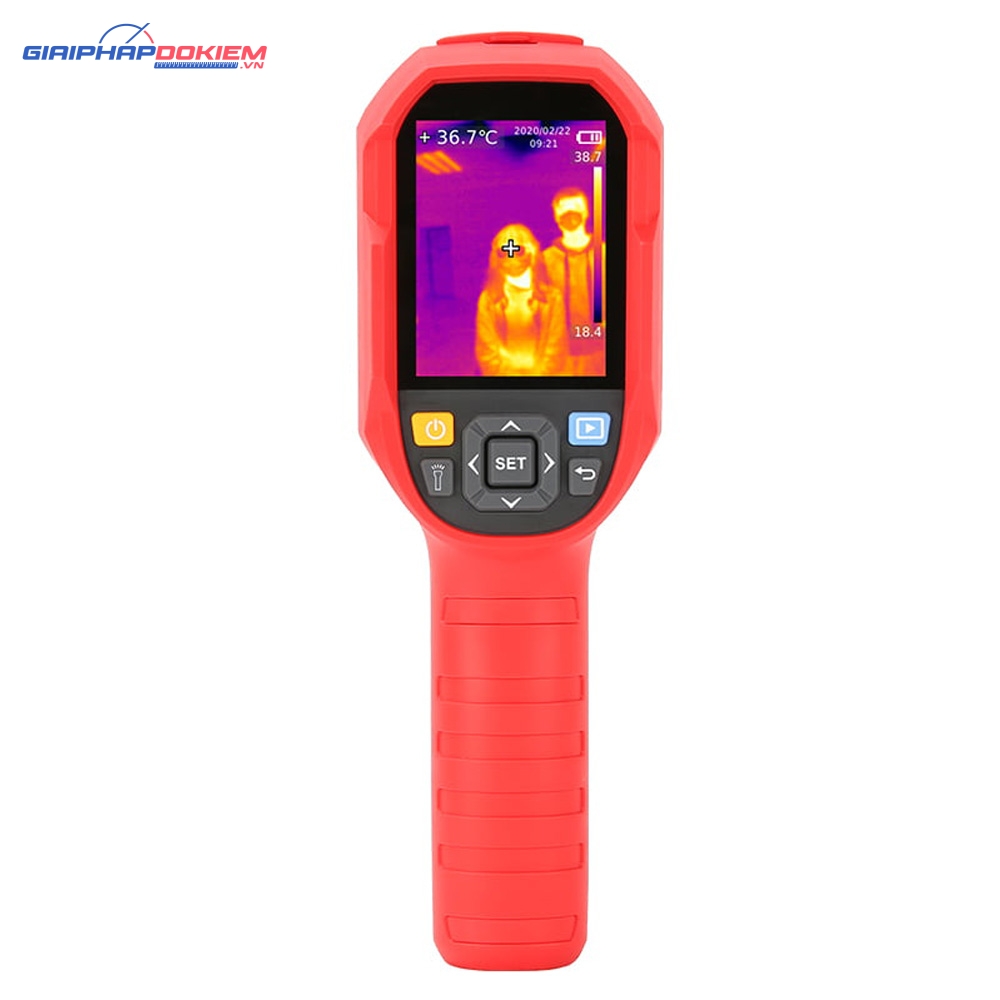

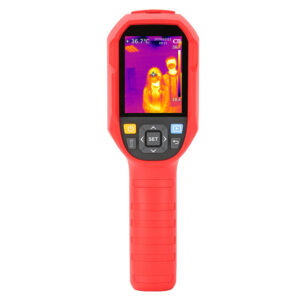

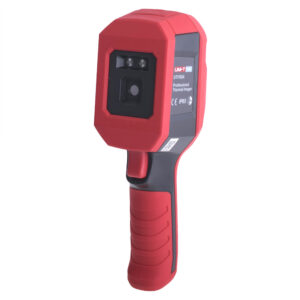

UTi165A Thermal Imager
These series products are rugged, and ergonomically designed thermal imager with great performance. It adopts a UFPA detector to ensure excellent infrared resolution and a rich variety of palette modes. Some models have the functions of visual light, buzzer alarm, and real-time image transmission, which is convenient for various applications.
● 2.8″ TFT screen
● Infrared resolution: 160 x 120
● Temperature measurement range: -10℃~400℃
● Photograph function with SD card storage
● PC analysis software
● Buzzer/flashlight alarm

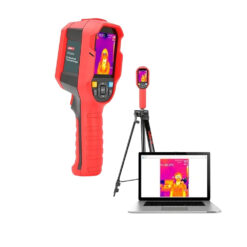

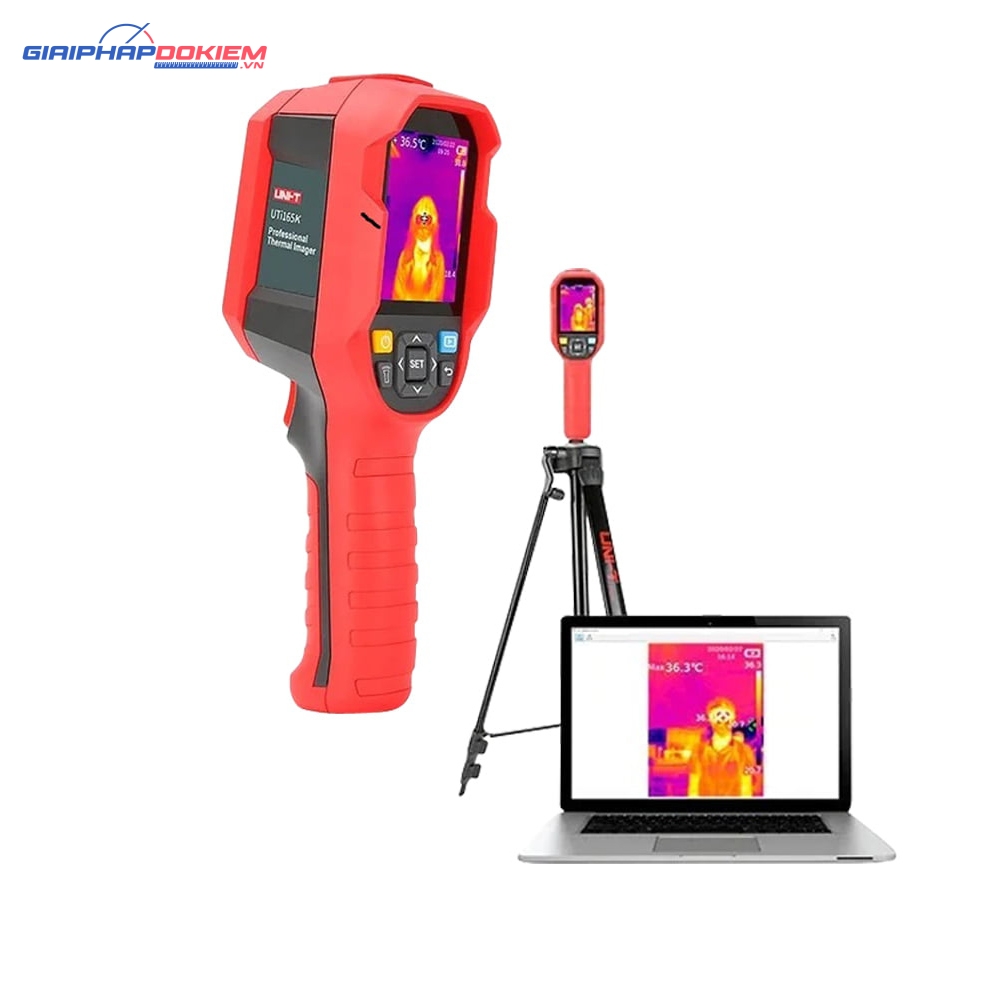

● Real-time image transmission
● Auto capture of Hi/Low temperature
● Flashlight
● 1/4″ tripod mounting hole
● IP65/2m drop proof
| Specifications | |
| Model | UTi165A |
| Certifications | CE/RoHS |
| Temperature range | -10~400℃ |
| IR resolution | 160×120 pixels |
| Field of view (FOV) | 56°x 42° |
| Thermal sensitivity (NETD) | 50mk |
| Spatial resolution (IFOV) | 6.1mrad |
| Frame rate | 9Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Palettes | 5 |
| Emissivity | Adjustable (0.01-1) |
| Focus | Focus free |
| Display modes | Thermal |
| Display | 2.8”LCD |
| ROI (eliminates interference) | |
| General Characteristics | |
| Power | Li-ion battery (3.6V 5000mAh) |
| Product net weight | Around 910g |
| Product net size | 236mm x 75.5 mm x 86mm |
| Standard accessories | Micro SD card, Type-C USB cable, English manual |
| Standard individual packing | Gift box |
| Standard quantity per carton | 10pcs |
| Standard carton measurement | 610mm x 345mm x 305mm |
| Standard carton gross weight | 10.1kg |
