Ngõ Vào Tương Tự Hioki MR8901

Name: Ngõ Vào Tương Tự Hioki MR8901 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: MR8901
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: MR8901 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: MR8875

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

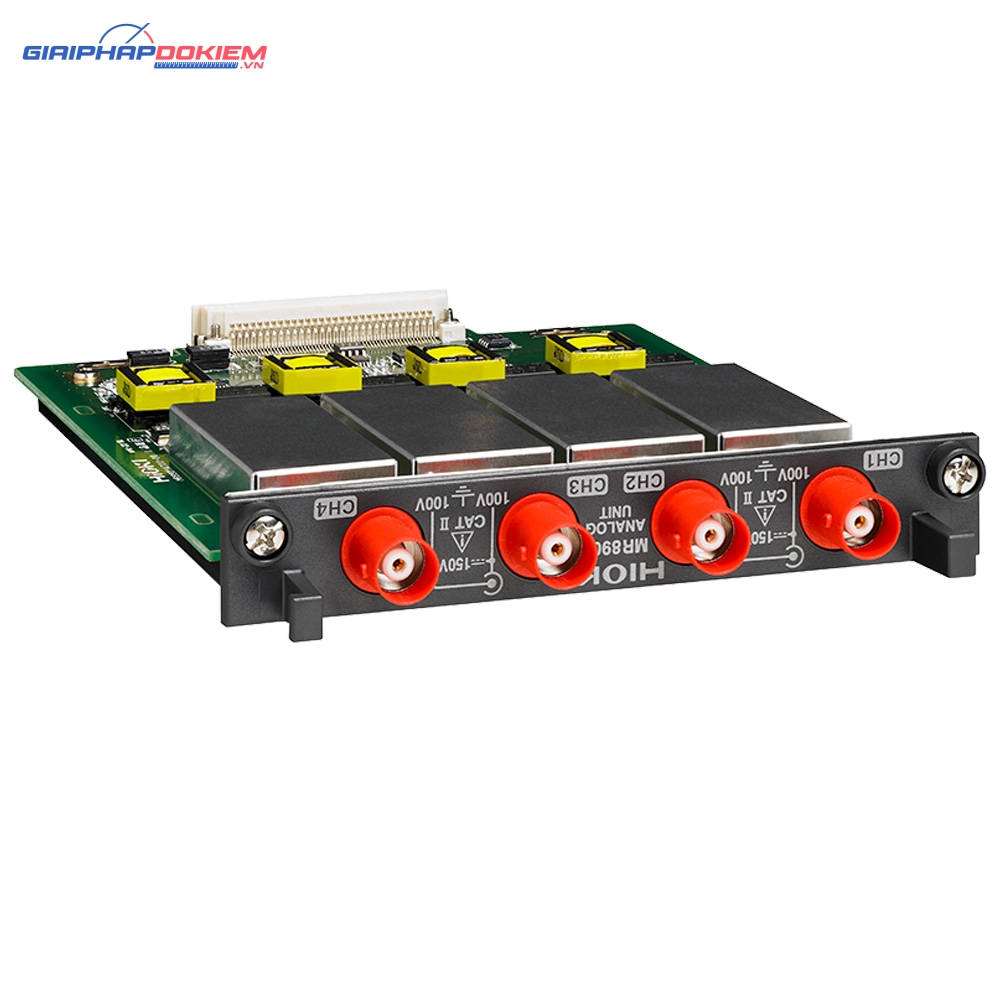

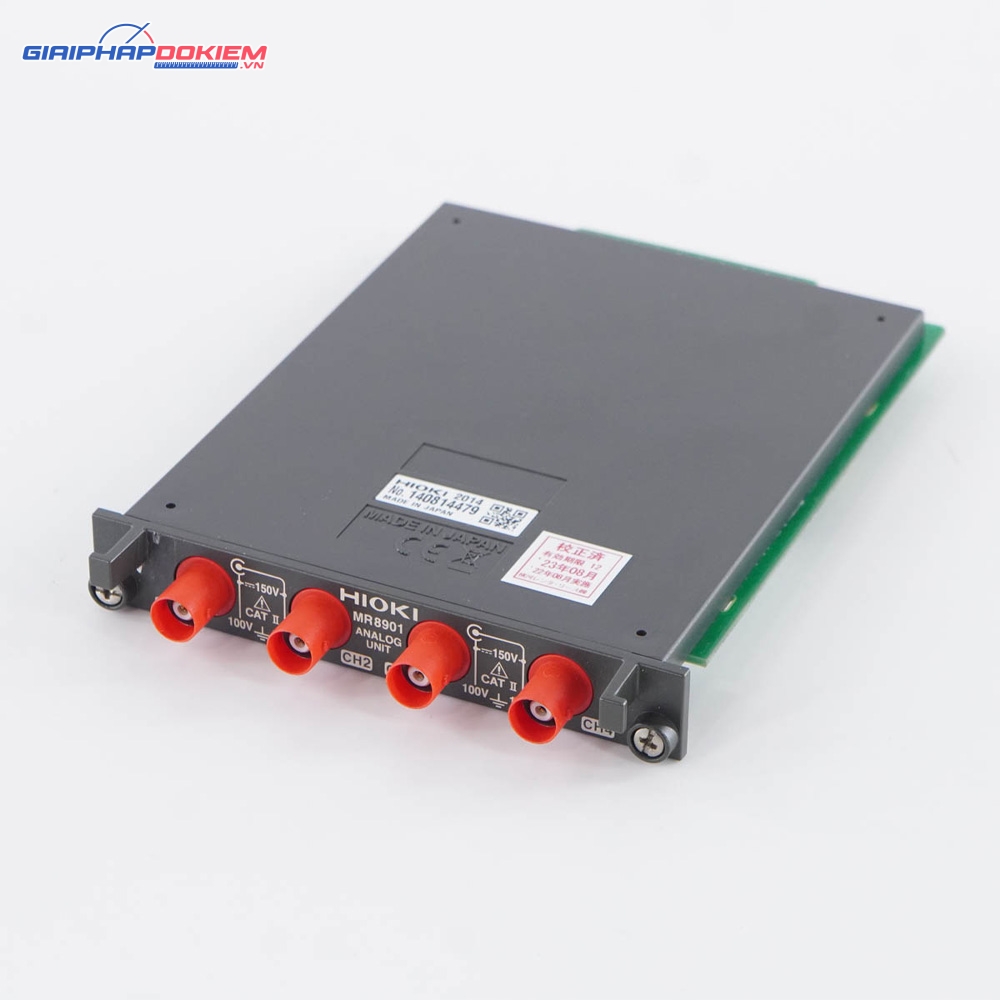

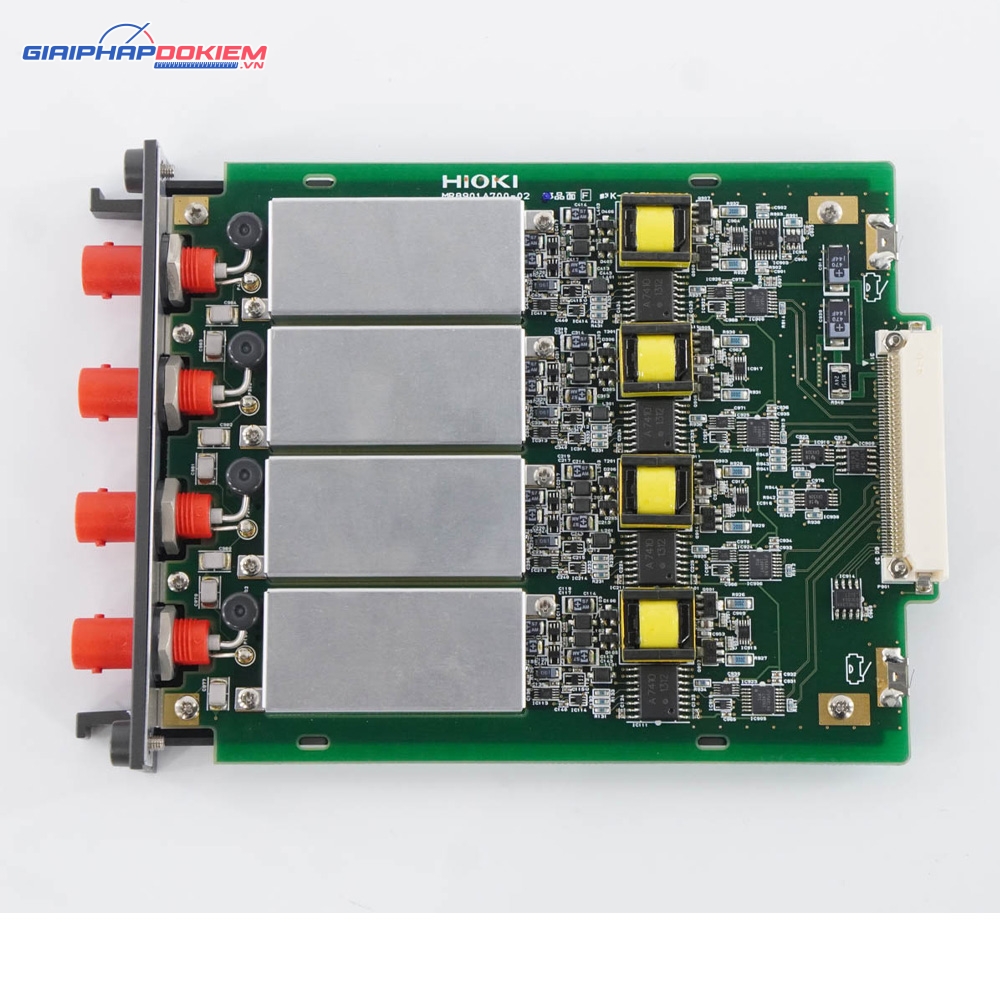

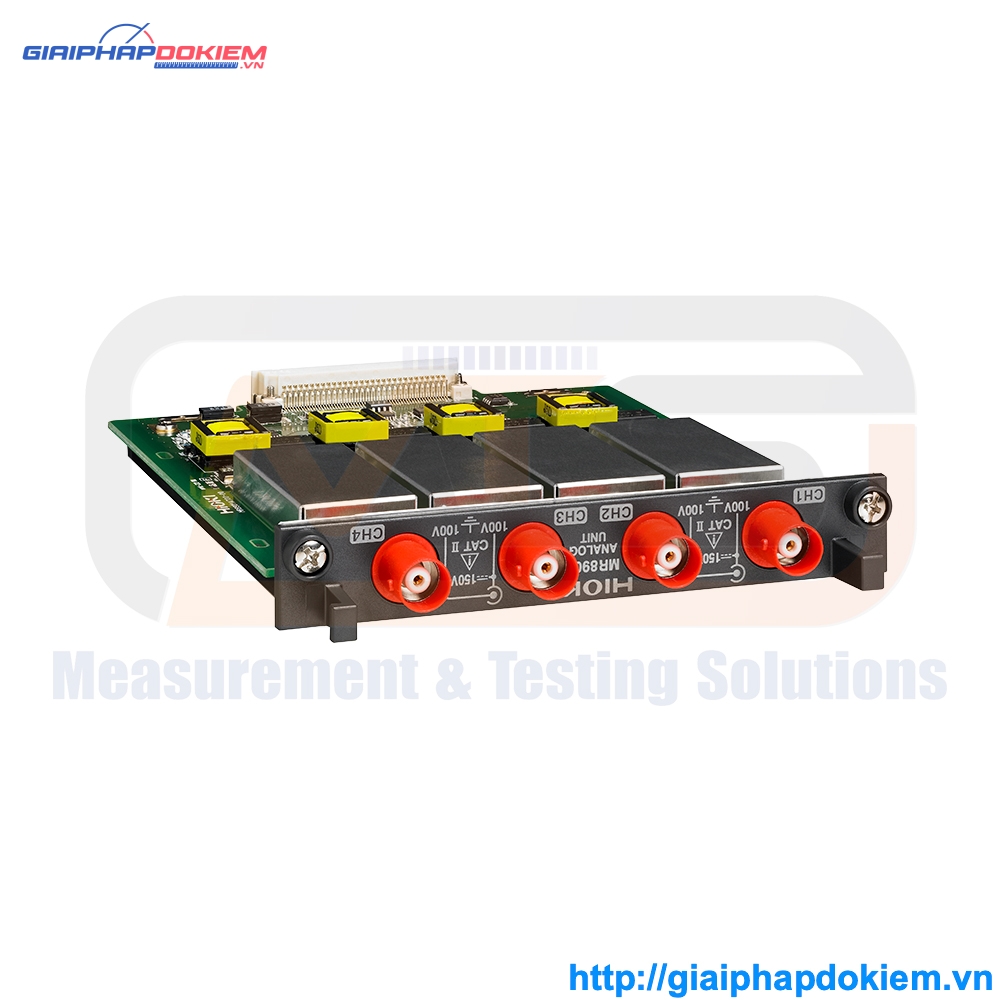

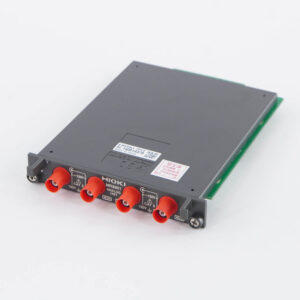

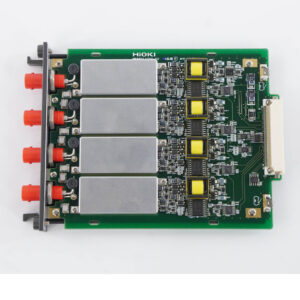

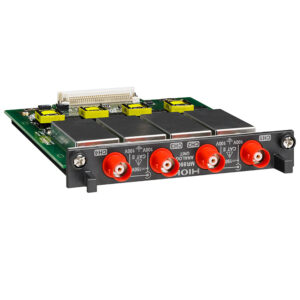

ANALOG UNIT HIOKI MR8901

Instantly measure waveforms by 16 bit resolution, isolated input

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Functions	No. of channels: 4, for voltage measurement
Input connectors	Isolated BNC connector (input resistance 1 MΩ, input capacitance 10 pF) Max. rated voltage to earth: 100 V AC, DC (with input isolated from the main unit, the max. voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range	5 mV to 10 V/div, 11 ranges, full scale: 20 div * AC voltage can be measured/displayed: up to 140 V rms at ×1/2 amplitude compression, but limited to 100 V rms according as max. rated voltage to earth
Low-pass filter	Low-pass filter: 5/50/500 Hz, 5 kHz, OFF
Resolution	1/1250 of measurement range (using 16-bit A/D converter)
Highest sampling rate	500 kS/s (simultaneous sampling across 4 channels)
Accuracy	±0.5 % of full scale (with filter 5 Hz, Zero position accuracy included)
Frequency characteristics	DC to 100 kHz -3 dB
Input coupling	DC/GND
Max. allowable input	150 V DC (the max. voltage that can be applied across input pins without damage)
Dimensions and mass Hioki MR8901	119.5 mm (4.70 in)W × 18.8 mm (0.74 in) H × 151.5 mm (5.96 in)D, 180 g (6.3 oz)
Accessories	None
