Giaiphapdokiem.vn chuyên phân phối thiết bị kiểm tra ắc quy Hioki 3561

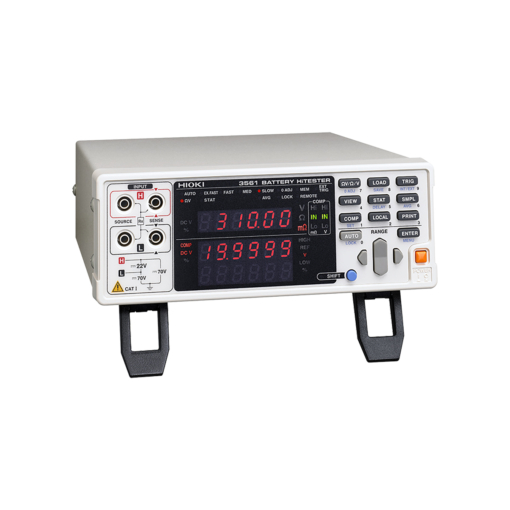

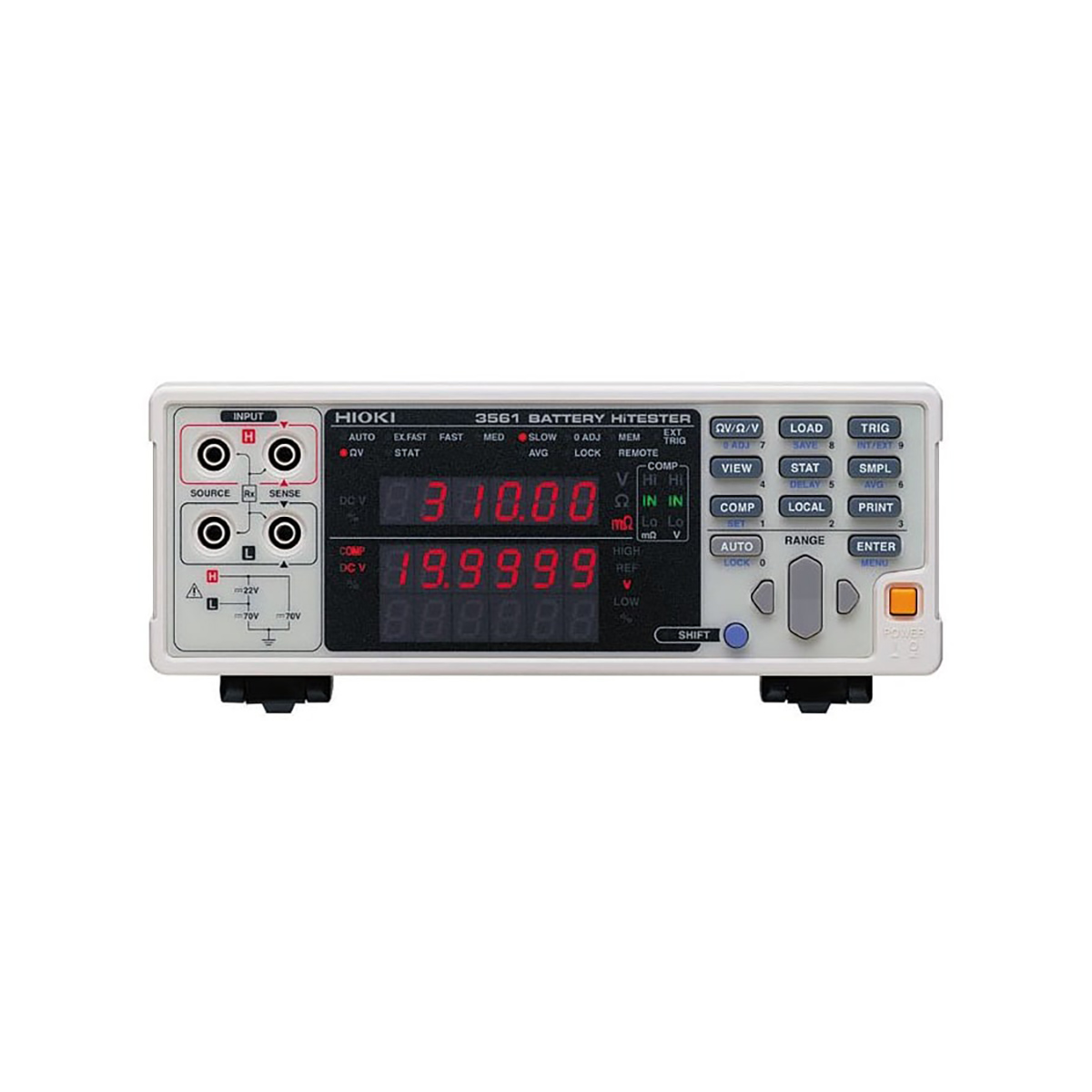

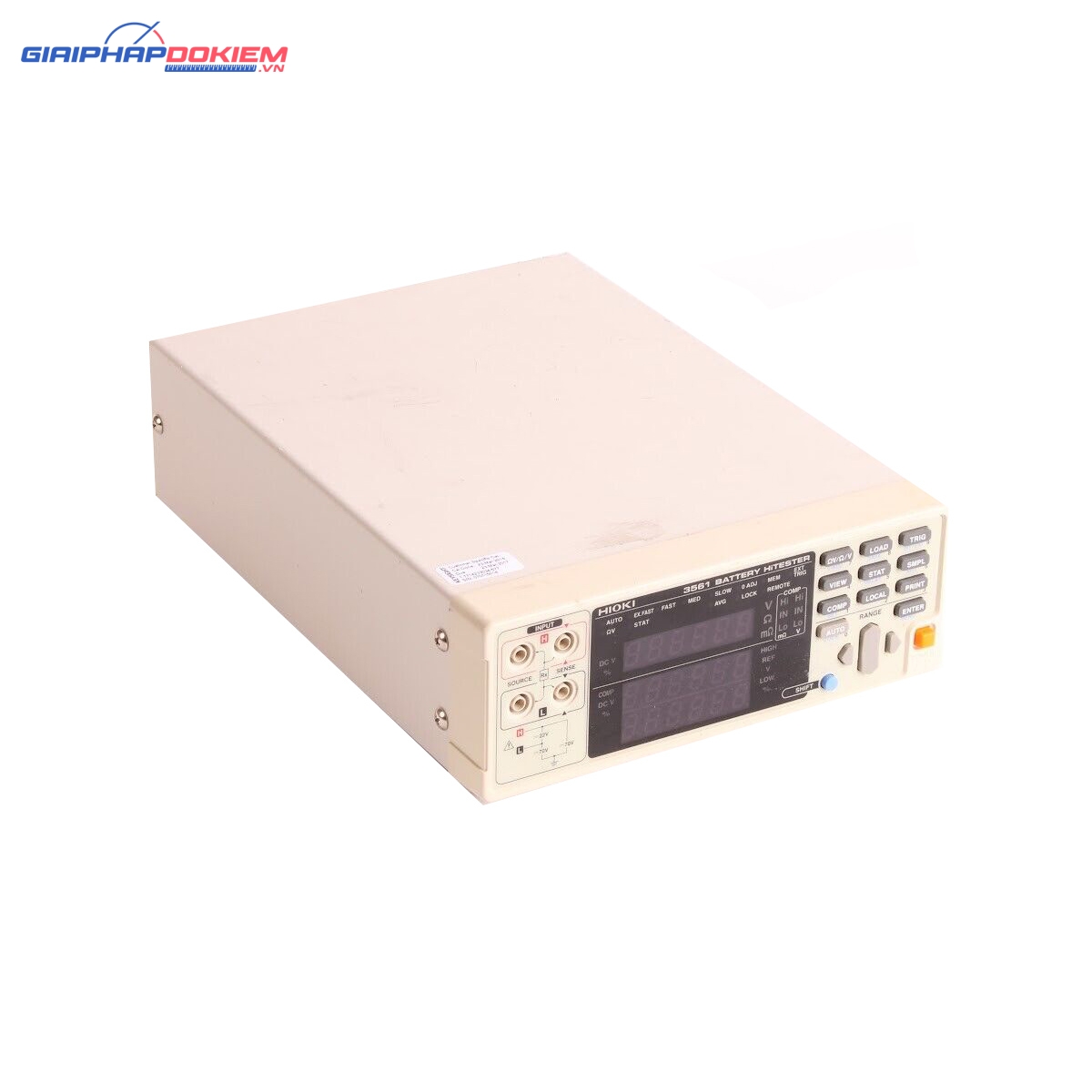

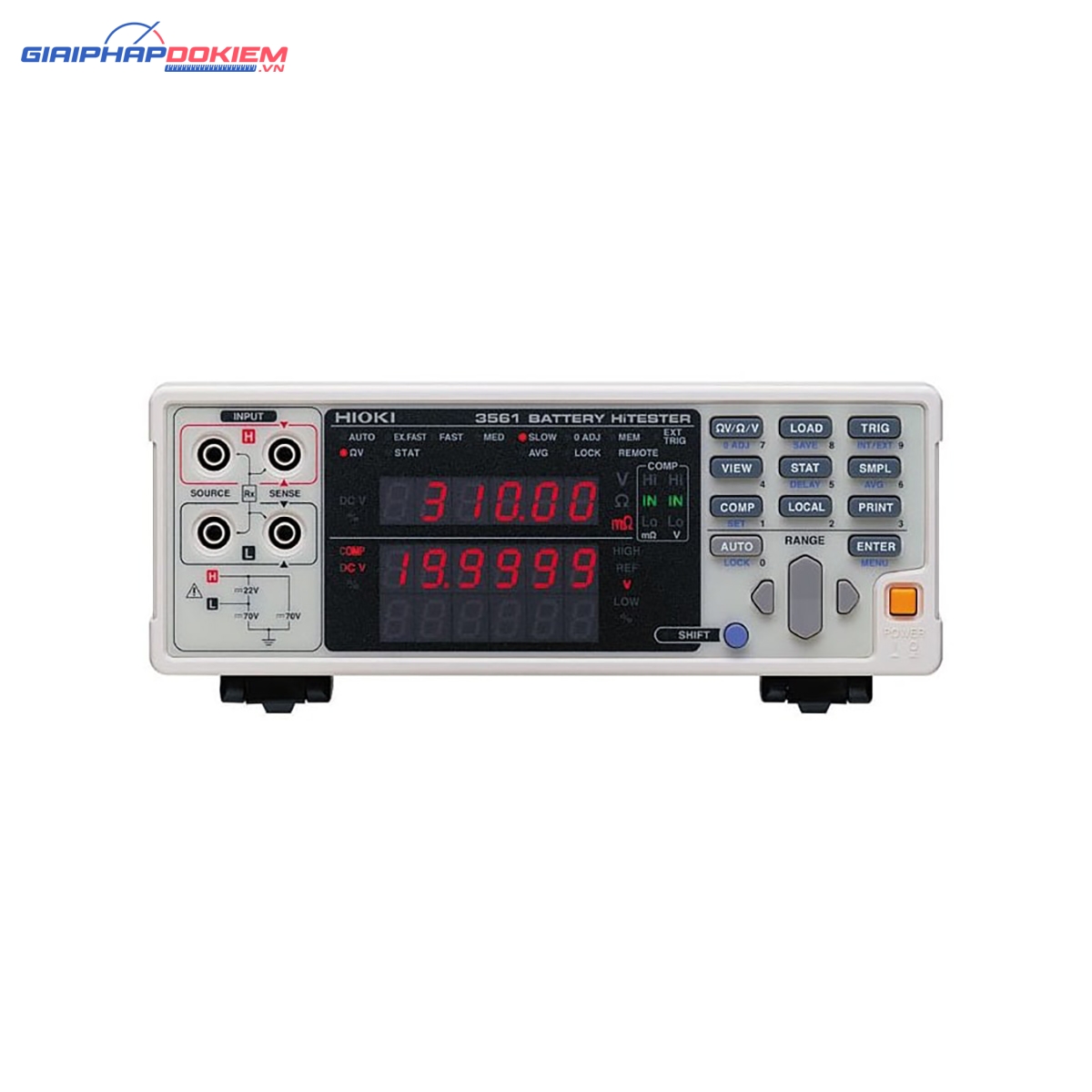

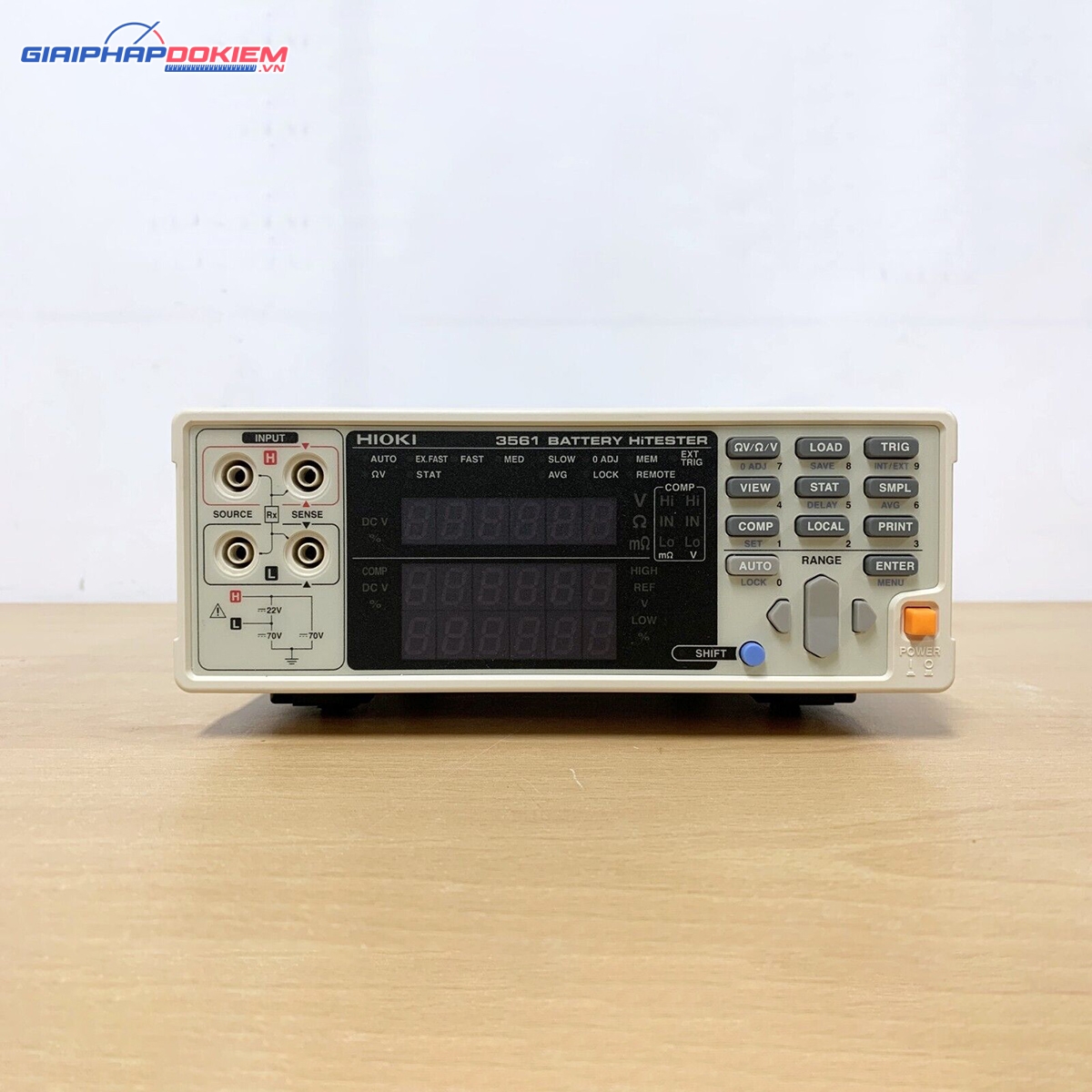

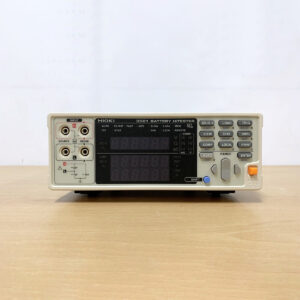

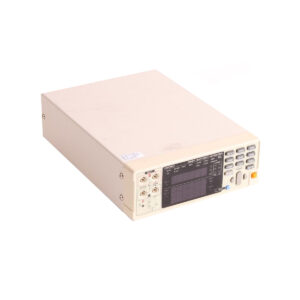

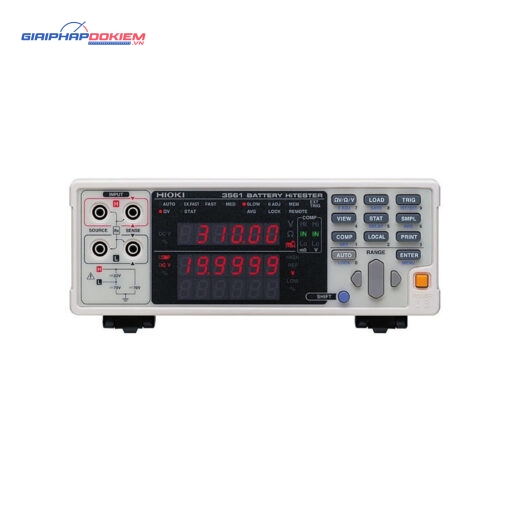

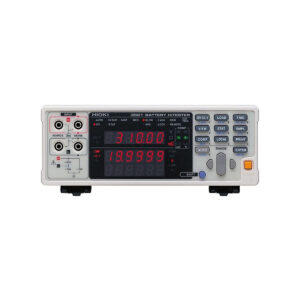

Thiết Bị Đo Nội Trở Ắc Quy Hioki 3561 – Battery Hitester Hioki 3561
Battery Tester for High-Speed Production Line Testing of Small Battery Packs for Mobile Devices

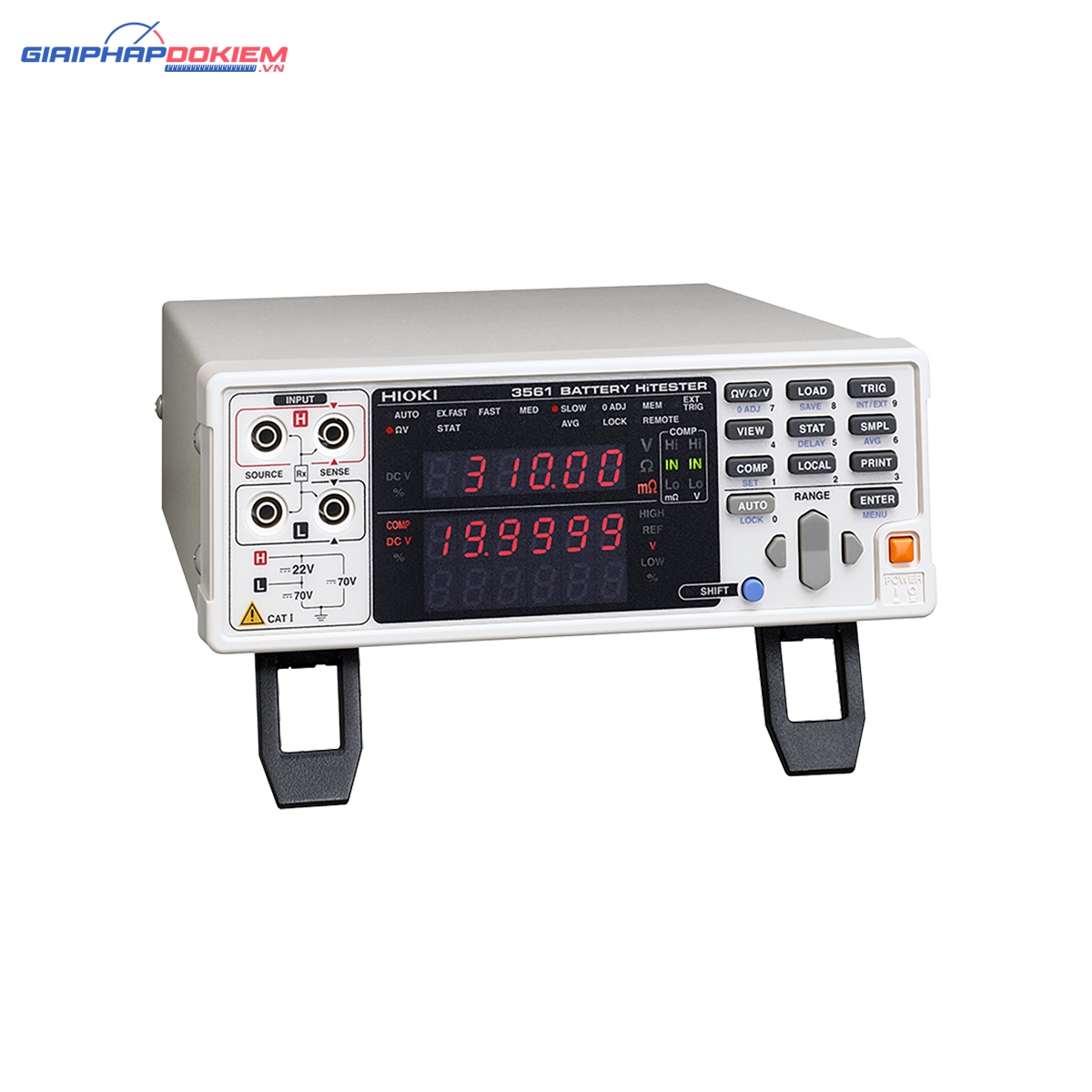

![Thiết Bị Đo Nội Trở Ắc Quy Hioki 3561 2 Thiết Bị Đo Nội Trở Ắc Quy Hioki 3561](https://giaiphapdokiem.vn/wp-content/uploads/2021/07/thiet-bi-do-noi-tro-ac-quy-hioki-3561-3.jpg)
Model No. (Order Code)
3561 | |
---|---|
3561-01 | Built in GP-IB interface |
Đặc tính kỹ thuật cơ bản của Hioki 3561
Độ chính xác đảm bảo trong 1 năm, Thời gian đảm bảo độ chính xác sau hiệu chỉnh thực hiện bởi Hioki: 1 năm
Max. applied measurement voltage | ±22 V DC ±60 V DC maximum rated voltage above ground | |||||
---|---|---|---|---|---|---|
Resistance measurement ranges | 300 mΩ (max. display 310.00 mΩ, resolution 10 μΩ) to 3 Ω (max. display 3.1000 Ω, resolution 100 μΩ), 2 ranges Accuracy: ±0.5 % rdg. ±5 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM) Testing source frequency: 1 kHz ±0.2 Hz, testing current: 10 mA (300 mΩ range), 1 mA (3 Ω range) Open terminal Voltage: 7 V peak | |||||
Voltage measurement ranges | DC 20 V, resolution 0.1 mV, Accuracy: ±0.01 % rdg. ±3 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM) | |||||
Display | 31000 full digits (resistance), 199999 full digits (voltage), LED | |||||
Sampling rate | Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.) | |||||
Measurement time | Response time + sampling rate, approx. 3 ms for measurements (Response time depends on reference values and the measurement object.) | |||||
Comparator functions | Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.) | |||||
Interfaces | External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only) | |||||
Power supply | 100 to 240 V AC, 50/60 Hz, 30 VA max. | |||||
Dimensions and mass | 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) | |||||
Accessories | Instruction manual × 1, Power cord × 1 |
