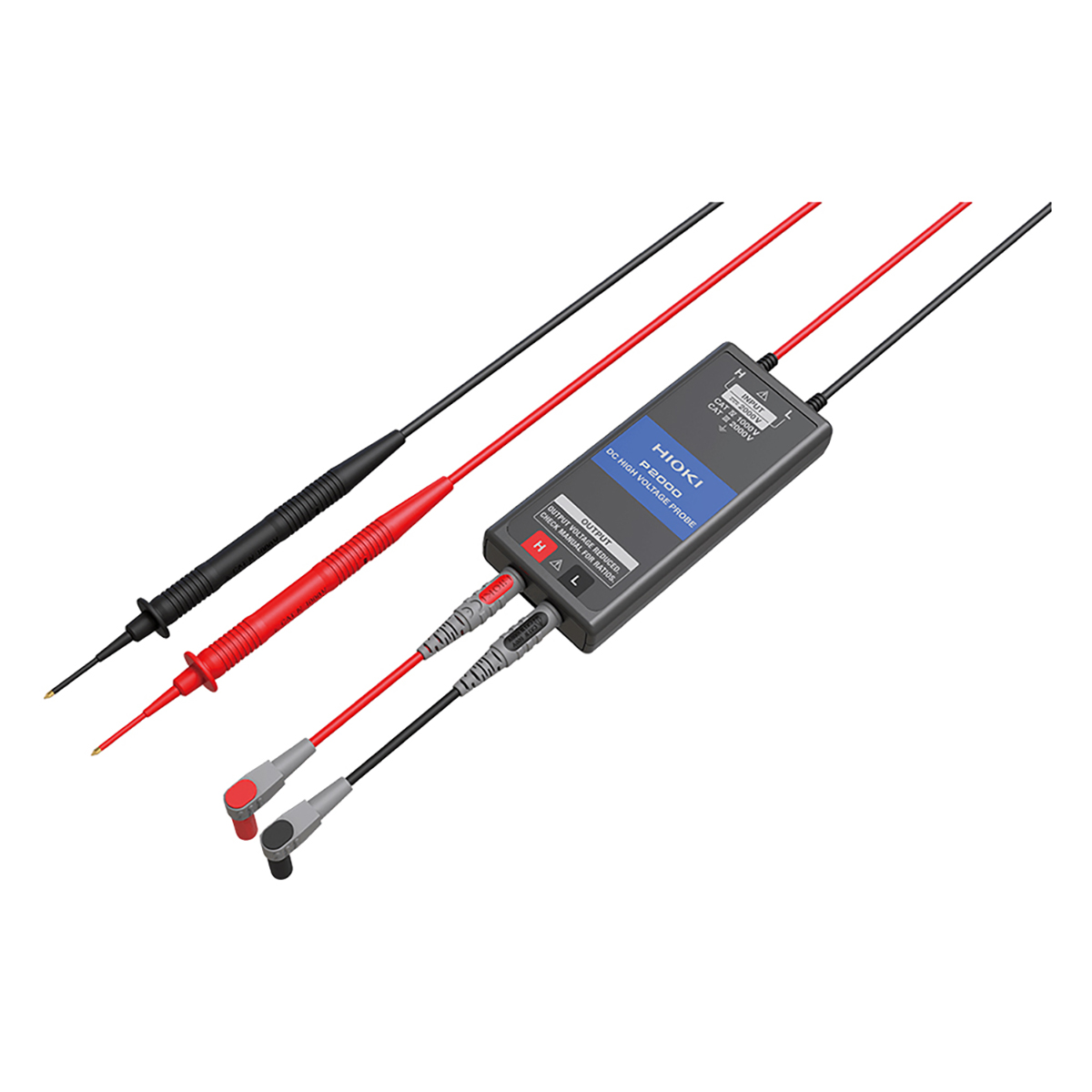

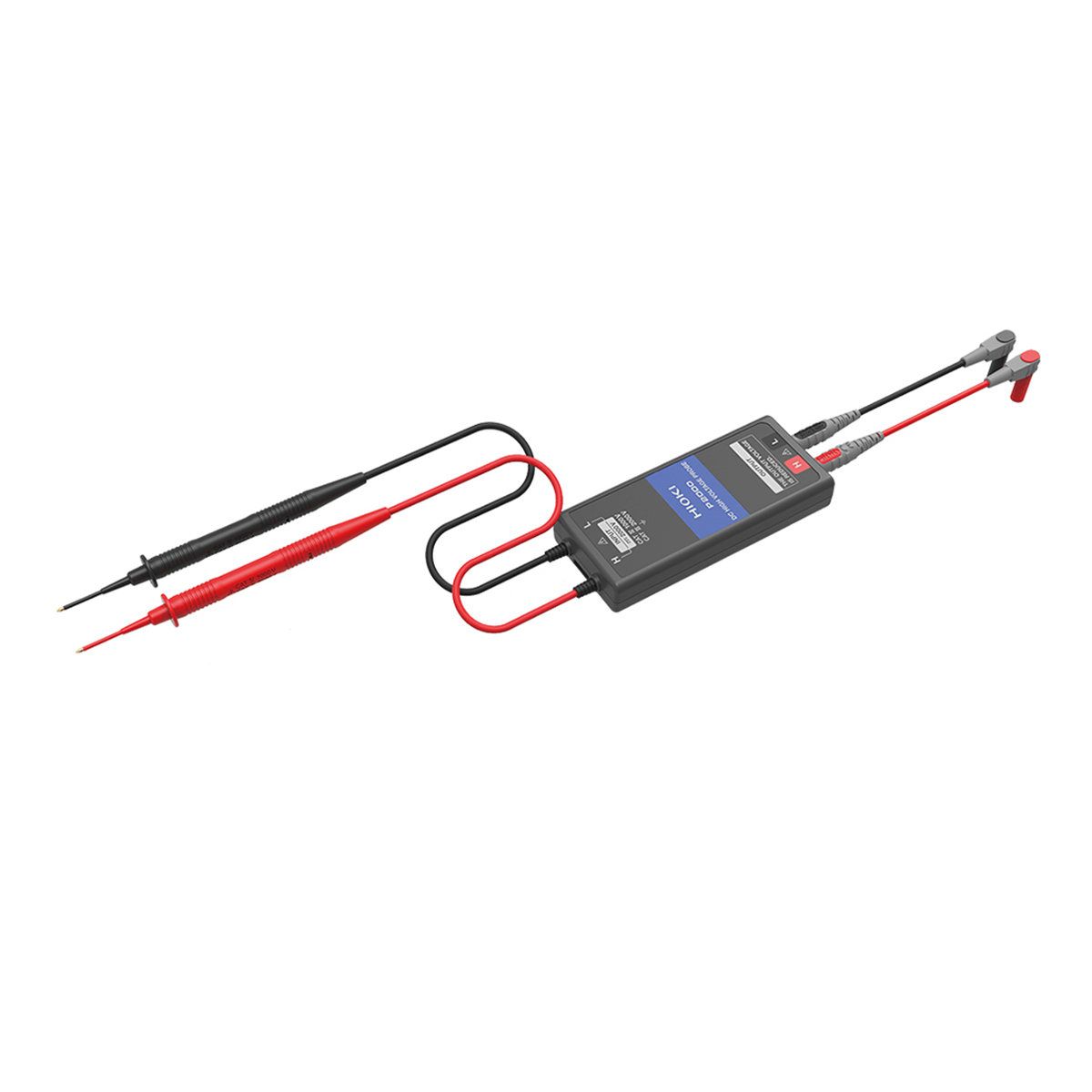

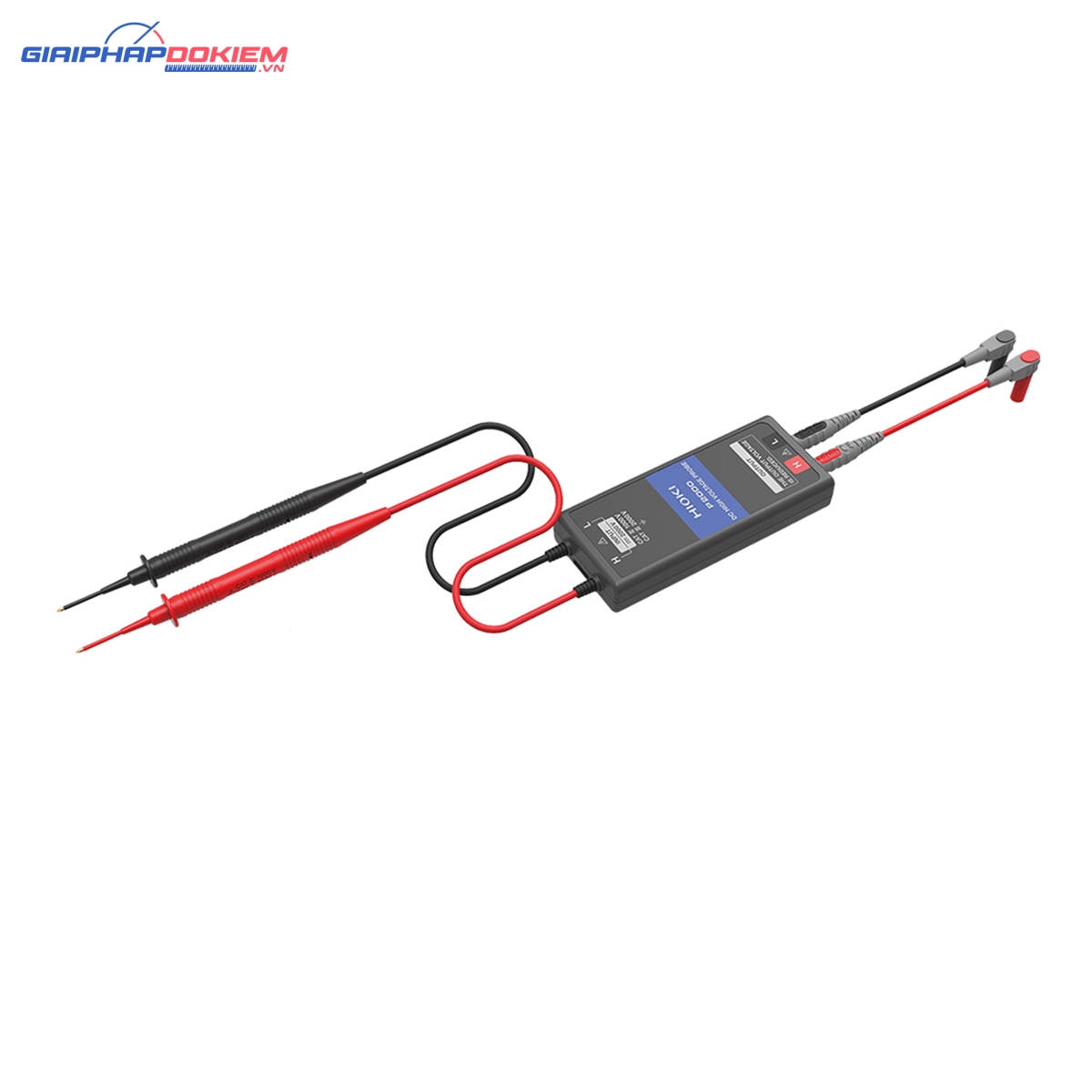

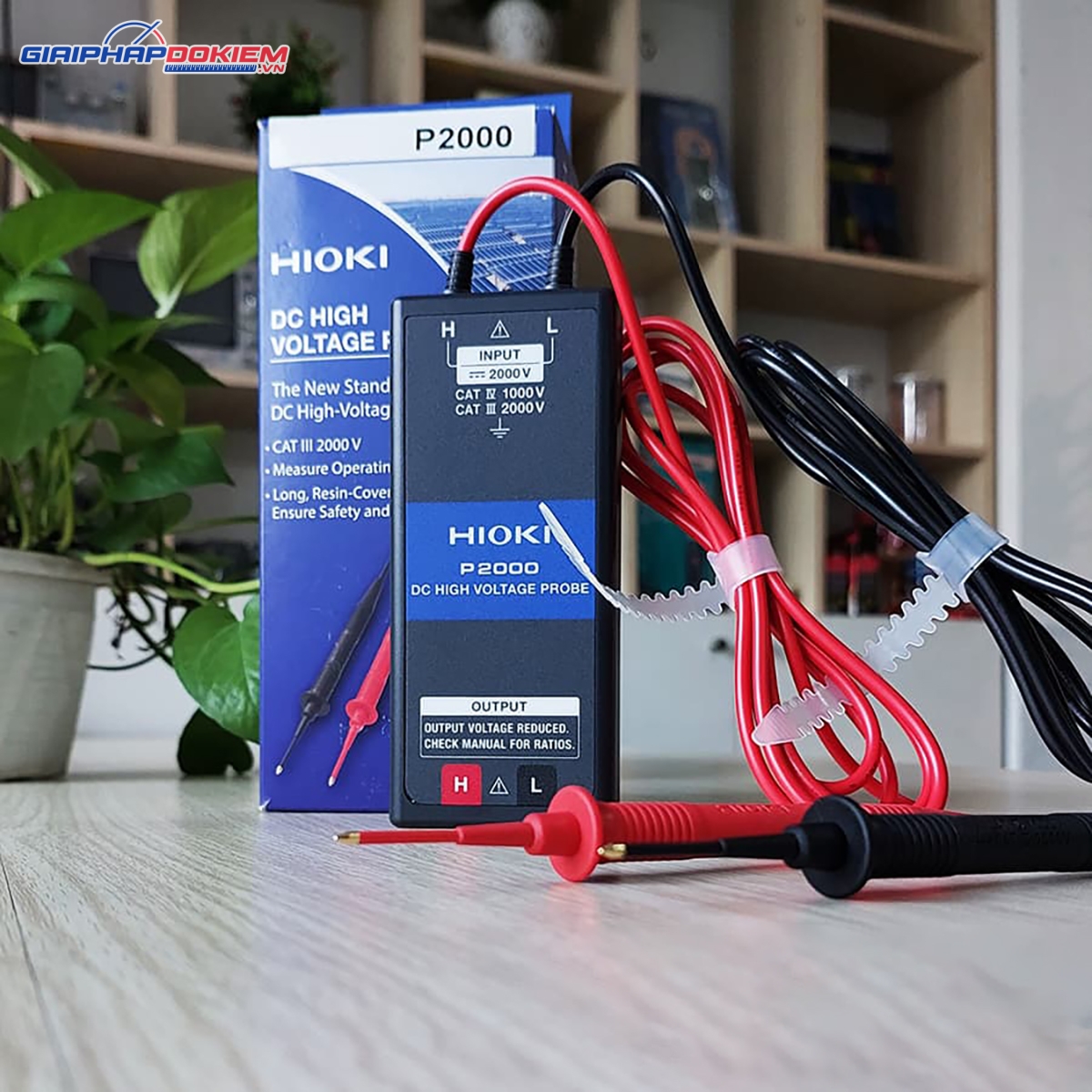

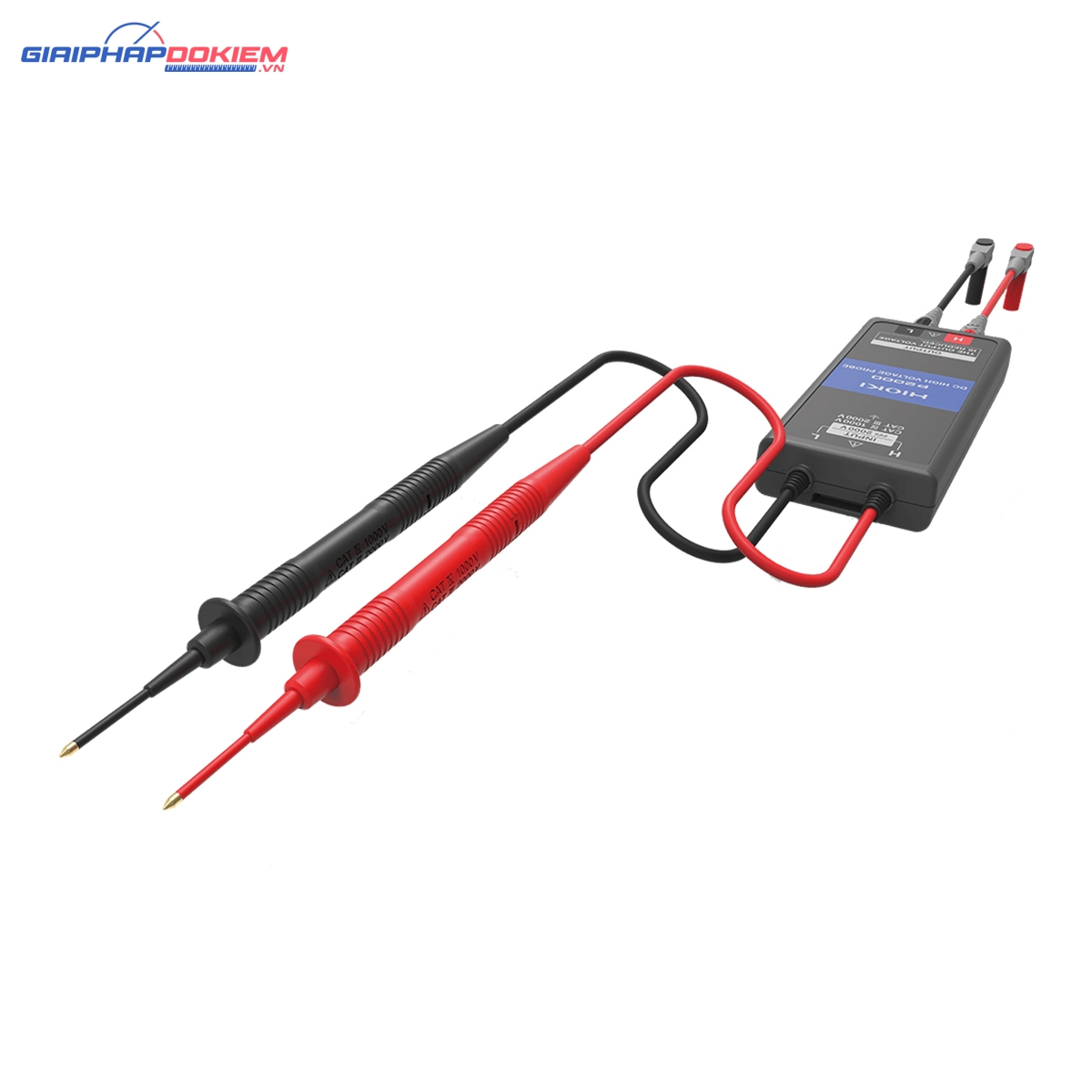

Đầu Đo Điện Áp Cao DC Hioki P2000

Giải Pháp Đo Kiểm là nhà phân phối thiết bị đo lường uy tín hàng đầu Việt Nam, bên cạnh các thiết bị máy móc chúng tôi còn cung cấp phụ kiện hỗ trợ. Đầu đo điện áp cao DC Hioki P2000 là một trong những sản phẩm nổi bật của công ty. Sau đây mời Quý khách hàng tìm hiểu thông tin chi tiết về sản phẩm.

Đầu Đo Điện Áp Cao DC Hioki P2000 – DC HIGH VOLTAGE PROBE P2000

Safe Inspection of Solar Installations with High Voltage

Phụ kiện cho máy: DT4261, CM4141-50, CM4371-50, CM4373-50, CM4375-50, DT4281, DT4282, DT4252, DT4253, DT4255, DT4256

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Maximum input voltage (*1)	DC 2000 V
Maximum rated line-to-ground voltage	1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V
Input resistance	20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open)
Overload protection	2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L)
OUTPUT terminal	4 mm banana terminal
Operating temperature and humidity range	Temperature: -25°C to 65°C (-13°F to 149°F)Humidity: −25°C to 40°C (−13°F to 104°F): 80% RH or less (non-condensing) 40°C to 65°C (104°F to 149°F): Linearly reduces from 80% RH or less at 40°C (104°F) to 25% RH or less at 65°C (149°F) (non-condensing)
Storage temperature and humidity range	-30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing)
Standards	EN 61010
Included accessories P2000	Connection Cable Set L4943 ×1, Strap with buckle ×2, Strap ×1, Carrying Case C0205 ×1, Instruction Manual ×1, Operating Precautions ×1

Accuracy table for compatible instruments

Model	Combined accuracy

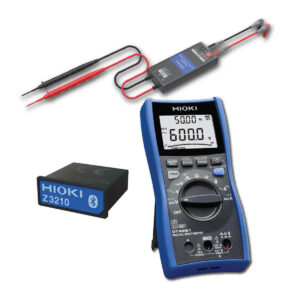

DT4261	Range 600.0 V: Combined accuracy ±0.5% rdg ±0.2 V Range 2000 V: Combined accuracy ±0.5% rdg ±5 V

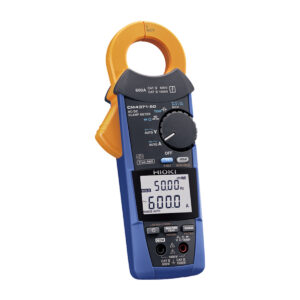

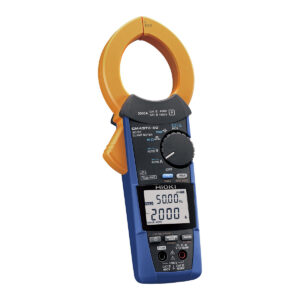

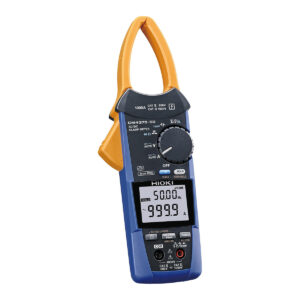

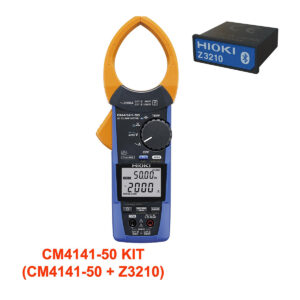

CM4141-50 CM4371-50 CM4373-50 CM4375-50	Range 600.0 V: Combined accuracy ±1.0% rdg ±0.3 V Range 2000 V: Combined accuracy ±1.0% rdg ±3 V

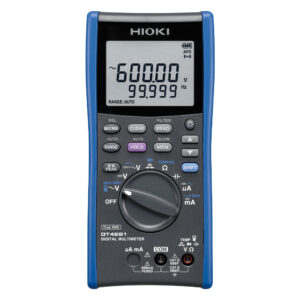

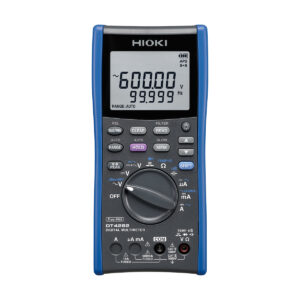

DT4281 DT4282	Range 60.000 V: Combined accuracy ±0.8% rdg ±0.002 V (output rate 1/10) Range 600.00 V: Combined accuracy ±0.8% rdg ±0.02 V (output rate 1/10)

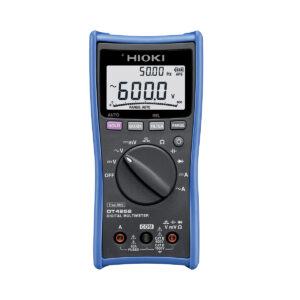

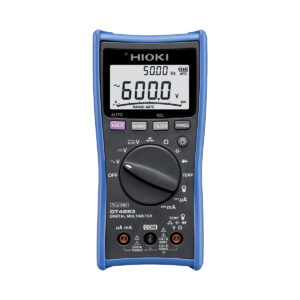

DT4252 DT4253	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.05 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.5 V (output rate 1/10)

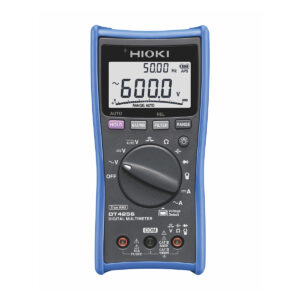

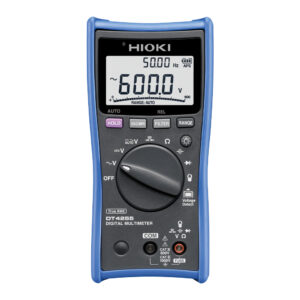

DT4255 DT4256	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.03 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.3 V (output rate 1/10)
