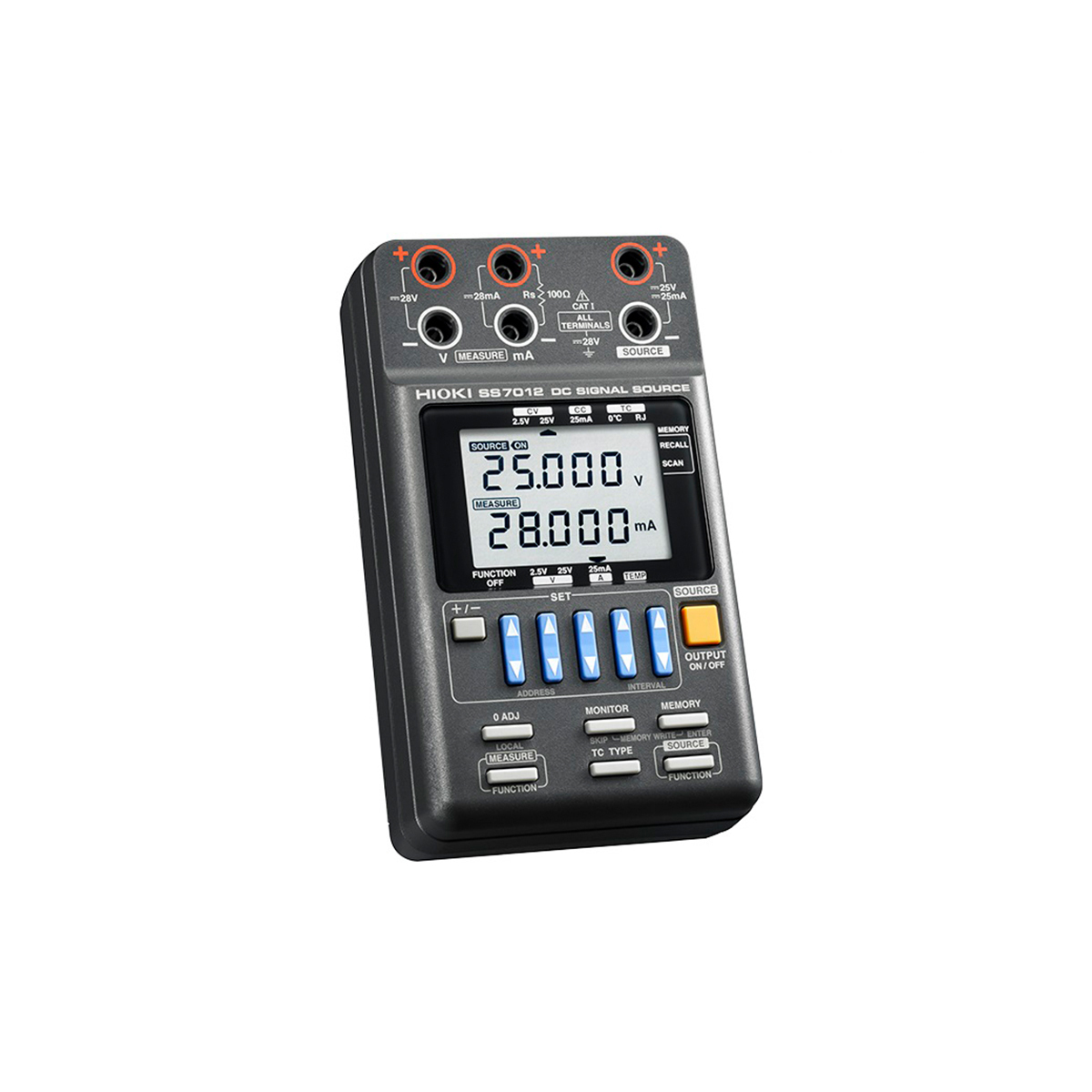

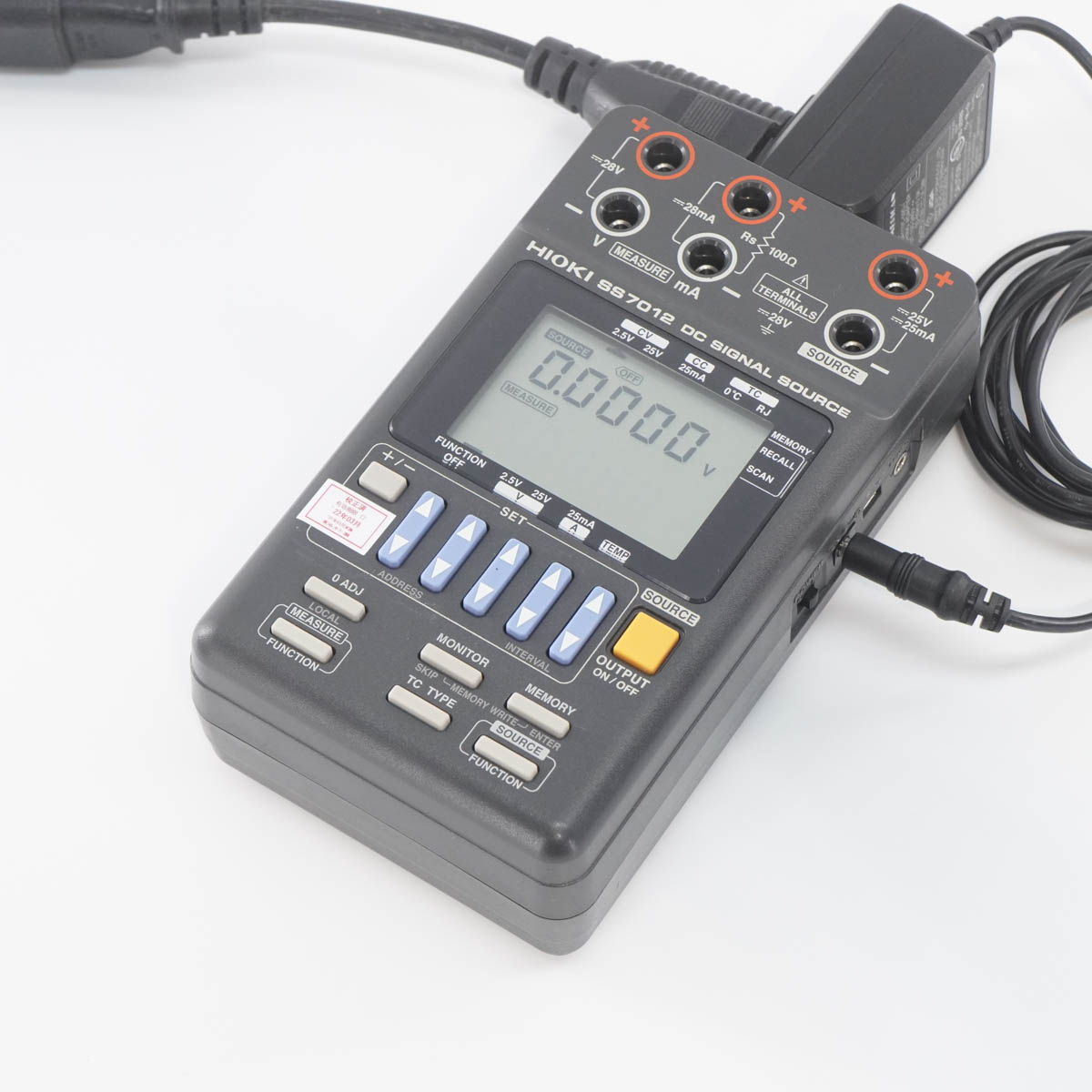

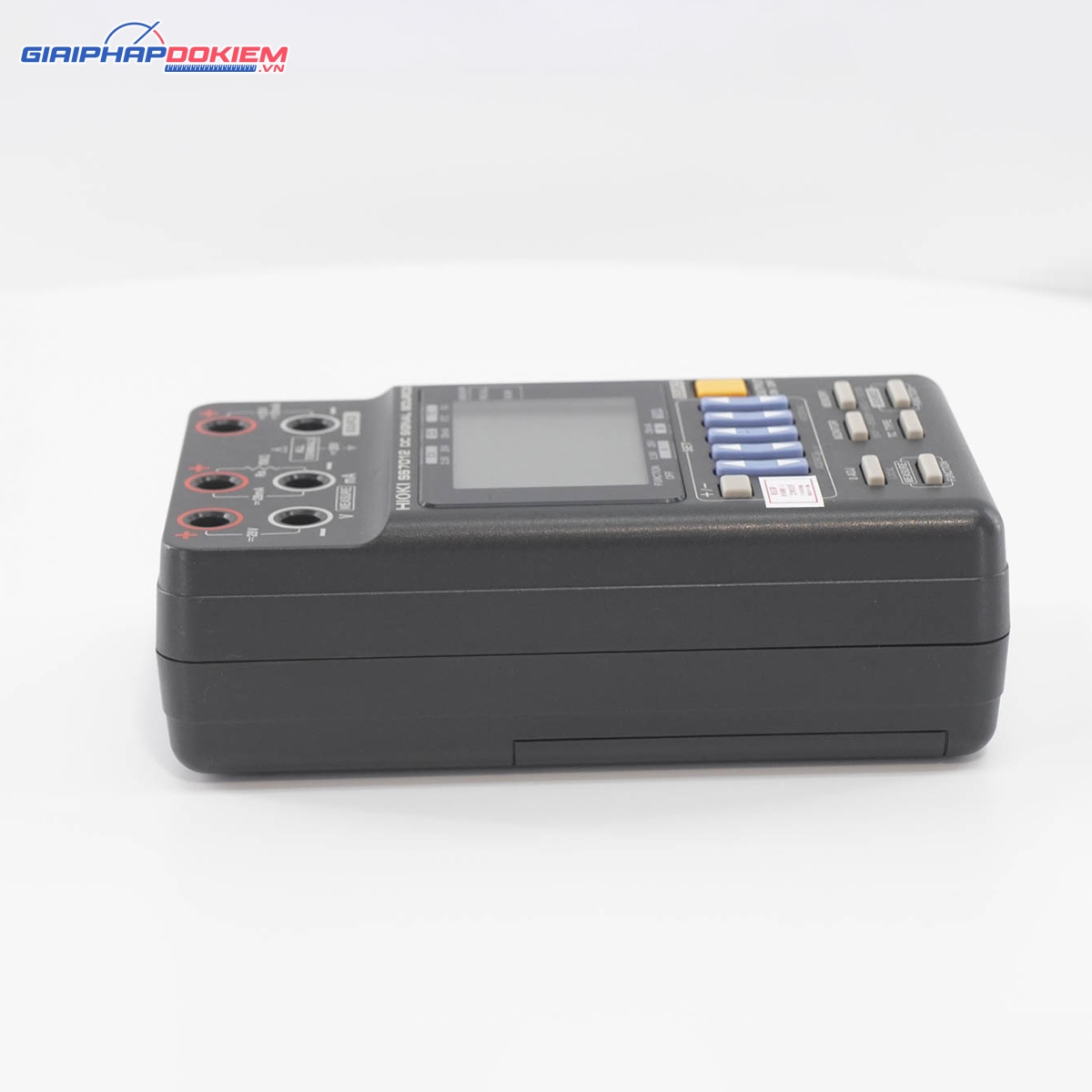

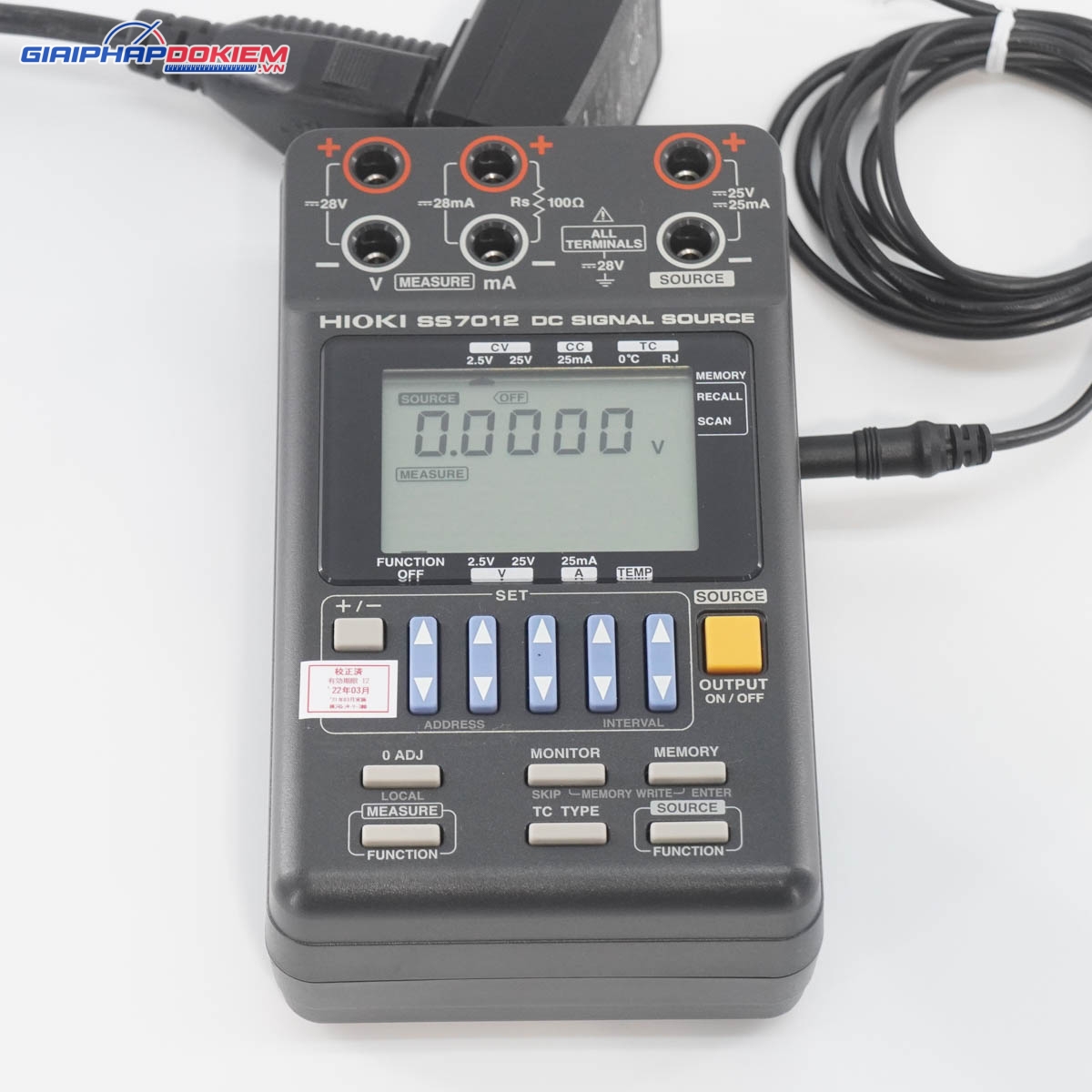

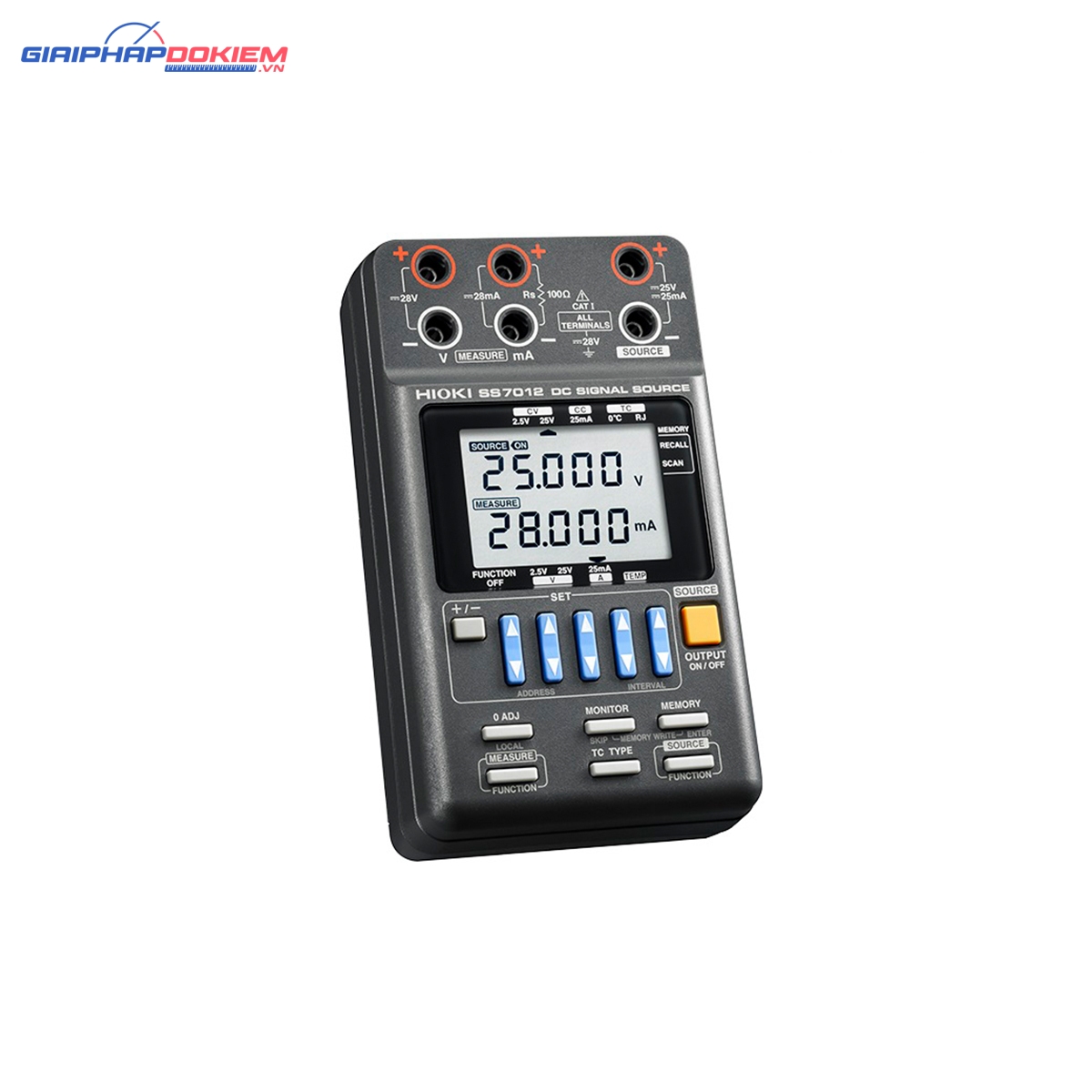

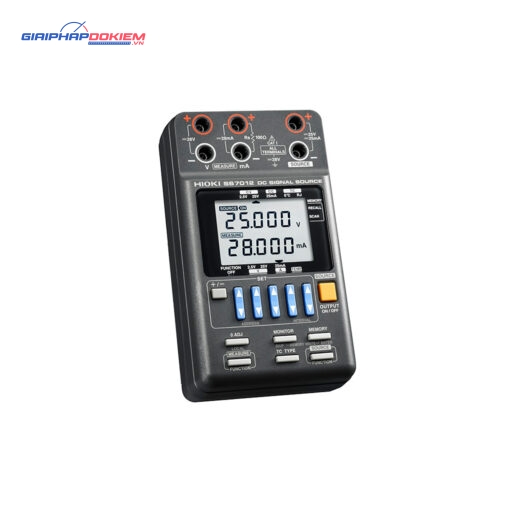

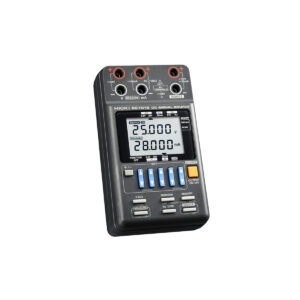

Bộ Phát Nguồn DC Hioki SS7012 – DC Signal Source Hioki SS7012

Đặc tính kỹ thuật cơ bản của Hioki SS7012
Độ chính xác đảm bảo trong 1 năm, thời gian đảm bảo độ chính xác sau hiệu chỉnh thực hiện bởi Hioki: 1 năm
Circuit method | Bipolar sink and source | |||||
---|---|---|---|---|---|---|
Constant voltage | 2.5 V: 0 to ±2.5000 V (±0.03 % of setting ±300 μV, 100 μV resolution) 25 V: 0 to ±25.000 V (±0.03 % of setting ±3 mV, 1 mV resolution) | |||||
Constant current | 25 mA: 0 to ±25.000 mA (±0.03 % of setting ±3 μA, 1 μA resolution) | |||||
Thermoelectric power generation | K: at TC: 0 ˚C, -174.0 to 1372.0 ˚C (±0.05 % of setting ±0.5 ˚C, 0.1 ˚C resolution), Other types: E, J, T, R, S, B, N selectable | |||||
Thermoelectric power generation | K: at TC: RJ, -174.0 to 1372.0 ˚C (±0.05 % of setting ±1.0 ˚C, 0.1 ˚C resolution), Other types: E, J, T, R, S, B, N selectable | |||||
Standard resistance (Rs) | 100 Ω (±0.2 Ω) | |||||
Automatic generation | Number of memory steps: 20, Interval time: 1 to 99 sec (at CV, CC, TC mode) |
[Measurement functions]
Voltage | 2.5 V: 0 to ±2.8000 V (±0.03 % rdg. ±300 μV, 100 μV resolution, 1 MΩ input resistance) 25 V: 0 to ±28.000 V (±0.03 % rdg. ±3 mV, 1 mV resolution, 1 MΩ input resistance) | |||||
---|---|---|---|---|---|---|
Current | 25 mA: 0 to ±28.000 mA (±0.03 % rdg. ±3 μA, 1 μA resolution, smaller than 30 Ω input resistance) | |||||

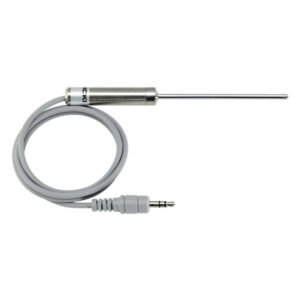

Temperature | -25.0 to 80.0 ˚C (±0.5 ˚C at 23 ±5 ˚C, 0.1 ˚C resolution, use with the RJ sensor 9184) | |||||
Sampling rate | Approx. 1.67 times/sec |
[General functions]

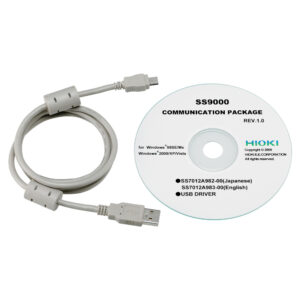

Additional functions | Zero adjustment, Overflow display, USB communication, Monitor | |||||
---|---|---|---|---|---|---|

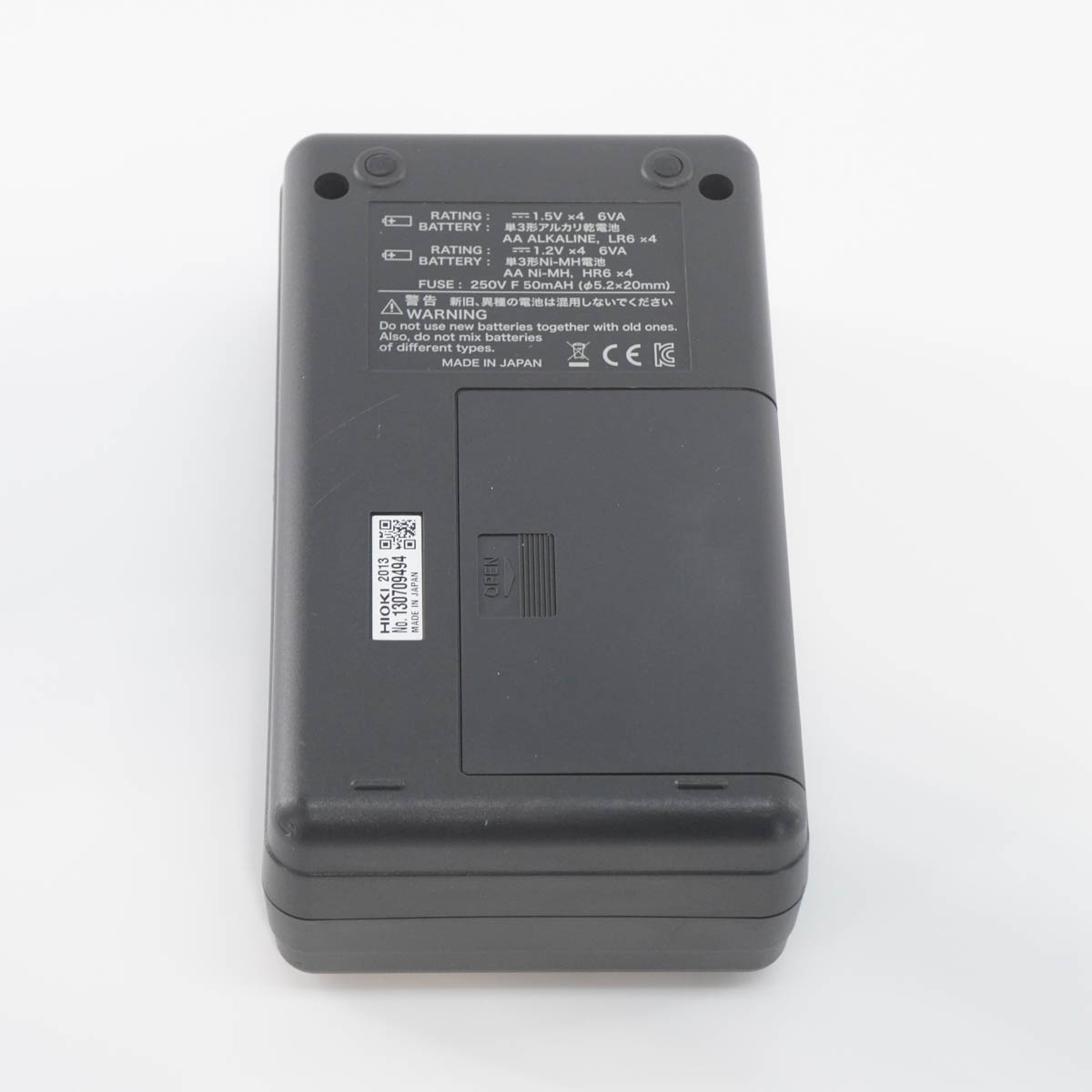

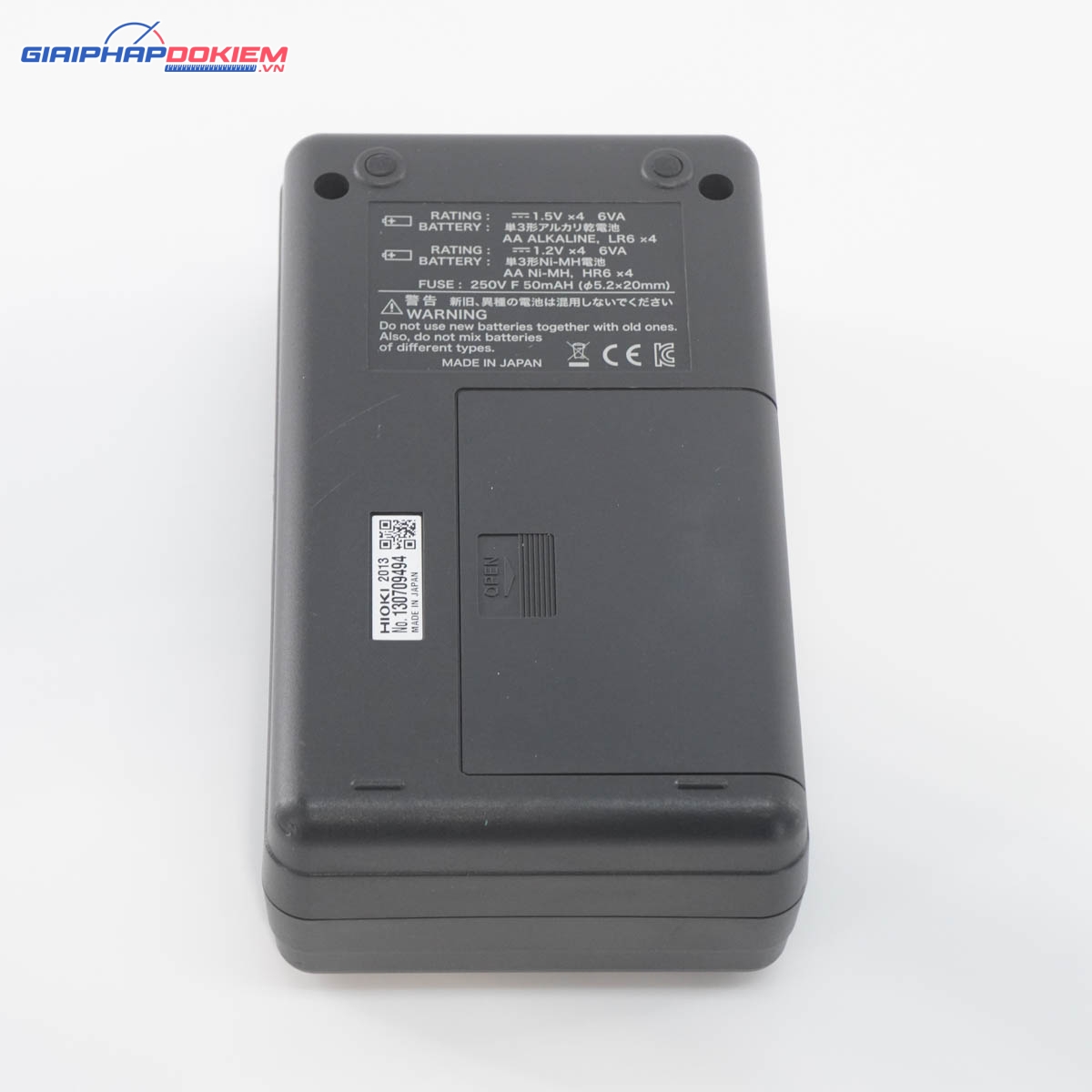

Power supply | AC adapter 9445-02/-03 (100 to 240 V AC 50/60 Hz, 9 VA), Ni-MH battery HR6 × 4, 6 VA, (fully charged 2500 mAh Ni-MH batteries: 170 minutes continuous use), or LR6 (AA) alkaline battery × 4, 6 VA | |||||
Dimensions and mass | 104 mm (4.09 in) W × 180 mm (7.09 in) H × 58 mm (2.28 in) D, 660 g (23.3 oz) (including LR6 × 4 batteries) | |||||

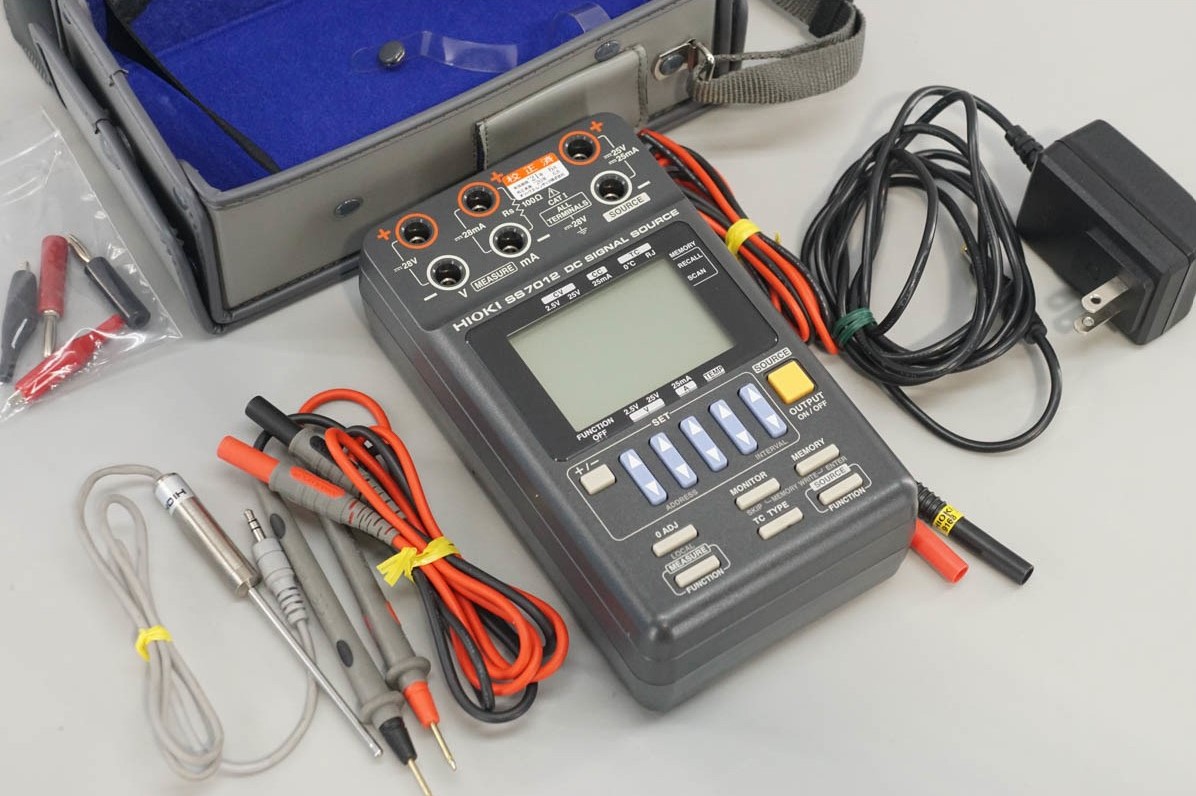

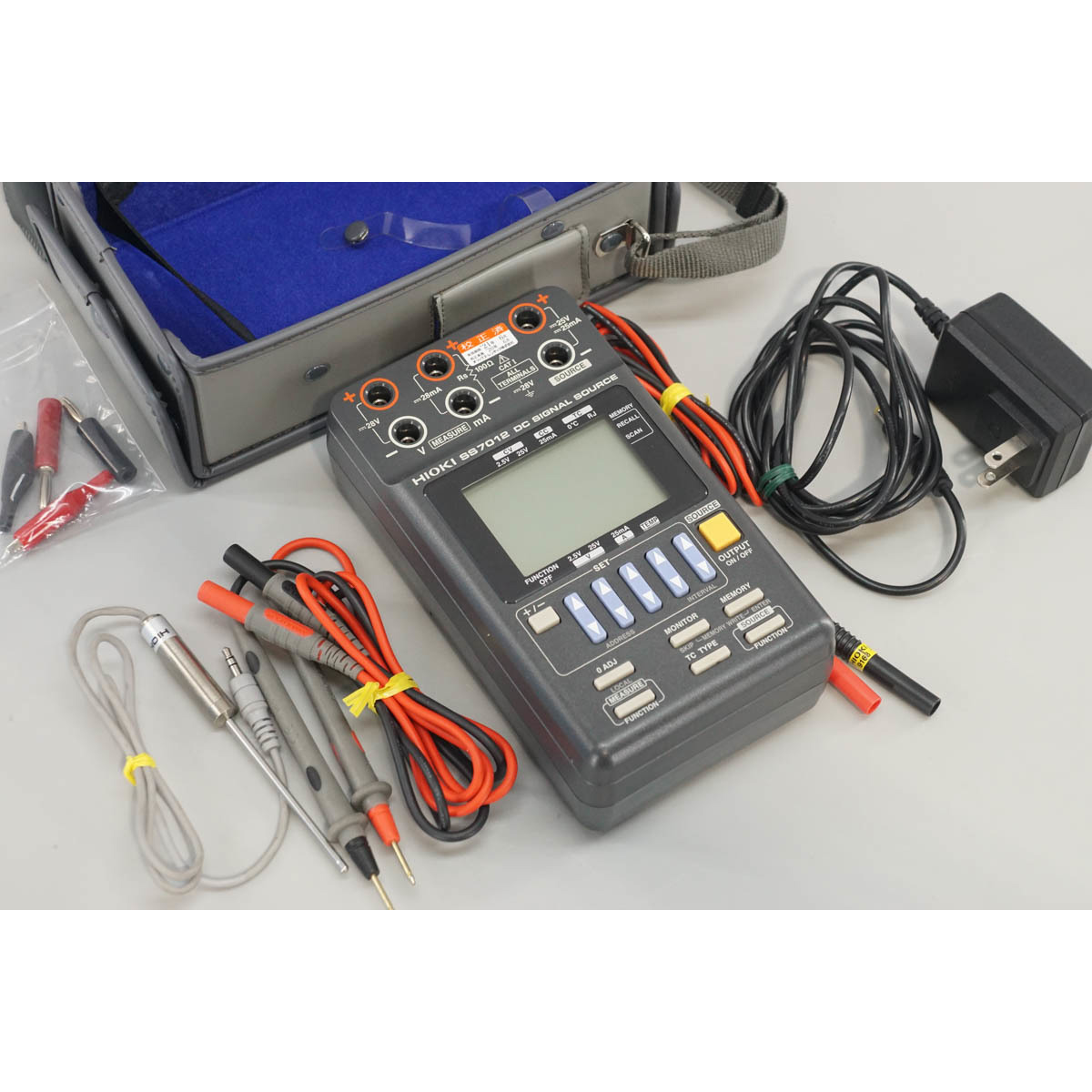

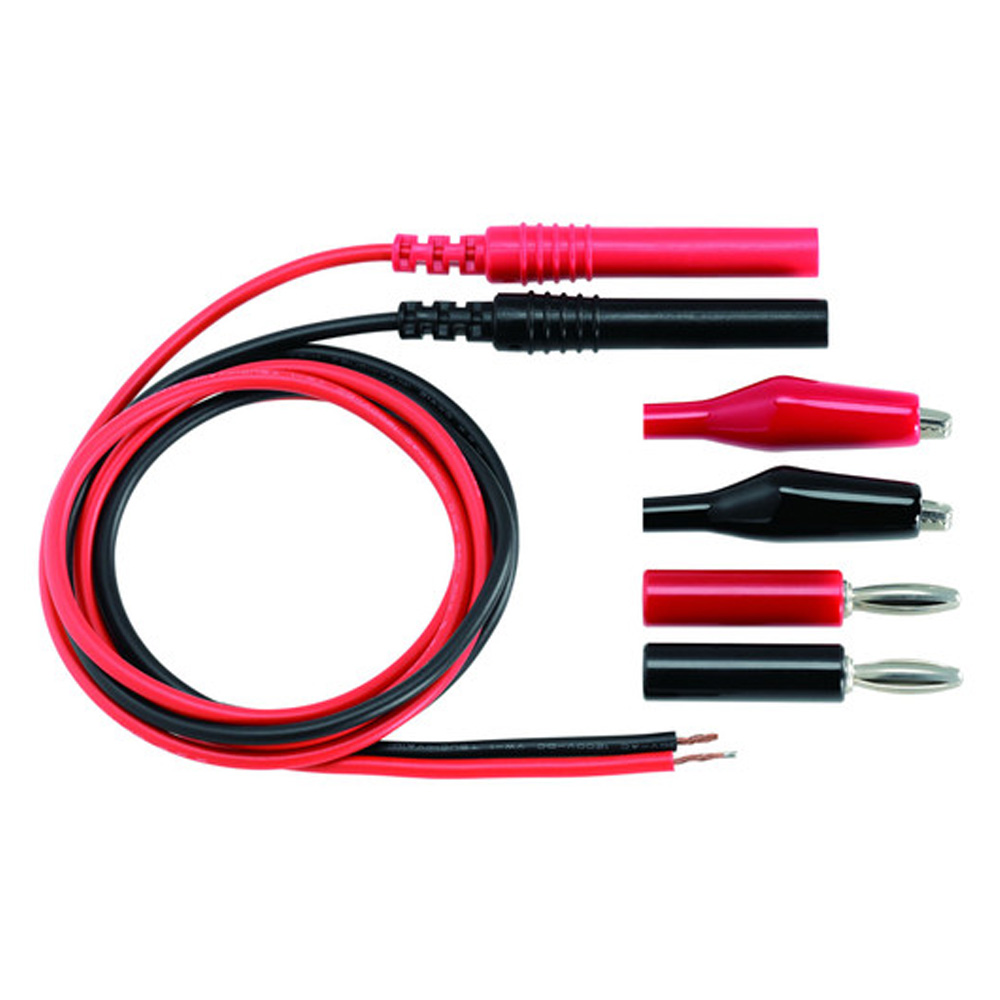

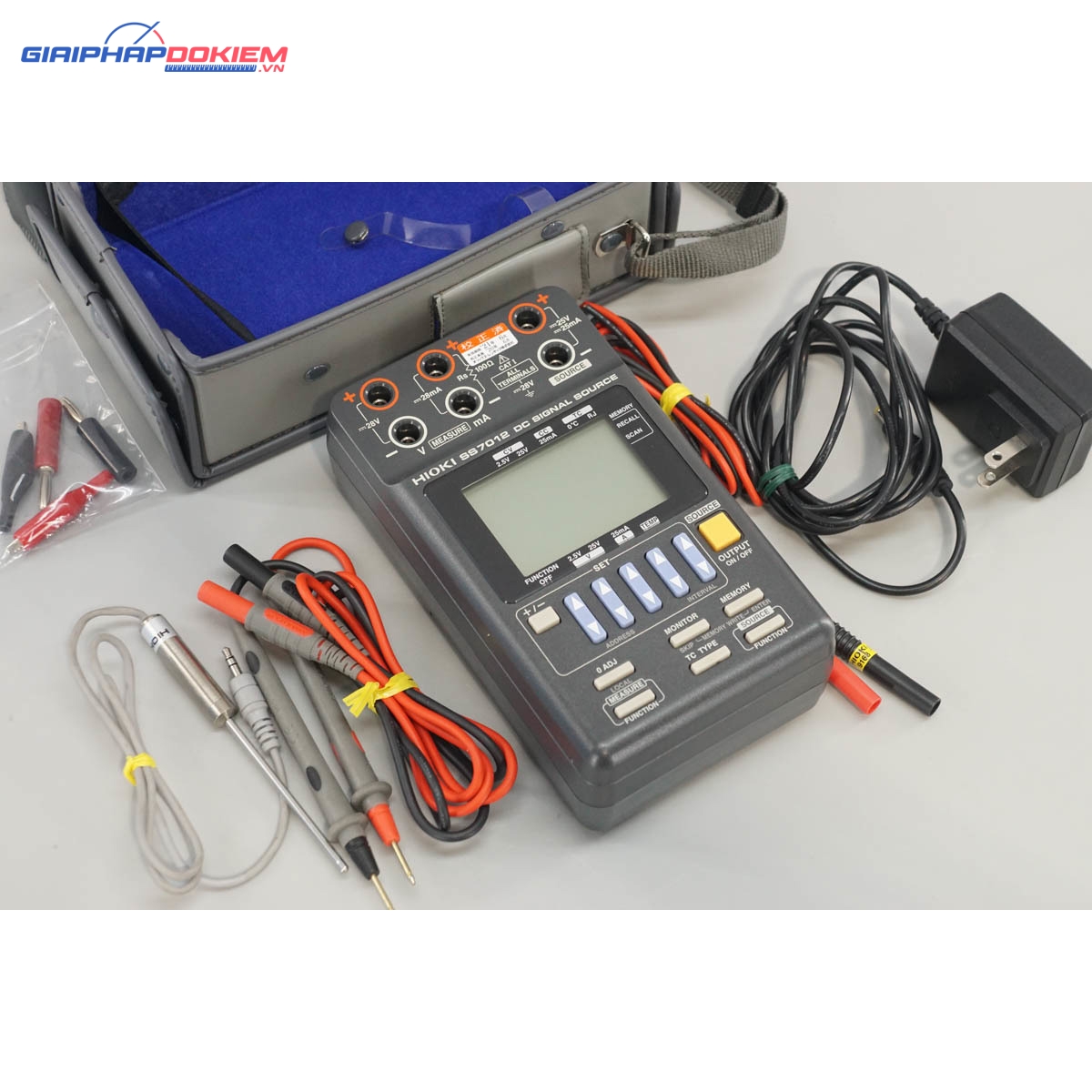

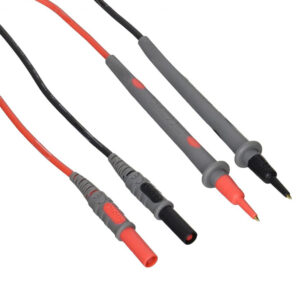

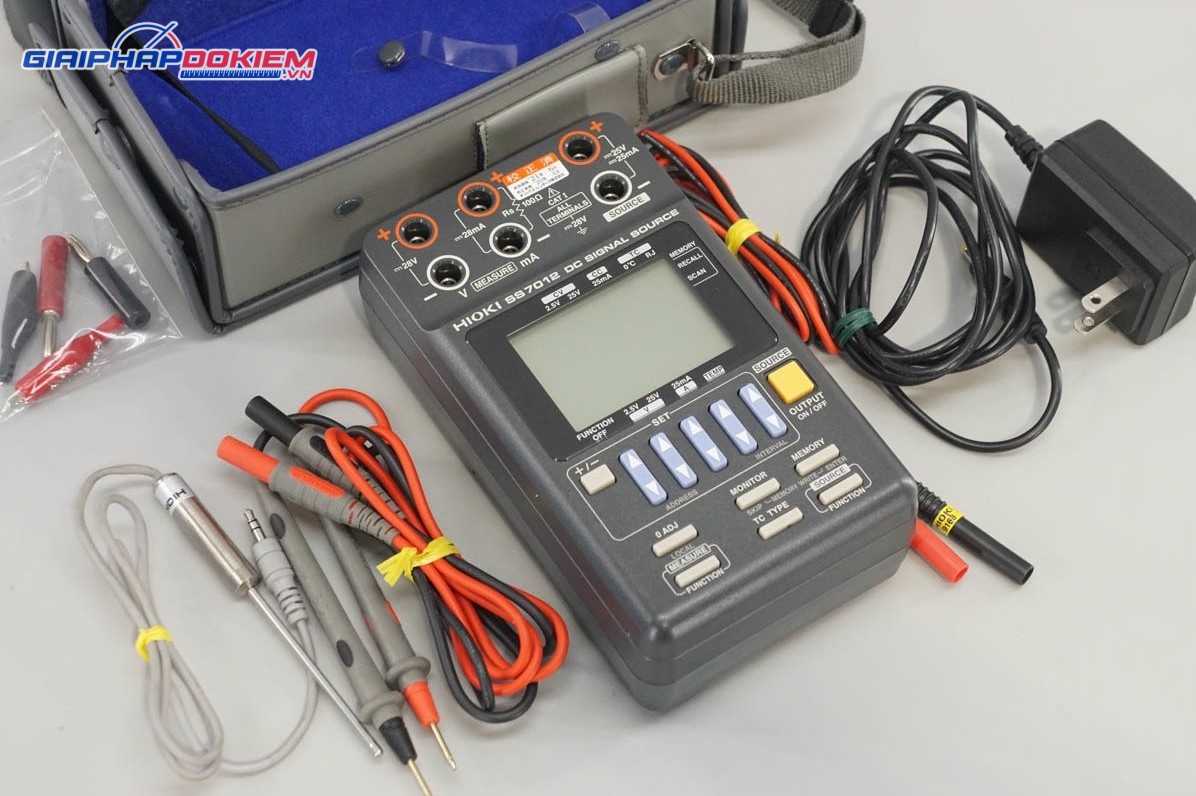

Accessories | Input cord 9168 ×1, Test lead L9170-10 ×1, Fuse ×1, LR6 (AA) alkaline battery ×4, Instruction manual ×1 |
