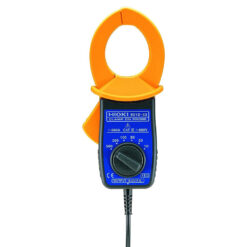

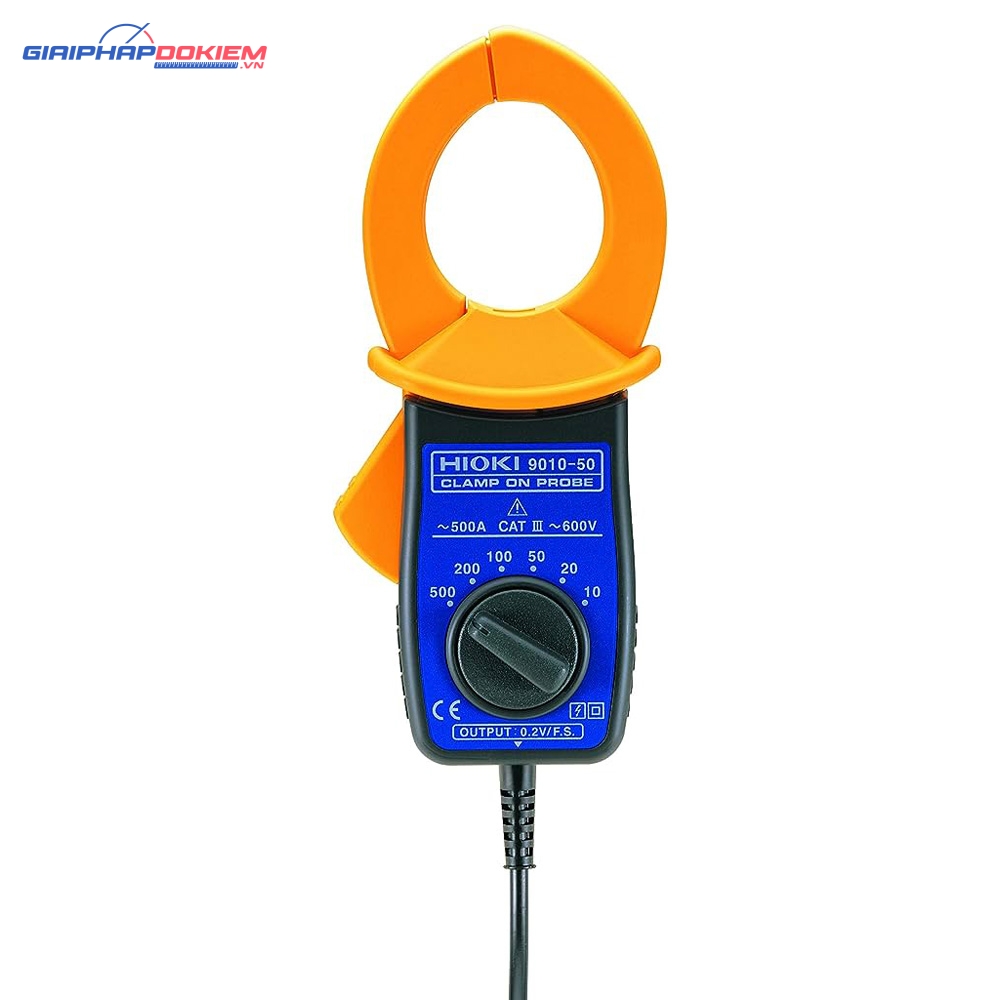

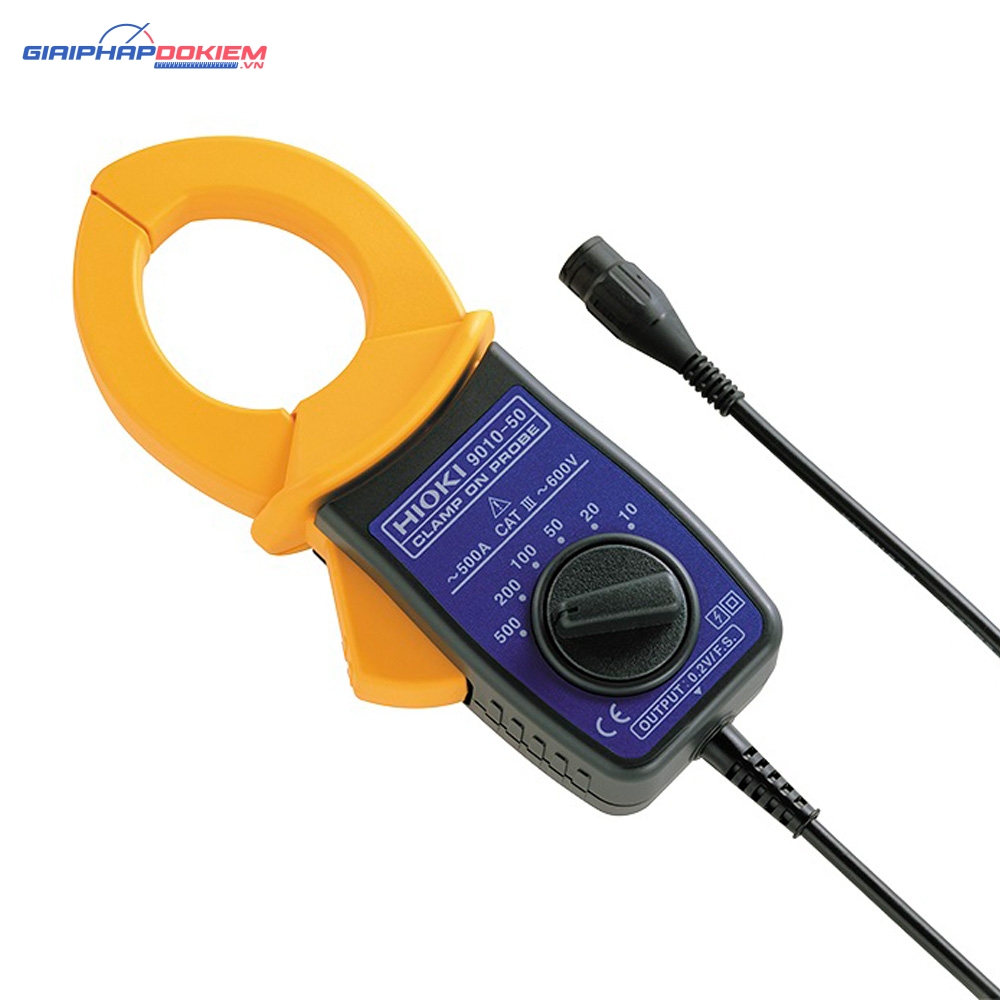

Ampe Kìm Đo Dòng AC Hioki 9010-50

Ampe Kìm Đo Dòng AC Hioki 9010-50

Giá (chưa VAT): 3,300,000

Giá (đã VAT): 3,630,000

Model: 9010-50 Tình trạng: Còn hàng Nhà sản xuất: Xuất xứ: Nhật Bản Bảo hành: N/A

Phụ kiện dùng cho: DT4281, DT4253, DT4255, DT4256

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Giaiphapdokiem.vn chuyên phân phối Ampe Kìm Đo Dòng AC Hioki 9010-50

CLAMP ON PROBE HIOKI 9010-50

Simply Connect to a Tester or Recorder to Easily Measure Large Currents

Rated current10 A to 500 A AC, 6 ranges
Accuracy±2 % rdg. ±1 % f.s. (45 to 66 Hz)
Frequency characteristicsAdd to amplitude accuracy for frequencies from 40 to 1 kHz: ± 6 % rdg. (at 10 A and 20 A range)
± 3 % rdg. (for 50 A range and above)
Output rate0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
Max. allowable input150 A rms continuous (10/20/50 A ranges)
400 A rms continuous (100/200 A ranges)
650 A rms continuous (500 A range)
(For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating)
Max. rated voltage to earth600 Vrms (50/60 Hz, CAT III)
Core diameterφ46 mm (1.81 in)
Dimensions and mass78 mm (3.07 in)W × 188 mm (7.40 in)H × 35 mm (1.38 in)D, 420 g (14.8 oz), cord length: 3 m (9.84 ft)
AccessoriesInstruction manual ×1

Phụ kiện 9010-50


Ampe Kìm Đo Dòng AC Hioki 9010-50 3,300,000

Bạn vui lòng nhập đúng số điện thoại để chúng tôi sẽ gọi xác nhận đơn hàng trước khi giao hàng. Xin cảm ơn!

5/5 - (1 bình chọn)
