Ampe Kìm Đo Dòng AC Hioki 9660

Giá (chưa VAT): Liên hệ

Model: 9660 Tình trạng: Còn hàng Nhà sản xuất: Xuất xứ: Nhật Bản Bảo hành: N/A

Phụ kiện cho: PW3337, PW3336, 3169, PW3365-20, PW3360-20, PW3335

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

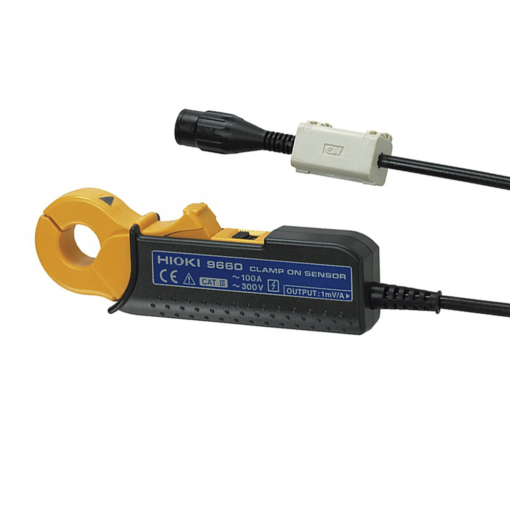

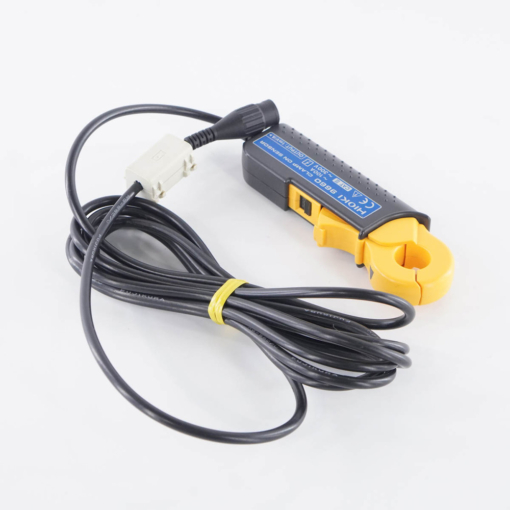

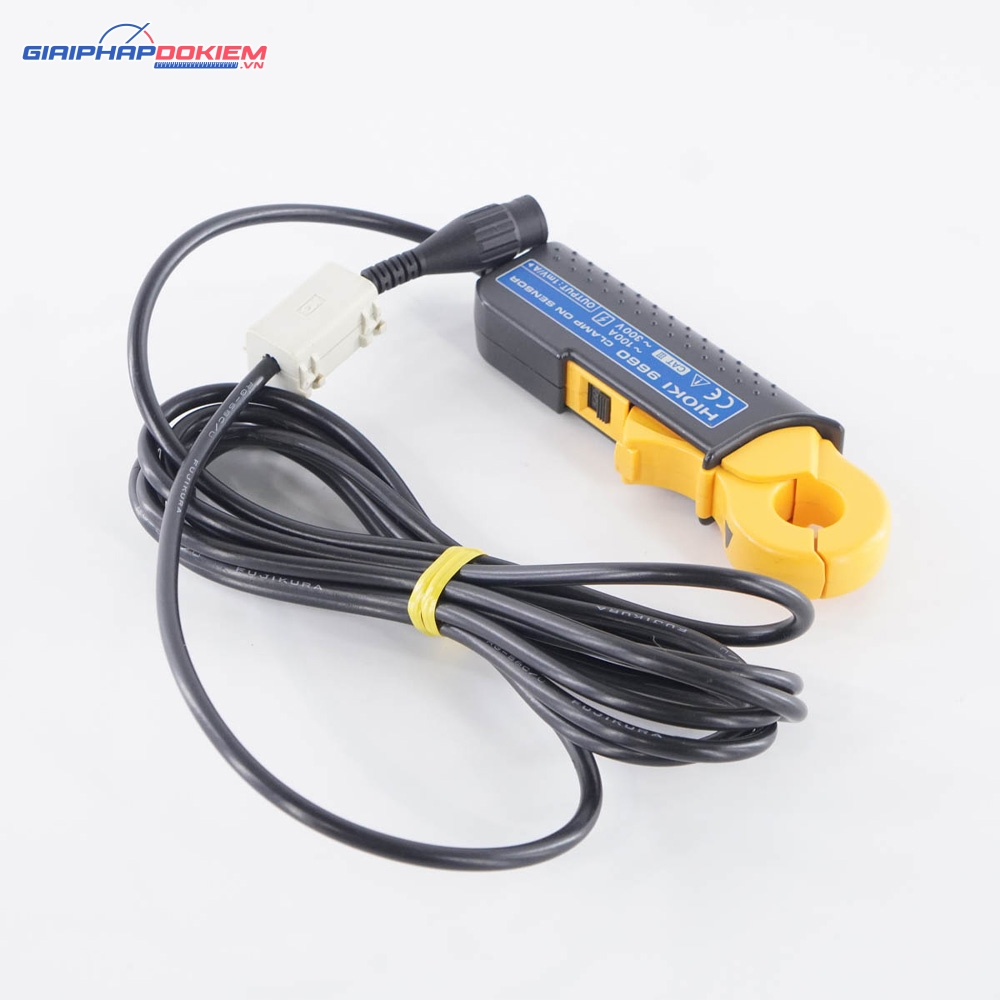

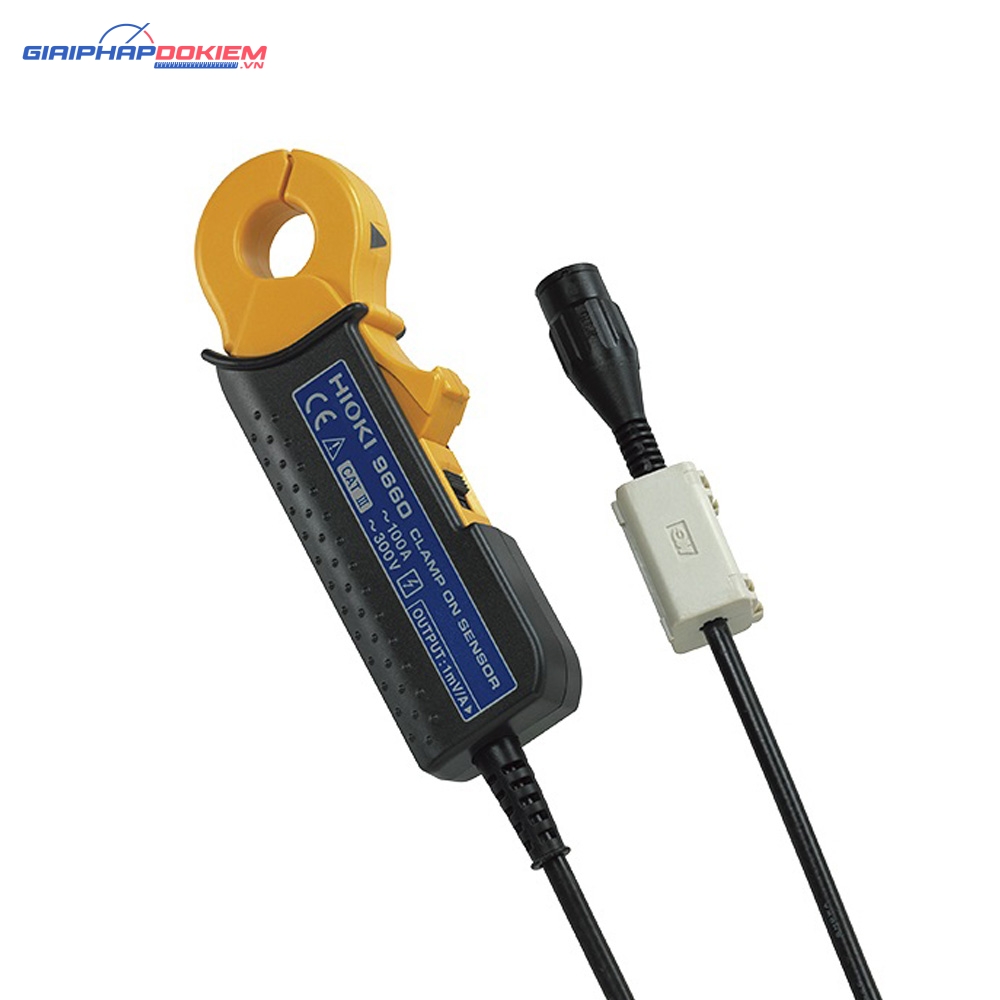

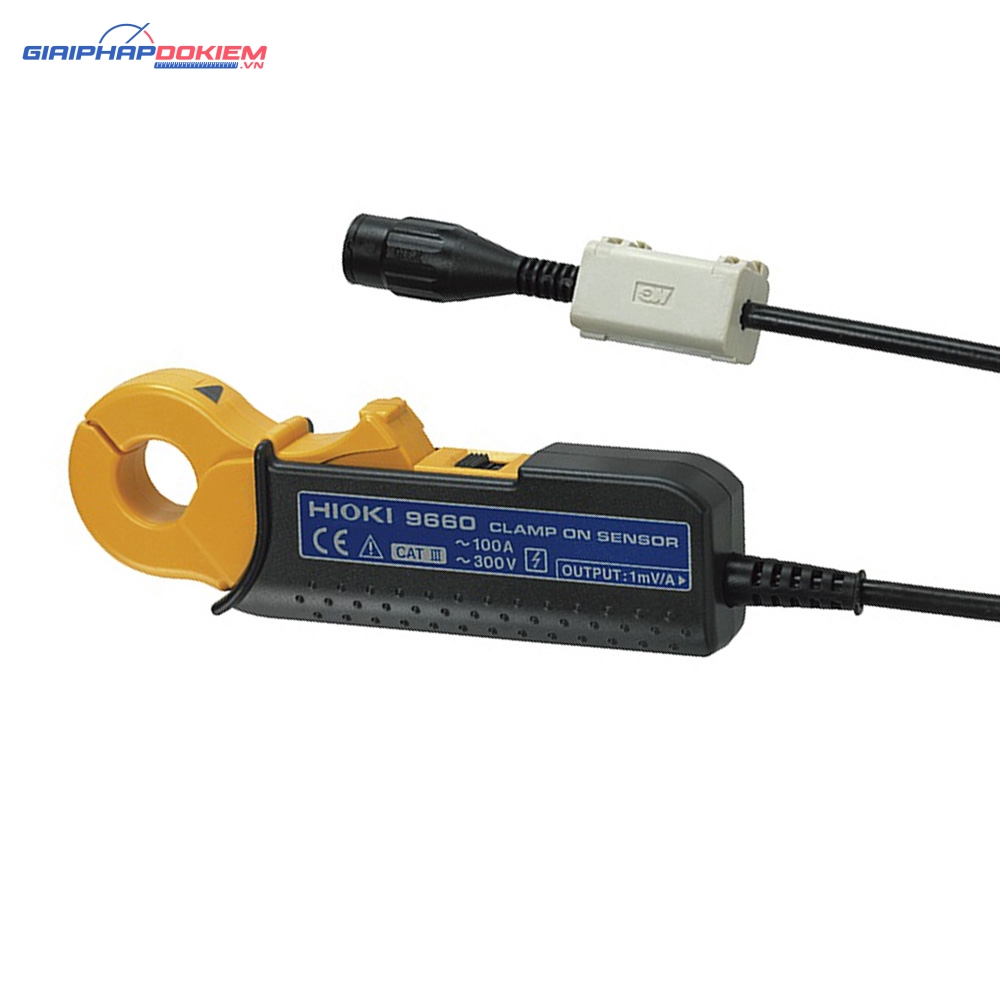

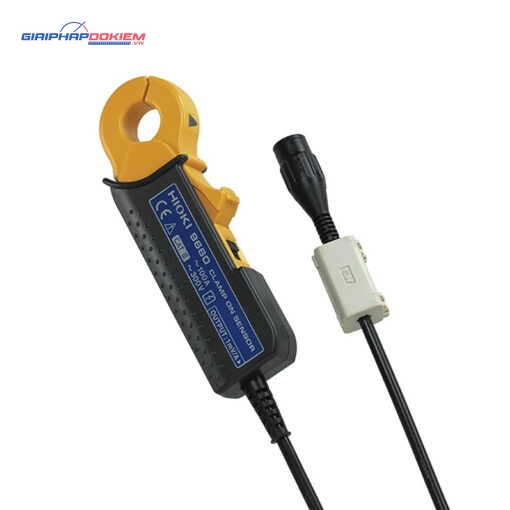

Ampe Kìm Đo Dòng AC Hioki 9660

CLAMP ON SENSOR HIOKI 9660

For measuring load current, voltage output sensor 100 A AC

Rated measurement current100 A AC
Max. measurement currentContinuous 130 A (45 to 66 Hz)
Output rate1 mV AC/ A
Amplitude accuracy (45 to 66 Hz)±0.3 % rdg. ±0.02 % f.s.
Phase accuracy±1° (45 Hz to 5 kHz)
Amplitude frequency characteristicsWithin ±1% at 40 Hz – 5 kHz (deviation from amplitude accuracy)
Max. rated voltage to earth300 V AC rms or less
Measurable conductor diameterφ 15 mm (0.59 in) or less
Operating temperature and humidity0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
Dustproofness and waterproofnessN/A
Dimensions and mass46 mm (1.81 in)W × 135 mm (5.31 in)H × 21 mm (0.83 in)D, 230 g (8.1 oz)
Cord length 3 m (9.84 ft), Output terminal: BNC

Ampe Kìm Đo Dòng AC Hioki 9660

Product Not Found
Ampe Kìm Đo Dòng AC Hioki 9660 Liên hệ
