Dây Đo Hioki 9320-01

Name: Dây Đo Hioki 9320-01 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: 9320-01
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: 9320-01 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: MR8741, MR8740, MR8740T, MR8875, MR8870, MR8827,…

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

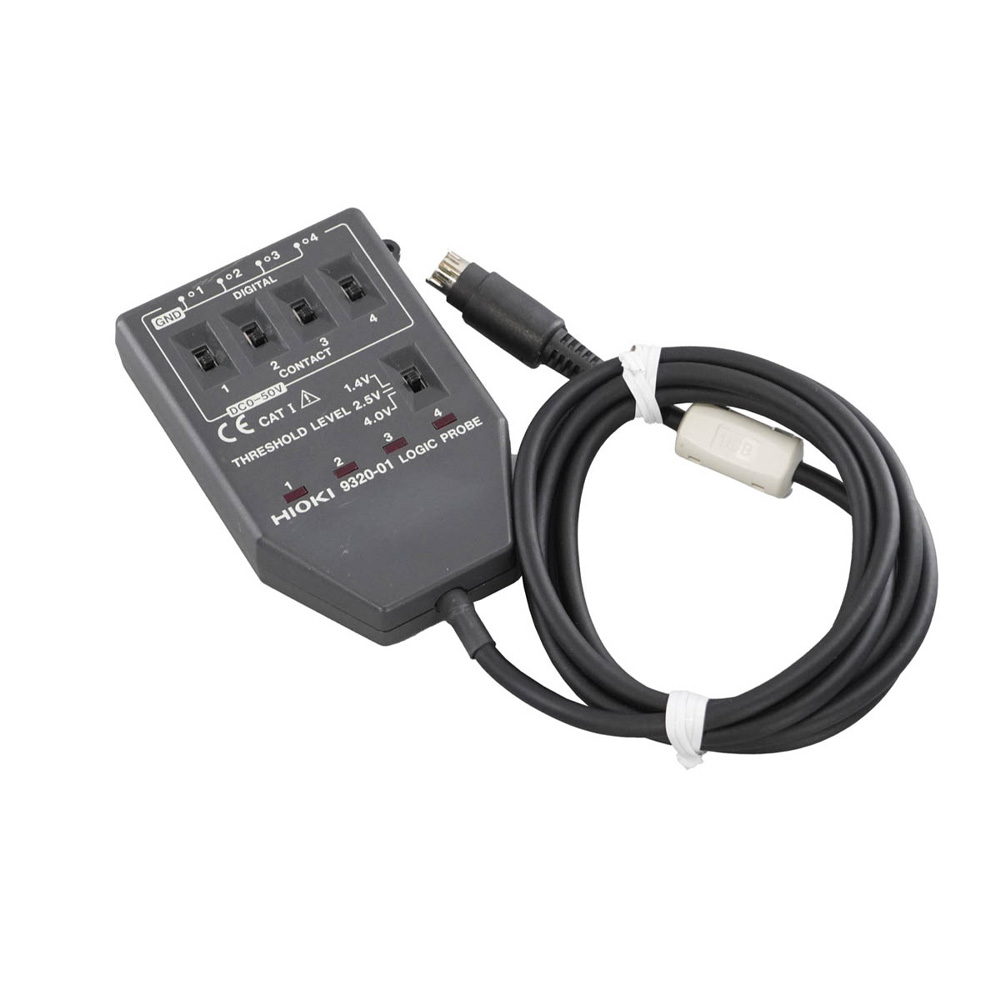

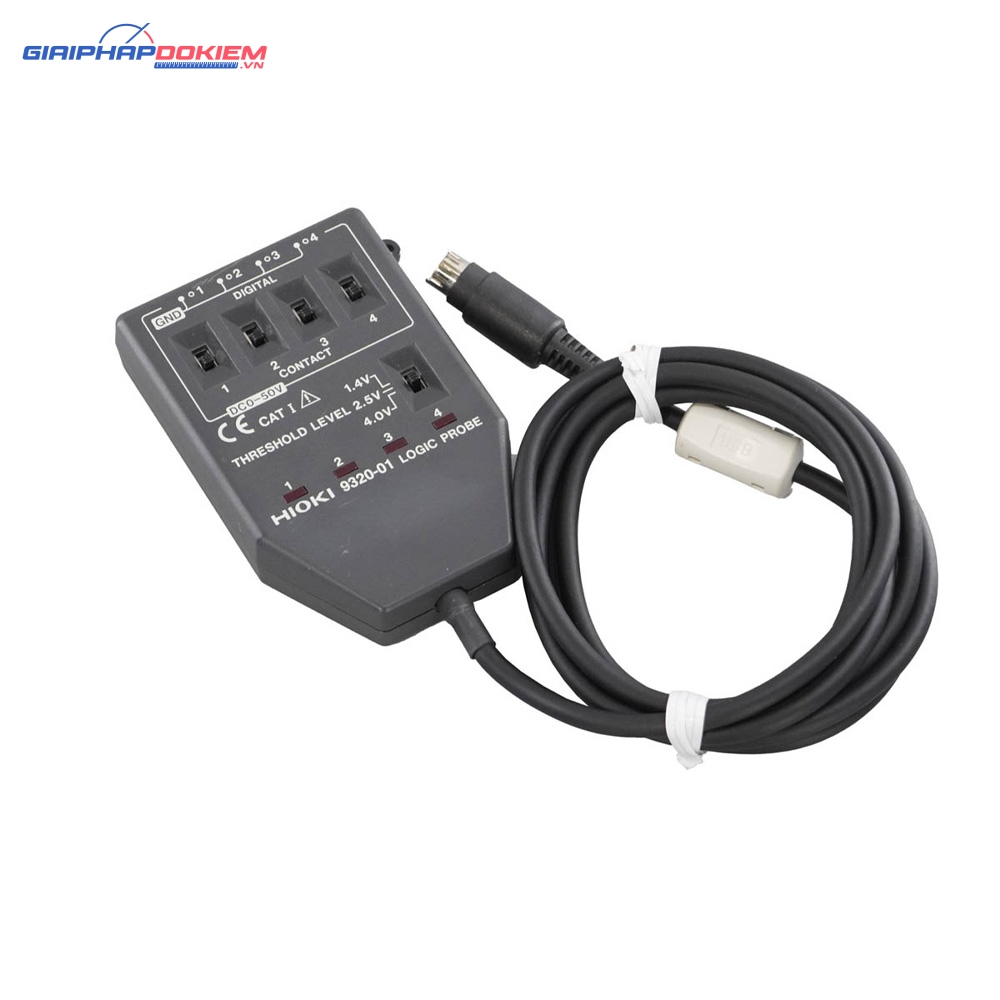

LOGIC PROBE HIOKI 9320-01

High-precision measurement of instantaneous voltage waveforms

Basic specifications

Note: The unit-side plug of the 9320-01 is different from the 9320

Function	Detection of voltage signal or relay contact signal for High/Low state recording
Input	4 channels (common ground between unit and channels), digital/contact input, switchable (contact input can detect open-collector signals) Input resistance: 1 MΩ (with digital input, 0 to +5 V) 500 kΩ or more (with digital input, +5 to +50V) Pull-up resistance: 2 kΩ (contact input: internally pulled up to +5 V)
Digital input threshold	1.4V/ 2.5V/ 4.0V
Contact input detection resistance	1.4 V: 1.5 kΩ or higher (open) and 500 Ω or lower (short) 2.5 V: 3.5 kΩ or higher (open) and 1.5 kΩ or lower (short) 4.0 V: 25 kΩ or higher (open) and 8 kΩ or lower (short)
Detectable pulse width	500 ns or longer
Max. allowable input	0 to +50V DC (the maximum voltage that can be applied across input pins without damage)
Dimensions and mass	62 mm (2.44 in)W × 94 mm (3.70 in)H × 20 mm (0.79 in)D, 150 g (5.3 oz), Main unit cable 1.5 m (4.92 ft), input section cable 300 mm (0.98 ft)

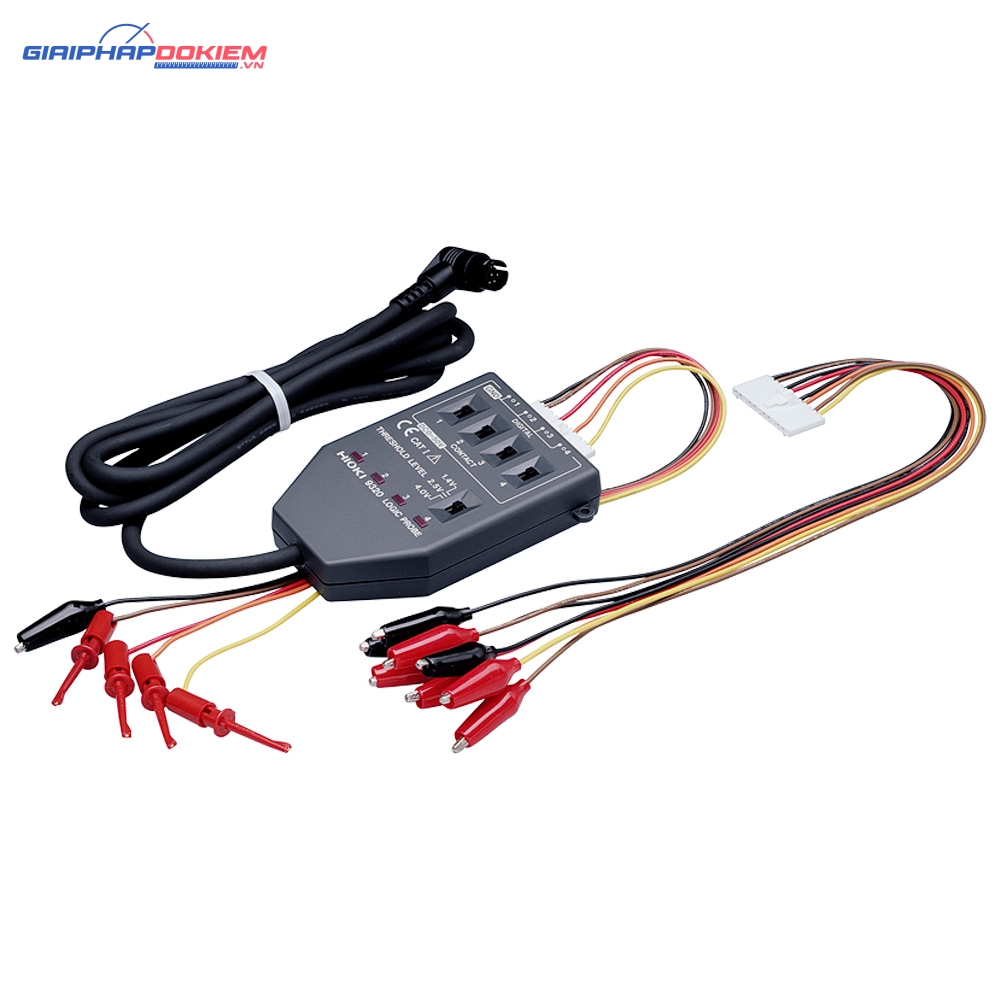

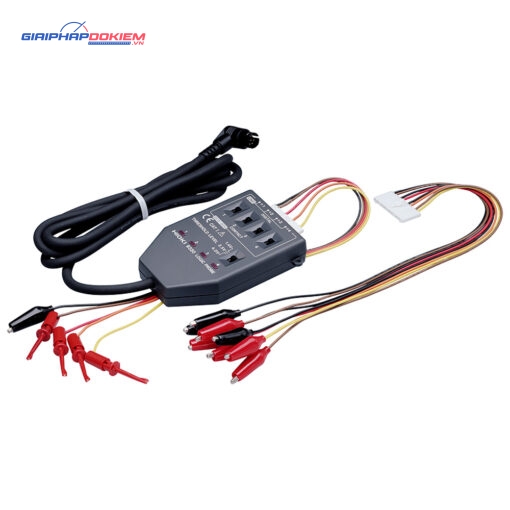

Accessories	IC clip leads ×1, Alligator clip leads ×1, Carrying case ×1, Instruction Manual ×1
