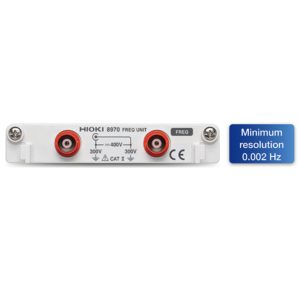

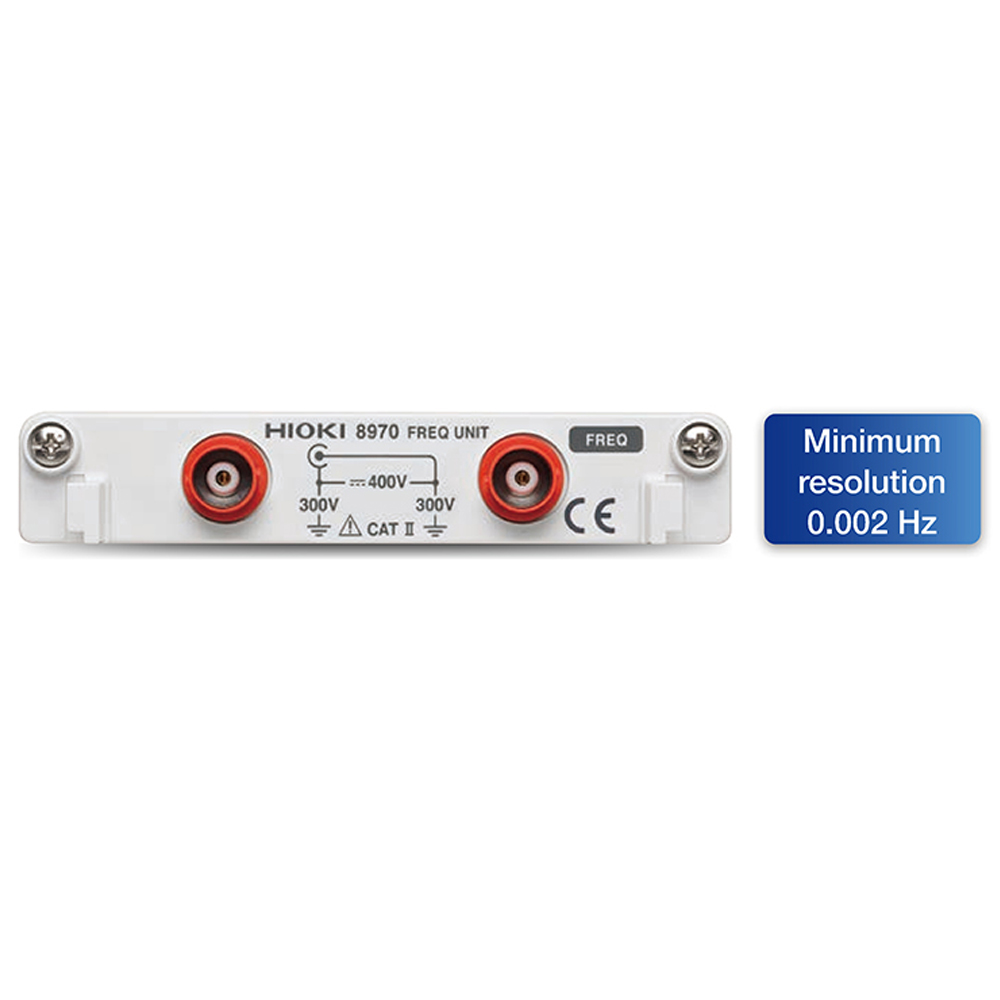

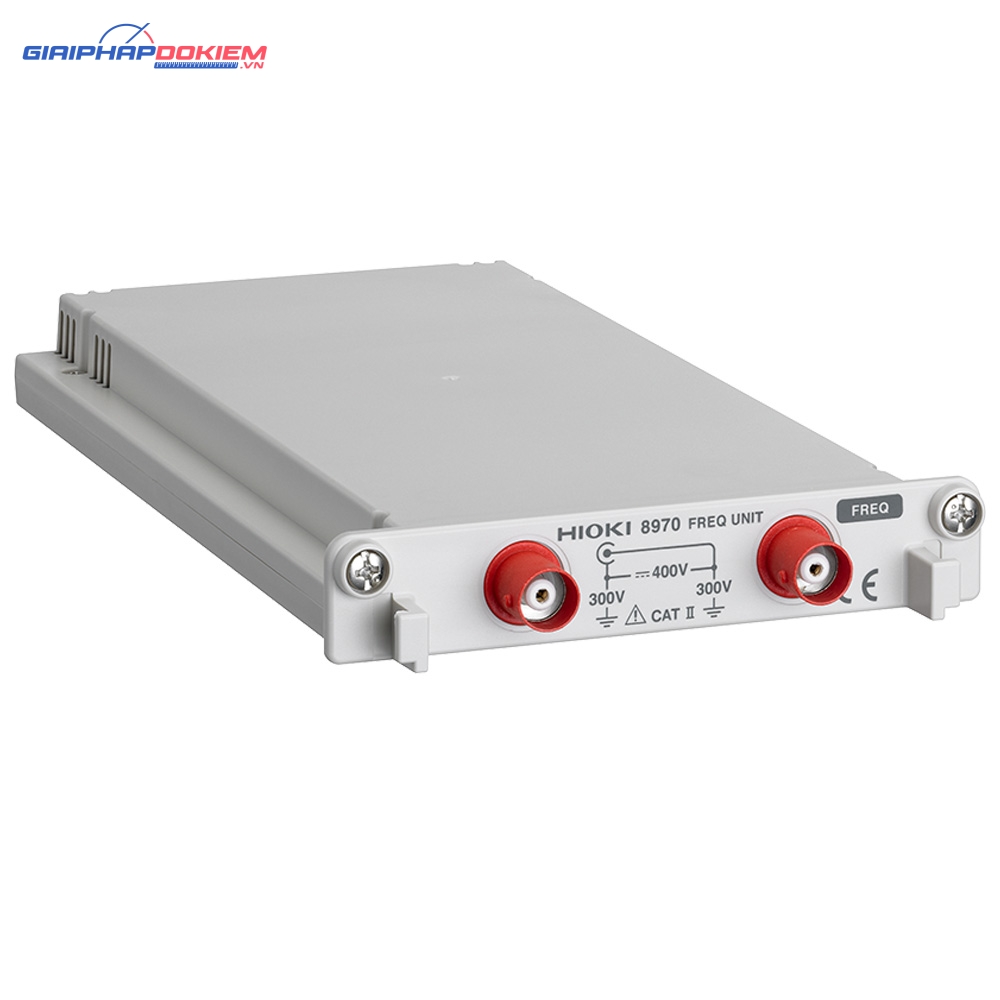

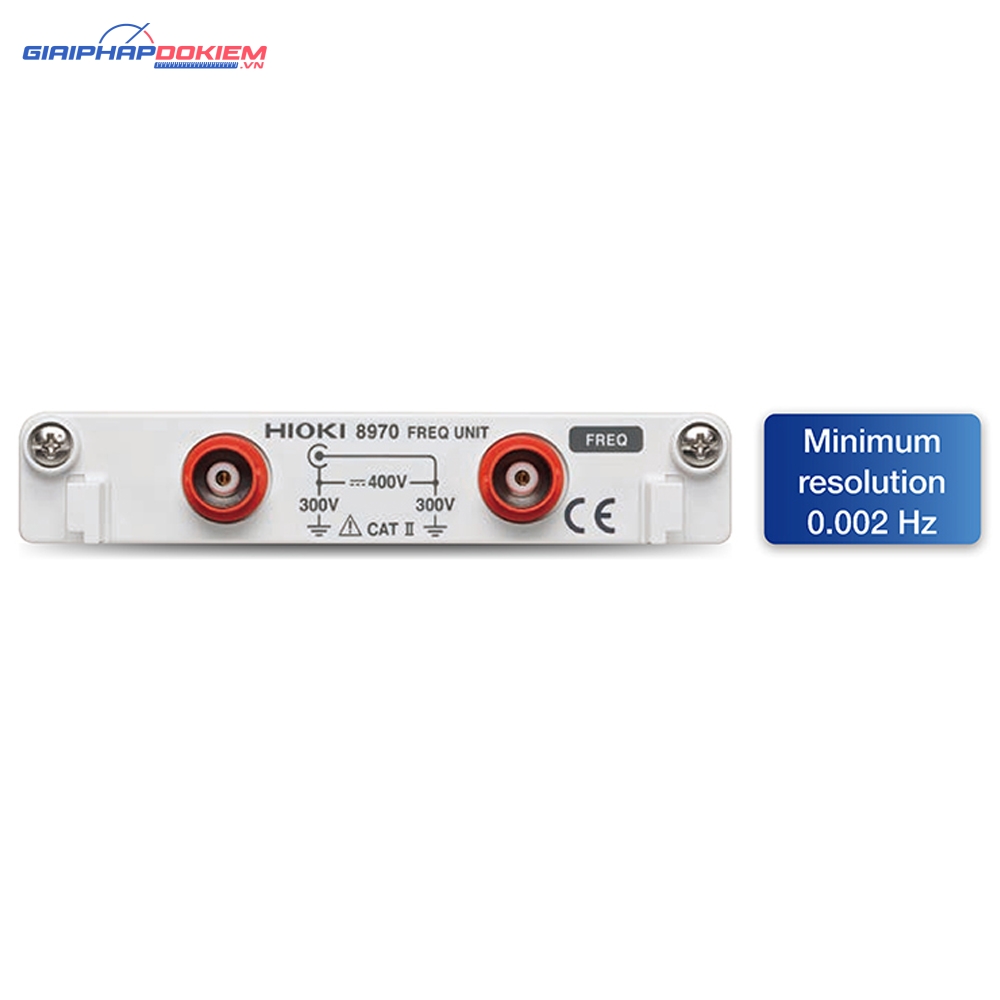

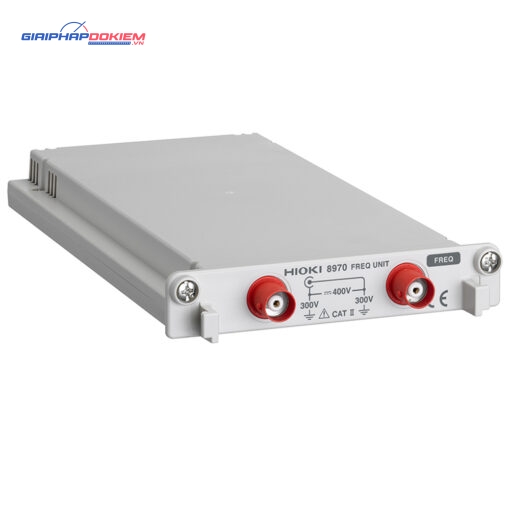

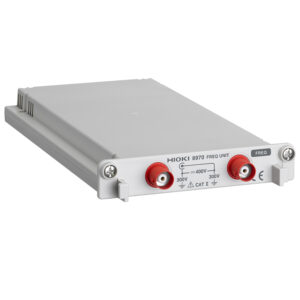

Ngõ Vào Tần Số Hioki 8970
FREQ UNIT HIOKI 8970
Frequency, Rotation, and Pulse Measurement
Basic specifications
Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
| Measurement functions Hioki 8970 | Number of channels: 2, for voltage input based frequency measurement, rotation, power frequency, integration, pulse duty ratio, pulse width | |||||
|---|---|---|---|---|---|---|
| Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF), Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) | |||||
| Frequency mode | Range: Between DC to 100kHz (minimum pulse width 2μs), 1Hz/div to 5kHz/div (full scale= 20 div), 8 settings Accuracy: ±0.1% f.s. (exclude 5kHz/div), ±0.7% f.s. (at 5kHz/div) | |||||
| Rotation mode | Range: Between 0 to 2 million rotations/minute (minimum pulse width 2μs), 100 (r/min)/div to 100k (r/min)/div (full scale= 20 div), 7 settings Accuracy: ±0.1% f.s. (excluding 100k (r/min)/div), ±0.7% f.s. (at 100k (r/min)/div) | |||||
| Power frequency mode | Range: 50Hz (40 – 60Hz), 60Hz (50 – 70Hz), 400Hz (390 – 410Hz) (full scale= 20 div), 3 settings Accuracy: ±0.03Hz (exclude 400Hz range), ±0.1Hz (400Hz range) | |||||
| Integration mode | Range: 2k counts/div to 1M counts/div, 6 settings Accuracy: ±range/2000 | |||||
| Duty ratio mode | Range: Between 10Hz to 100kHz (minimum pulse width 2μs), 5%/div (full scale=20 div) Accuracy: ±1% (10Hz to 10kHz), ±4% (10kHz to 100kHz) | |||||
| Pulse width mode | Range: Between 2μs to 2sec, 500μs/div to 100ms/dv (full scale=20 div) Accuracy: ±0.1% f.s. | |||||
| Measurement resolution | 1/2000 of range (Integration mode), 1/500 of range (exclude integration, power frequency mode), 1/100 of range (power frequency mode) | |||||
| Input voltage range and threshold level | ±10V to ±400V, 6 settings, selectable threshold level at each range | |||||
| Other functions | Slope, Level, Hold, Smoothing, Low-pass filter, Switchable DC/AC input coupling, Frequency dividing, Integration over-range keep/return | |||||
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) | |||||
| Accessories | None | |||||
