Dây Đo Hioki P9000

Dây Đo Hioki P9000

Giá (chưa VAT): Liên hệ

Model: P9000 Tình trạng: Còn hàng Nhà sản xuất: Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho: LR8410-20, 8423, LR8431-20, LR8432-20

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

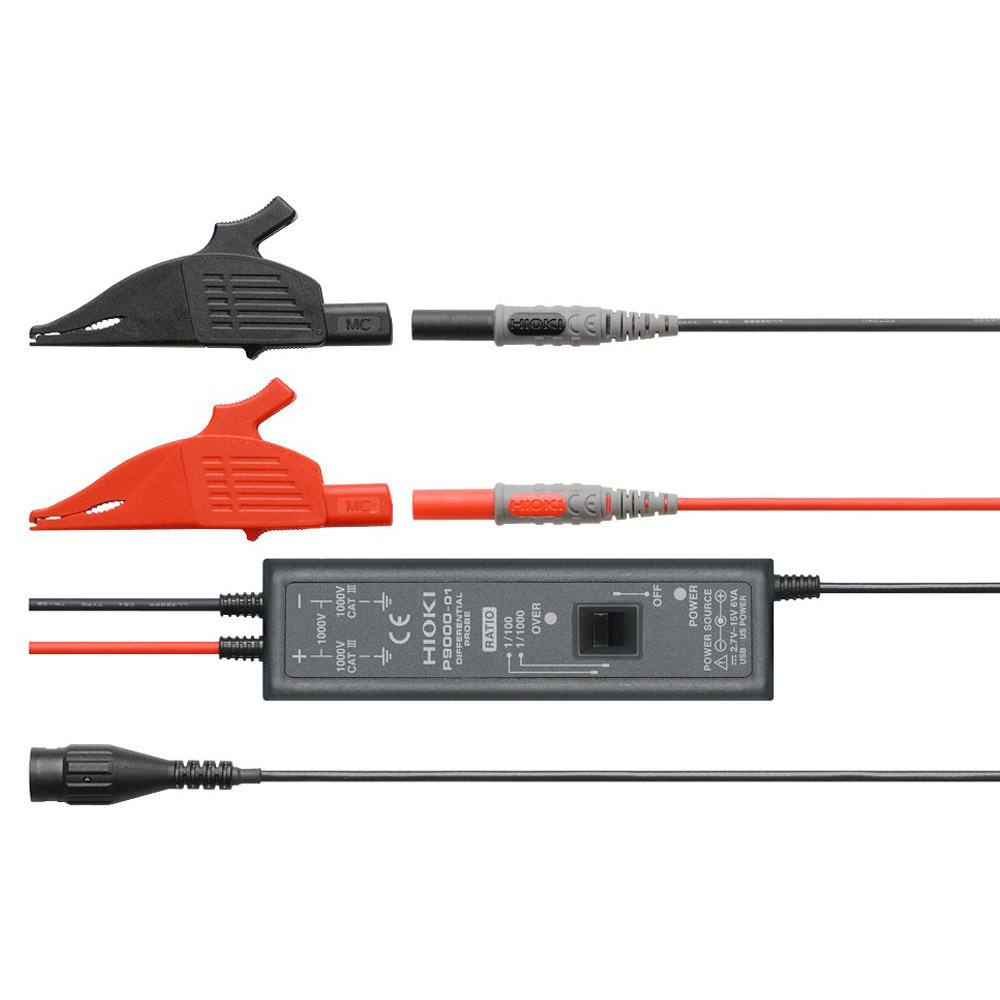

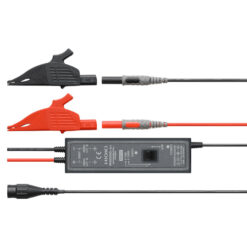

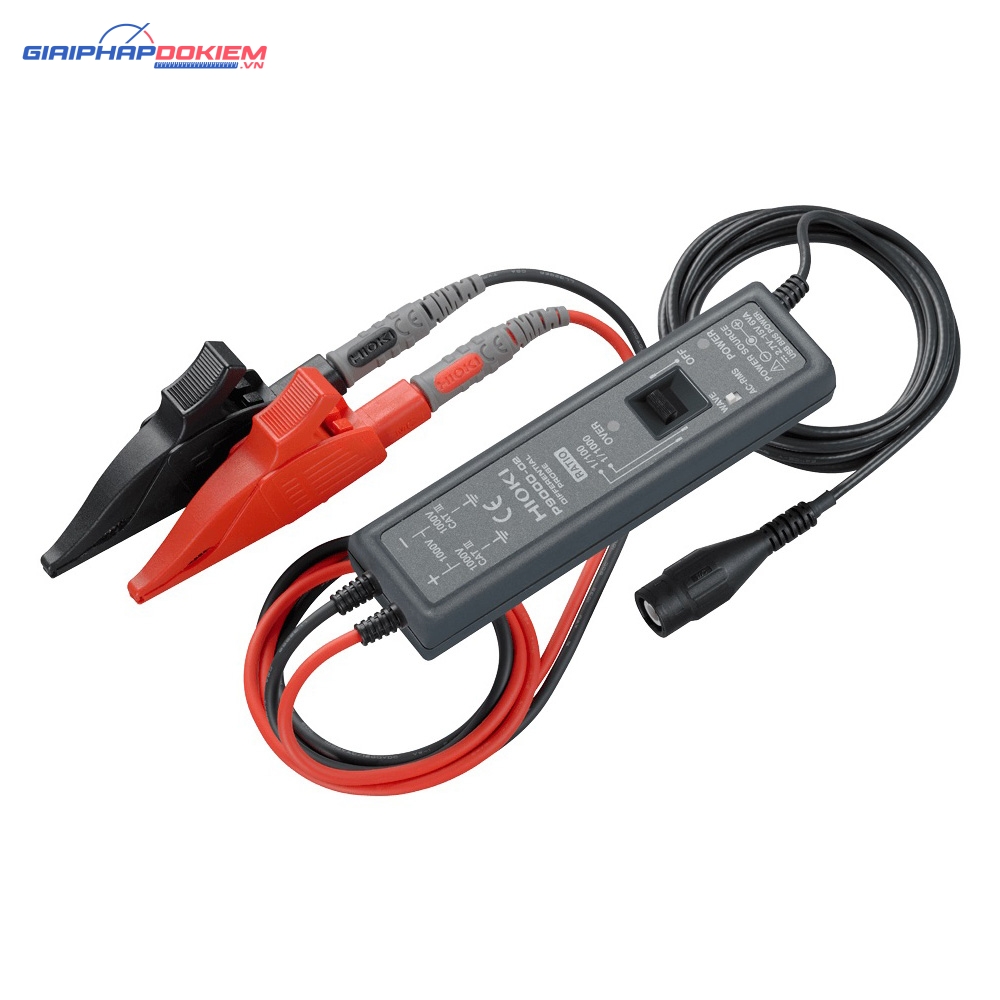

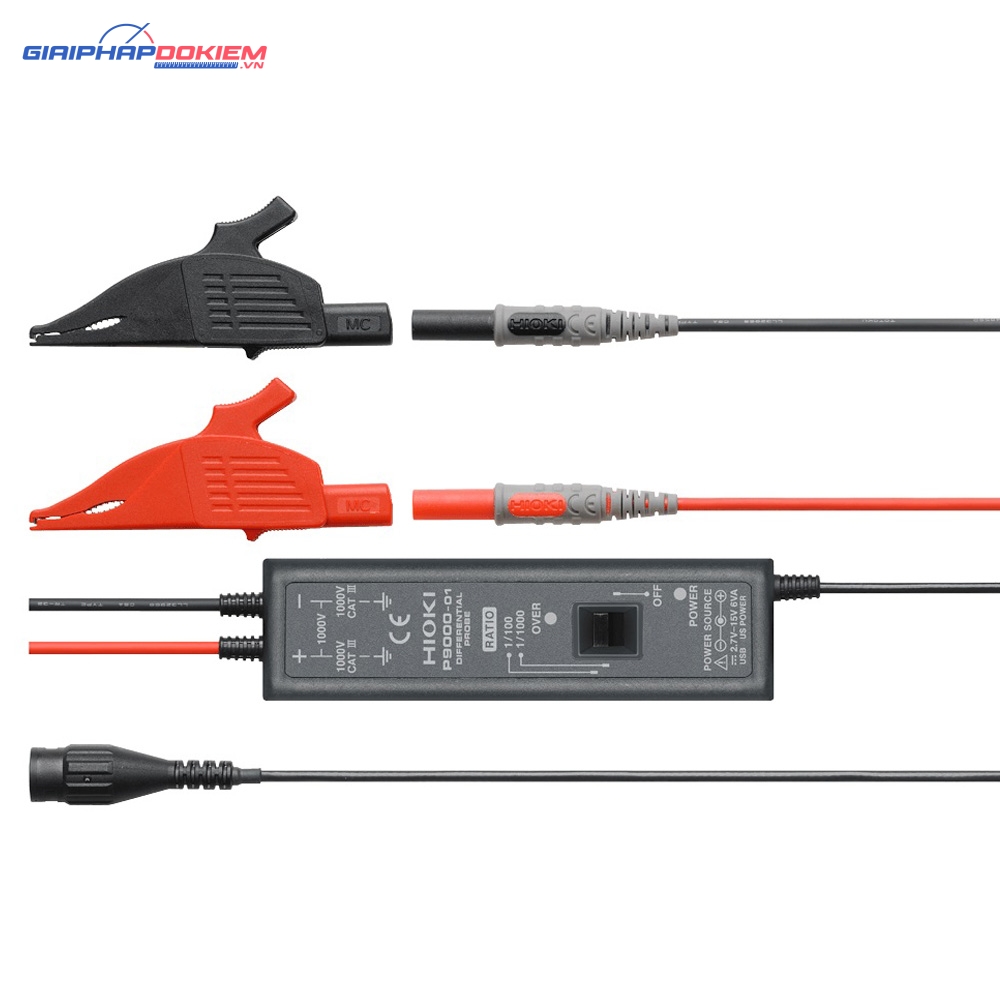

Dây Đo Hioki P9000 – DIFFERENTIAL PROBE HIOKI P9000

Easily Connect to Hioki Memory HiCorders and HiLoggers for High Voltage Testing

Model No. (Order Code)

P9000-01For the Memory HiCorder series, Wave only
P9000-02For the Memory HiCorder series, Wave/RMS

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
P9000-01P9000-02
Measurement functionsWaveform monitor output only
Frequency characteristics: DC to 100 kHz, -3 dB
Waveform monitor output/AC RMS value output (switchable)
Wave mode frequency characteristics: DC to 100 kHz, -3 dB
RMS mode frequency characteristics: 30 Hz to 10 kHz; response time: 300 ms (rising) or 500 ms (falling)
Division ratio1000:1 or 100:1 (user selectable)
DC amplitude accuracy±0.5% f.s. (f.s. = 1.0 V; voltage division ratio: 1000:1) (f.s. = 3.5 V; voltage division ratio: 100:1)
RMS amplitude accuracyn/a±1% f.s. (30 Hz to 1 kHz non-inclusive, sine wave), ±3% f.s. (1 kHz to 10 kHz, sine wave)
Input resistance, capacityBetween H and L: 10.5 MΩ, 5 pF or less (at 100 kHz)
Max. allowable input1000 V AC/DC
Max. rated voltage to earth1000 V AC/DC (CAT III)
Operating temperature-40˚C (-40˚F) to 80˚C (176˚F)
Power supply(1) AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz), 6 VA (including AC adapter) or 0.9 VA (probe only)
(2) USB bus power (5 V DC, USB Micro-B receptacle), 0.8 VA
To prevent an electric shock, when supplying power from the USB-microB terminal, please supply from a device which USB’s GND terminal of the source device is grounded.
(3) External power supply (2.7 V to 15 V DC)
Dimensions and mass Hioki P9000128 mm (5.04 in)W × 36 mm (1.42 in)H × 22 mm (0.87 in)D, 170 g (6.0 oz), Cord length: Input: 70 cm (2.30 ft) ; output: 1.5 m (4.92 ft)
AccessoriesInstruction manual ×1, alligator clips ×2, carrying case ×1
