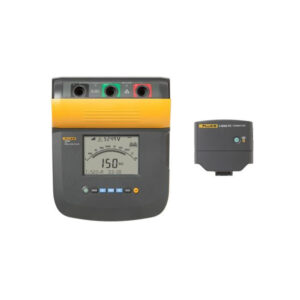

Máy đo điện trở cách điện FLUKE 1550C FC KIT (5000V, 1 TΩ )

Máy đo điện trở cách điện FLUKE 1550C FC KIT (5000V, 1 TΩ )

Giá (chưa VAT): Liên hệ

Model: 1550C FC KIT Tình trạng: Còn hàng Nhà sản xuất: FLUKE Bảo hành: 12 Tháng

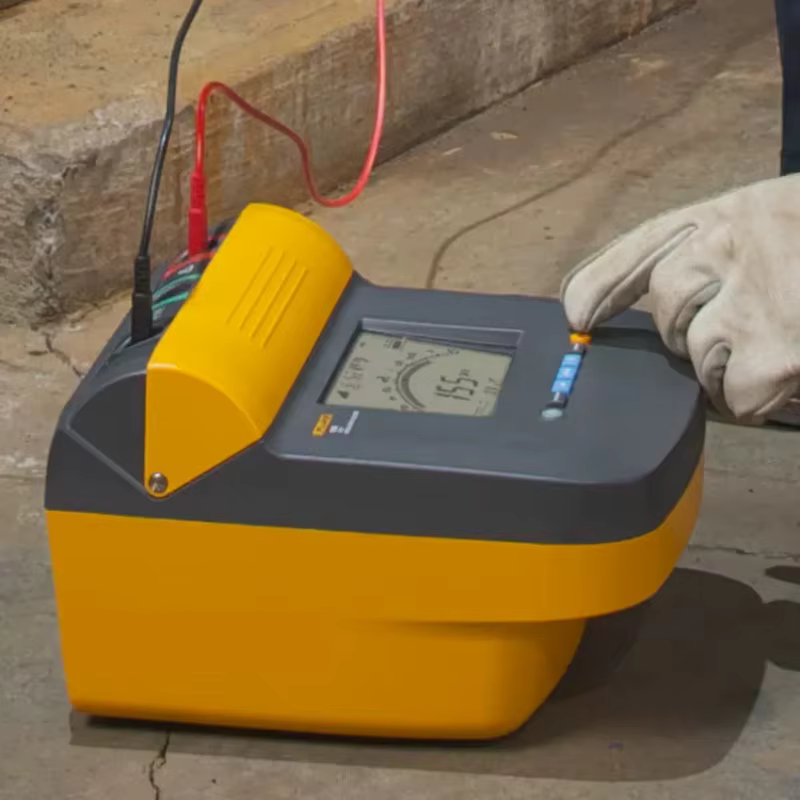

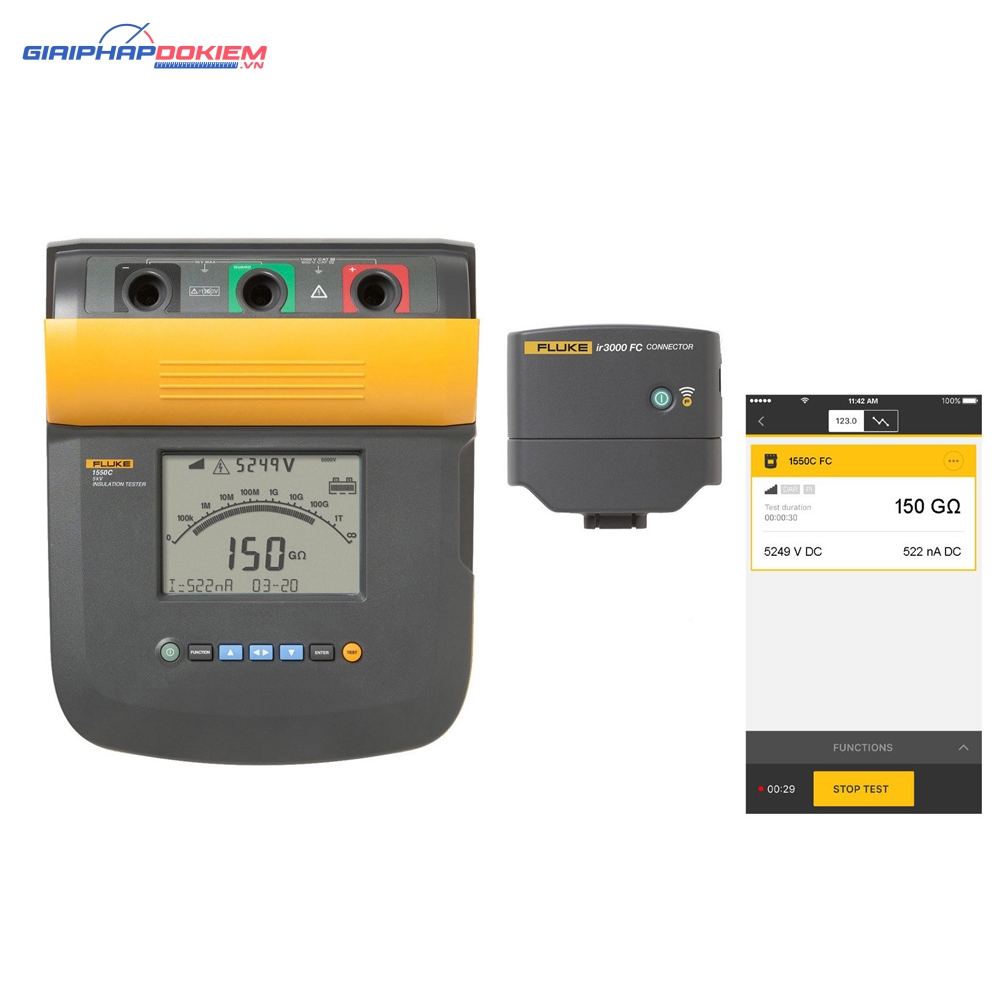

Nhanh chóng định cấu hình, bắt đầu và dừng kiểm tra trên 1550C từ xa, cách xa mọi thiết bị đang hoạt động, được cấp điện, sử dụng Fluke Connect® và điện thoại thông minh ở một khoảng cách an toàn
Tạo báo cáo bằng máy tính để bàn Fluke Connect giúp tiết kiệm thời gian và làm cho kết quả kiểm tra dễ hiểu hơn
Fluke Connect lưu kết quả kiểm tra vào đám mây để phân tích và bảo trì phòng ngừa

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Đặt hàng Thêm vào giỏ hàng HOTLINE Gọi ngay 0901668234

ĐẶC ĐIỂM NỔI BẬT CỦA MÁY ĐO ĐIỆN TRỞ CÁCH ĐIỆN FLUKE 1550C FC KIT

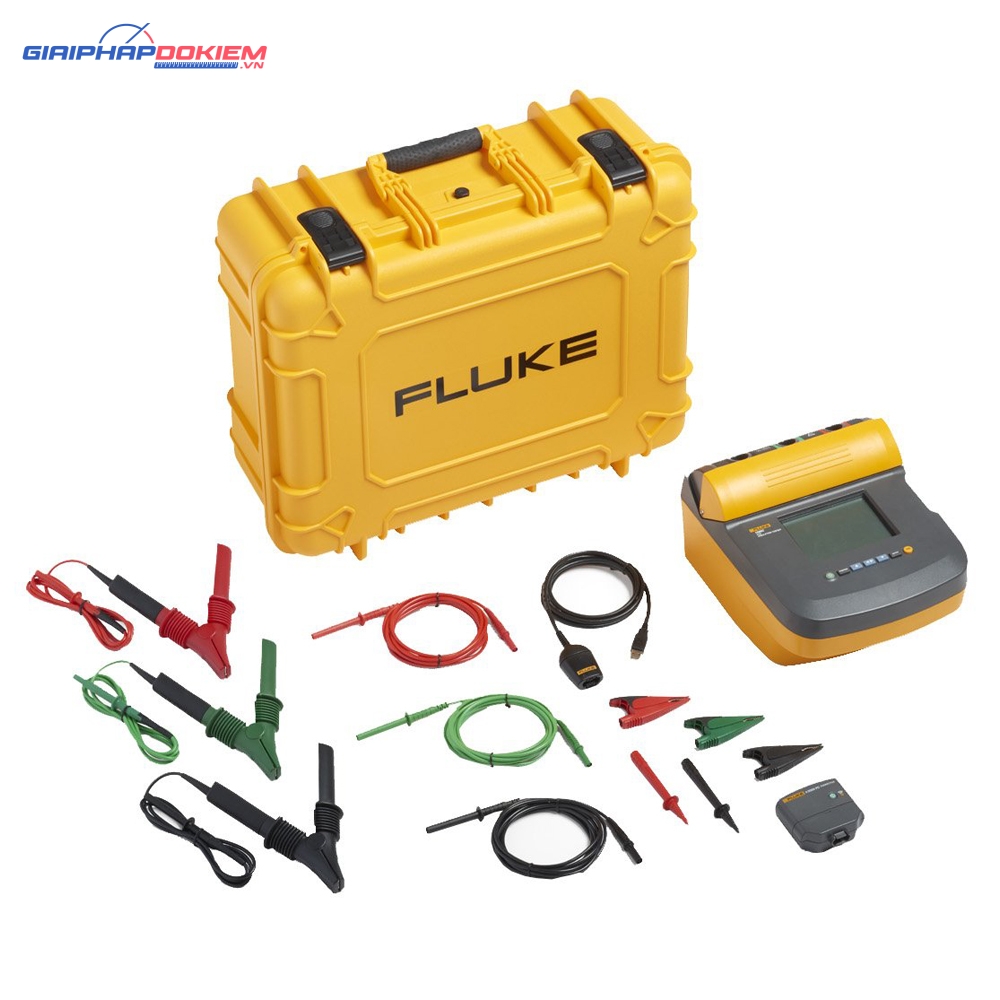

Fluke 1550C FC KIT 5 kV Insulation Tester Kit makes data collection from insulation tests easy

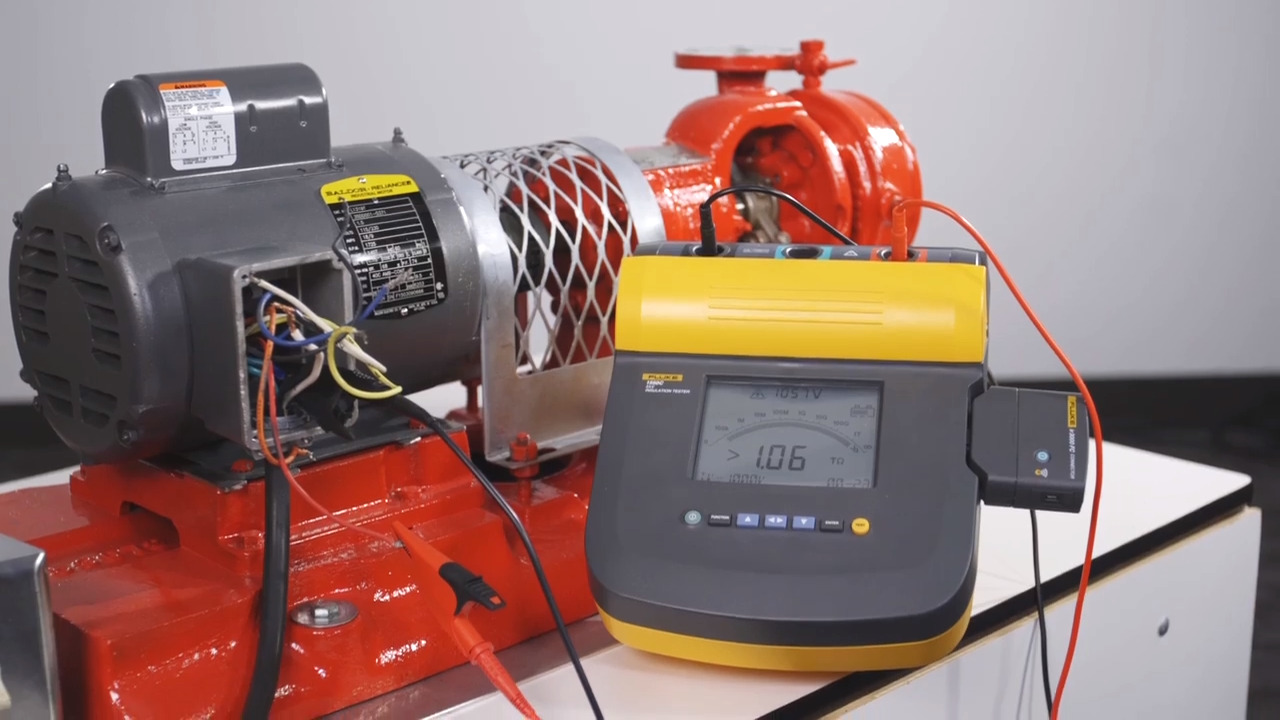

The Fluke 1550C performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect™ wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, using pre-designed templates that you can customize with company logos. It’s the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur. And it comes with a three-year warranty and CAT IV 600 V safety rating.

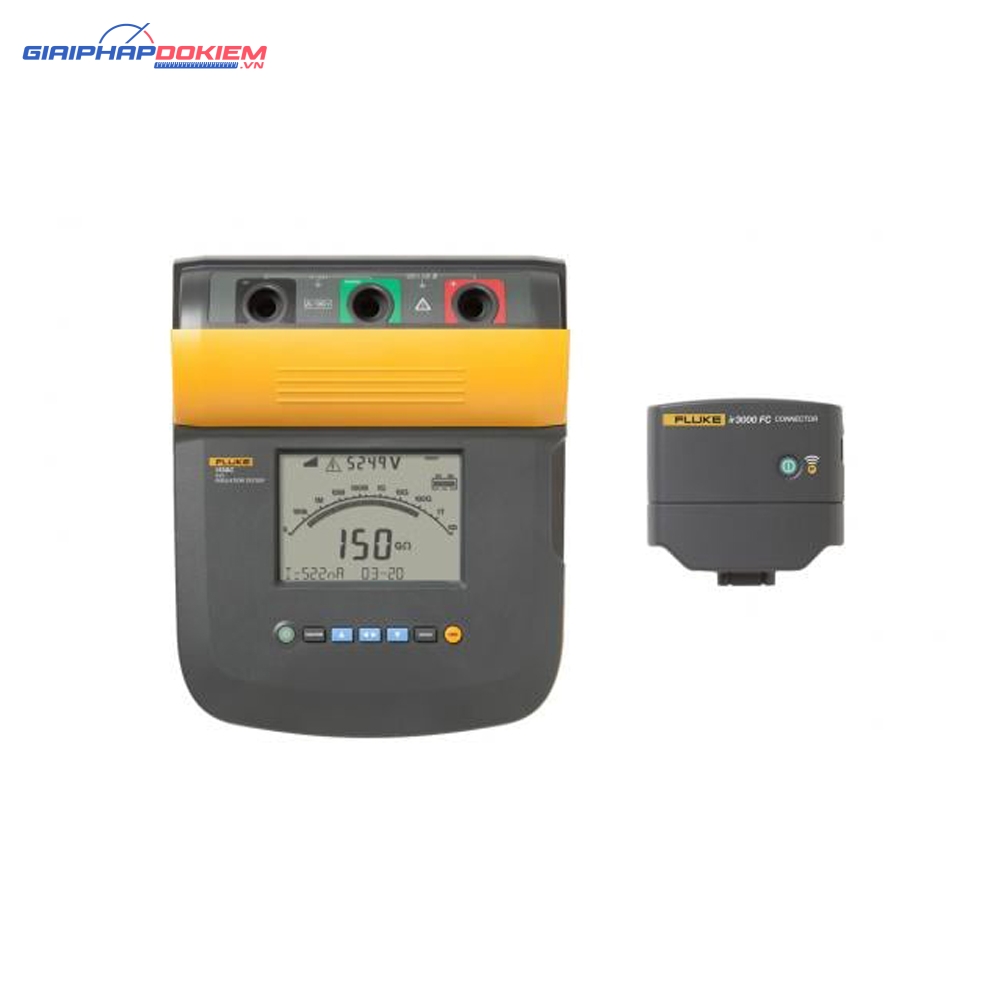

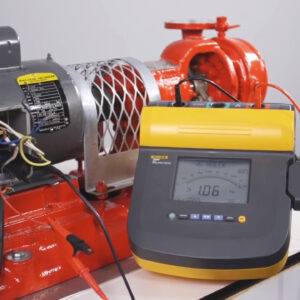

Máy đo điện trở cách điện FLUKE 1550C FC KIT

Other useful features Fluke 1550C FC KIT:

Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
CAT III 1000 V, CAT IV 600 V safety rating
Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
Long battery life gives the user over 750 tests between charges
Large digital/analog LCD for easy viewing
Capacitance and leakage current measurement
Ramp function for breakdown testing
Resistance measurements up to 2 TΩ
Timer settings up to 99 minutes for timed tests

THÔNG SỐ KỸ THUẬT CỦA MÁY ĐO ĐIỆN TRỞ CÁCH ĐIỆN FLUKE 1550C FC KIT

Electrical Specifications of Fluke 1550C FC KIT
The tester’s accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ± .25% per °C, except on the 20% bands add ± 1% per °C.
Insulation Resistance Measurement
Test voltage (DC)
250 V	Range	< 250 kΩ, 250 kΩ to 5 GΩ 5 GΩ to 50 GΩ > 50 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
500 V	Range	< 500 kΩ 500 kΩ to 10 GΩ 10 GΩ to 100 GΩ > 100 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
1000 V	Range	< 1 MΩ 1 MΩ to 20 GΩ 20 GΩ to 200 GΩ > 200 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
2500 V	Range	< 2.5 MΩ 2.5 MΩ to 50 GΩ 50 GΩ to 500 GΩ > 500 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
5000 V	Range	< 5 MΩ 5 MΩ to 100 GΩ 100 GΩ to 1 TΩ > 1 TΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
Bar graph range	0 to 1 TΩ (1550C) – 0 to 2 TΩ (1555)
Insulation test voltage accuracy	-0%, +10% at 1 mA load current
Induced AC mains current rejection	2 mA maximum
Charging rate for capacitive load	5 seconds per μF
Discharge rate for capacitive load	1.5 s/μF
Leakage current measurement	Range	1 nA to 2 mA
	Accuracy	±(5% + 2 nA)
Capacitance measurement	Range	0.01 μF to 15.00 μF
	Accuracy	±(15% rdg + 0.03 μF)
Timer	Range	0 to 99 minutes
	Resolution setting	1 minute
	Resolution indication	1 second
Live circuit warning	Warning range	30 V to 660 V AC/DC, 50/60 Hz
	Voltage accuracy	±(15% + 2 V)
Software specifications	FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display	75 x 105 mm
Power of Fluke 1550C FC KIT	12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC)	85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions	269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight of Fluke 1550C FC KIT	3.7 kg (8.2 lb)
Temperature (operating)	-20°C to 50°C (-4°F to 122°F)
Temperature (storage)	-20°C to 65°C (-4°F to 149°F)
Humidity	80% to 31°C decreasing linearly to 50% at 50°C
Altitude	2000 m
Enclosure sealing	IP40
Input overload protection	1000 V AC
Electromagnetic compatibility	EN 61326
Safety compliance Fluke 1550C FC KIT	IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III IEC 61557-1, IEC 61557-2
