Giaiphapdokiem.vn chuyên phân phối Thiết Bị Đo Điện Trở Cách Điện Hioki IR3455

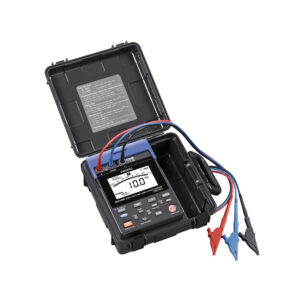

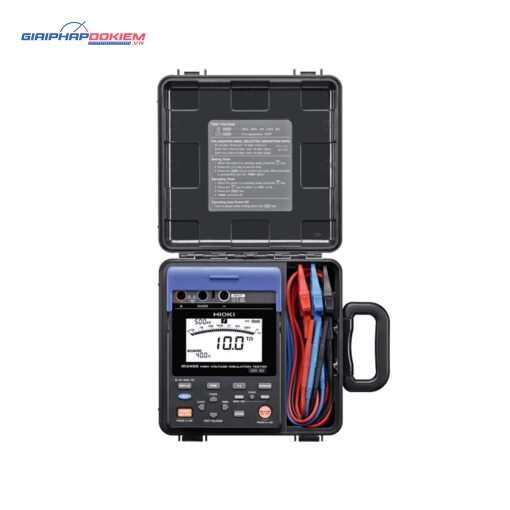

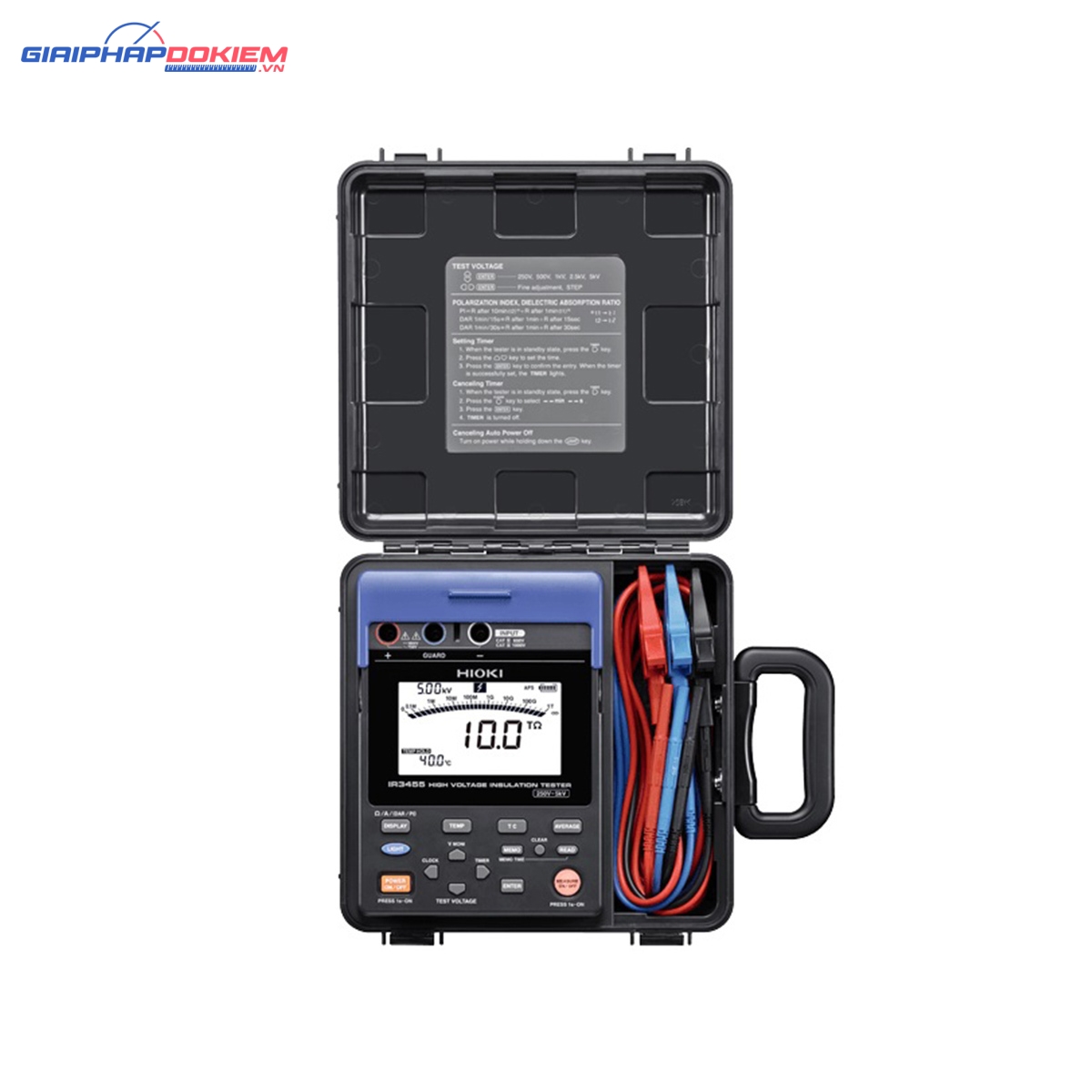

Thiết Bị Đo Điện Trở Cách Điện Hioki IR3455 – High Voltage Insulation Tester Hioki IR3455
Maximum 5kV Test Voltage – Up to 10 Teraohm of Insulated Resistance Testing
![Thiết Bị Đo Điện Trở Cách Điện Hioki IR3455 2 Thiết Bị Đo Điện Trở Cách Điện Hioki IR3455](https://giaiphapdokiem.vn/wp-content/uploads/2021/06/thiet-bi-do-dien-tro-cach-dien-hioki-ir3455-3.jpg)
Đặc tính kỹ thuật cơ bản của Hioki IR3455
Độ chính xác đảm bảo trong 1 năm, thời gian đảm bảo độ chính xác sau hiệu chỉnh thực hiện bởi Hioki: 1 năm
Test voltage | 250 V to 5.00 kV DC, (Possible in 25 V steps between 250 V and 1 kV and in 100 V steps between 1 and 5 kV) | |||||
---|---|---|---|---|---|---|
Measurement range | 0.00 MΩ to 500 GΩ (250 V) 0.00 MΩ to 1.00 TΩ (500 V) 0.00 MΩ to 2.00 TΩ (1 kV) 0.00 MΩ to 5.00 TΩ (2.5 kV) 0.00 MΩ to 10.0 TΩ (5 kV) | |||||
Measurement current | 1 mA (Test voltage 250 V to 1.00 kV), 0.5 mA (Test voltage 1.10 kV to 2.50 kV) 0.25 mA (Test voltage 2.60 kV to 5.00 kV), Short-circuit current: 2 mA or less | |||||
Resistance range | 10 MΩ to 10 TΩ, 7 ranges (auto range) | |||||
Accuracy | ±5% rdg. ±5 dgt. Up to [Test voltage (setting value)/Resistance measurable at 100 nA] ±20% rdg. ±5 dgt. [Test voltage (setting value)/Resistance measurable at 100 nA] to [Test voltage (setting value)/Resistance measurable at 1 nA] or 500 GΩ ±30% rdg. ±50 dgt. [Test voltage (setting value)/Resistance measurable at 1 nA] or 501 GΩ to 9.99 TΩ | |||||
Leakage current measurement | 1.00 nA to 1.20 mA, 6 ranges (current measurement that occurs when test voltage is generated) Accuracy ±2.5% rdg. ±5 dgt. (1 mA range); refer to complete catalog for other ranges | |||||
Voltage measurement | ±50 V to ±1.00 kV DC, 50 V to 750 V AC (50/60 Hz), Accuracy: ±5 % rdg. ±5 dgt. , Input resistance: Approx. 10 MΩ | |||||
Temperature measurement | -10.0 ˚C to 70.0 ˚C, 3 ranges (used with optional sensor) Accuracy ±1.0 ˚C (0.0 ˚C to 40.0 ˚C); refer to complete catalog for other ranges | |||||
Other functions | Insulation Diagnosis (Temperature compensation, PI/DAR display, Step voltage test), Data memory, Communication (USB 2.0, PC application software), auto discharge, hot conductor warning indication, etc. | |||||
Display | Digital LCD, max. 999 dgt. with backlight, Bar graph display | |||||
Power supply | LR6 (AA) alkaline batteries ×6, Battery pack 9459, or AC adapter 9753 or 9418-15 (100 – 240 VAC) Continuous use : [LR6] 5 hr, [9459] 9 hr, (Occur 5 kV, +/- open terminal) | |||||
Dimensions and mass | 260 mm (10.24 in)W × 250.6 mm (9.87 in)H × 119.5 mm (4.70 in)D, 2.8 kg (98.8 oz) | |||||

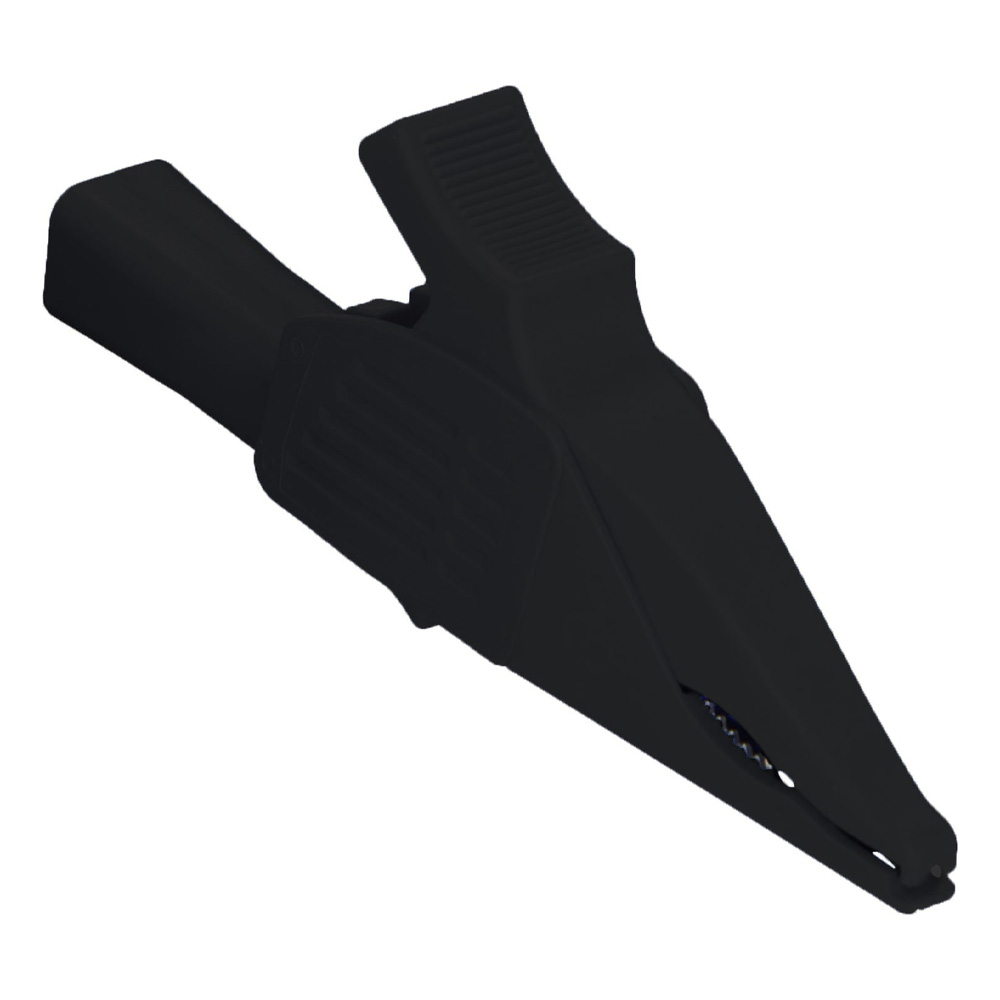

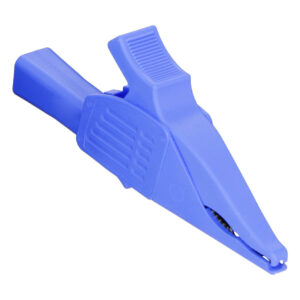

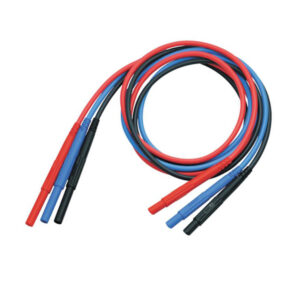

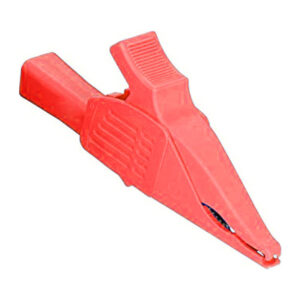

Accessories | Test lead 9750-01 ×1, Test lead 9750-02 ×1, Test lead 9750-03 ×1, Alligator clip 9751-01 ×1, Alligator clip 9751-02 ×1, Alligator clip 9751-03 ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×6, USB cable ×1, PC application software (CD-R) ×1 |
