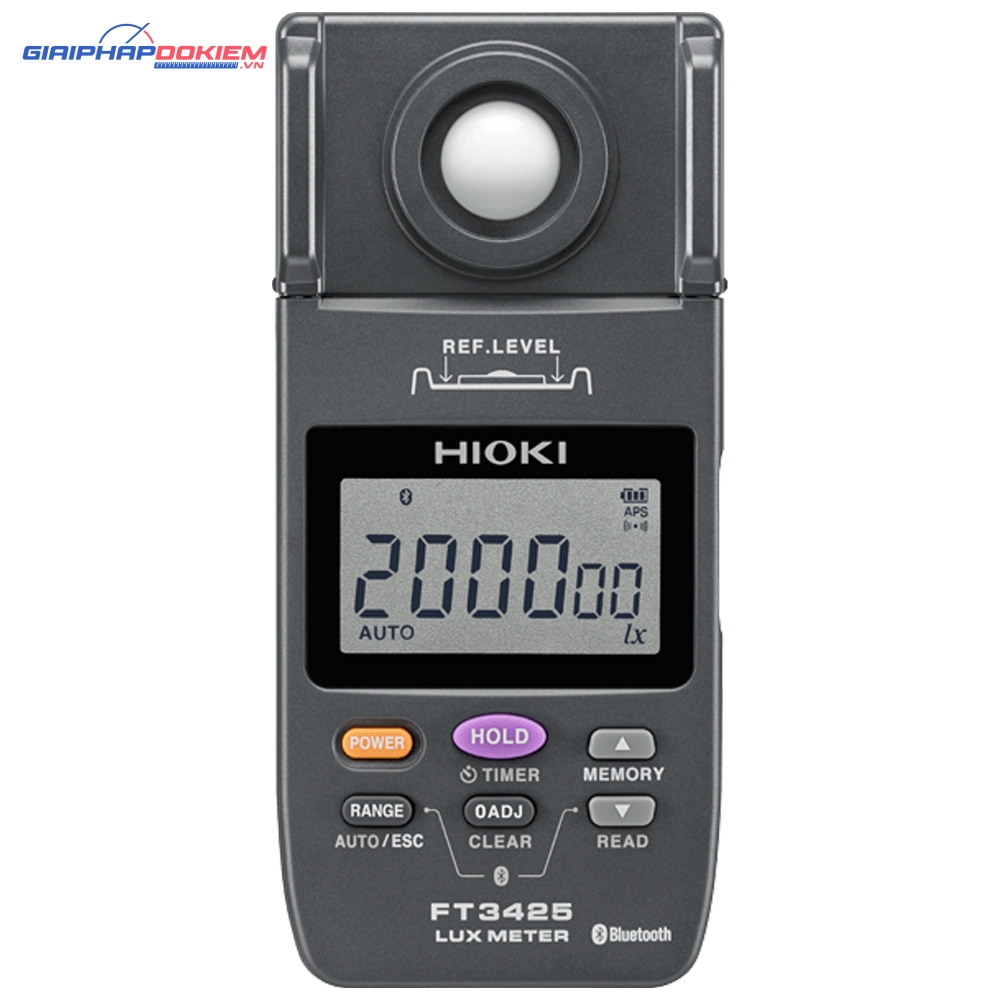

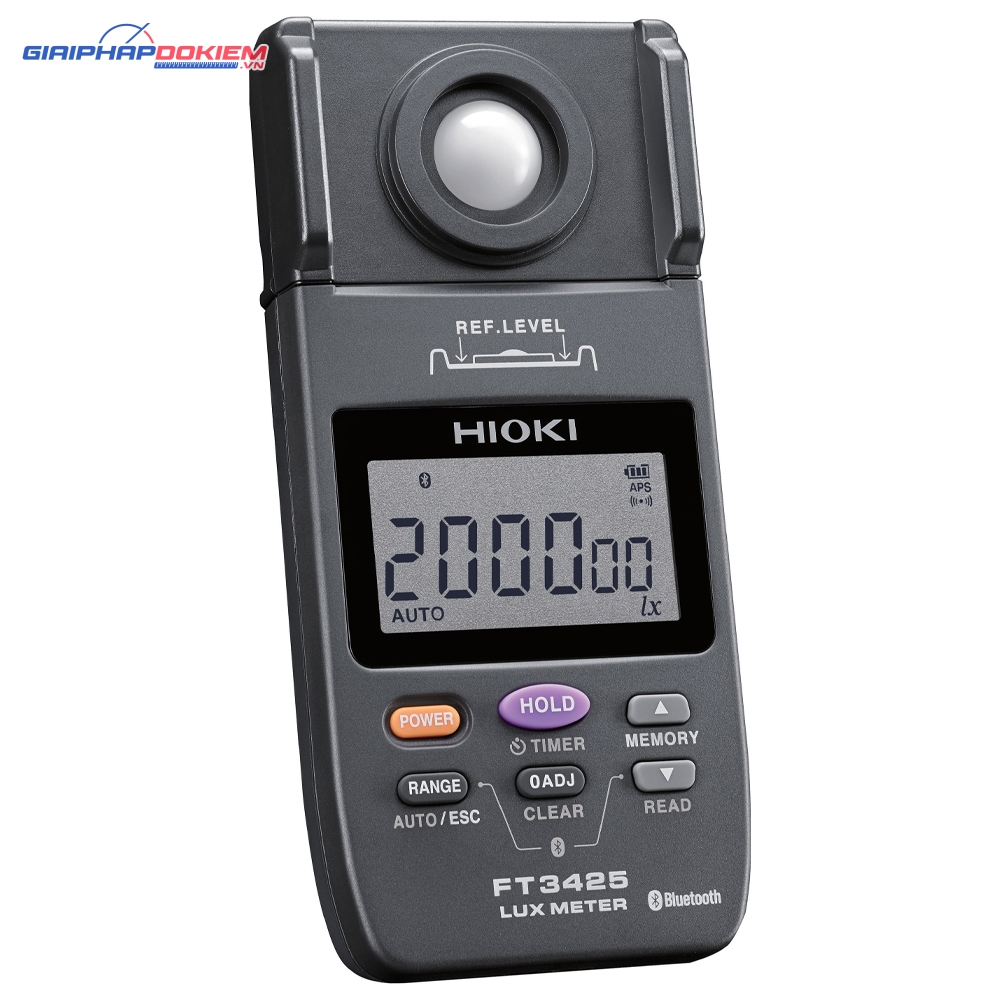

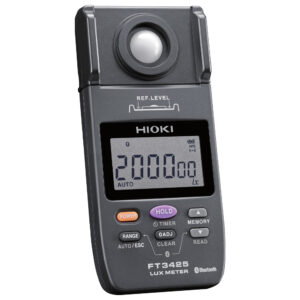

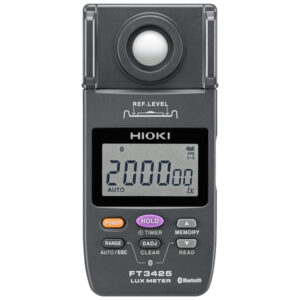

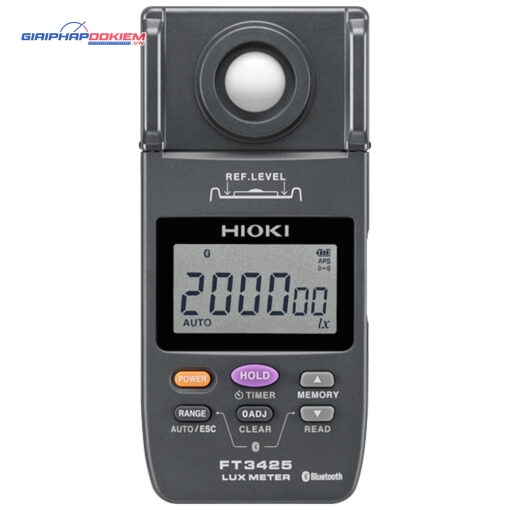

Đồng Hồ Đo Ánh Sáng Hioki FT3425 – Lux Meter Hioki FT3425

Đặc tính kỹ thuật cơ bản
Độ chính xác đảm bảo trong 1 năm, thời gian đảm bảo độ chính xác sau hiệu chỉnh thực hiện bởi Hioki: 1 năm
Only FT3425 is equipped with Bluetooth® wireless technology, others are shared specifications
Standards | DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class |
---|---|
Light receiving element | Silicon photo diode |
Range selection | Auto/ Manual |
Linearity | ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.) |
Accuracy guarantee for temperature and humidity | 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing) |
Response time | Auto range: within 5 seconds, Manual range: within 2 seconds |
D/A output | Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.) Output accuracy: ±1% rdg. ±5 mV (at display count) |
Functions | Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off , Buzzer sound, Backlight, Zero adjustment |

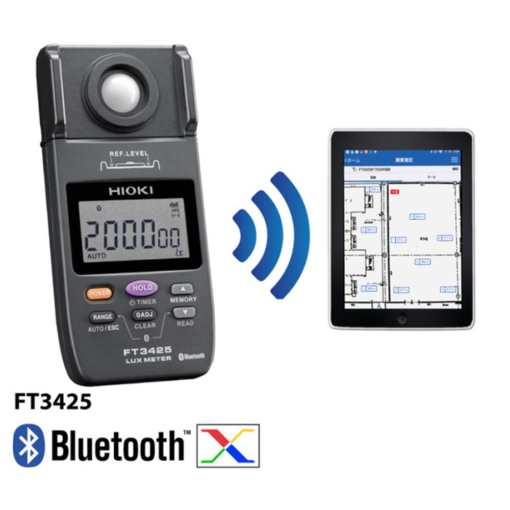

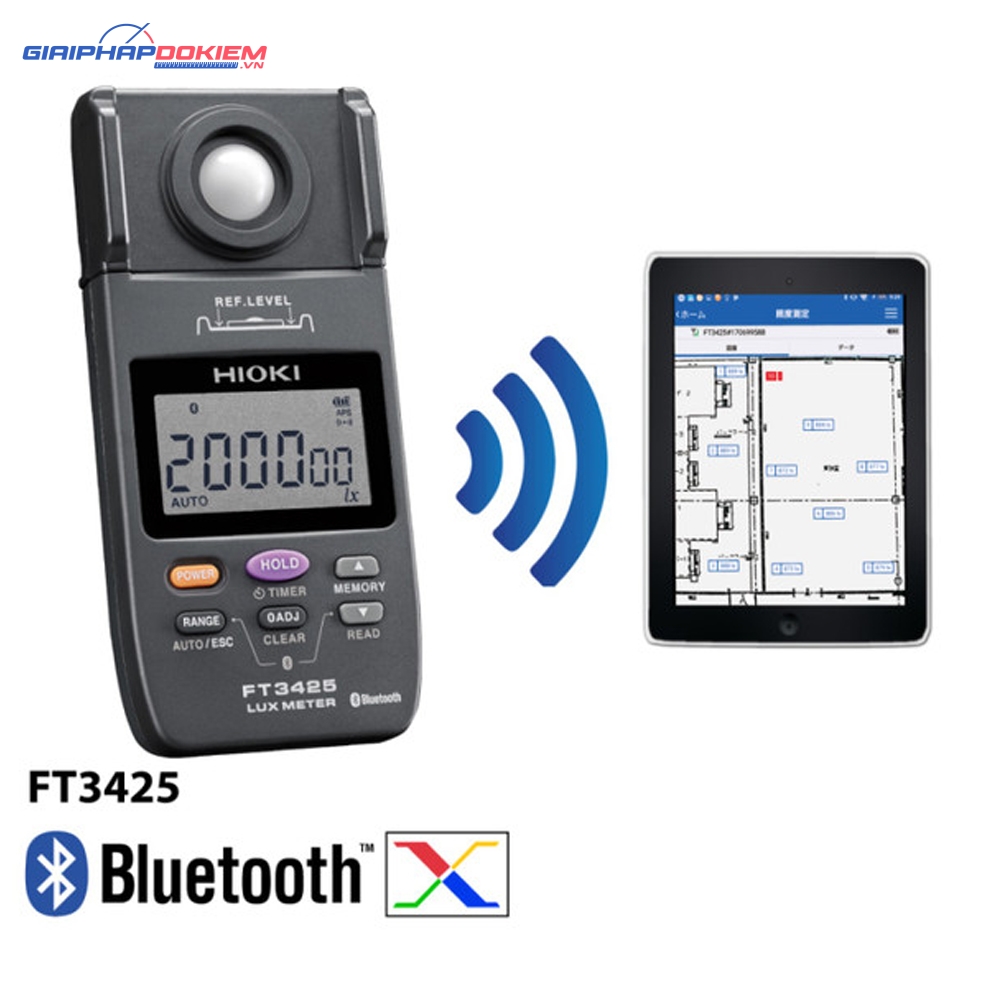

Interfaces | USB 2.0 (FT3424/FT3425), Bluetooth® 4.0LE (FT3425 only) |
Power supply | LR6 Alkaline battery ×2, Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC) |
Continuous battery operation time | 300 hours (when using LR6 batteries, with Bluetooth® OFF), 80 hours (when using LR6 batteries, with Bluetooth® ON) |
Dimensions and mass (including the batteries) | 78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz, FT3424) / 320 g (11.3 oz, FT3425) |
Accessories | Instruction Manual ×1, AA/LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 (only FT3425) |
Measurement ranges
Range | Measurement range | Display steps |
---|---|---|
20 lx | 0.00 lx to 20.00 lx | 1 count step |
200 lx | 0.0 lx to 200.0 lx | 1 count step |
2000 lx | 0 lx to 2000 lx | 1 count step |
20000 lx | 00 lx to 20000 lx | 10 count step |
200000 lx | 000 lx to 200000 lx | 100 count step |
