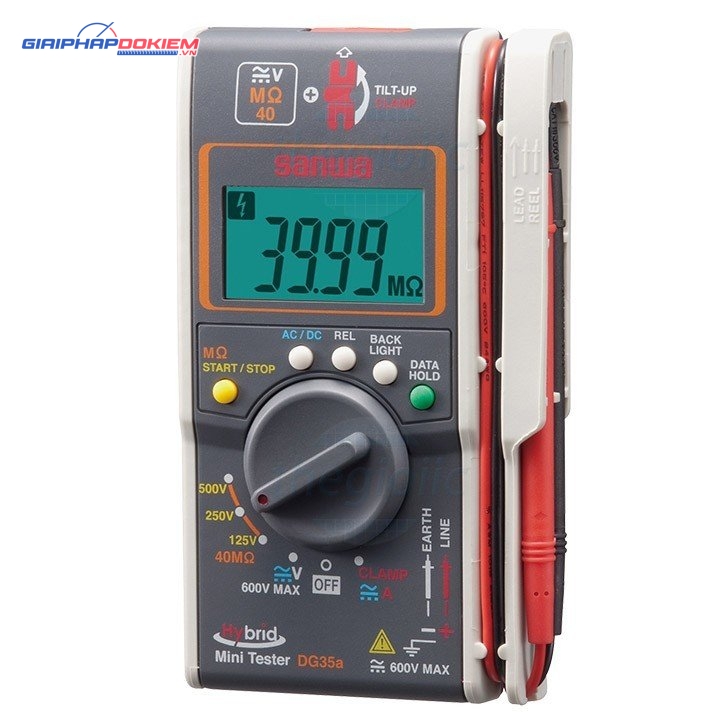

Đồng Hồ Đo Điện Đa Năng SANWA DG35a
DG35a | Measuring rage | Best accuracy | Resolution |
---|---|---|---|
MΩTest | 40MΩ | ±(3.0%+3) | 0.01MΩ |
Test voltage | 125/250/500V | ||
DCA | 100A | ±(2.0%+5) | 0.1A |
ACA | 100A | ±(2.0%+5) | 0.1A |
DCV | 600V | ±(1.1%+3) | 1V |
ACV | 600V | ±(1.6%+7) | 1V |
Display | 3999 |
Sampling rate | 2 times/sec. |
Rated measurement current | 125V/approx.12.5μA 250V/approx.25μA 500V/approx.50μA |
Clamp diameter | Φ10mm |
Battery | LR03×2 |
Size/Mass | H130×W75×D19.9mm/approx.160g |
Test lead length | Length of both red and black test leads is approximately 60 cm directly connected / 18 mm |
