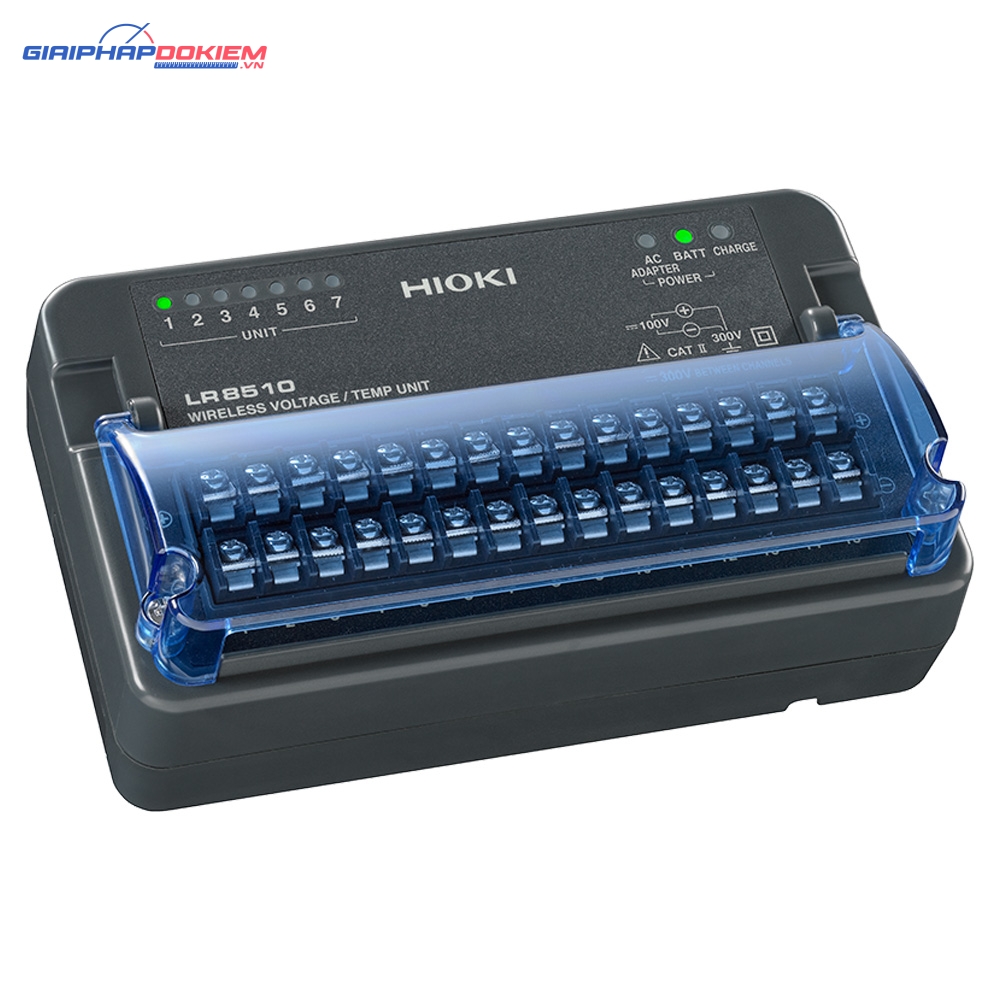

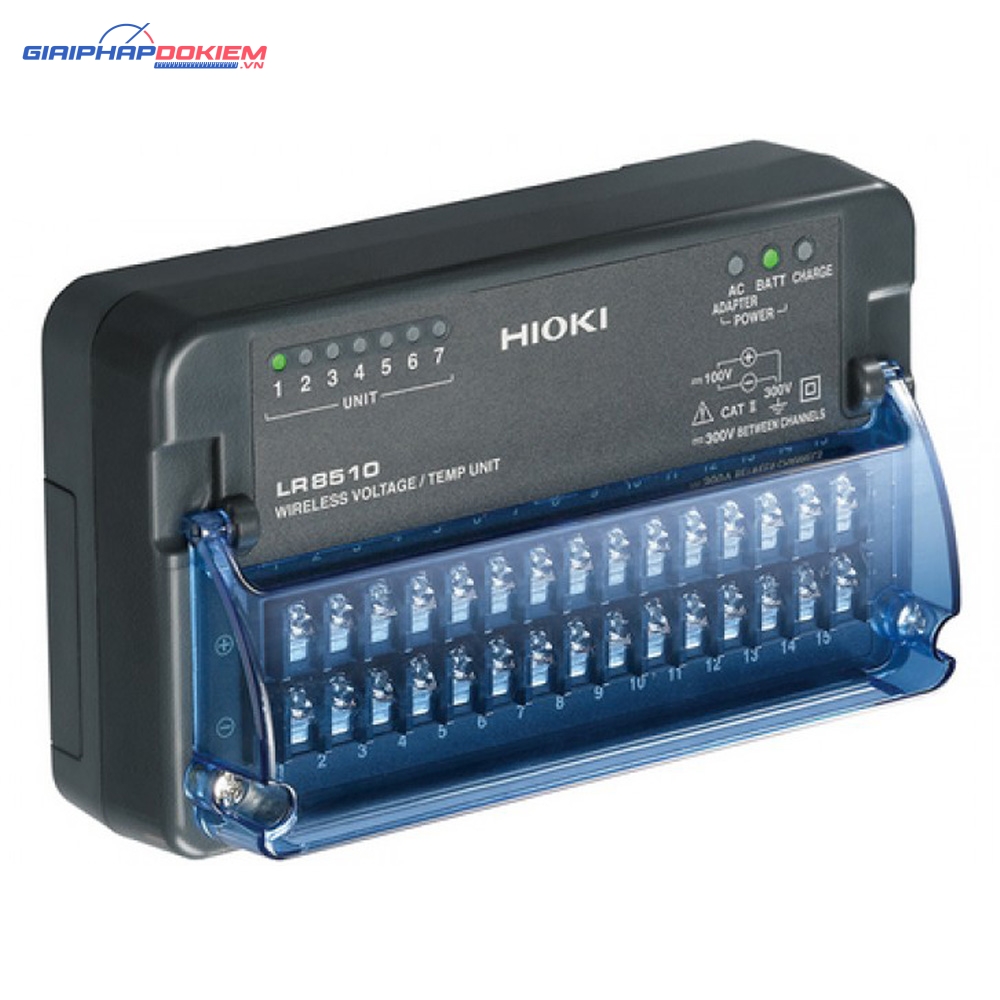

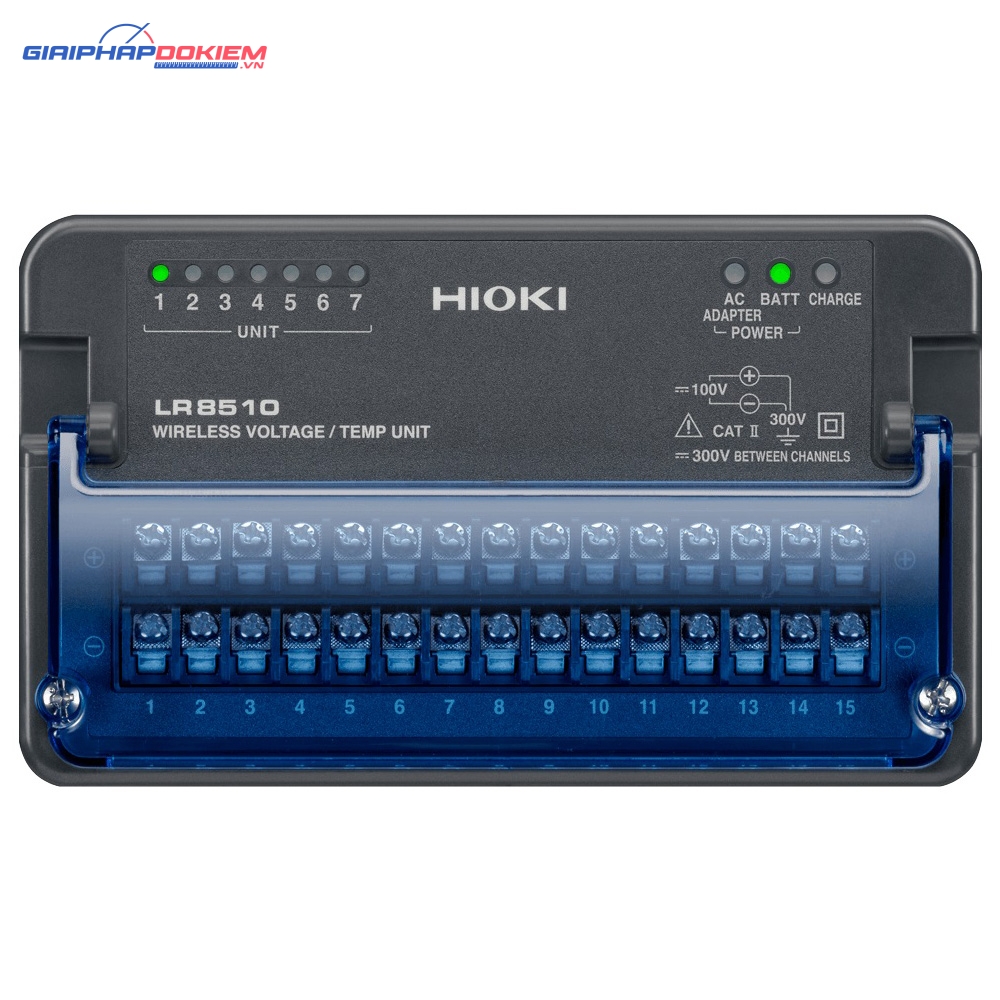

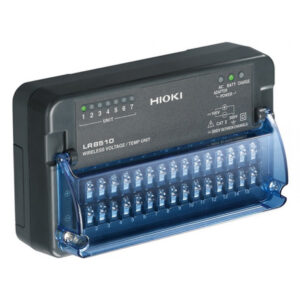

Logging Multi-point Data Has Never Been So Easy with a Wireless Data Logger
|Supported model||Model LR8410-20|
|Control and communications||Between instrument and unit: Bluetooth® 2.1 + EDR, Communications range: 30 m (98.43 ft), Security: SSP|
|Measurement parameters||[No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type)
[Voltage] ±10 mV to ±100 V, 1-5 V f.s., max. 500 nV resolution
[Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, T, or other), max. 0.01 ˚C resolution
Not available for [Pt 100, JPt 100 sensor] [Resistance] [Humidity]
[Max. rated voltage between isolated input channels] 300 V DC
[Max. allowable input] ±100 V DC
[Max. rated voltage from isolated terminals to ground] 300 V AC, DC
|Operating temperature||-20 °C to +60 °C (-4 °F to 140 °F)|
|Power supply||[AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 23 VA Max. (including AC adapter), 7 VA Max. (exclusive of AC adapter)
[Internal battery] Using the Battery Pack Z1007 (optional accessory), 24 hours of continuous use (at 100 ms recording interval, 23 ˚C reference data), 120 hours of continuous use (at 1 minute recording interval, 23 ˚C reference data), 0.4 VA Max.
[External power] 10 to 28 V DC, 7 VA Max.
|Dimensions and mass||150 mm (5.91 in) W × 90 mm (3.54 in) H × 56 mm (2.20 in) D, 340 g (12.0 oz)|
|Accessories||Instruction manual ×1, AC adapter Z1008 (with supplied power cord) ×1, Bracket ×1, M3×4 mm screw ×2|
