Ngõ Vào Biến Dạng Hioki MR8903

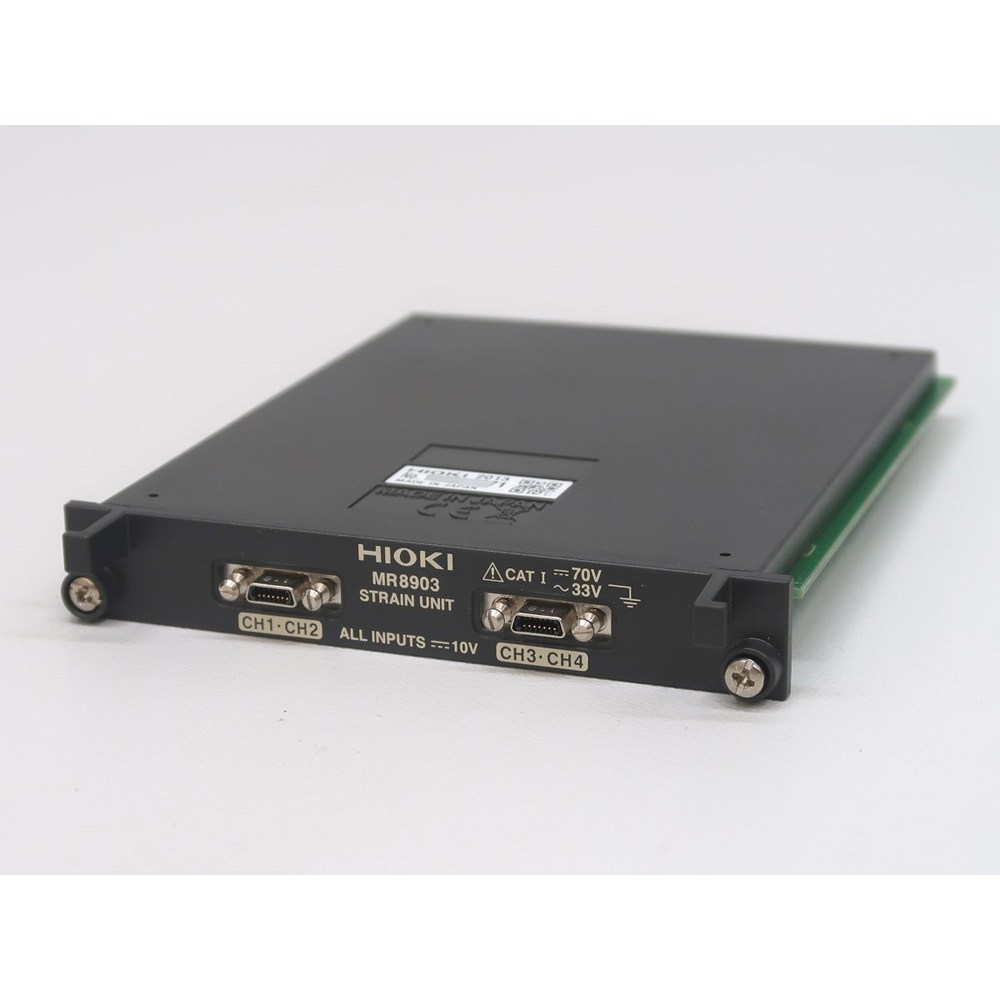

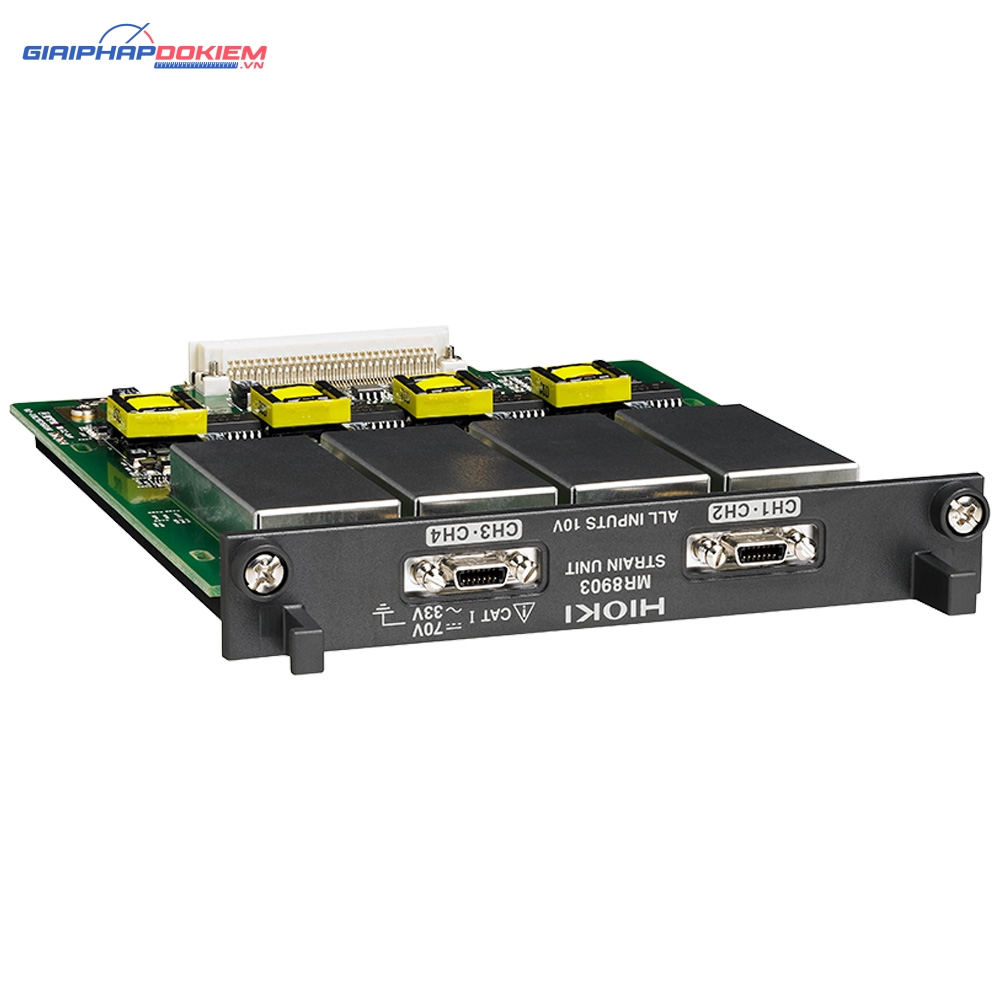

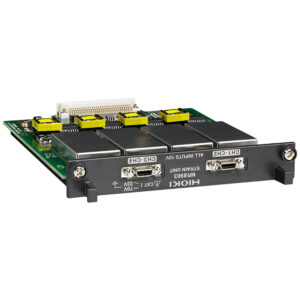

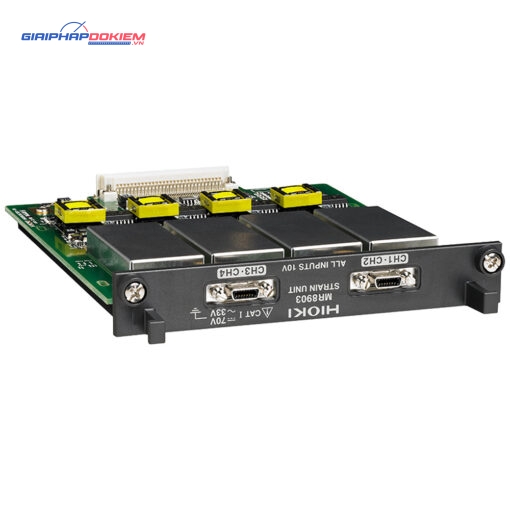

STRAIN UNIT HIOKI MR8903

Measure acceleration, load, pressure or strain waveforms

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Functions Hioki MR8903	No. of channels: 4, for voltage/strain measurements (selectable for each channel, electronic auto-balancing, balance adjustment range within ±10000 μV, ±10000 με)
Input connectors	Unit side: “HDR-EC14LFDTG2-SLE+” made by Honda Tsushin Kogyo Co., Ltd. Japan Via conversion cable, “PRC03-12A10-7M10.5” made by Tajimi Electronics Co., Ltd. Japan Max. rated voltage to earth: 30 V ACrms or 60 V DC (with input isolated from the main unit, the max. voltage that can be applied between input channel and chassis and between input channels without damage)
Suitable transducer	Strain gauge converter, Bridge resistance: 120 Ω to 1 kΩ, Bridge voltage: 2 V ±0.05 V, Gauge rate: 2.0
Input resistance	More than 1 MΩ
Voltage measurement ranges	50 μV to 1000 μV/div, 5 ranges, full scale: 20 division Accuracy: ±0.5 % f.s. + 4 μV (at 50 μV/div only), other ranges ±0.5 % f.s. (after auto-balance, with filter 5 Hz, zero position accuracy included)
Strain measurement ranges	20 με to 1000 με/div, 6 ranges, full scale: 20 division Accuracy: ±0.5 % f.s. + 4 με (at 20, 50 με/div), other ranges ±0.5 % f.s. (after auto-balance, with filter 5 Hz, zero position accuracy included)
Low-pass filter	Low-pass filter: 5/10/100 Hz, 1 kHz, OFF
Resolution	1/1250 of measurement range (using 16-bit A/D converter)
Highest sampling rate	200 kS/s (simultaneous sampling across 4 channels)
Frequency characteristics	DC to 20 kHz +1/-3 dB
Max. allowable input Hioki MR8903	10 V DC (the max. voltage that can be applied across input pins without damage)
Dimensions and mass	119.5 mm (4.70 in)W × 18.8 mm (0.74 in)H × 151.5mm (5.96 in)D, 173 g (6.1 oz)Conversion cable ×2 (Connector: TAJIMI PRC03-12A10-7M10.5)
Accessories	Conversion cable ×2 (Connector: TAJIMI PRC03-12A10-7M10.5)
