Ngõ Vào Điện Áp/Nhiệt Độ Hioki MR8902

Giá (chưa VAT): Liên hệ

Model: MR8902 Tình trạng: Còn hàng Nhà sản xuất: Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: MR8875

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

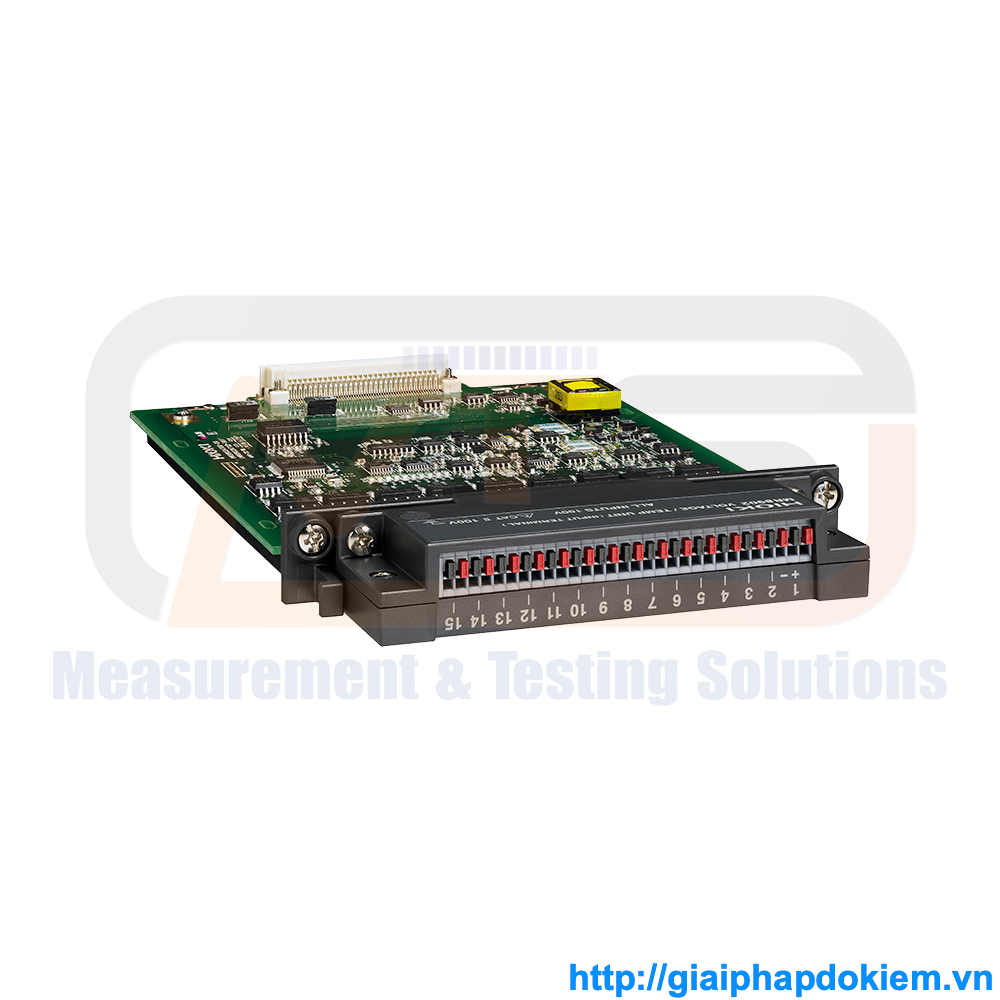

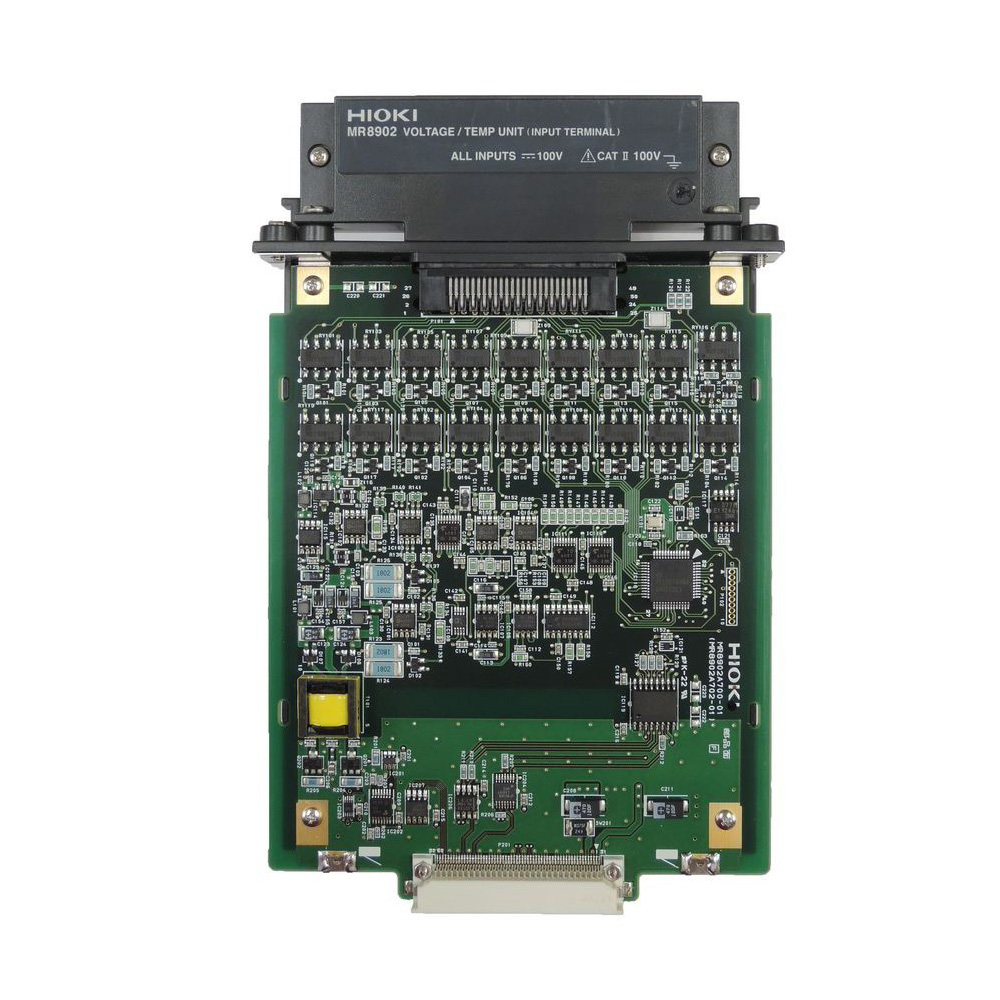

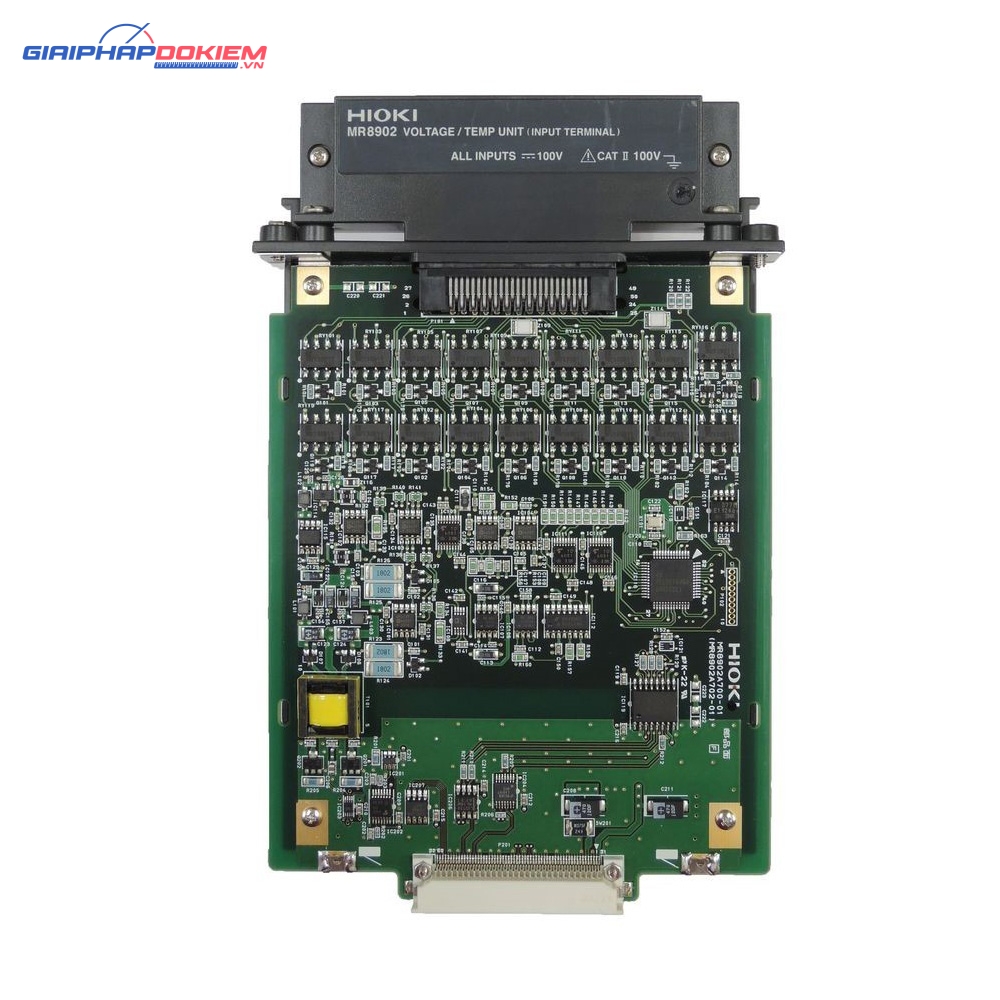

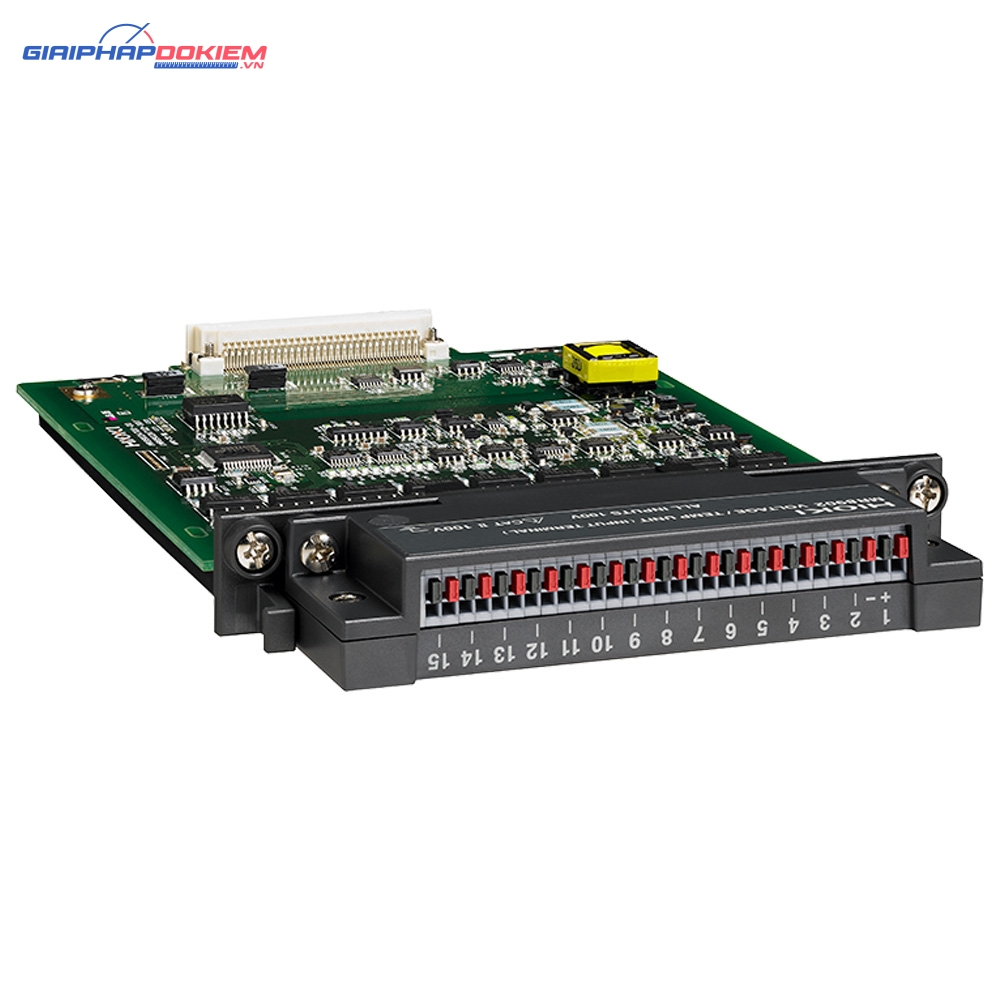

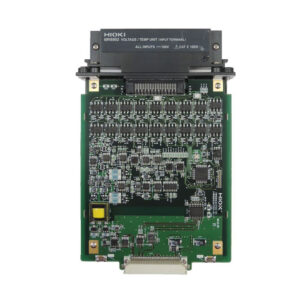

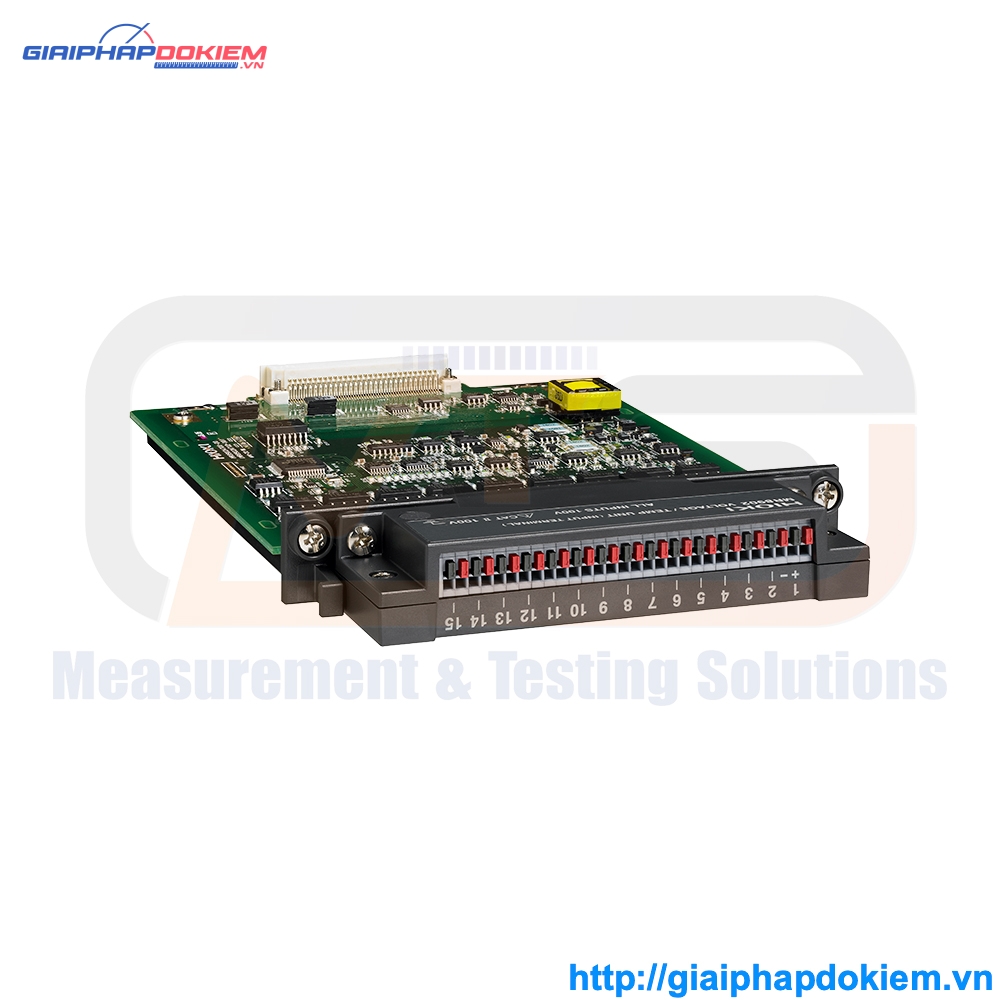

Ngõ Vào Điện Áp/Nhiệt Độ Hioki MR8902

VOLTAGE/TEMP UNIT HIOKI MR8902

Measure minute voltage or temperature waveform by 16 bit resolution, isolated input

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

FunctionsNo. of channels: 15, for voltage/temperature measurement (selectable for each channels)
Input connectorsVoltage/thermocouple input: push button terminal
Recommended wire diameter: single-wire φ 0.32 mm to φ 0.65 mm, stranded wire 0.08 to 0.32 mm2 (conductor wire diameter min. φ 0.12 mm), AWG 28 to 22
Input resistance: 1 MΩ
Max. rated voltage to earth: 100 V AC, DC (with input isolated from the main unit, the max. voltage that can be applied between input channel and chassis and between input channels without damage)
Voltage measurement ranges Hioki MR8902500 μV to 5 V/div, 9 ranges, full scale: 20 division * The AC instantaneous voltage waveform cannot be measured due to the slow sampling speed.
Resolution: 1/1000 of measurement range (using 16-bit A/D converter)
Accuracy: ±0.1 % f.s. (with digital filter ON, Zero position accuracy included)
Temperature measurement rangeReference junction compensation: Internal/ External (selectable)
Thermocouple broken-wire detection: ON/OFF (selection applies to entire unit)
Thermocouple type: K, J, E, T, N, R, S, B, WRe5-26
* For thermocouple measurement ranges, resolution, and accuracy, refer to the specifications table below
Digital filter50 Hz, 60 Hz, or OFF
Data refresh rate10 ms (with filter OFF, burn-out detection OFF)
20 ms (with filter OFF, burn-out detection ON)
500 ms (with filter ON, data refresh rate: Fast)
2 s (with filter ON, data refresh rate: Normal)
Max. allowable input100 V DC (the max. voltage that can be applied across input pins without damage)
Dimensions and mass119.5mm (4.70 in)W × 18.8mm (0.74 in)H × 184.8mm (7.28 in)D, 190 g (6.7 oz)
Accessories Hioki MR8902Ferrite clamp ×2
