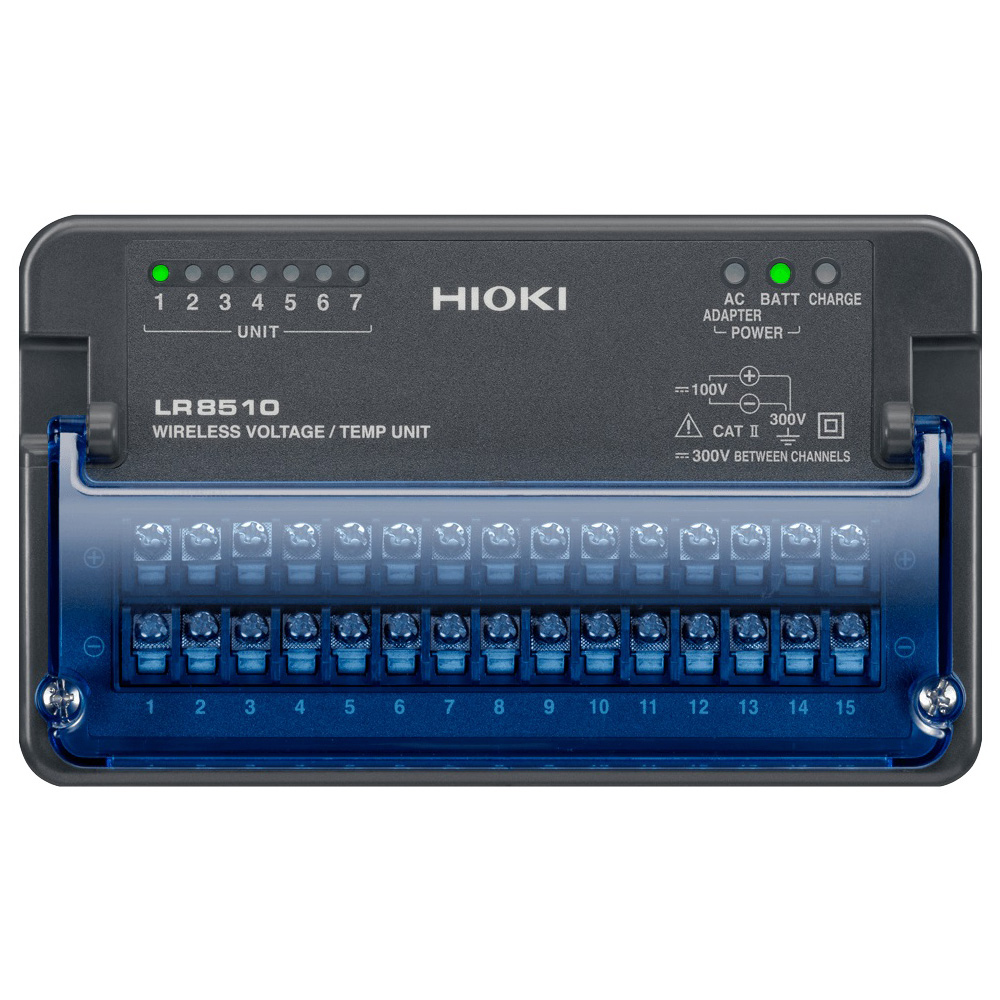

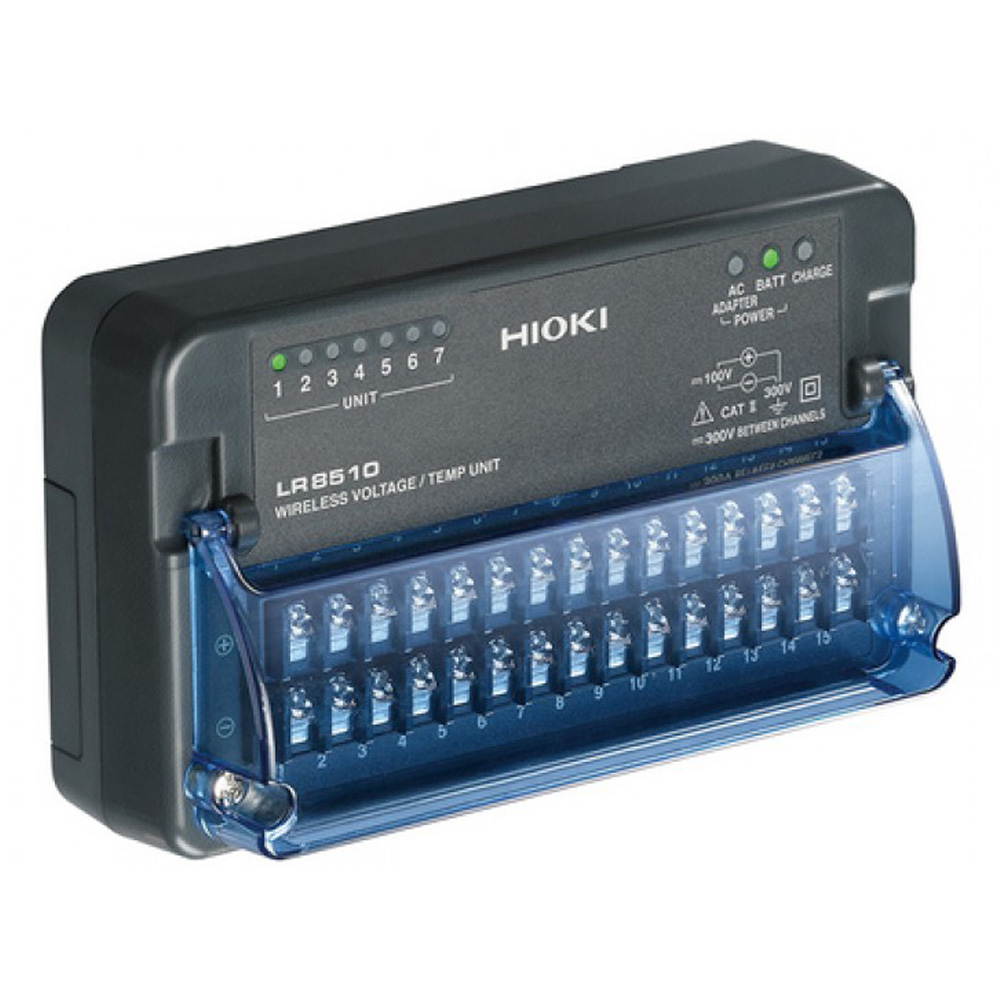

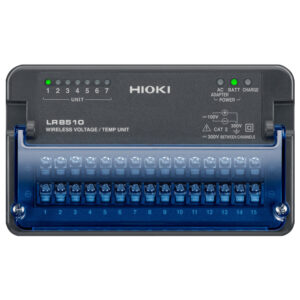

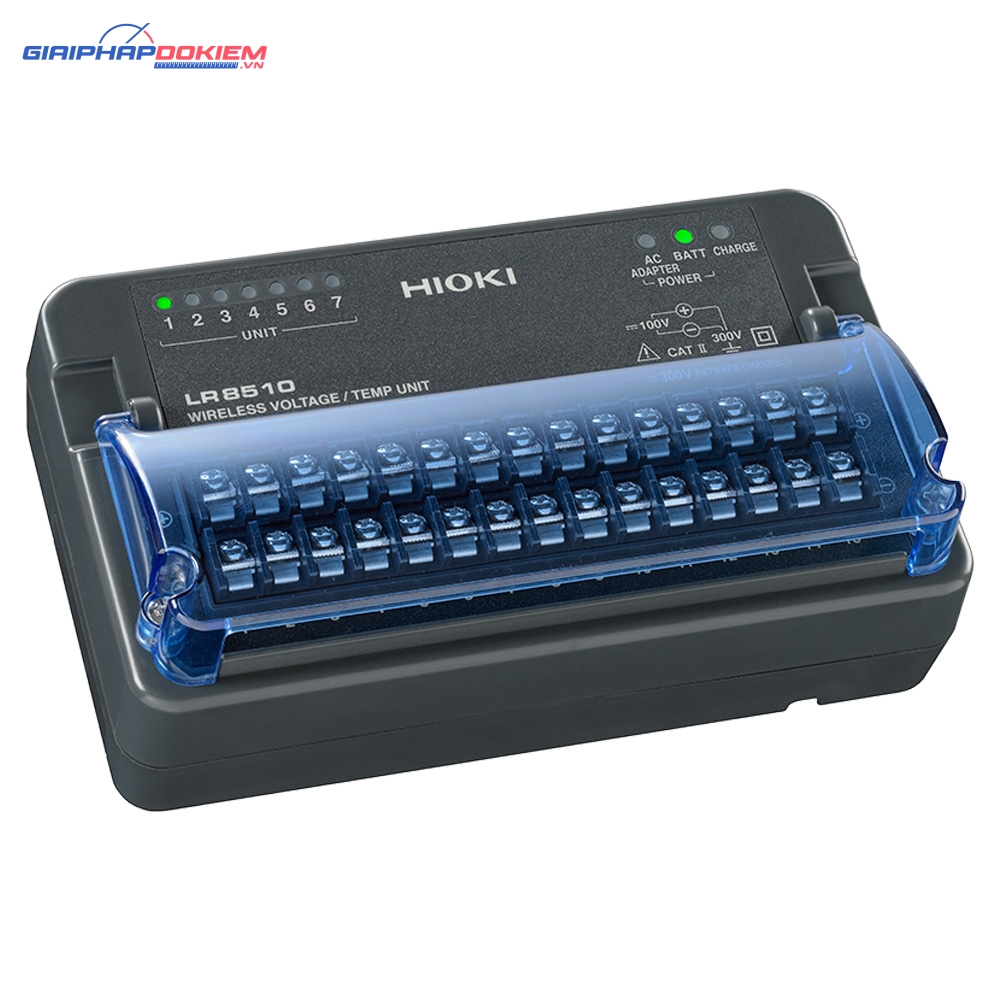

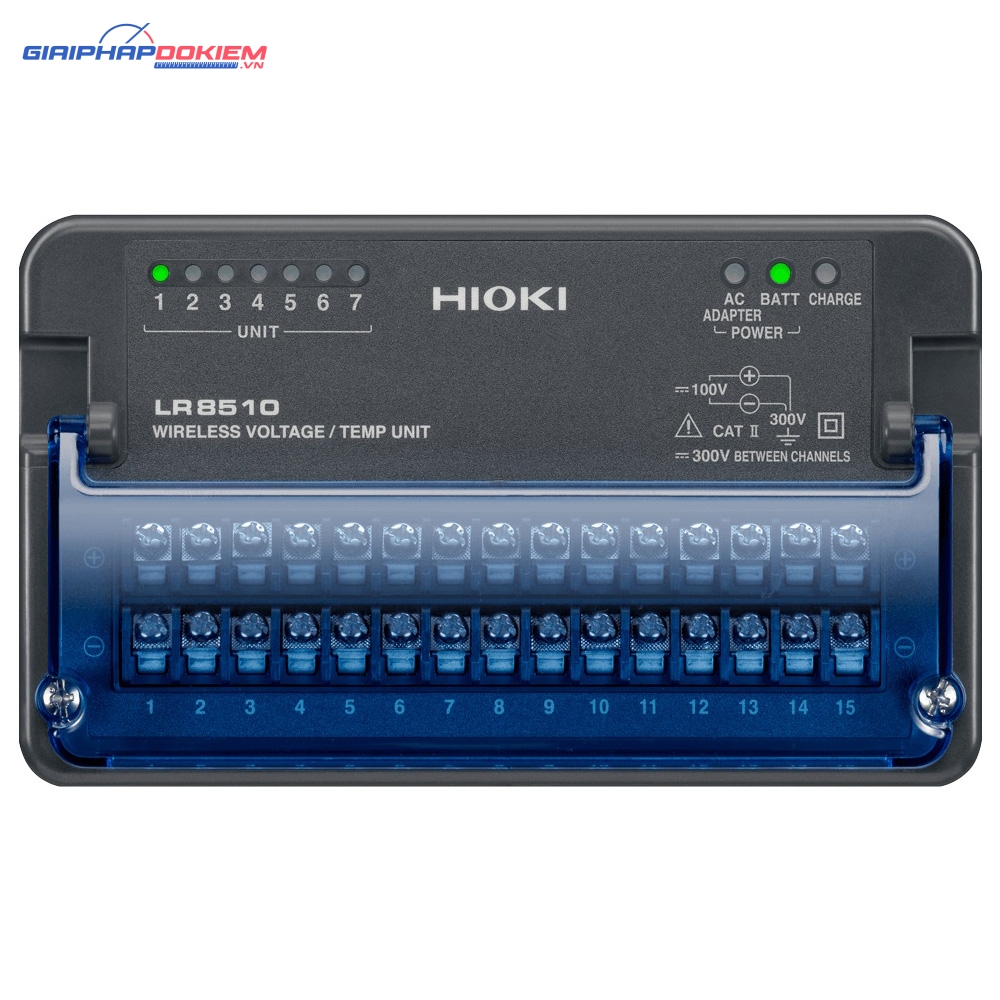

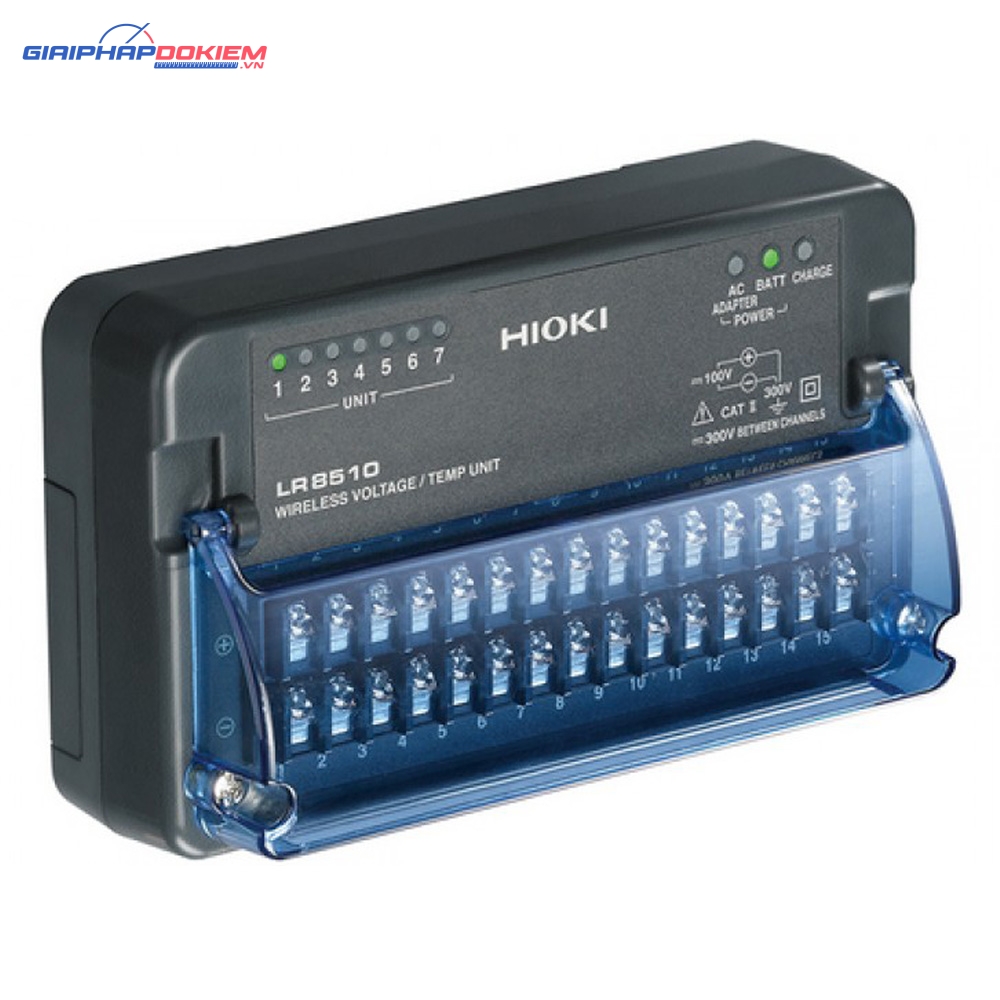

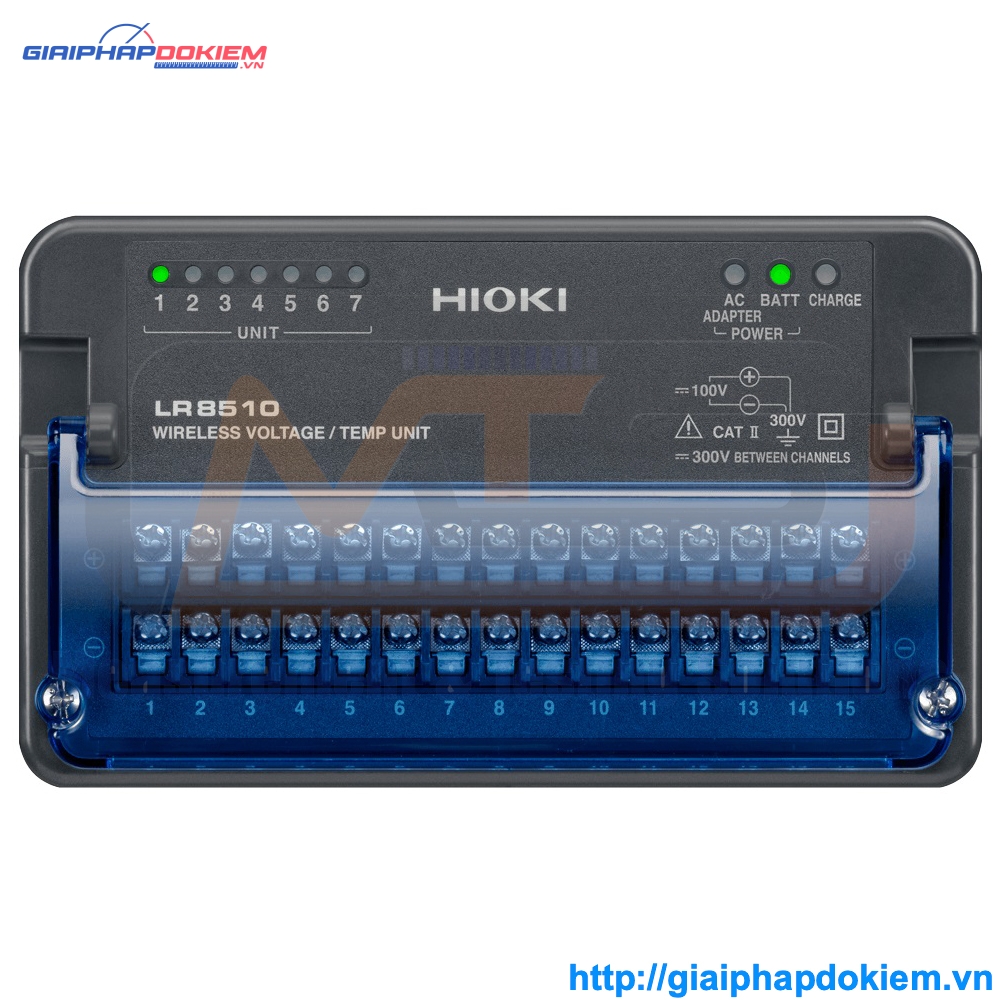

Ngõ vào điện áp/nhiệt độ wireless Hioki LR8510

Name: Ngõ vào điện áp/nhiệt độ wireless Hioki LR8510 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: LR8510
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: LR8510 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: N/A

Phụ kiện cho: LR8410-20

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Logging Multi-point Data Has Never Been So Easy with a Wireless Data Logger

Supported model	Model LR8410-20
Control and communications	Between instrument and unit: Bluetooth® 2.1 + EDR, Communications range: 30 m (98.43 ft), Security: SSP
Measurement parameters	[No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s., max. 500 nV resolution [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, T, or other), max. 0.01 ˚C resolution Not available for [Pt 100, JPt 100 sensor] [Resistance] [Humidity] [Max. rated voltage between isolated input channels] 300 V DC [Max. allowable input] ±100 V DC [Max. rated voltage from isolated terminals to ground] 300 V AC, DC
Operating temperature	-20 °C to +60 °C (-4 °F to 140 °F)
Power supply hioki LR8510	[AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 23 VA Max. (including AC adapter), 7 VA Max. (exclusive of AC adapter) [Internal battery] Using the Battery Pack Z1007 (optional accessory), 24 hours of continuous use (at 100 ms recording interval, 23 ˚C reference data), 120 hours of continuous use (at 1 minute recording interval, 23 ˚C reference data), 0.4 VA Max. [External power] 10 to 28 V DC, 7 VA Max.
Dimensions and mass	150 mm (5.91 in) W × 90 mm (3.54 in) H × 56 mm (2.20 in) D, 340 g (12.0 oz)
Accessories hioki LR8510	Instruction manual ×1, AC adapter Z1008 (with supplied power cord) ×1, Bracket ×1, M3×4 mm screw ×2
