Phần Mềm Hiển Thị Hioki SF1000

LOGGER UTILITY HIOKI SF1000

Name: Phần Mềm Hiển Thị Hioki SF1000 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: SF1000
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: SF1000 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Supported units

Hioki models 8423, 8430, LR8431, LR8432, LR8400, LR8401, LR8402, LR8410, LR8512, LR8513, LR8514, LR8515, and LR8520

Operating environment

Windows 10/8/7 (32bit/64bit)

Real-time data collection

• The control of the measurement of multiple loggers connected by LAN or USB, and the reception, display, and saving of the waveform data in real time (Total recording sample count: Up to 10 M of samples)
• Contollable Loggers: 5
• Data Collection System: 1 system (running multiple instances of the application software facilitates multiple system collection)
• Display Format: Waveform, Numerical values, Alarms
• Other: Numerical value monitor display, waveforms can be scrolled during measurement, event mark

Other functions Hioki SF1000

• Wavefrorm Display: Real-time data collection file (LUW format), Main unit measurement file (MEM format)
• Data Conversion: CSV format, transfer to Excel sheet, LR5000 format (hrp2, hrp)
• Waveform Calculation: Four arithmetic operations, number of calculation channel: 60
• Calculations: Average value, peak value, or other
• Search: Event mark, date and time, or other
• Print: Waveform image, report print, and list print

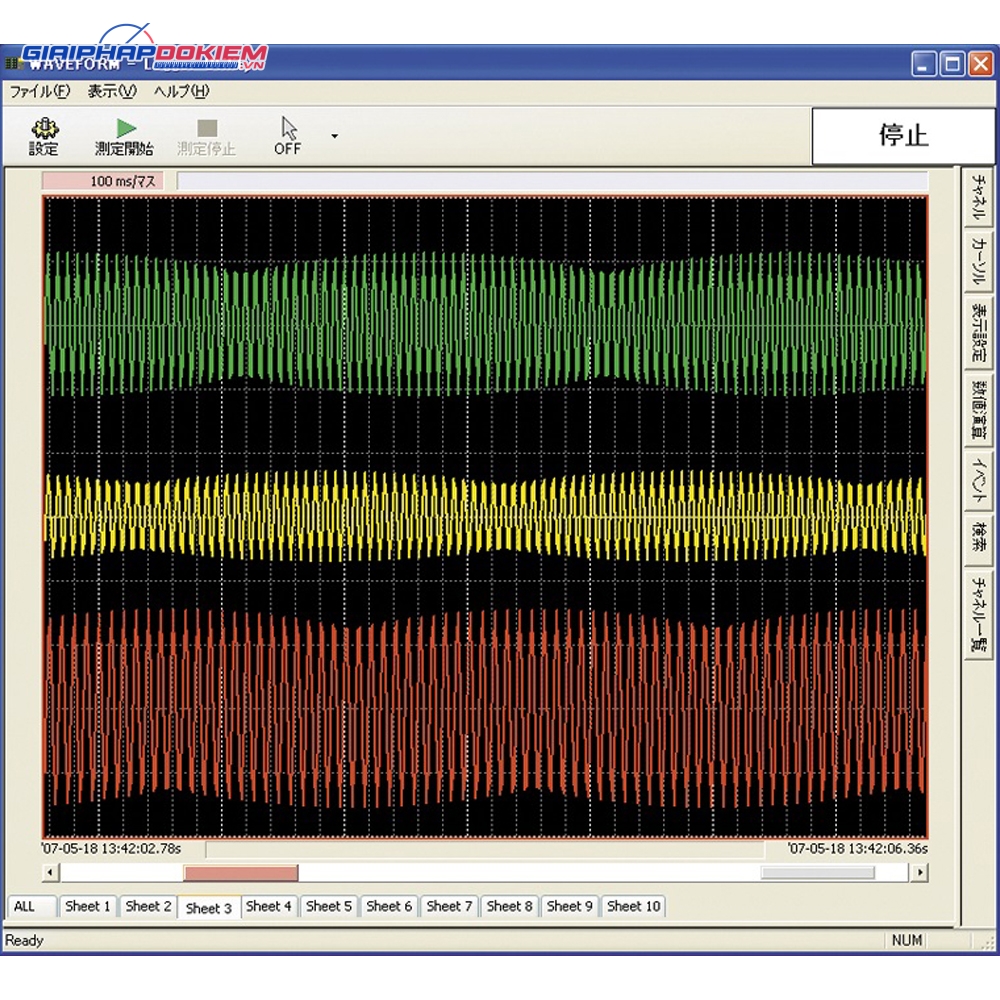

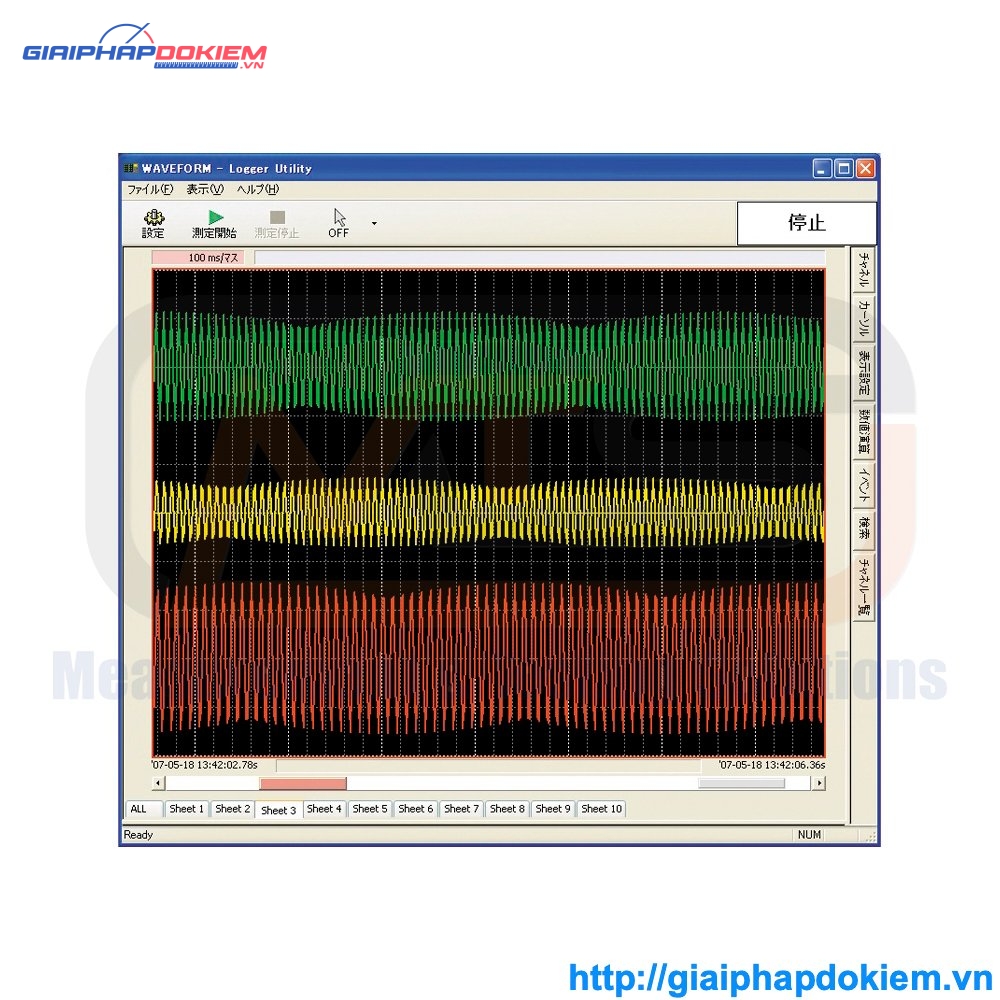

View a trend graph and scroll back to view earlier waveform data, even while recording

Outline specifications (free software)
