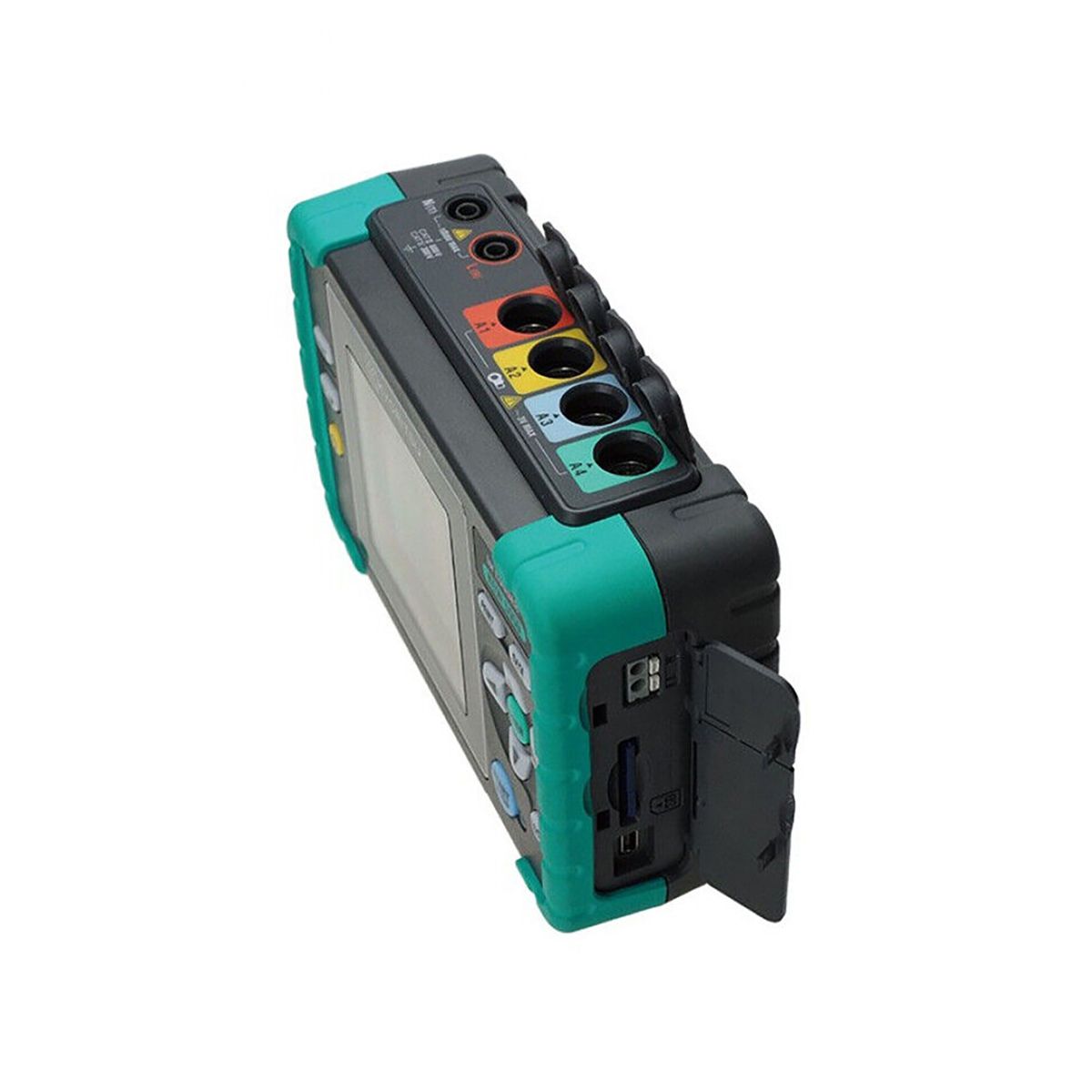

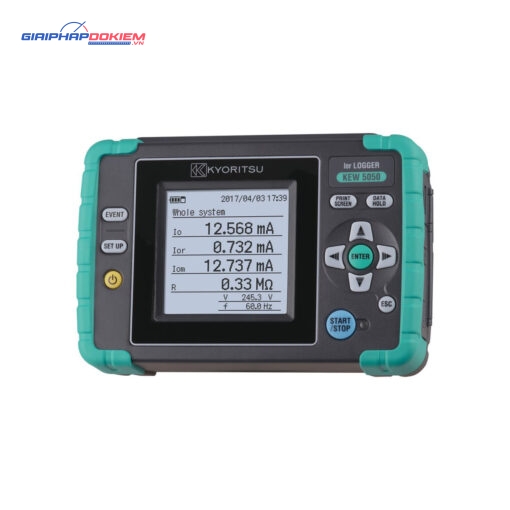

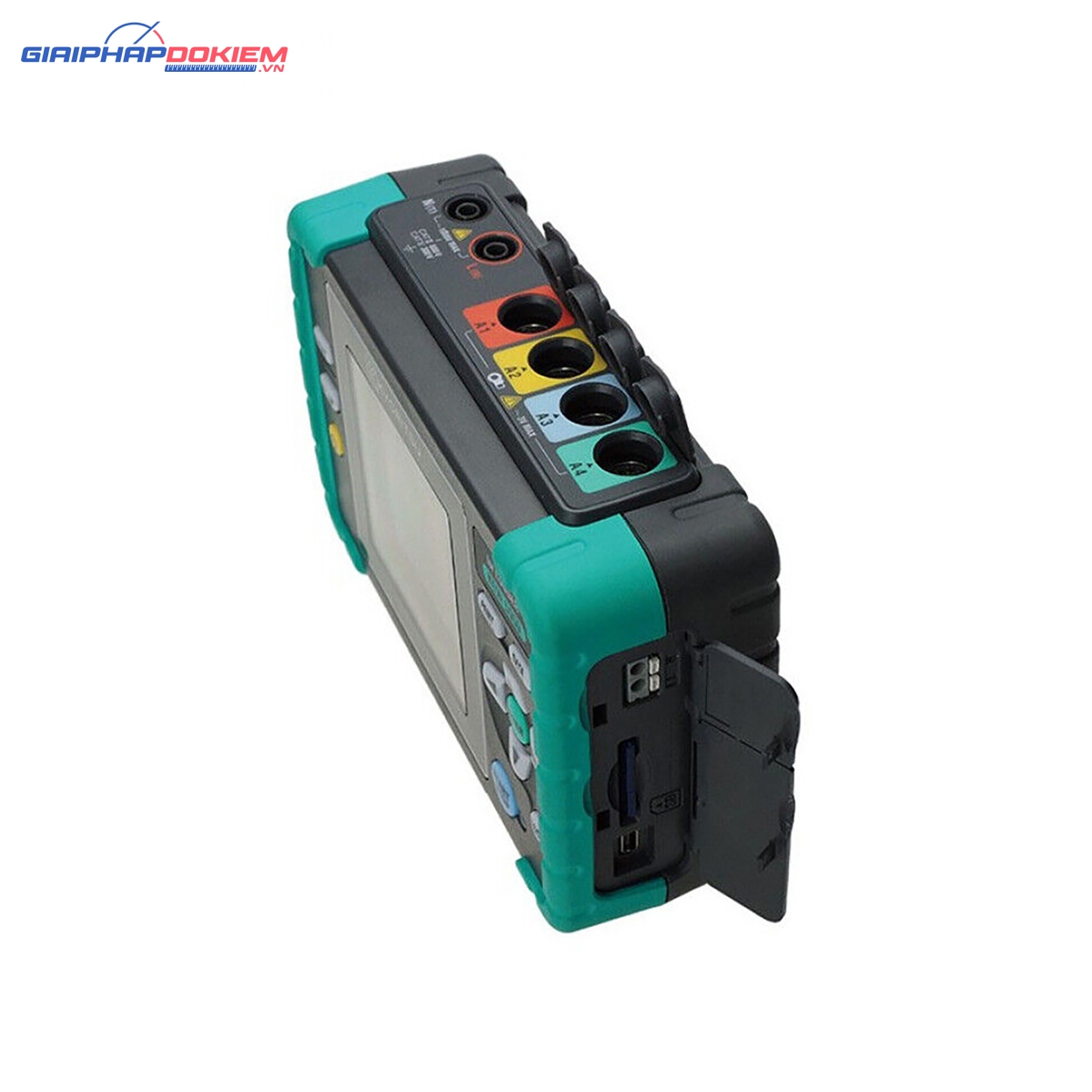

Máy Đo Phân Tích Công Suất 4 Kênh Kyoritsu 5050-00

Ior
Wiring configuration		1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters		Ior : Leakage current (Trms) with resistive components only Io : Leakage current (Trms) with basic wave of 40 – 70Hz Iom : Leakage current (Trms) including harmonic components V : Reference voltage (Trms) with basic wave of 40 – 70Hz Vm : Reference voltage (Trms) including harmonic components R : Insulation resistance, Frequency(Hz), Phase angle(θ)
Other functions		Digital output, Print screen, Back light, Data hold
Recording Interval		200/400ms/1/5/15/30s/1/5/15/30m/1/2hours
	Range	10.000/100.00/1000.0mA/10.000A/AUTO
	Accuracy kyoritsu 5050	For reference voltages of sine wave 40 – 70Hz and 90V Trms or higher, ±0.2%rdg±0.2%f.s. + clamp sensor amplitude accuracy + error of phase accuracy* (phase error) * add ±2.0%rdg to measured Io value when using Ior leakage clamp sensor. (θ: within the accuracy of reference voltage/ current phase difference ±1.0°)
	Allowable input	1% – 110% (Trms) of each range, and 200% (peak) of the range
	Display range	0.15% – 130% (display “0” for less than 0.15%, “OL” if the range is exceeded)
Io *Range, Allowable input and Display Range are the same as Ior .
	Accuracy	±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
Iom *Range, Allowable input and Display Range are the same as Ior .
	Accuracy	±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
	Measurement method	Sampling speed 40.96ksps (every 24.4μs), gapless, calculate Trms values every 200ms.
Voltage
	Range	1000.0V
	Accuracy	±0.2%rdg±0.2%f.s. * for waveforms of sine wave 40 – 70Hz
	Allowable input	10 – 1000V Trms, and 2000V peak
	Display range	0.9V – 1100.0V Trms (display “0” for less than 0.9V, “OL” if the range is exceeded)
Phase angle(θ)
	Display range	0.0° – ±180.0° (regarding the phase of reference voltage as 0.0°)
	Accuracy kyoritsu 5050	Within ±0.5° for the inputs of 10% or higher of leakage current range, sine wave 40 – 70Hz, reference voltage of 90V Trms or higher.
Frequency meter range		40 – 70Hz
External supply		AC100 – 240V(50/60Hz) 7VA max
Power source		LR6(AA)(1.5V) × 6 (Battery life approx. 11h)
Display / update period		160 × 160dots, FSTN monochrome display / 500ms
PC card interface		SD card (2GB) *standard accessory
PC communication interface		USB Ver2.0
Temperature and humidity range		23±5°C, less than 85%RH(without condensation)
Operating temperature and humidity range		-10 – 50°C less than 85%RH(without condensation)
Storage temperature and humidity range		-20 – 60°C less than 85%RH(without condensation)
Applicable Standards		IEC61010-1 CATⅣ 300V , CATⅢ 600V Pollution degree 2 IEC61010-2-030 , IEC61010-031 , IEC61326
Dimension/Weight		165(L) × 115(W) × 57(D)mm/approx. 680g (including batteries)
Included accessories		7273(Voltage test lead) 8262(AC adapter) 7278(Earth cable) 7219(USB cable) 8326-02(SD card 2GB) 9125(Carrying case) Instruction manual, Cable marker, Software installation manual LR6(AA) × 6 KEW Windows for KEW 5050(software)
Optional accessories kyoritsu 5050		8177(Ior Leakage clamp sensor 10A type Ø40mm) 8178(Ior Leakage clamp sensor 10A type Ø68mm) 8329(Power supply adapter)
