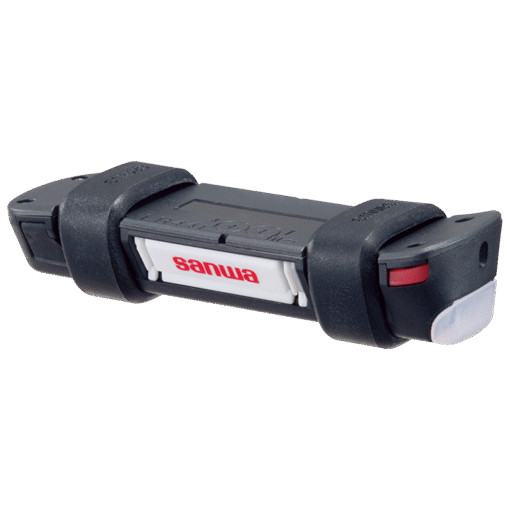

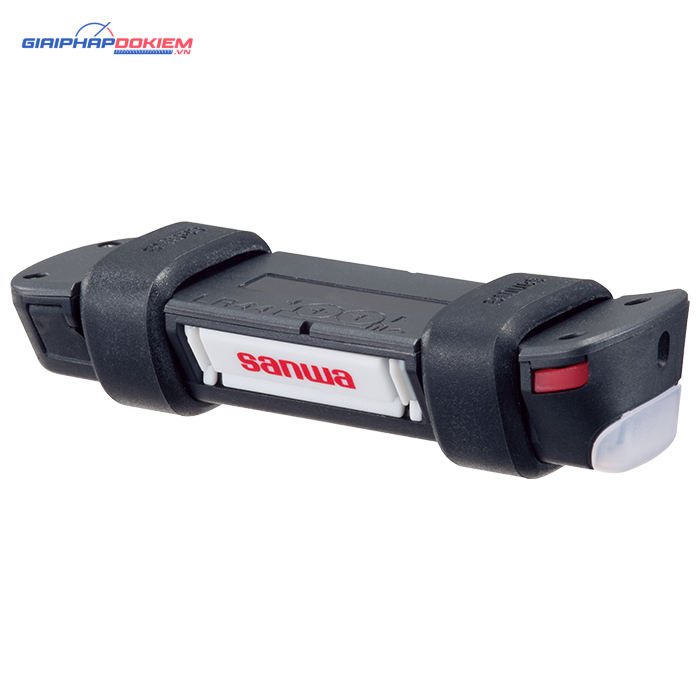

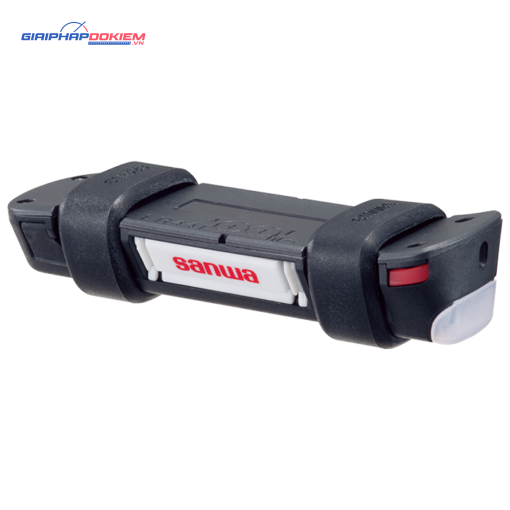

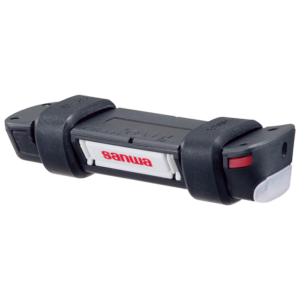

Thiết Bị Cảnh Báo Điện Áp Gắn Kìm SANWA KDP10
Specifications
Detectable voltage level(reprensentative value) | Approx. AC60 V~600 V 50Hz/60Hz (wehn attached 7/8 inches plier handle) |
Indicator | Buzzer and LED |
Cable type for live line detection | Sheathed cable(Unshielded cable) |
Powe supply SANWA KDP10 | LR44 1.5V x 2 pcs. |
Battery life SANWA KDP10 | Approx. 5 months (stanby mode) |
Dimensions/mass | H23×W77×D13 mm / Approx.13 g |
This instrument is not a voltage detector.
●This instrument is not a voltage detector, and a cutting tool with this product attached is also not a voltage detector. Never use the instrument for voltage detection. Use a commercially available voltage detector (our product model number KD2) for voltage detection.
●Do not apply a strong shock to the product body, as it may break.
●Never touch the metal part of the cutting tool on which this product is mounted to the charging part.
●Be sure to check the operation of this product with a known voltage before use.
●Since the product works with capacitive coupling, it may not be detectable depending on the condition of attaching, gripping, or surrounding environment.
●As this product works for the commercial power supply frequency (50/60Hz only), a voltage such as secondary side of an inverter can not be detected.
