Bộ Xuất Tín Hiệu Hioki MR8790

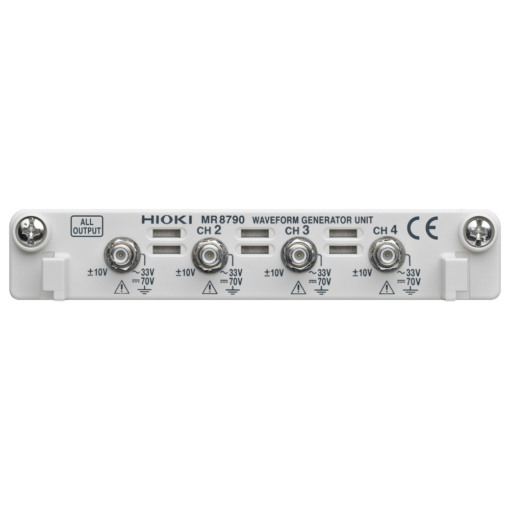

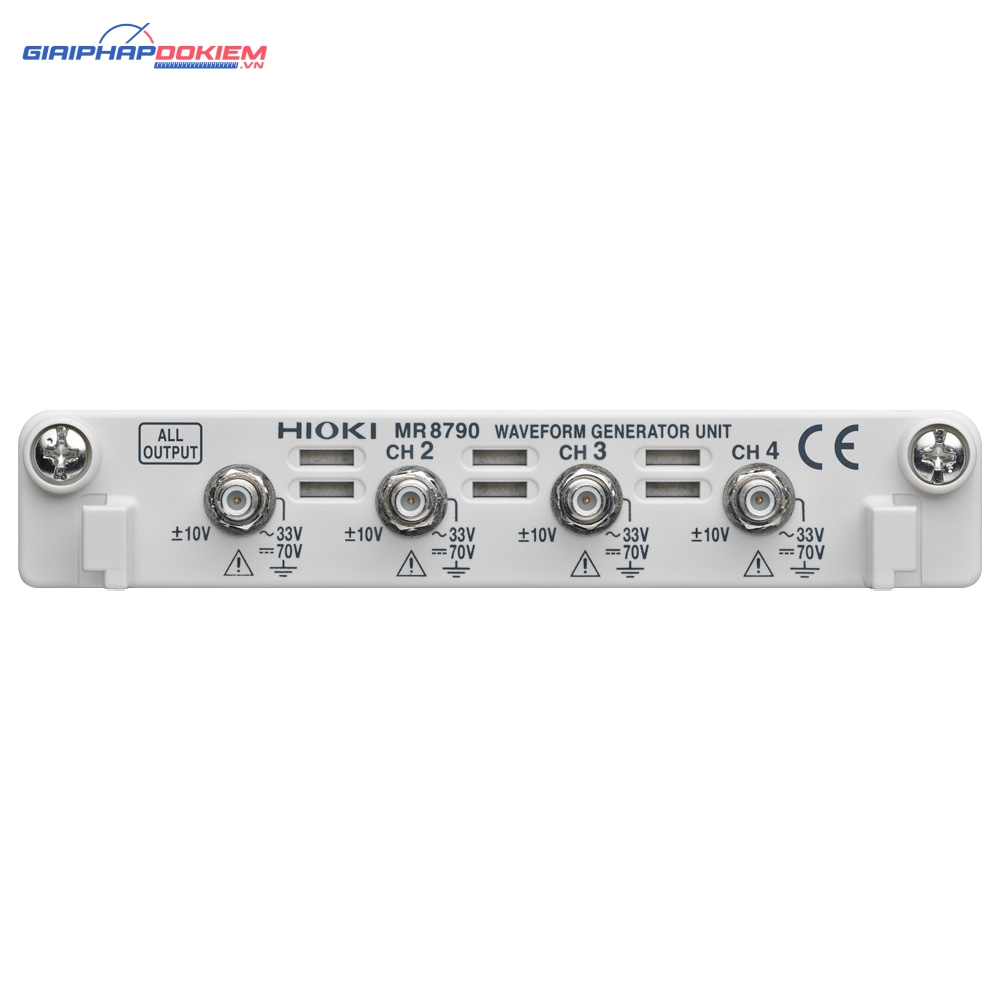

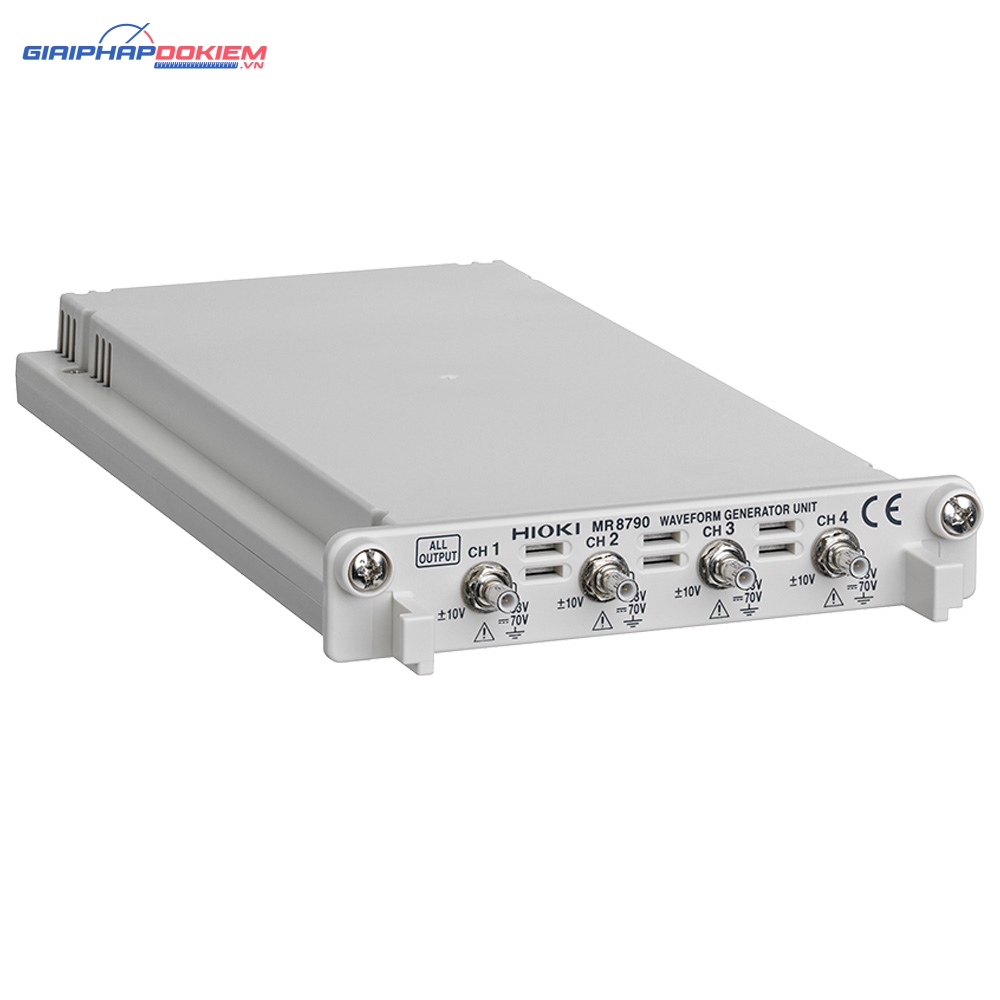

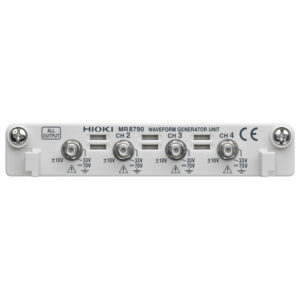

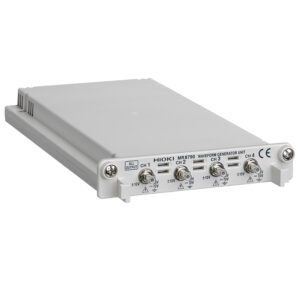

WAVEFORM GENERATOR UNIT HIOKI MR8790
Waveform Generator Input Module for Control Simulation Testing
Basic specifications
Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
Output terminal | Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less) Max. rated voltage to ground: 30 V rms AC or 60 V DC | |||||
---|---|---|---|---|---|---|
Output voltage range | -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV) | |||||
Max. output current | 5 mA | |||||
Output function | DC, Sine wave (Output frequency range: 0 Hz to 20 kHz) | |||||
Accuracy | Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz) Offset accuracy: ±3 mV DC output accuracy: ±0.6 mV | |||||
Other | Self-test function (Voltage, Current) | |||||
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) | |||||
Accessories | None |
