Đầu Đo Điện Áp AC Hioki SP3000

NON-CONTACT AC VOLTAGE PROBE HIOKI SP3000

Name: Đầu Đo Điện Áp AC Hioki SP3000 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: SP3000
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: SP3000 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: MR8741, MR8740, MR8740T, MR8875, MR8870, MR8827,…

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Measurement method

Capacitive-coupled current cancellation (not suitable for use with bare conductors)

Measurable wire type

Insulated wire

Maximum input voltage

RMS : 30 Vrms or less, Peak : 42.4 Vpeak or less

Dimensions and mass

15.0 mm (0.59 in) W × 13.9 mm (0.55 in) H × 77.4 mm (3.05 in) D mm, 52 g (1.83 oz) (including cable)

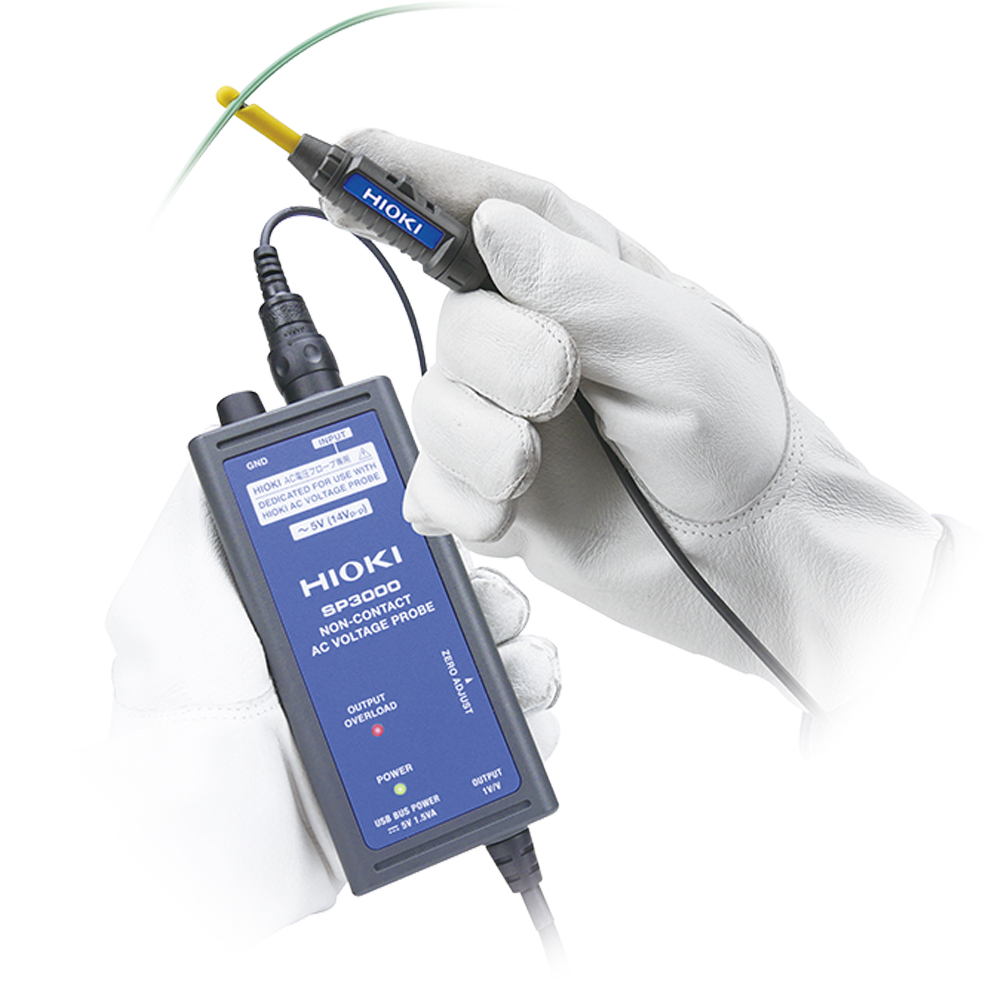

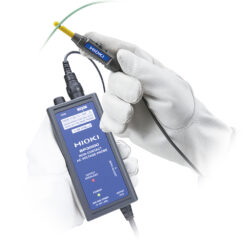

Capture Voltage Signals from Outside the Wire Cover

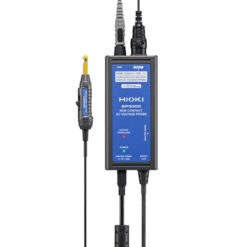

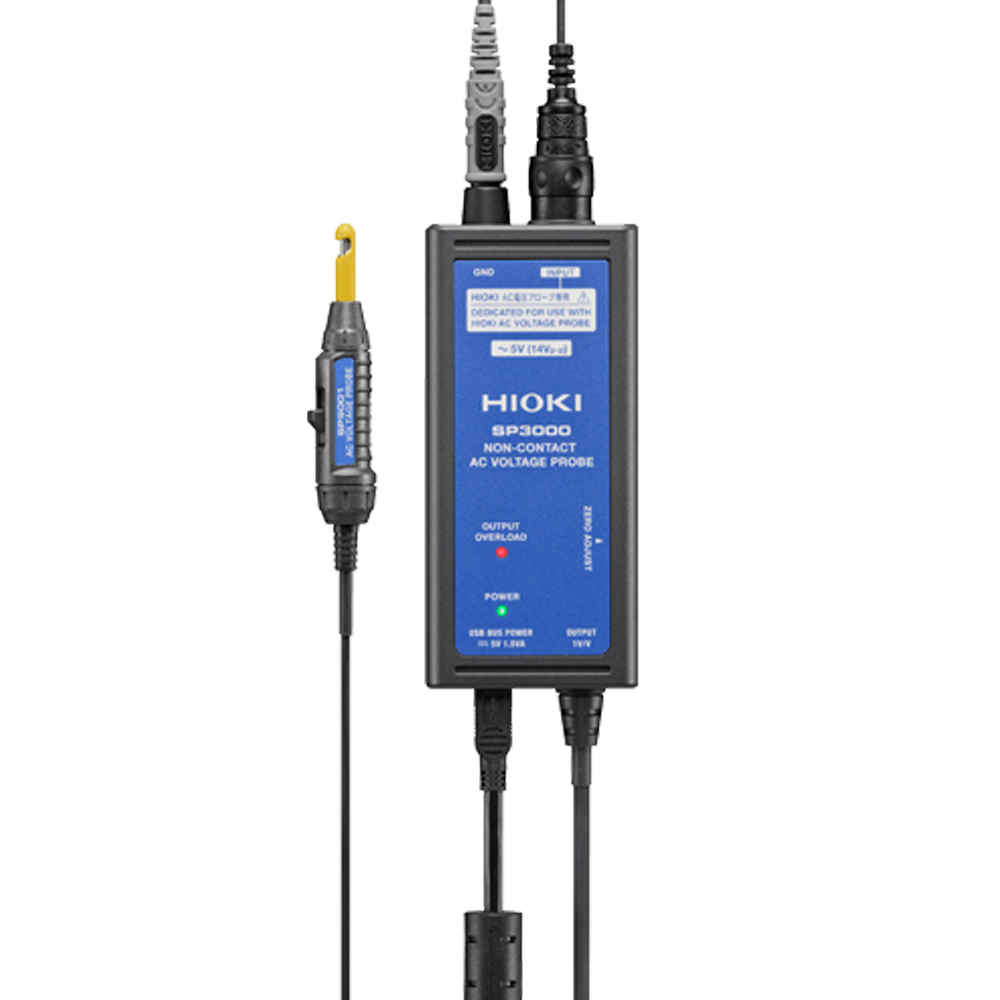

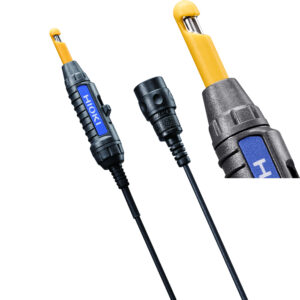

[Head of probe] AC VOLTAGE PROBE SP9001

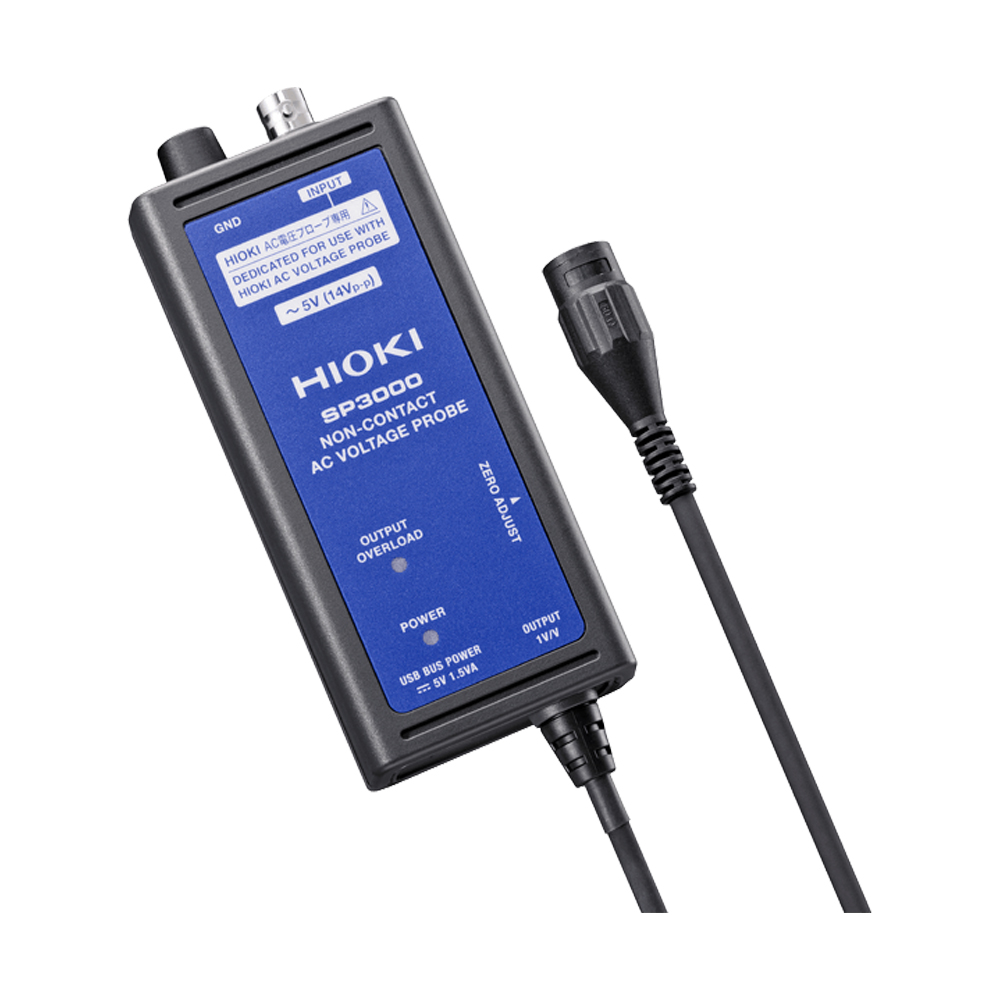

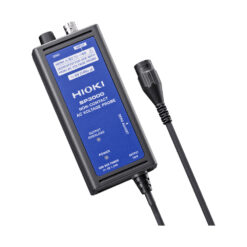

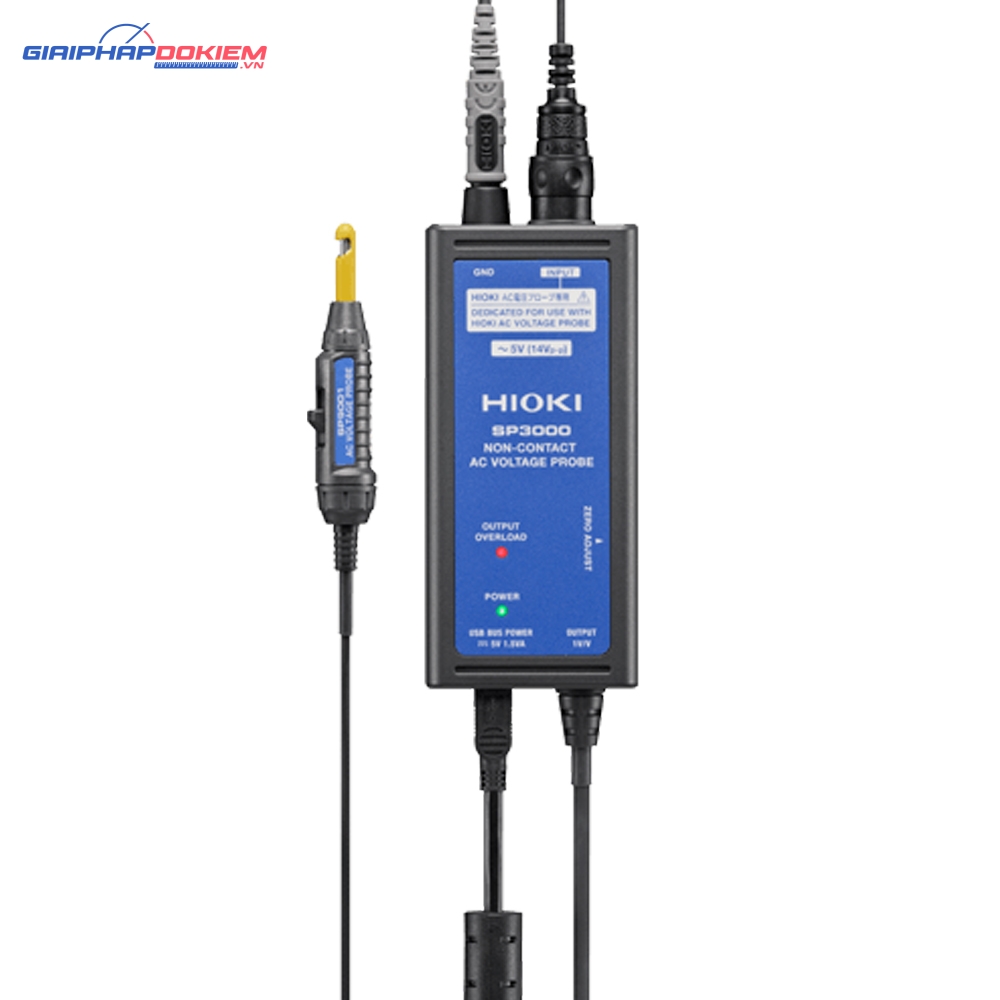

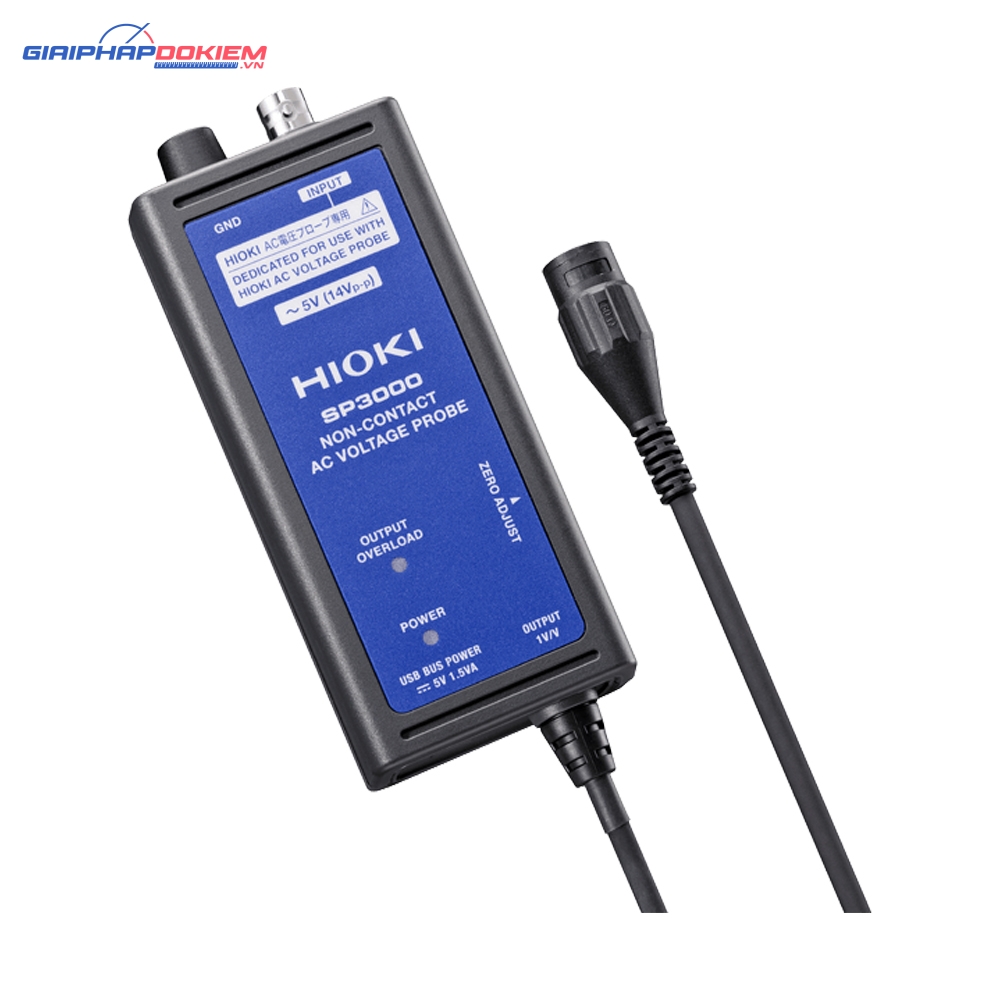

[Main body measuring circuit] NON-CONTACT AC VOLTAGE PROBE SP3000

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Rated measurement voltage	5 V rms (14.14 Vp-p)
Output rate	1 V/V
Rising time	4.5 μs or less
Frequency band	10 Hz to 100 kHz (-3 dB)
Voltage measurement precision	±2.5% rdg. ±1% f.s. (0.5 Vrms to 5 Vrms)
Effects of wire under measurement	±5% rdg. (Finished outer diameter φ1.0 to 2.5 mm, in a wire rod in conformity with UL1007, UL1015, AV, AVS, AVSS)

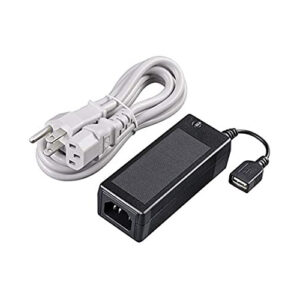

Power supply	(1)USB bus power: USB mini receptacle: 5 V ±0.25 V DC (2)AC Adapter Z1013: 5 V DC, 2.6 A Rated supply voltage: 100 V to 240 V AC (50 Hz/60 Hz)
Output terminal	Insulated BNC (Measuring device connection side), Output resistance : 50 Ω
Dimensions and mass	120 mm (4.72 in) W × 25 mm (0.98 in) H × 55 mm (2.16 in) D, 160 g (5.64 oz) (including cable)
Accessories Hioki SP3000	Ground connection cable (1.5 m) ×1, Alligator clip ×1, USB cable ×1, Instruction manual ×1
