Dây Đo Hioki 9327

Name: Dây Đo Hioki 9327 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: 9327
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: 9327 Tình trạng: Còn hàng Nhà sản xuất: Hioki Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

HỖ TRỢ ĐẶT HÀNG/BÁO GIÁ

Mr Hoàng 0901.668.234

Mr Nghĩa 0896.922.922

Mr Trực 090.851.5929

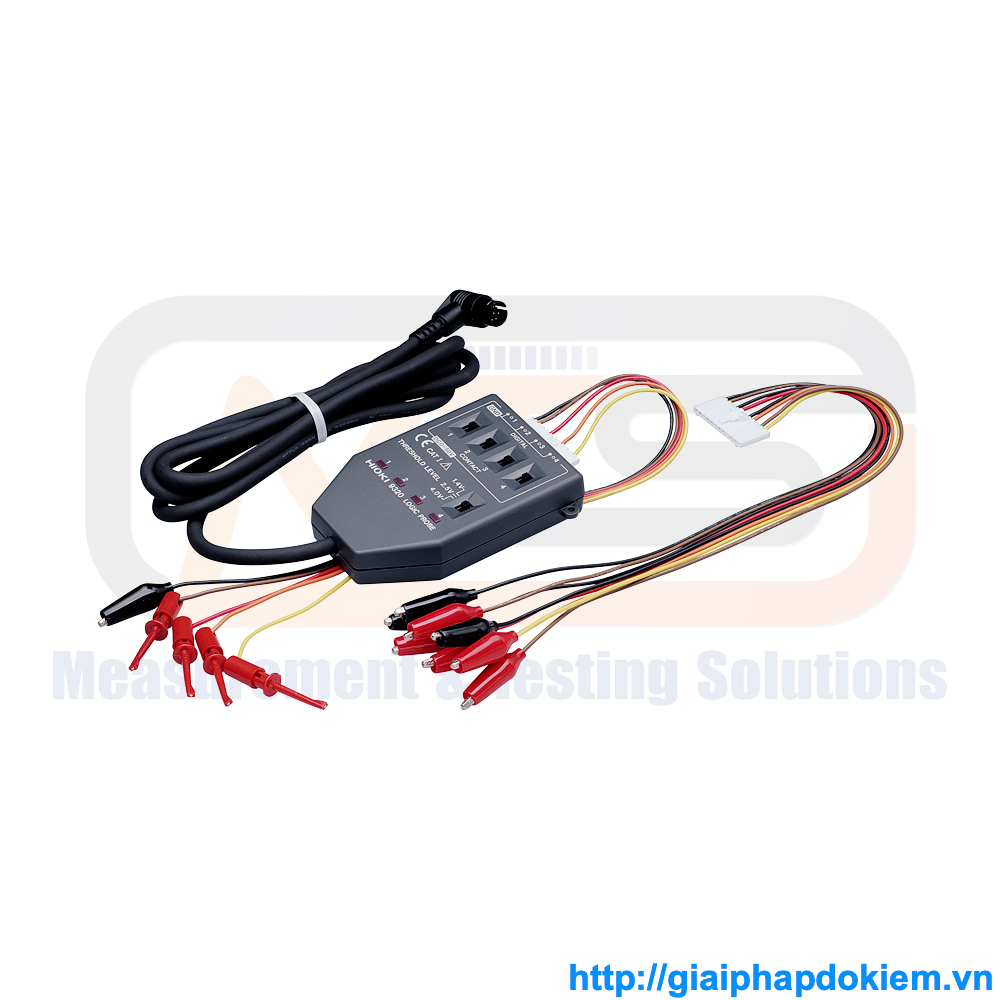

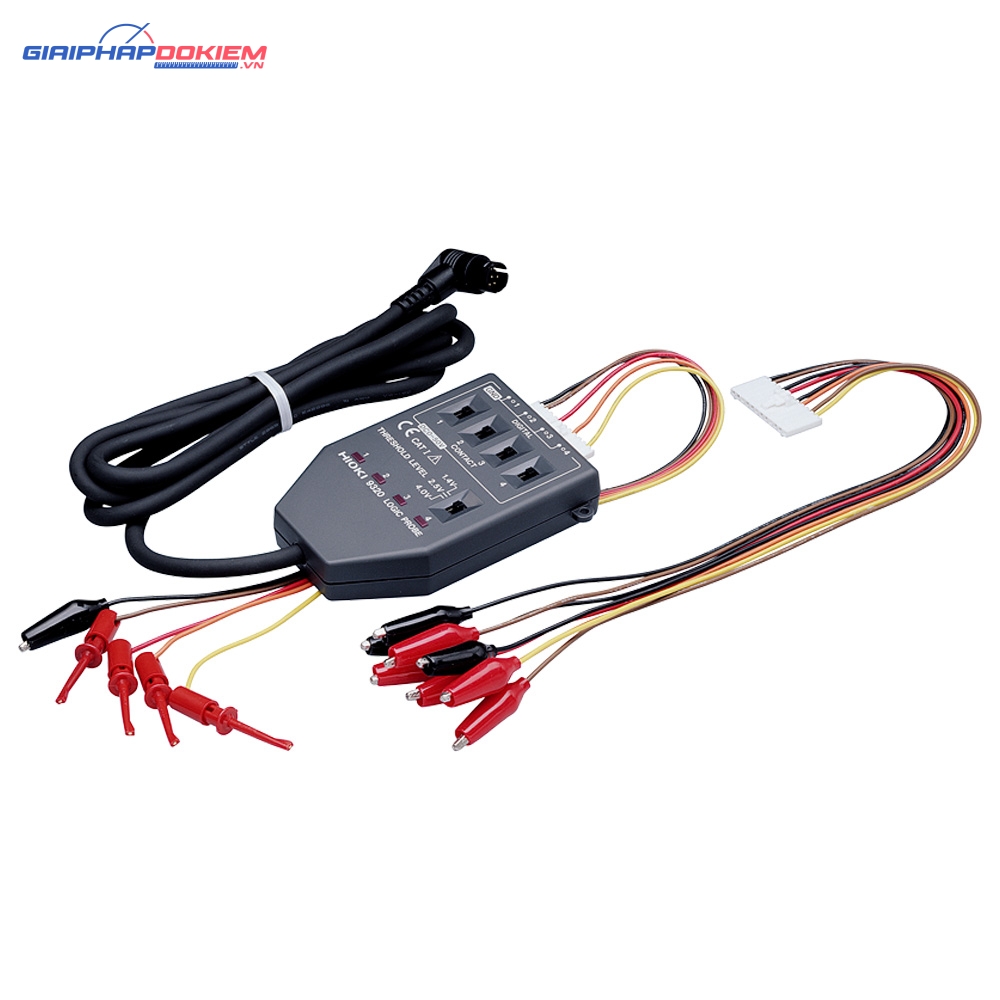

LOGIC PROBE HIOKI 9327

Detect the Presence of Voltage or Relay Contact Signals with Memory HiCorders at High-speeds

Basic specifications

Note: The unit-side plug is miniature terminal type

Function	Detection of voltage signal or relay contact signal for High/Low state recording
Input	4 channels (common ground between unit and channels), digital/contact input, switchable (contact input can detect open-collector signals) Input resistance: 1 MΩ (with digital input, 0 to +5 V) 500 kΩ or more (with digital input, +5 to +50V) Pull-up resistance: 2 kΩ (contact input: internally pulled up to +5 V)
Digital input threshold	1.4V/ 2.5V/ 4.0V
Contact input detection resistance	1.4 V: 1.5 kΩ or higher (open) and 500 Ω or lower (short) 2.5 V: 3.5 kΩ or higher (open) and 1.5 kΩ or lower (short) 4.0 V: 25 kΩ or higher (open) and 8 kΩ or lower (short)
Detectable pulse width	100 ns or longer
Max. allowable input	0 to +50V DC (the maximum voltage that can be applied across input pins without damage)
Dimensions and mass	62 mm (2.44 in)W × 94 mm (3.70 in)H × 20 mm (0.79 in)D, 150 g (5.3 oz), Main unit cable 1.5 m (4.92 ft), input section cable 300 mm (0.98 ft)

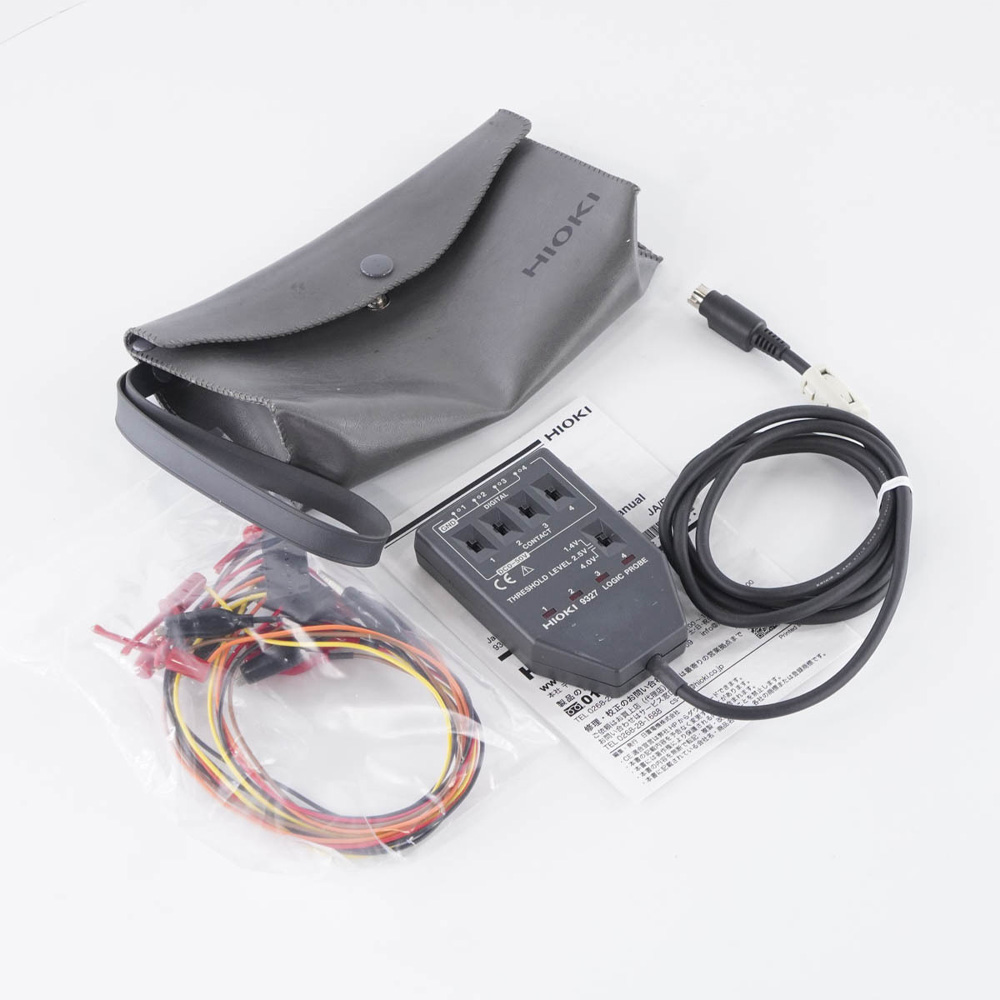

Accessories Hioki 9327	IC clip leads ×1, Alligator clip leads ×1, Carrying case ×1, Instruction Manual ×1
