Thiết Bị Đo Và Ghi Điện Áp Đa Năng Hioki LR5042

Name: Thiết Bị Đo Và Ghi Điện Áp Đa Năng Hioki LR5042 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: LR5042
Availability: InStock

Giá:Liên hệ

(Giá trên chưa bao gồm VAT)

Model: LR5042

Hãng sản xuất:HIOKI

Xuất xứ: Nhật Bản

Bảo hành: 12 tháng

Mã: LR5042 Danh mục: Thiết bị ghi dữ liệu đa năng, Ghi dữ liệu đa năng

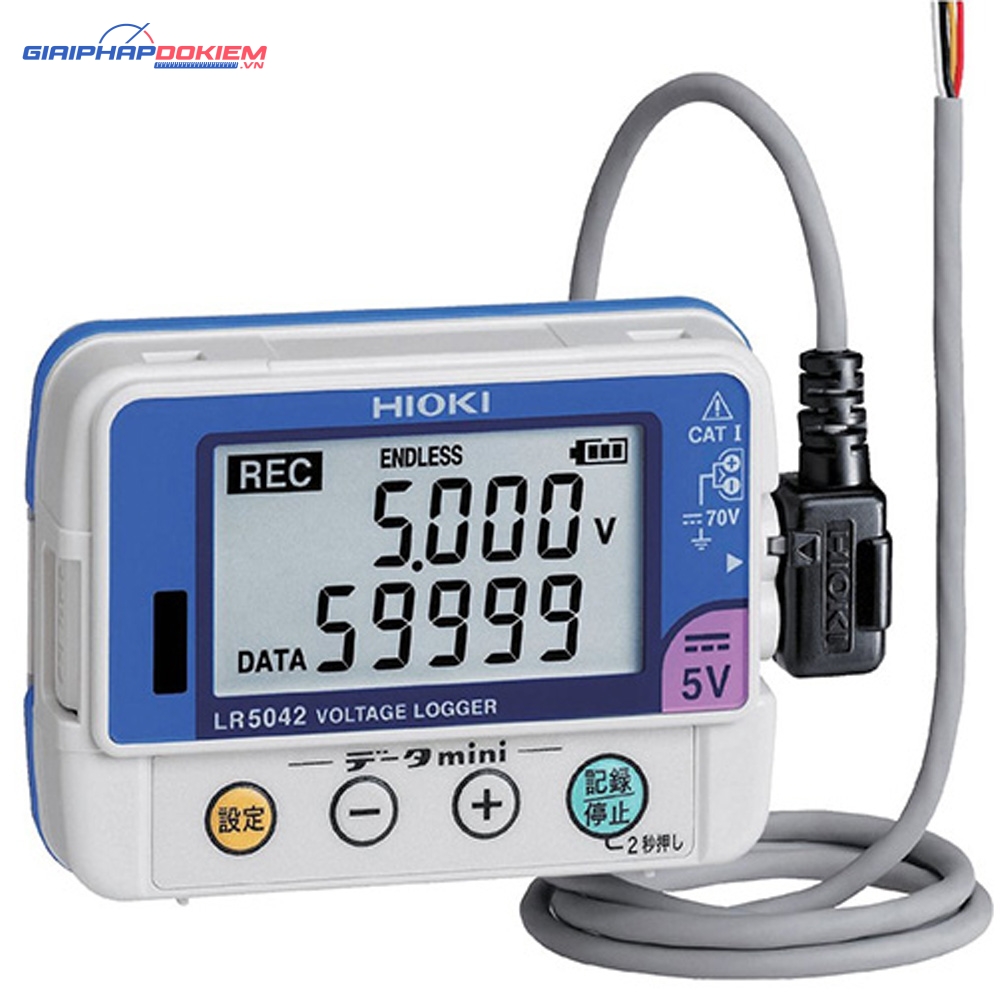

Thiết Bị Đo Và Ghi Điện Áp Đa Năng Hioki LR5042

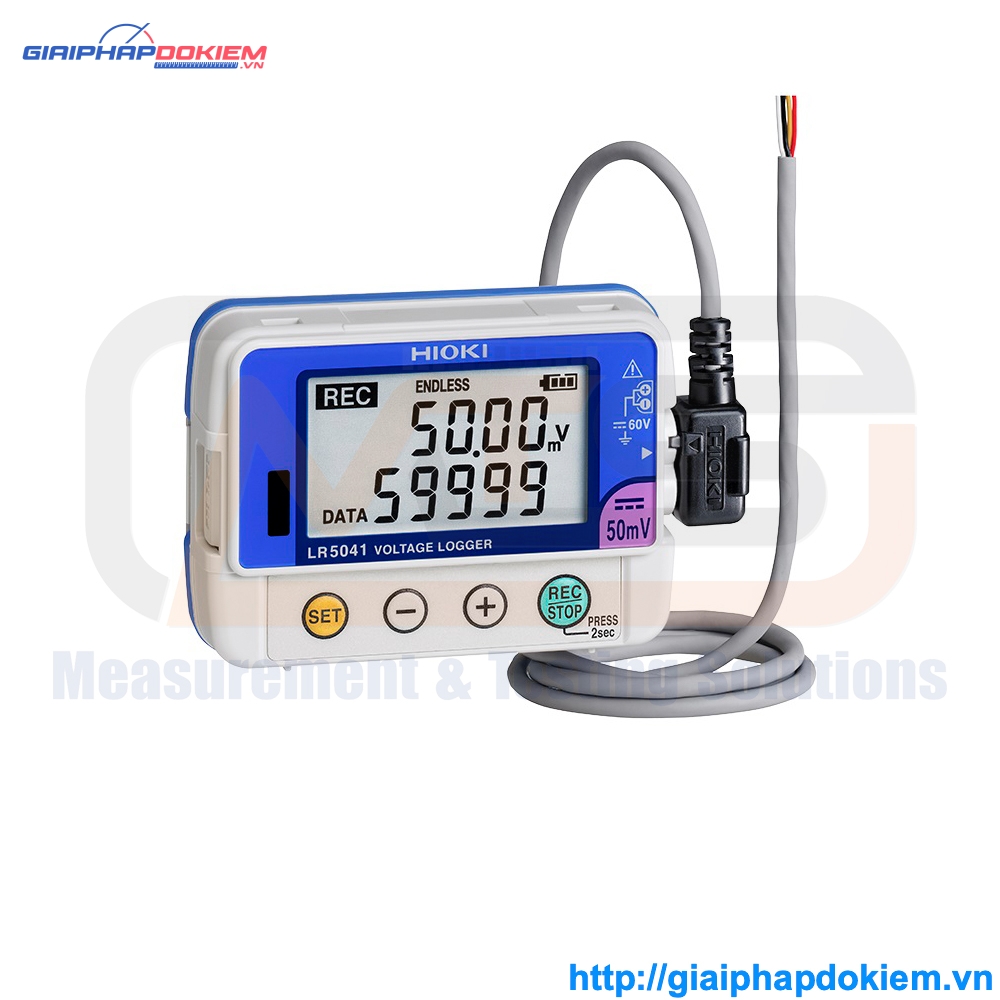

VOLTAGE LOGGER HIOKI LR5041, LR5042, LR5043

Record Instrumentation Signals and Measure Analog Output from Sensors and other Devices

	LR5041	LR5042	LR5043
Measurement items	DC voltage 1ch	DC voltage 1ch	DC voltage 1ch
Measurement range	-50.00 to 50.00 mV	-5.000 to 5.000 V	-50.00 to 50.00 V
Accuracy	±0.5 %rdg. ±5 dgt.
Storage capacity	Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data
Recording interval	1 to 30 sec., 1 to 60 min., 15 selections
Recording modes	Instantaneous recording: at every recording interval Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
Recording methods	One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
Other functions	Pre-heat function (requires external power supply during use of function), Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Waterproof and dust-proof	IP54 (EN60529) (with connection cable connected, but not including cable tip)
Interfaces	Infrared optical communications with LR5091, LR5092-20
Power supply	LR6 (AA) Alkaline battery ×1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and mass	79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)

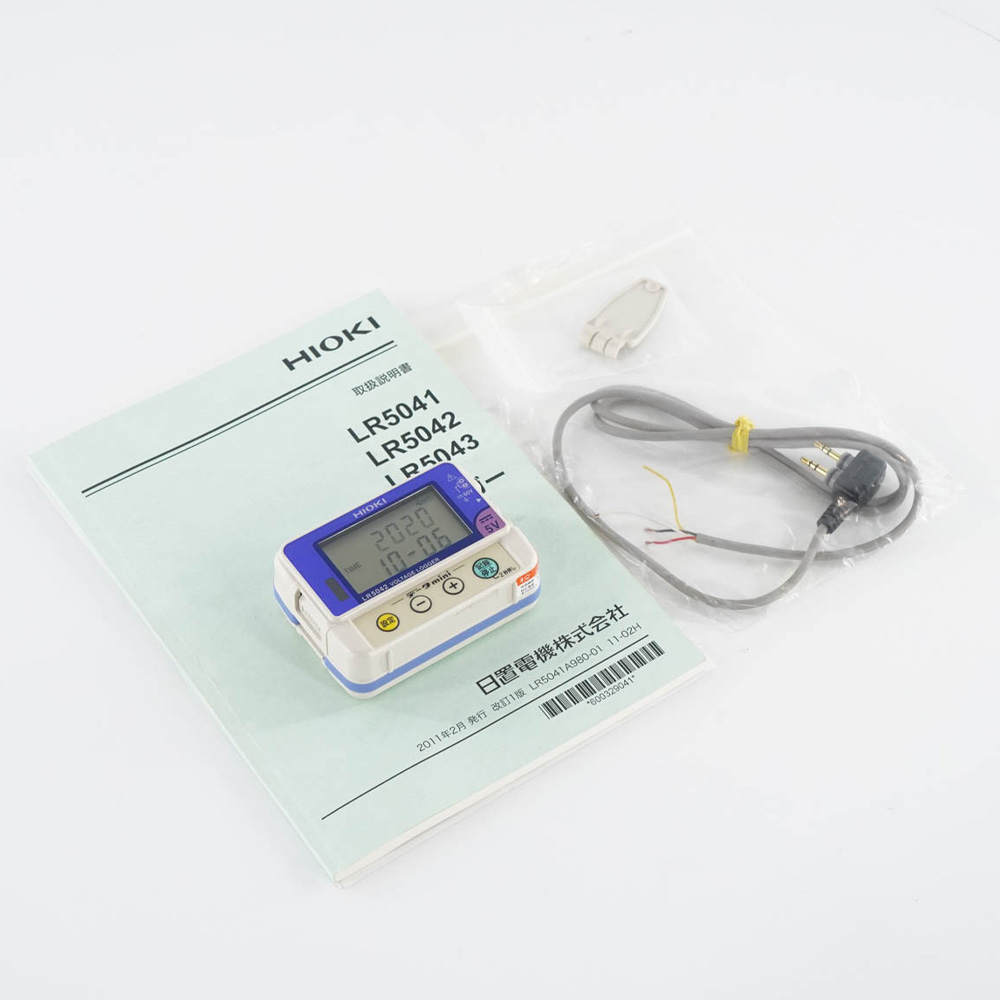

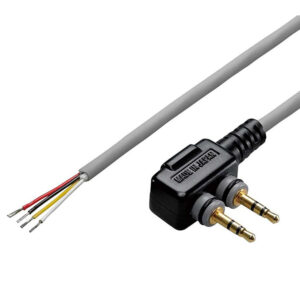

Accessories Hioki LR5042	LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1
