Ngõ Vào DC/RMS Hioki 8972

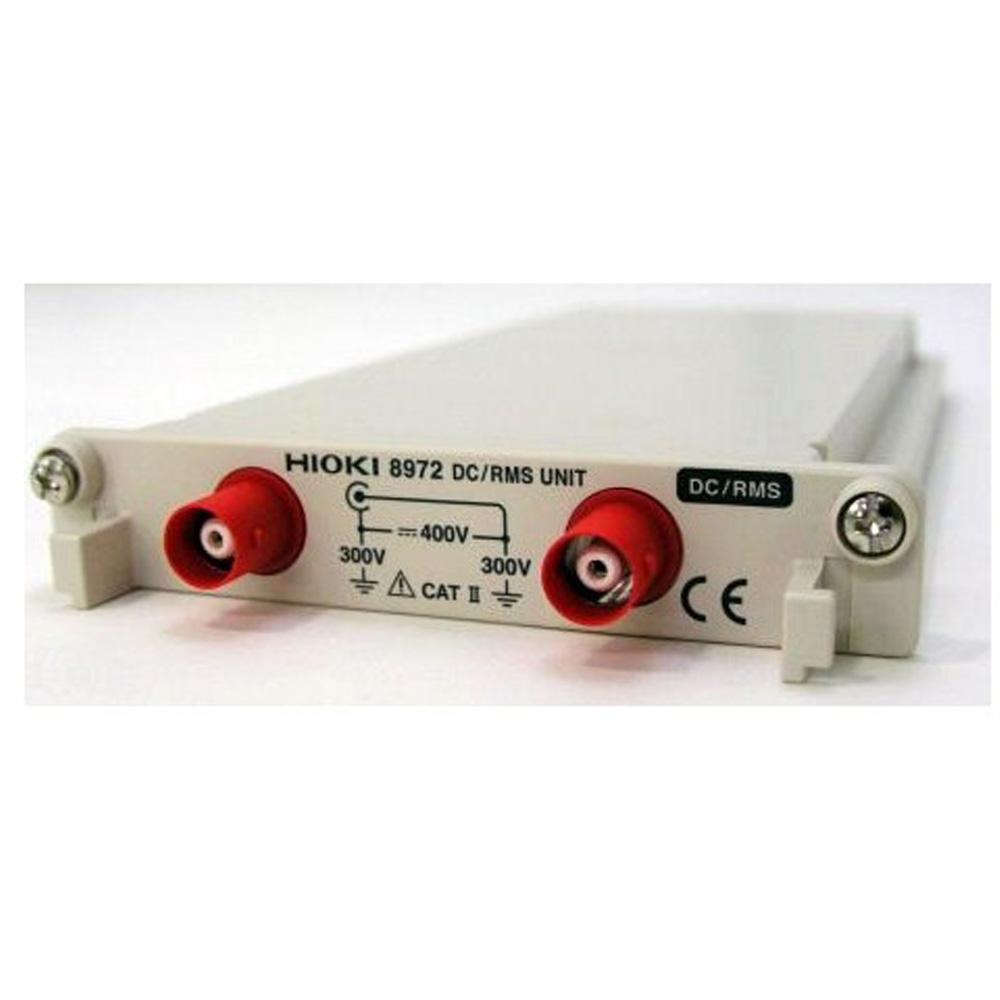

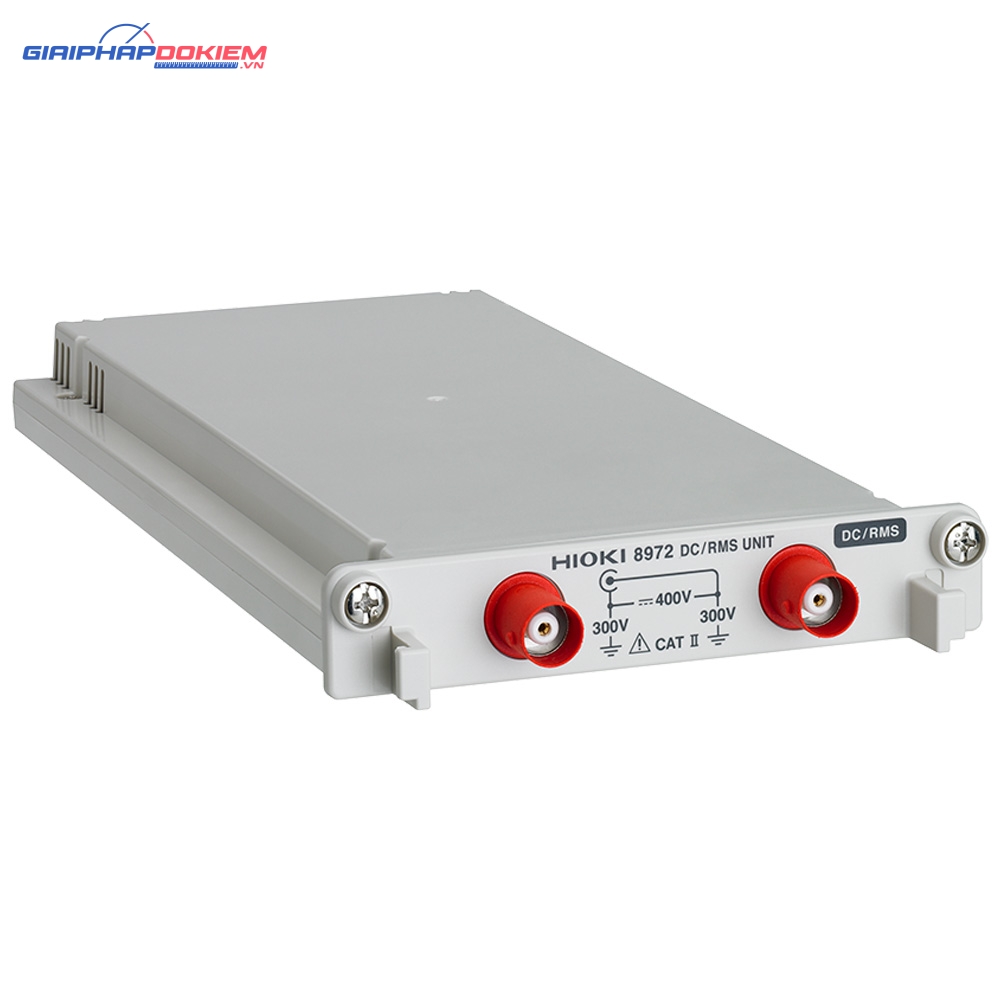

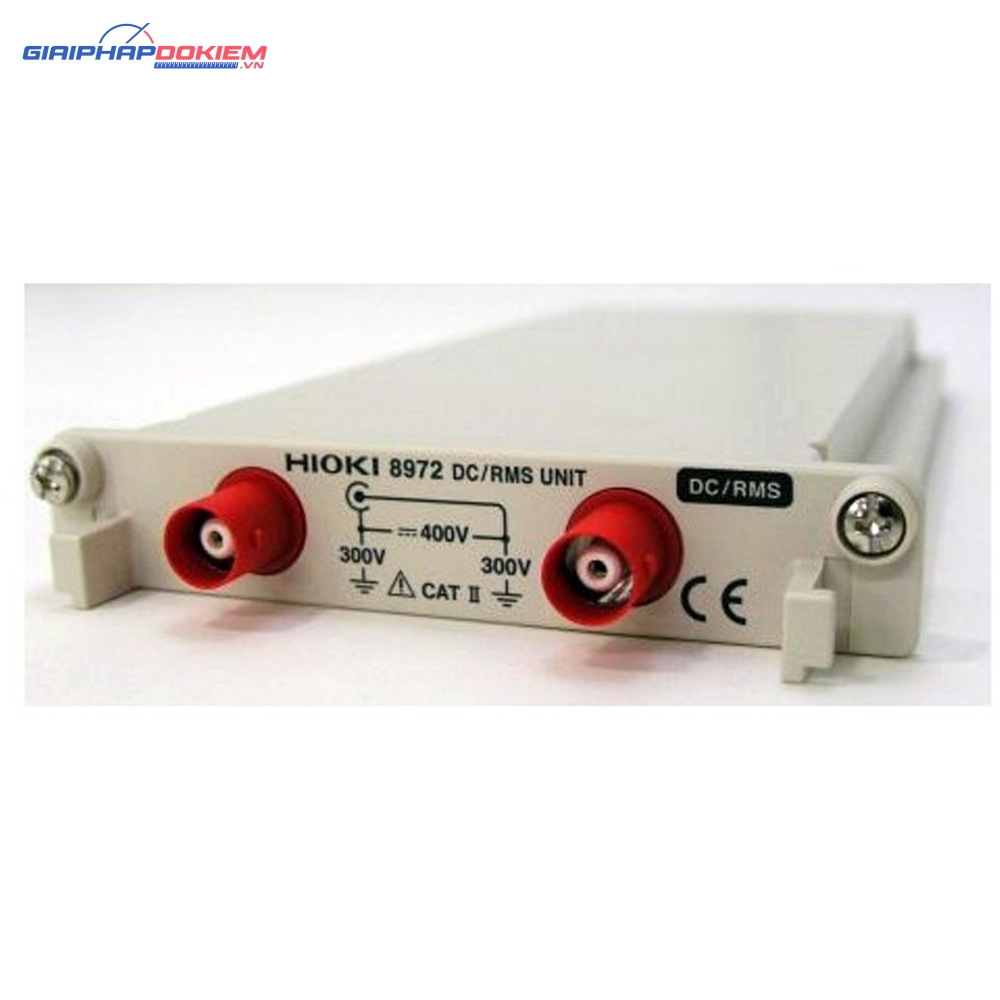

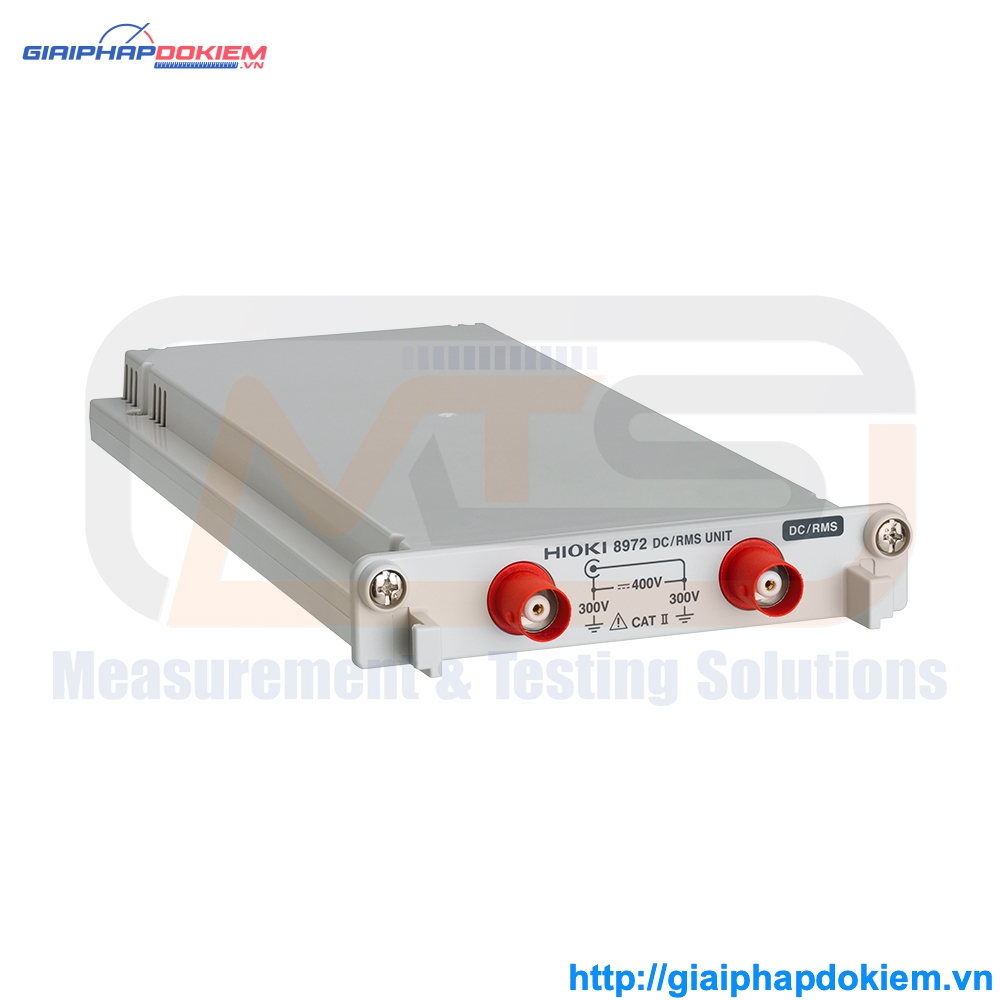

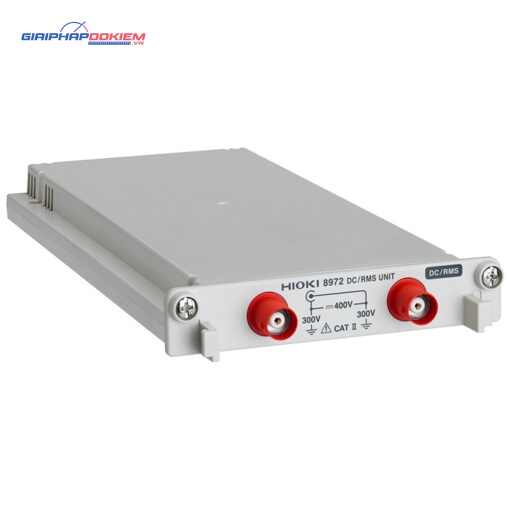

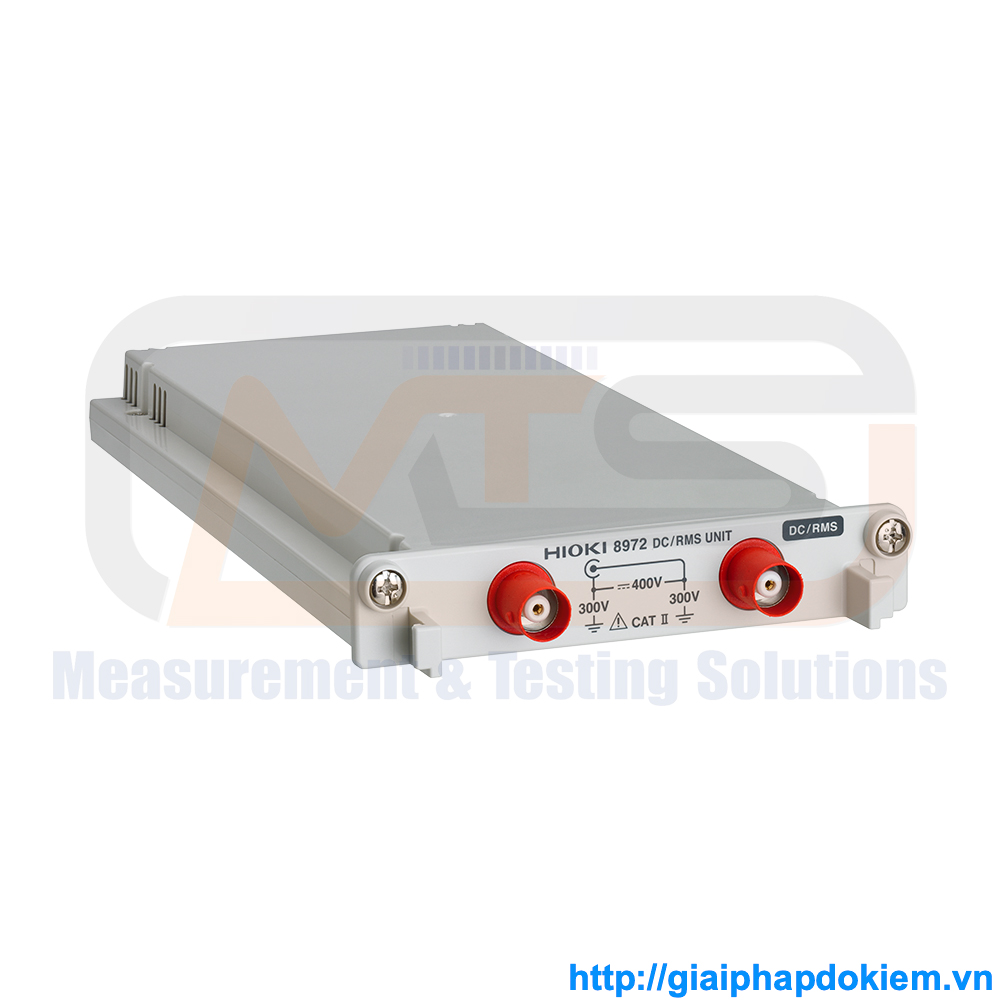

DC/RMS UNIT HIOKI 8972
Measure instantaneous and RMS waveforms
Basic specifications
Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
Measurement functions | Number of channels: 2, for voltage measurement, DC/RMS selectable | |||||
---|---|---|---|---|---|---|
Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF), Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) | |||||
Measurement range | 5 mV to 20 V/div, 12 ranges, full scale: 20 div, (AC voltage for possible measurement/display using the memory function: 280 V rms) Low-pass filter: 5/50/500 Hz, 5 k/100 kHz | |||||
Measurement resolution | 1/100 of measurement range (using 12-bit A/D conversion and when installed in 8847) | |||||
Highest sampling rate | 1 MS/s (simultaneous sampling across 2 channels) | |||||
Measurement accuracy Hioki 8972 | ±0.5 % of full scale (with filter 5 Hz, zero position accuracy included) | |||||
RMS measurement | RMS amplitude accuracy: ±1 % of full scale (DC, 30 Hz to 1 kHz), ±3 % of full scale (1 kHz to 100 kHz), Response time: SLOW 5 s (rise time from 0 to 90% of full scale), MID 800 ms (rise time from 0 to 90% of full scale), FAST 100 ms (rise time from 0 to 90% of full scale), Crest factor: 2 | |||||
Frequency characteristics | DC to 400 kHz -3 dB, with AC coupling: 7 Hz to 400 kHz -3dB | |||||
Input coupling | AC/DC/GND | |||||
Max. allowable input | 400 V DC (the maximum voltage that can be applied across input pins without damage) | |||||
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) | |||||
Accessories | None |
