Ngõ Vào Tương Tự Tốc Độ Cao Hioki U8976

Name: Ngõ Vào Tương Tự Tốc Độ Cao Hioki U8976 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: U8976
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: U8976 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: MR6000

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

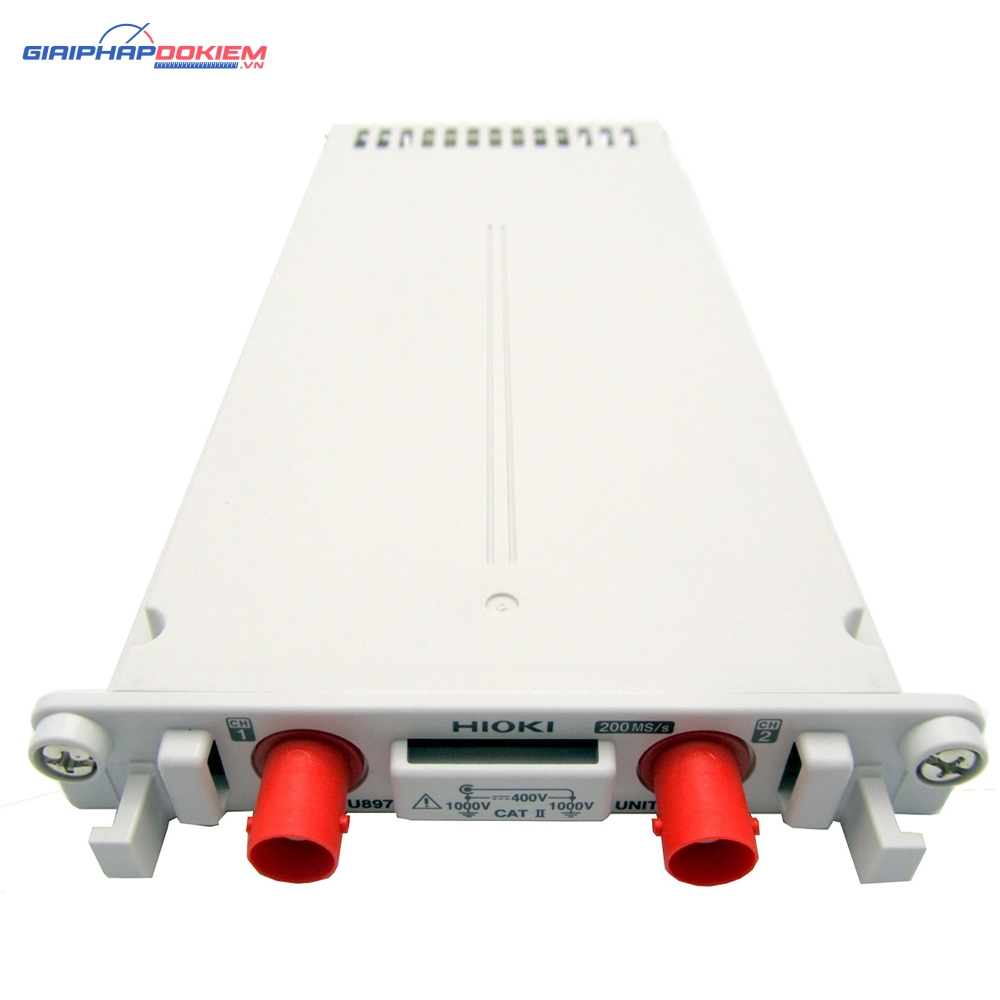

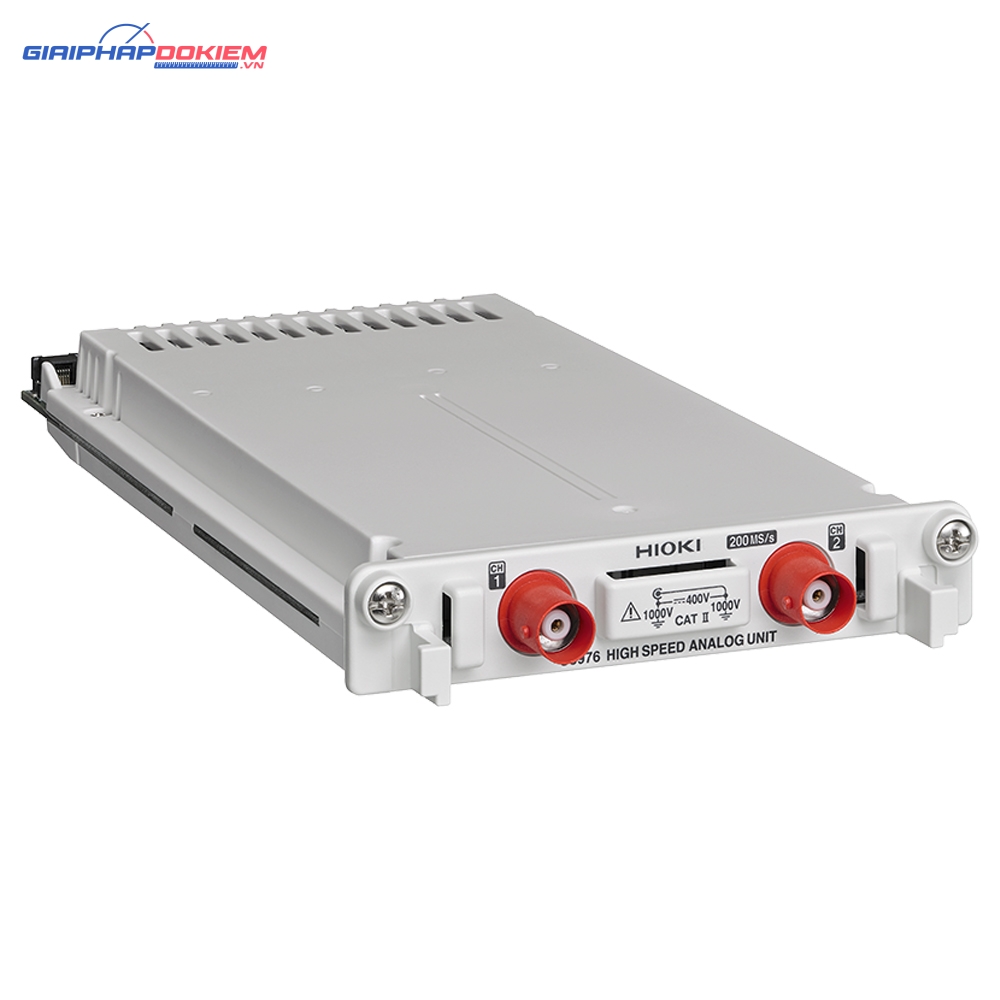

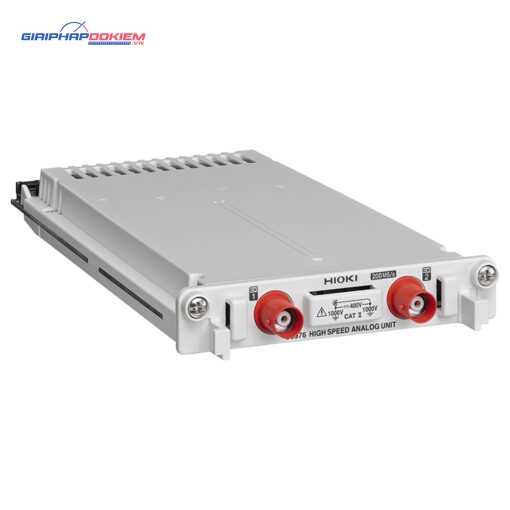

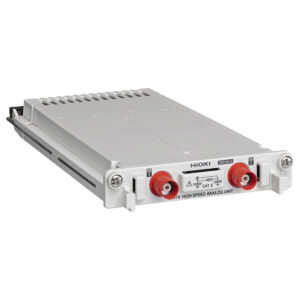

HIGH SPEED ANALOG UNIT HIOKI U8976

High speed 200 MS/s, isolated input

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Measurement functions	Number of channels: 2, for voltage measurement
Input terminals	Isolated BNC terminal (Input impedance: 1 MΩ, Input capacitance: 22 pF) Max. rated voltage to earth: 1000 V AC or DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range	100, 200, 400 mV f.s., 1, 2, 4, 10, 20, 40, 100, 200, 400 V f.s., 12 ranges (AC voltage for possible measurement/display using the memory function: 280 V rms) Low-pass filter: 5/500/5 k/1 MHz
Measurement resolution	1/1600 of measurement range (using 12-bit A/D conversion)
Highest sampling rate	200 MS/s (2 channel simultaneous sampling)
Measurement accuracy	±0.5% f.s. (with filter 5 Hz, zero position accuracy included)
Frequency characteristics	DC to 30 MHz -3 dB, with AC coupling: 7 Hz to 30 MHz -3dB
Input coupling	AC/DC/GND
Max. allowable input	400 V DC (when direct input), 1000 V DC (when using the 9665)
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 280 g (9.9 oz)
Accessories Hioki U8976	None
