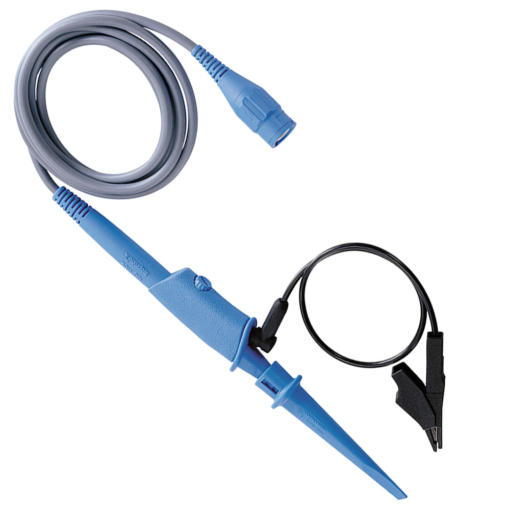

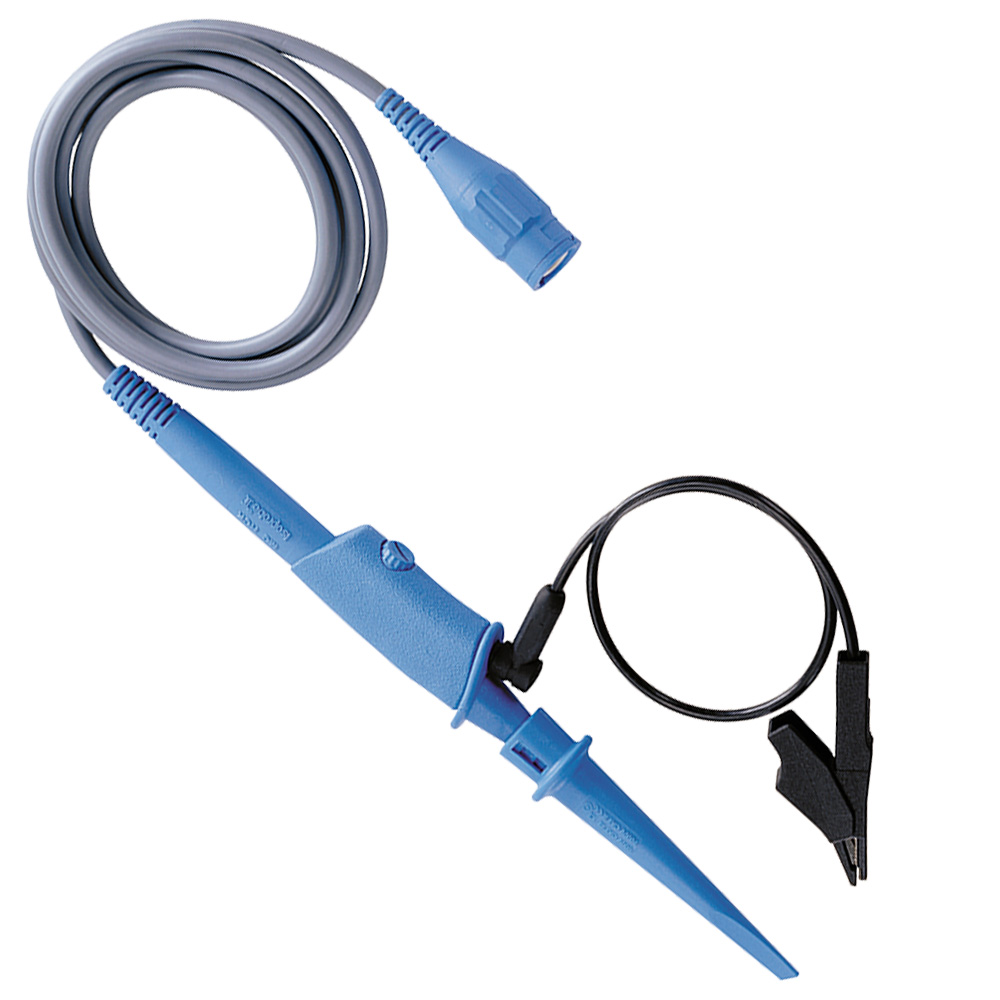

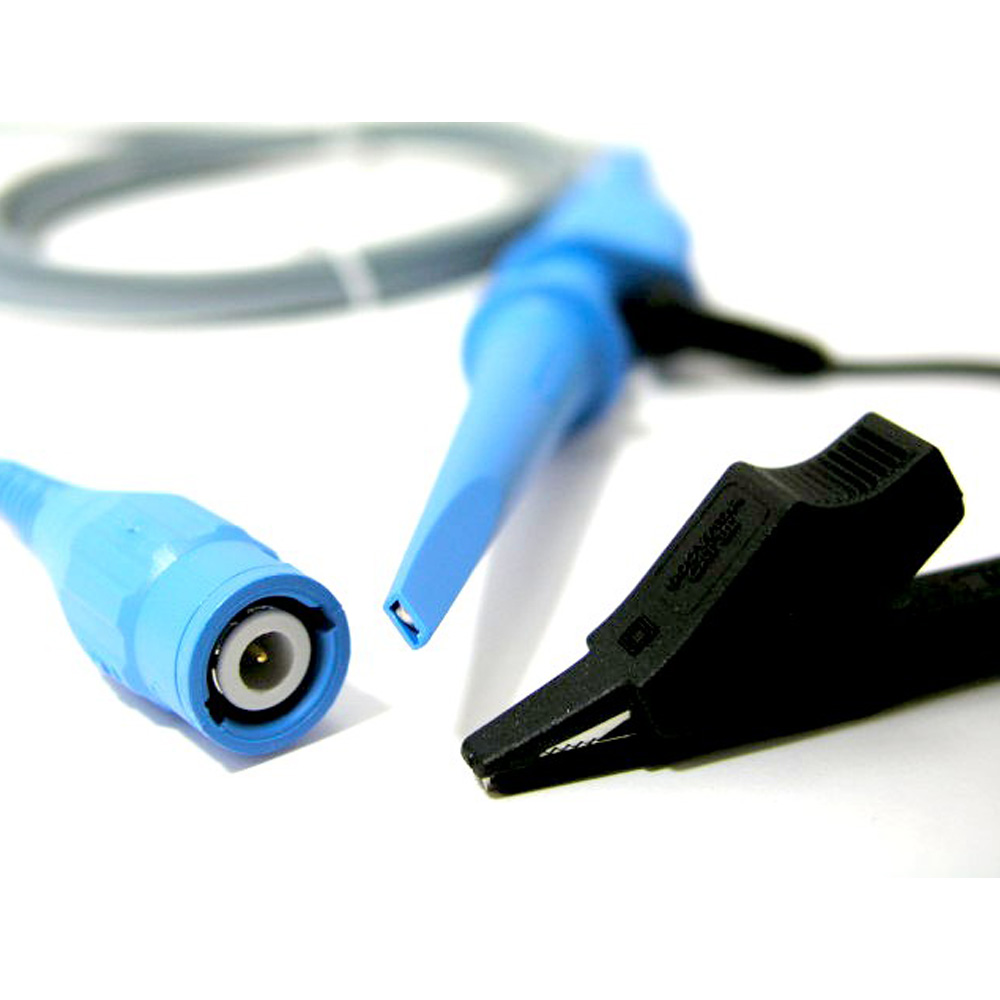

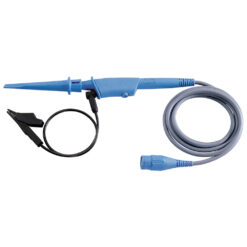

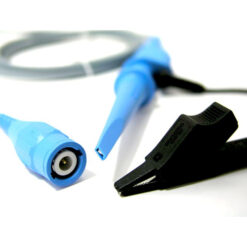

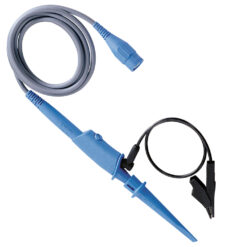

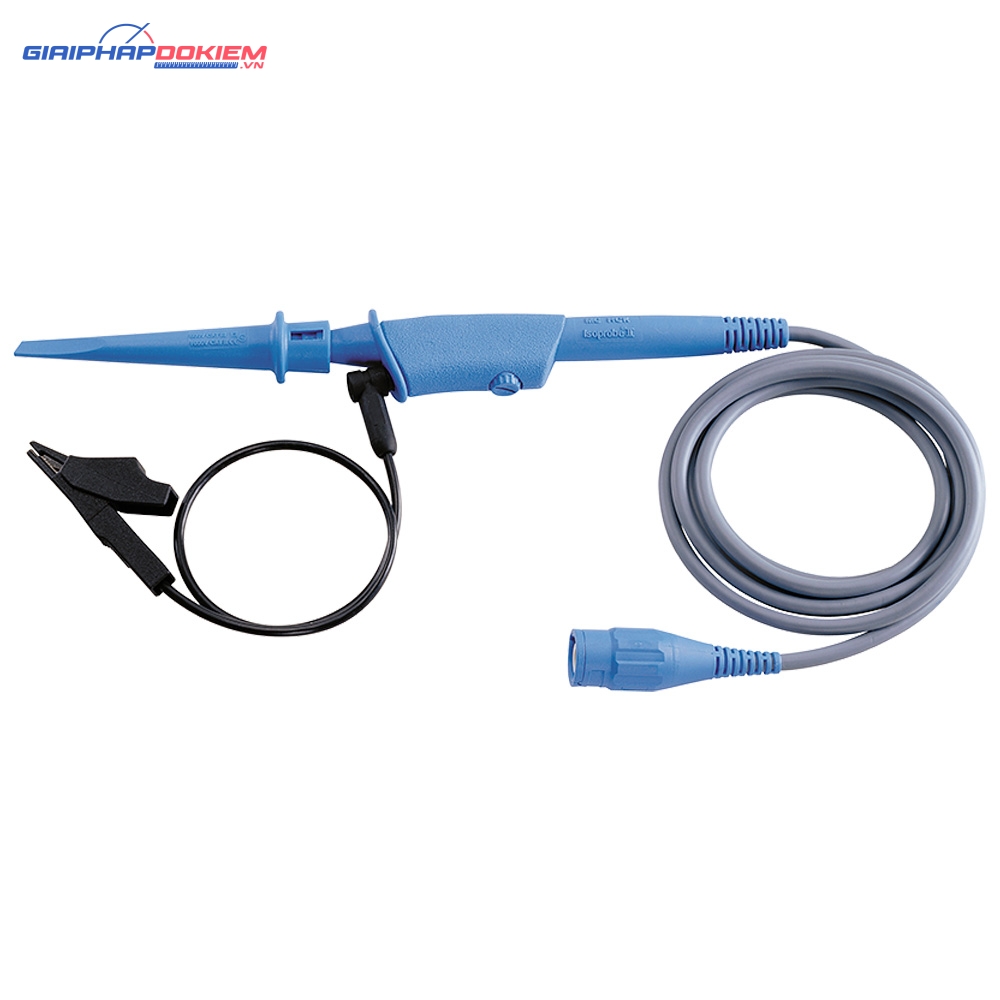

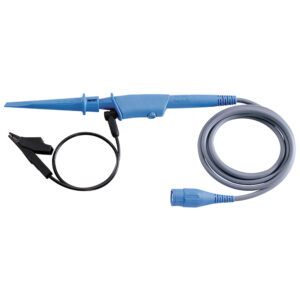

Dây Đo Hioki 9666
100:1PROBE 9666
Measures high voltages by attenuating the voltage to a lower level
Phụ kiện cho máy: MR8741, MR8740, MR8740T, MR8827, MR6000, MR8847A, 8966, U8975, U8978, U8976
Basic specifications
Division ratio | 100 : 1 ±3% (at 100 VDC) (use with a device having a 1 MΩ input resistance) 100 : 1 +3%, -7% (at 1000 VDC) (use with a device having a 1 MΩ input resistance) | |||||
---|---|---|---|---|---|---|
Maximum input voltage | 5 kV peak (1 MHz or less) | |||||
Max. rated voltage to earth Hioki 9666 | 1000 V CAT II * * Maximum rated voltage above ground depends on input unit. This probe does not expand the maximum rated voltage above ground of an isolated input. | |||||
Input Impedance | 100 MΩ | |||||
Frequency characteristics | DC to 200 MHz | |||||
Input capacitance | 7 pF or less | |||||
Compensation capacitance range (Equipment side) | 15 to 45 pF | |||||
Cable length | 1.5 m (4.92 ft) | |||||
Accessories | Vinyl case ×1 |
