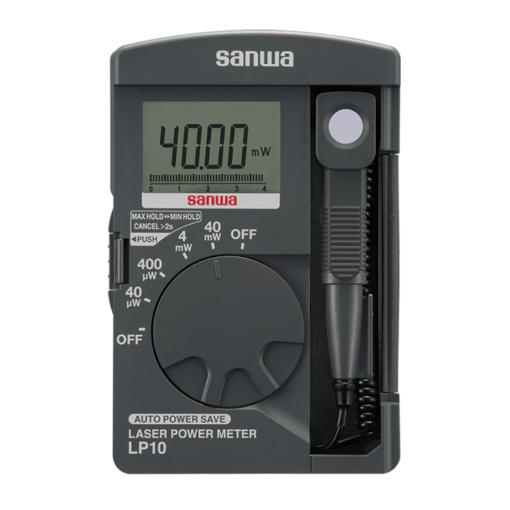

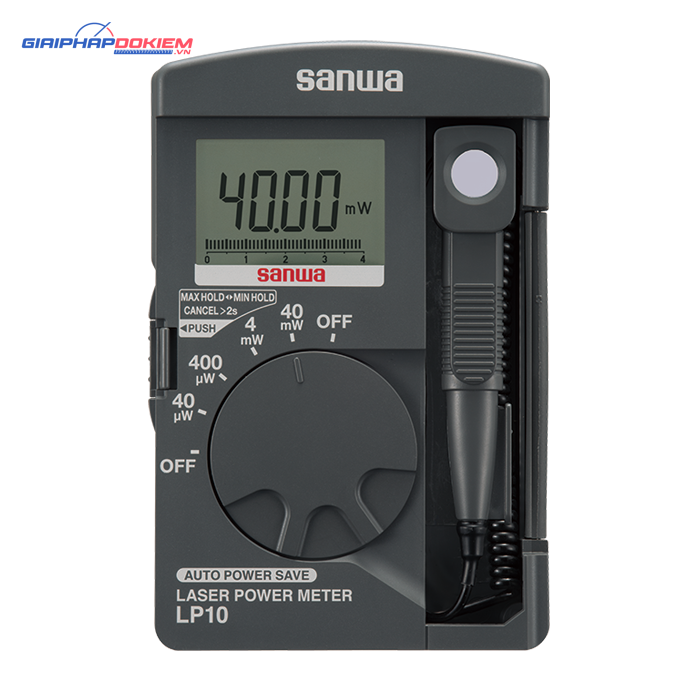

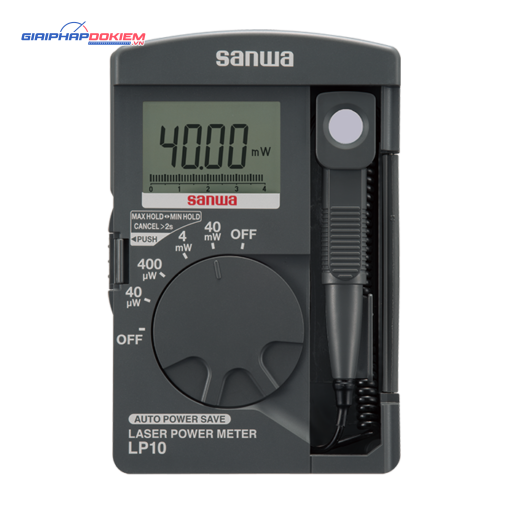

Thiết Bị Đo Công Suất Nguồn Laser SANWA LP10
Specifications
Light sensor element | Si photodiode (Light sensor surface diameter Ø 9 mm)with diffusion sheet |
Measurable wavelength range | 400 nm to 1100 nm |
Directly-readable wavelength | 633 nm(He-Ne laser) |
Other wavelengths should be converted using typical correction factor | |
Dispaly | Digital display: 4039 full scale |
Bar graph display: 41-segment display | |
Sampling rate | Digital display: Approx. 3 times/sec. |
Bar graph display: Approx. 30 times/sec. | |
Ranges | 40 μW range: 0.01 μW to 40.39 μW |
400 μW range: 0.1 μW to 403.9 μW | |
4 mW range: 0.001 mW to 4.039 mW | |
40 mW range: 0.01 mW to 40.39 mW | |
Measured object | CW laser, the modulated laser connot be measured accurately |
Power supply | LR44 1.5V×2 |
Size/Mass | 117(H)×76(W)×18(D)mm / approx. 120 grams |
Light sensor probe | 84(H)×16(W)×10(D) mm |
Sensor cord length | Aprox. 0.5 m when extended |
Accessories | Instruction manual x 1 |
