Thiết Bị Ghi Nhận Xung Hioki LR8512

Name: Thiết Bị Ghi Nhận Xung Hioki LR8512 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: LR8512
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: LR8512 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Đặt hàng Thêm vào giỏ hàng HOTLINE Gọi ngay 0901668234

Messenger

Zalo

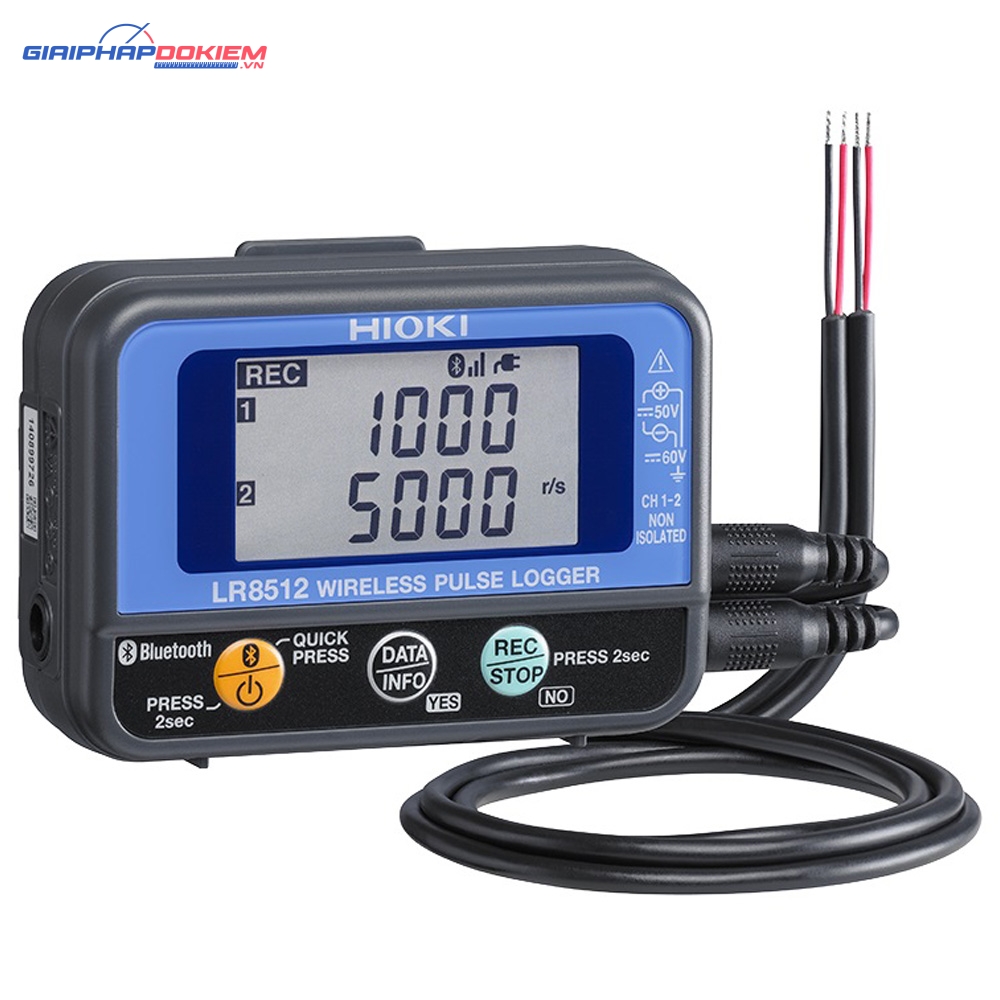

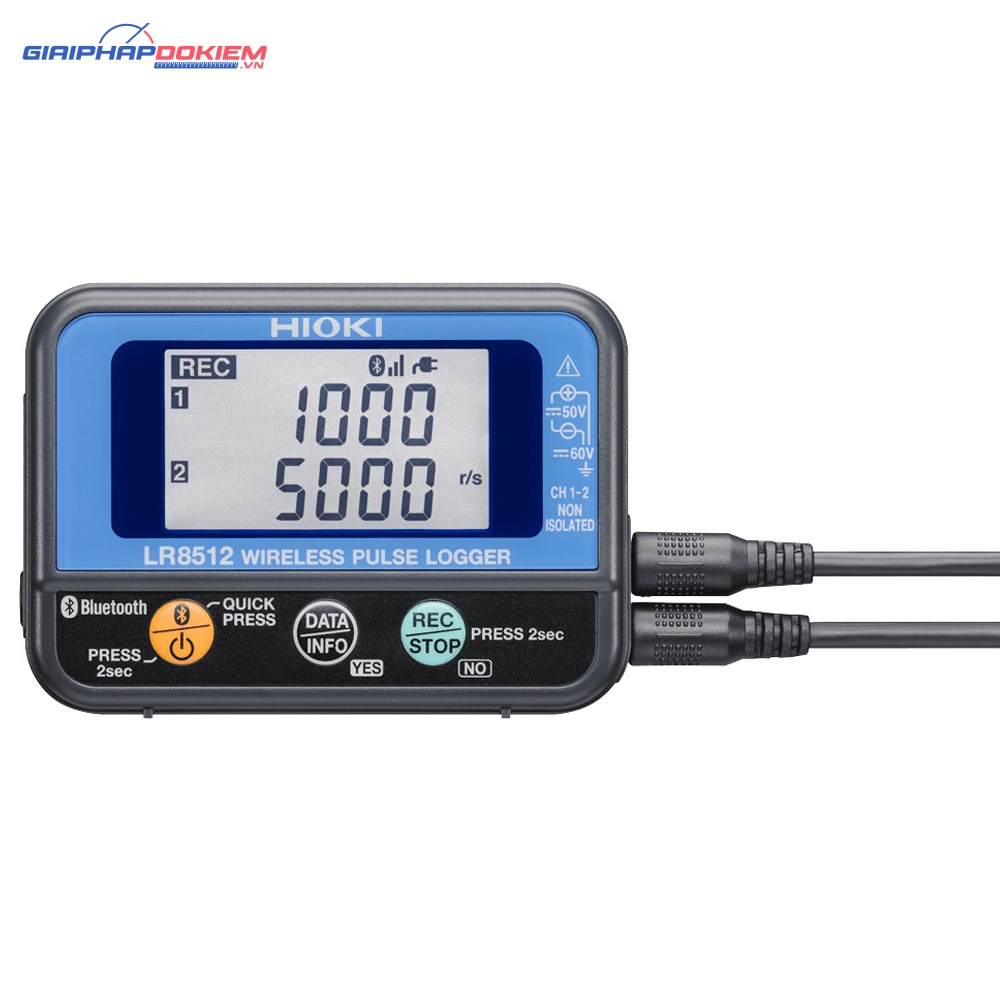

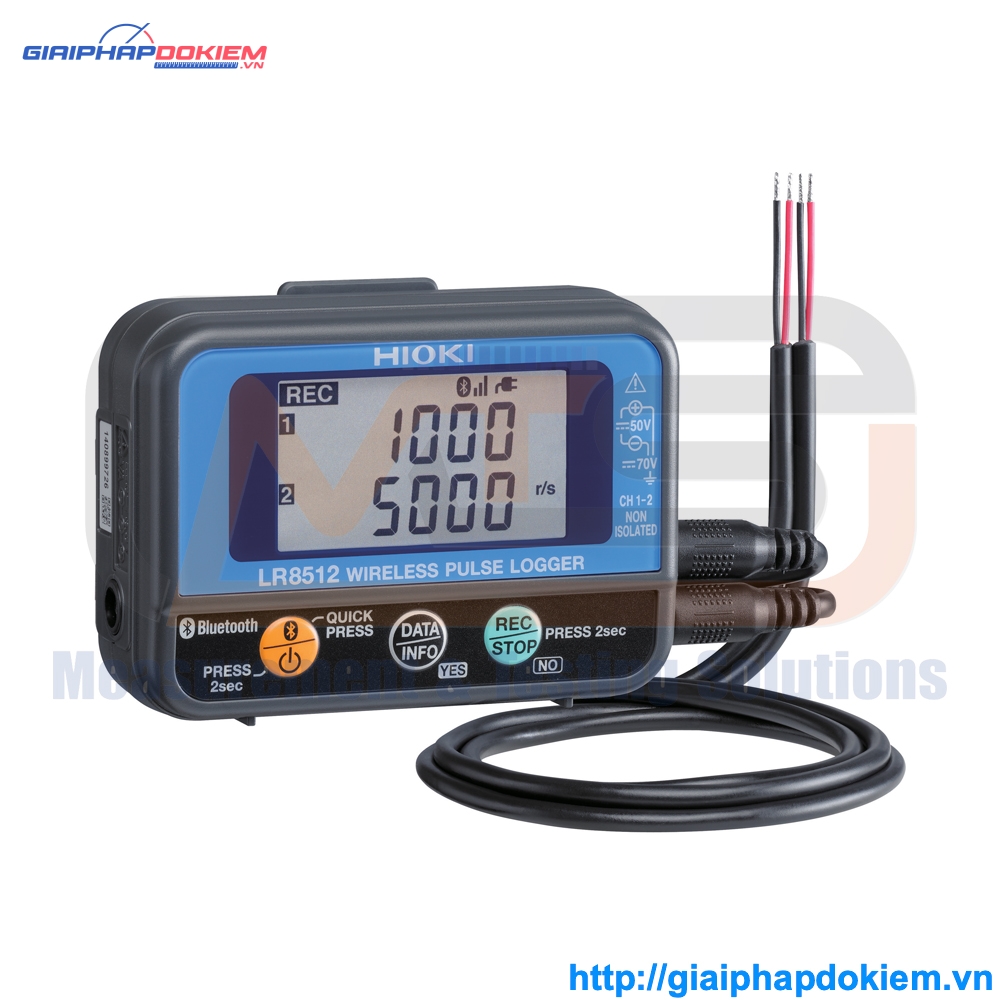

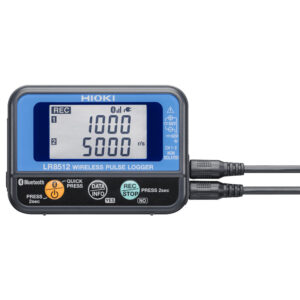

Thiết Bị Ghi Nhận Xung Hioki LR8512 WIRELESS PULSE LOGGER HIOKI LR8512

Perform Pulse Integration of Vehicle Speed or Flow Rate for Equipment such as Air Conditioners

Đặc tính kỹ thuật của Hioki LR8512

Functionality	[Used as standalone product (Data collected manually) ] Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Software can be downloaded free of charge from Google Play.) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as logging module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m
Number of channels	2ch (common GND)
Measurement items	Integrating (cumulative/ Instant), Revolution, Logic (Records a 1/0 for each recording interval)
Supported input format	Non-voltage “a” contact (always-open contact point), open collector, or voltage input (DC 0 to 50 V)
Measurement range	[Totalization] 0 to 1000 M pulse, Max. resolution 1 pulse, [No. of revolutions] 0 to 5000/n [r/s], Max. resolution 1/n [r/s]
Display items	Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value
Functions	Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function
Recording	[Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.1 to 30 sec, 1 to 60 min, 16 selections
Power source	AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC (can also be supplied from USB bus power, with a conversion cable)
Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C)	2 months (Recording interval of 1 min, Bluetooth® OFF), 14 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.1 sec, during real-time measurement with the LR8410)
Dimensions and mass	85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D, 95 g (3.4 oz) (excluding the battery)

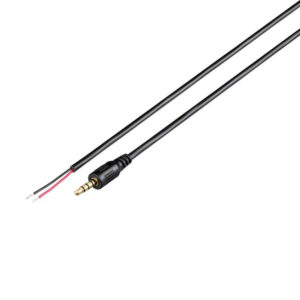

Accessories Hioki LR8512	CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2, Connection cable L1010 ×2
