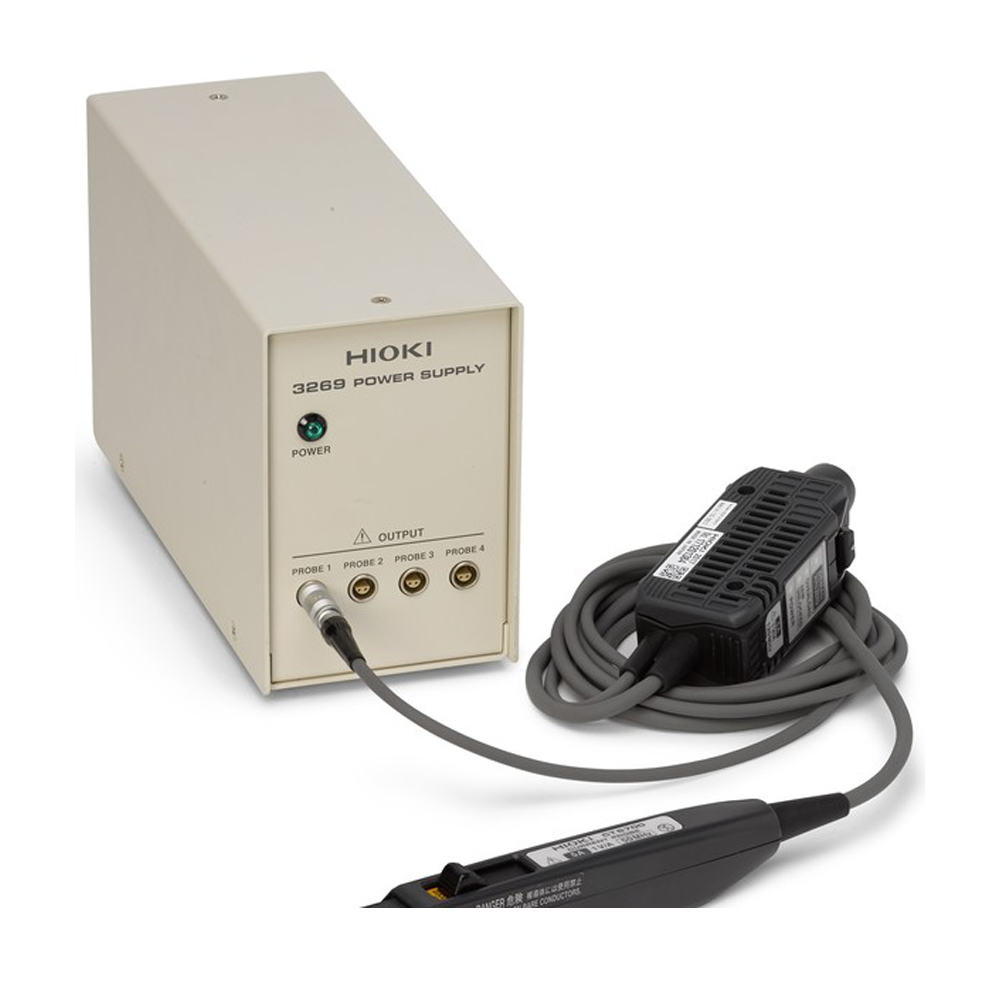

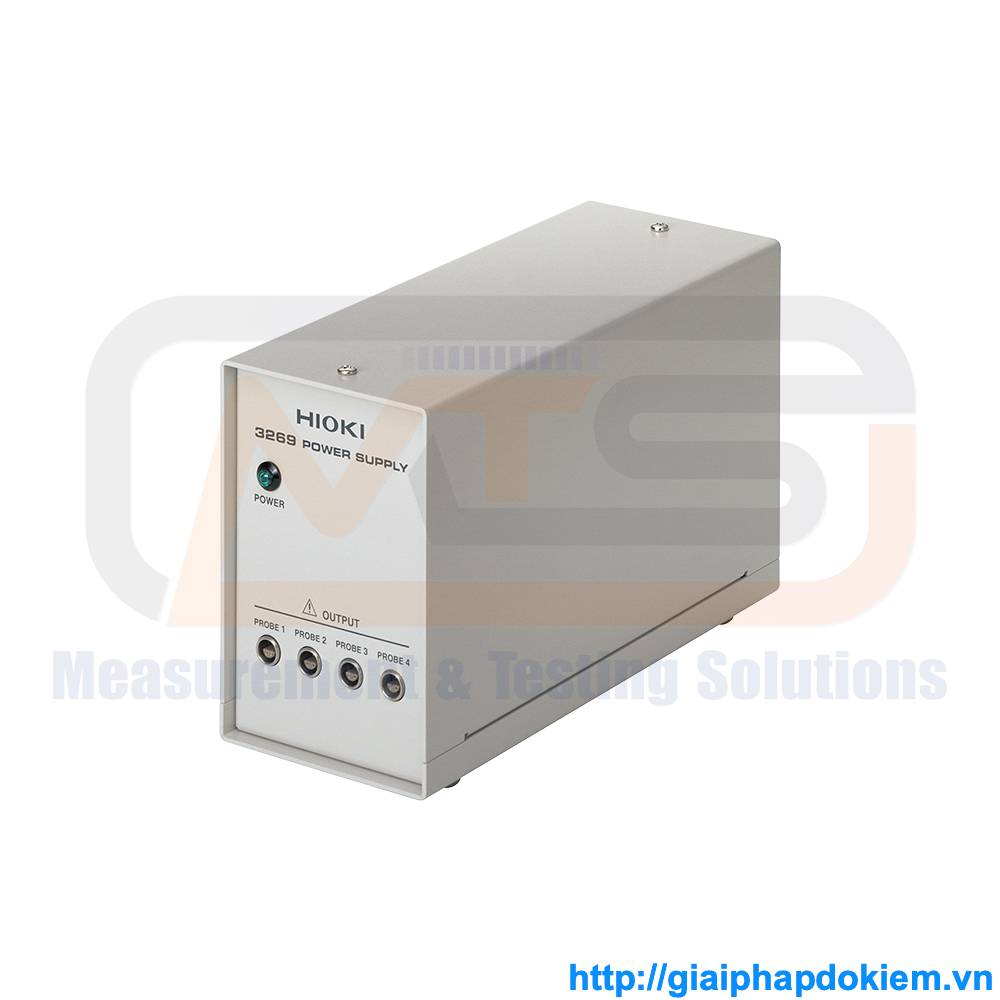

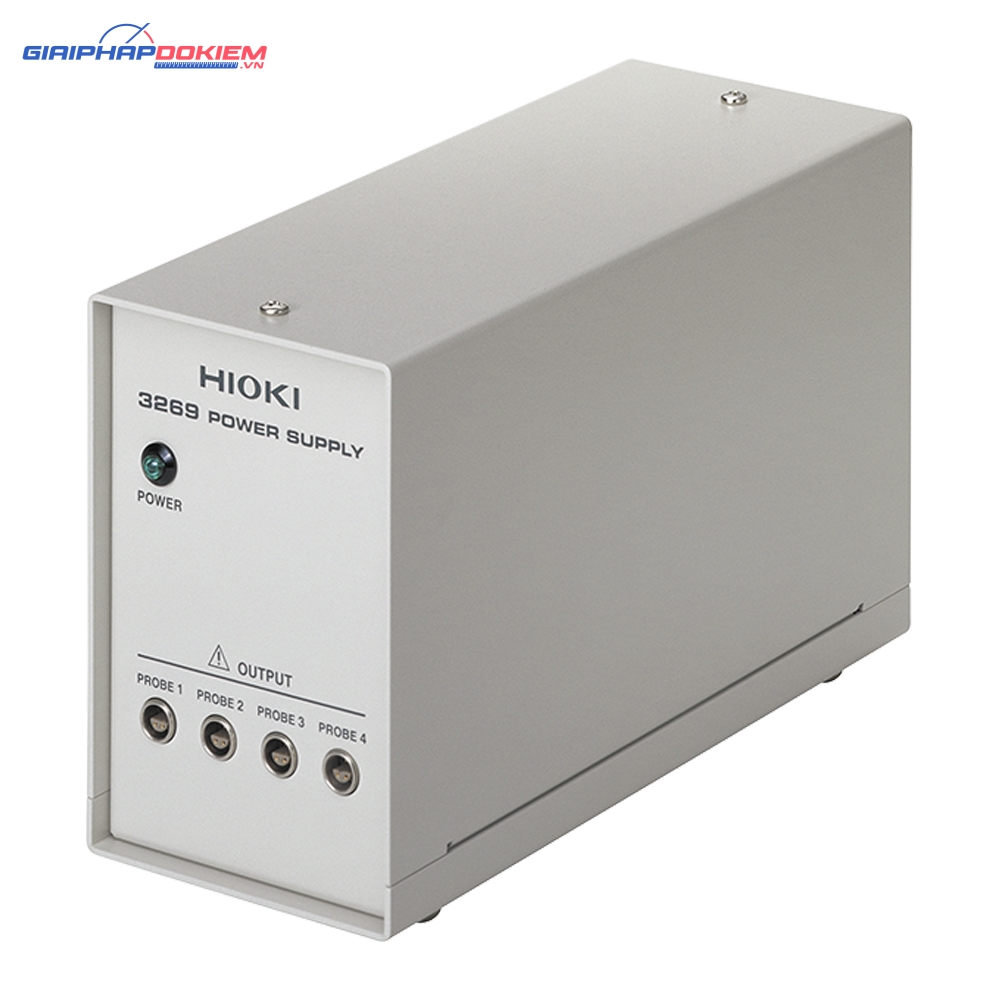

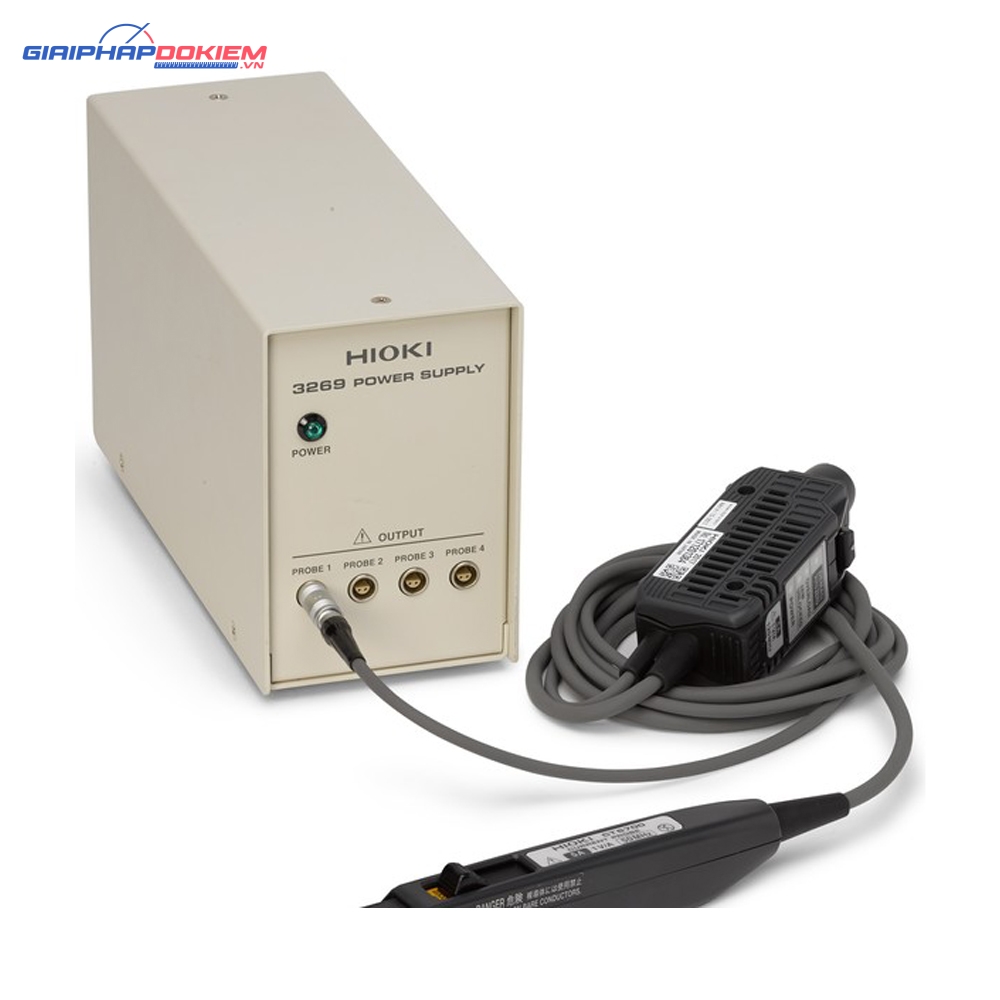

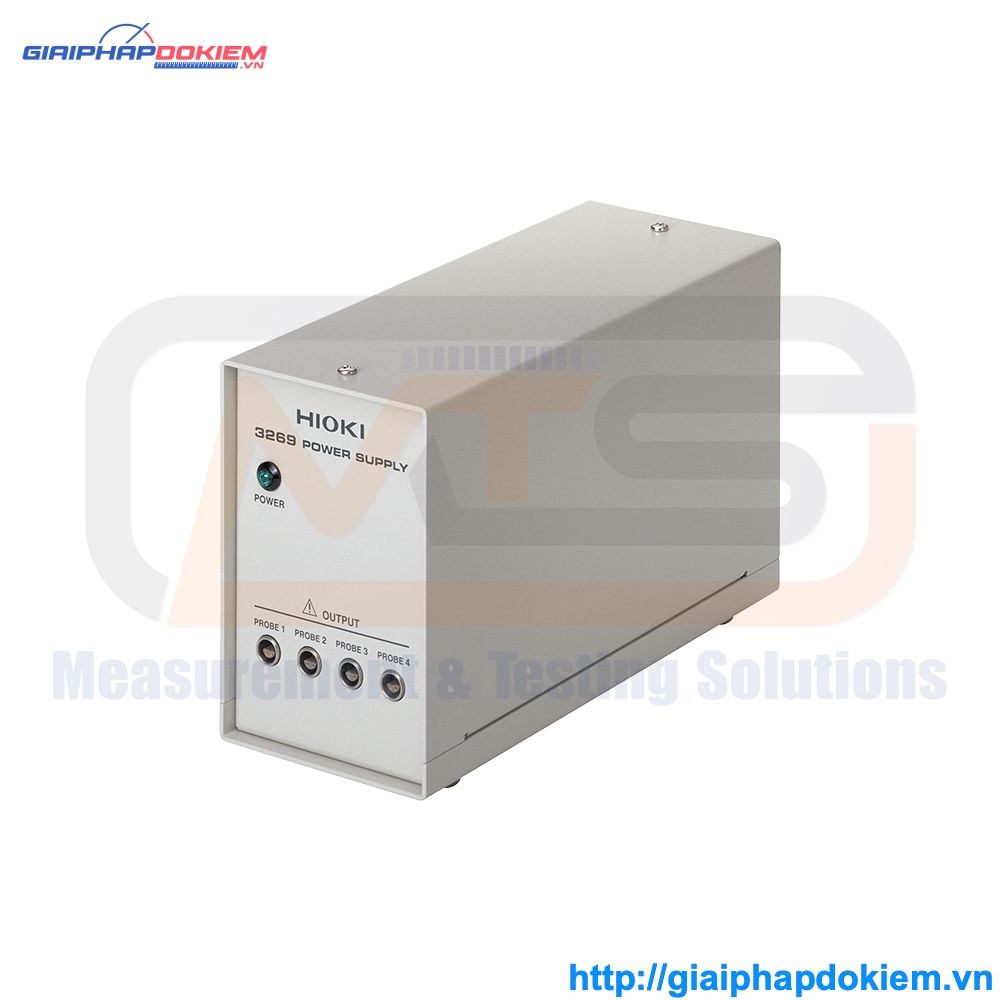

Bộ Cấp Nguồn DC Hioki 3269
POWER SUPPLY HIOKI 3269
Power Supply Unit for Outputting Current Probe Signals to Memory HiCorders and Oscilloscopes
Phụ kiện cho máy: CT6701, CT6700, 3273-50, 3274, 3275, 3276, MR8741, MR8740, MR8827, MR6000, MR8847A
Basic specifications
Compatible sensors | The CT6710, CT6711: up to 2 units The CT6700, CT6701, 3273-50, 3274, 3275 or 3276: up to 4 units Note: Also up to 4 units for the discontinued Model 3273 | |||||
---|---|---|---|---|---|---|
Number of power supply connectors | 4 | |||||
Output Hioki 3269 | ±12 V ±0.5 V, ±2.5 A (sum total of all channels) | |||||
Power supply | 100 V to 240 V AC (free) 50/60 Hz 170 VA max. | |||||
Dimensions and mass | 80 mm (3.15 in)W × 119 mm (4.69 in)H × 200 mm (7.87 in)D, 1.1 kg (38.8 oz) | |||||
Accessories | Instruction manual ×1, Power cord ×1 |
