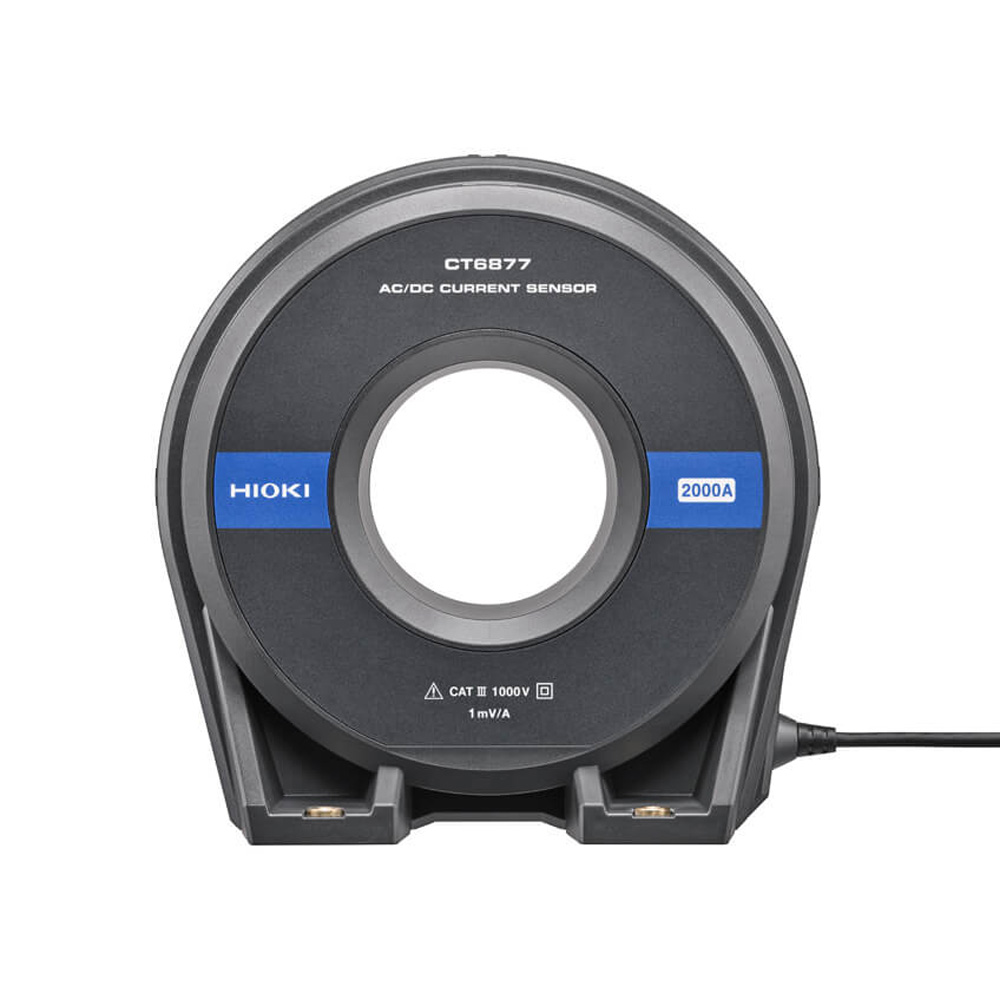

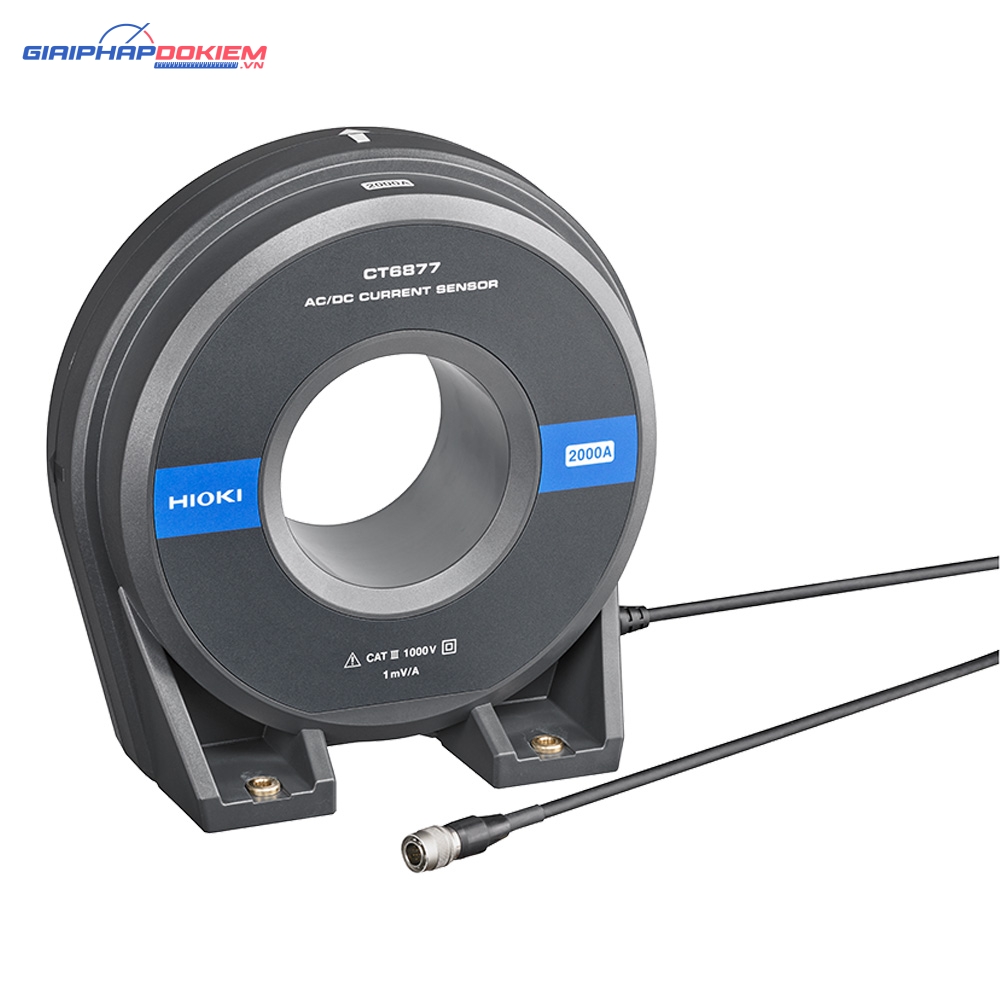

Đầu Đo Dòng Điện AC/DC Hioki CT6877

Name: Đầu Đo Dòng Điện AC/DC Hioki CT6877 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: CT6877
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: CT6877 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: PW6001, PW3390

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

AC/DC CURRENT SENSOR HIOKI CT6877

Raising the Bar for High-Accuracy Measurement

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Rated current	2000 A AC/DC
Max. allowable input	Within the derating range, (within the specified range up to ±3200 Apeak )
Frequency characteristics	Amplitude: DC to 1 MHz, Phase: DC to 700 kHz
Basic accuracy	(DC, 45 Hz ≤ f ≤ 66 Hz) Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.1°
Output voltage rate	1 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit. Use with voltage input equipment with high input impedance such as 1 MΩ)
Max. rated voltage to earth	1000 V AC/DC (50/60 Hz, CAT III )
Core diameter	φ 80 mm (3.15 in)
Operating temperature, humidity	-40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply	Power suppled via the Power Analyzer PW6001, PW3390, or Sensor Unit CT9555, CT9556, CT9557
Max. rated power	9.5 VA max. (at 2000 A/55 Hz, ±12 V power requirement)
Dimensions and mass	229 mm (9.02 in)W × 232 mm (9.13 in)H × 112 mm (4.41 in)D, CT6877: 5 kg (176.4 oz), cable length 3 m (9.84 ft), CT6877-01: 5.3 kg (186.9 oz), cable length 10 m (32.81 ft)
Accessories	Instruction manual ×1, Mark bands ×6, Operating precautions ×1
