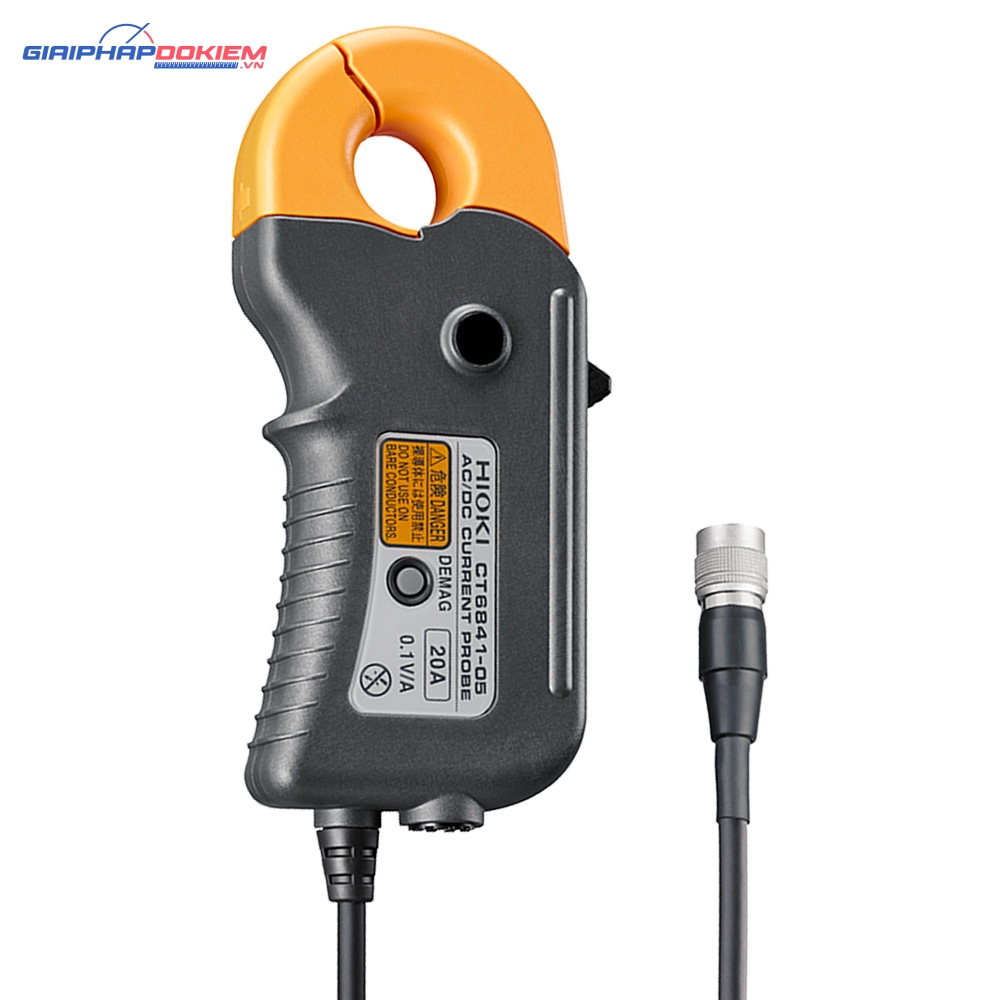

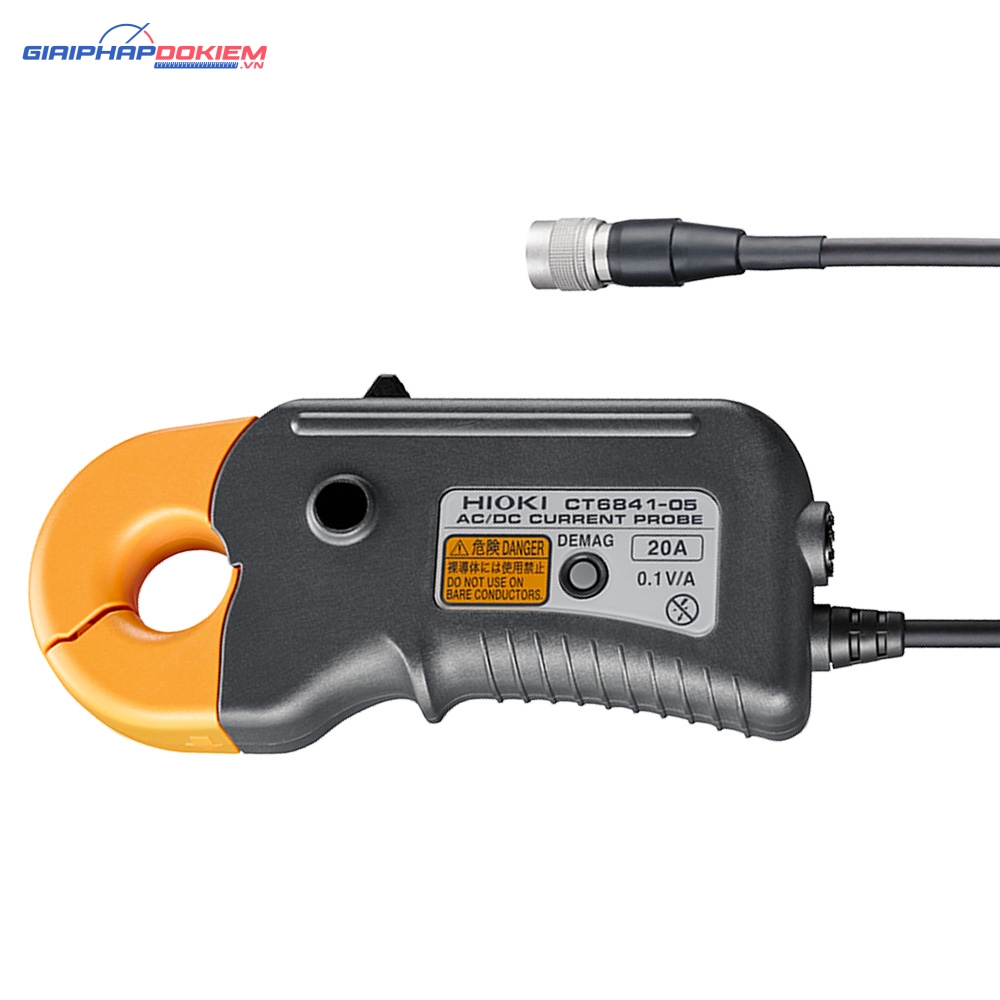

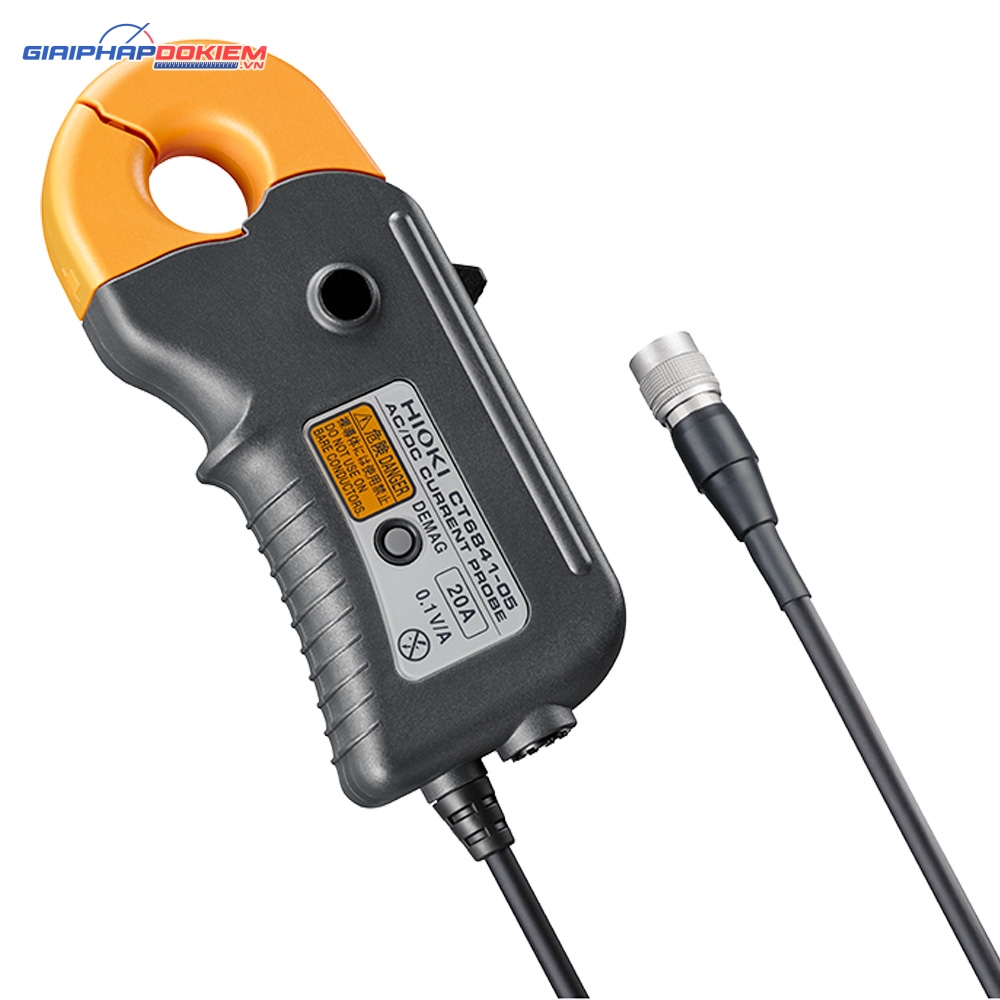

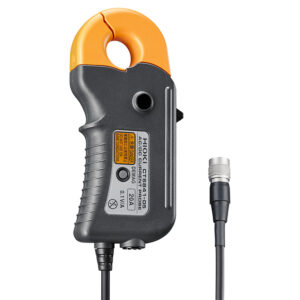

Đầu Đo Dòng Điện Dạng Kìm Hioki CT6841-05

Name: Đầu Đo Dòng Điện Dạng Kìm Hioki CT6841-05 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: CT6841-05
Availability: InStock

Giá:Liên hệ

(Giá trên chưa bao gồm VAT)

Model: CT6841-05

Hãng sản xuất:HIOKI

Xuất xứ: Nhật Bản

Bảo hành: 12 tháng

Phụ kiện cho máy: PW6001, PW3390, PW3337, PW3336, MR8741, MR8740,…

AC/DC CURRENT PROBE HIOKI CT6841-05

Consistent, High-precision Current Testing Across a Wide Temperature Range

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Rated current	20 A AC/DC
Max. allowable input	40 A rms (requires derating)
Frequency characteristics	Amplitude: DC to 1 MHz Phase: DC to 300 kHz
Amplitude and Phase accuracy	DC ±0.3 % rdg. ±0.05 % f.s. (Phase: Not defined) DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1°) Defined to 1 MHz
Power consumption	5 VA max. (at 20 A/55 Hz, ±12 V power requirement)
Output voltage	0.1 V/A (CT6841), 0.01 V/A (CT6843) (voltage output with the Sensor Unit, use with a device having a 1 MΩ input resistance or higher)
Core diameter	φ 20 mm (0.79 in)
Operating temperature, humidity	-40 °C to +85 °C (-40 °F to 185 °F), 80% rh or less (with no condensation)
Power supply	±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC)
Dimensions and mass	153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, 350 g (12.3 oz), cord length: 3 m (9.84 ft)
Accessories	Instruction manual ×1, Mark bands ×6, Carrying Case ×1

Compatible models: CT6841, CT6841-05

Compatible models	CT6841	CT6841-05

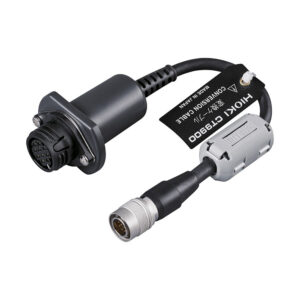

Power Analyzer PW6001, PW3390	△ (Requires CT9900)	OK
Power Analyzer 3390	OK	△ (Requires CT9901)
Power HiTester 3193 series	OK	△ (Requires CT9901)

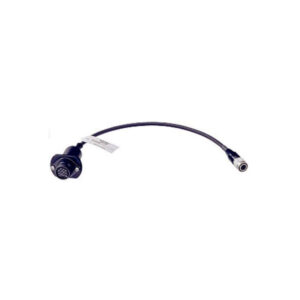

Current Unit 8971	△ (Requires the 9318)	△ (Requires the 9318, CT9901)
F/V Unit 8940	△ (Requires the 9318, 9705)	△ (Requires the 9318, 9705, CT9901)
