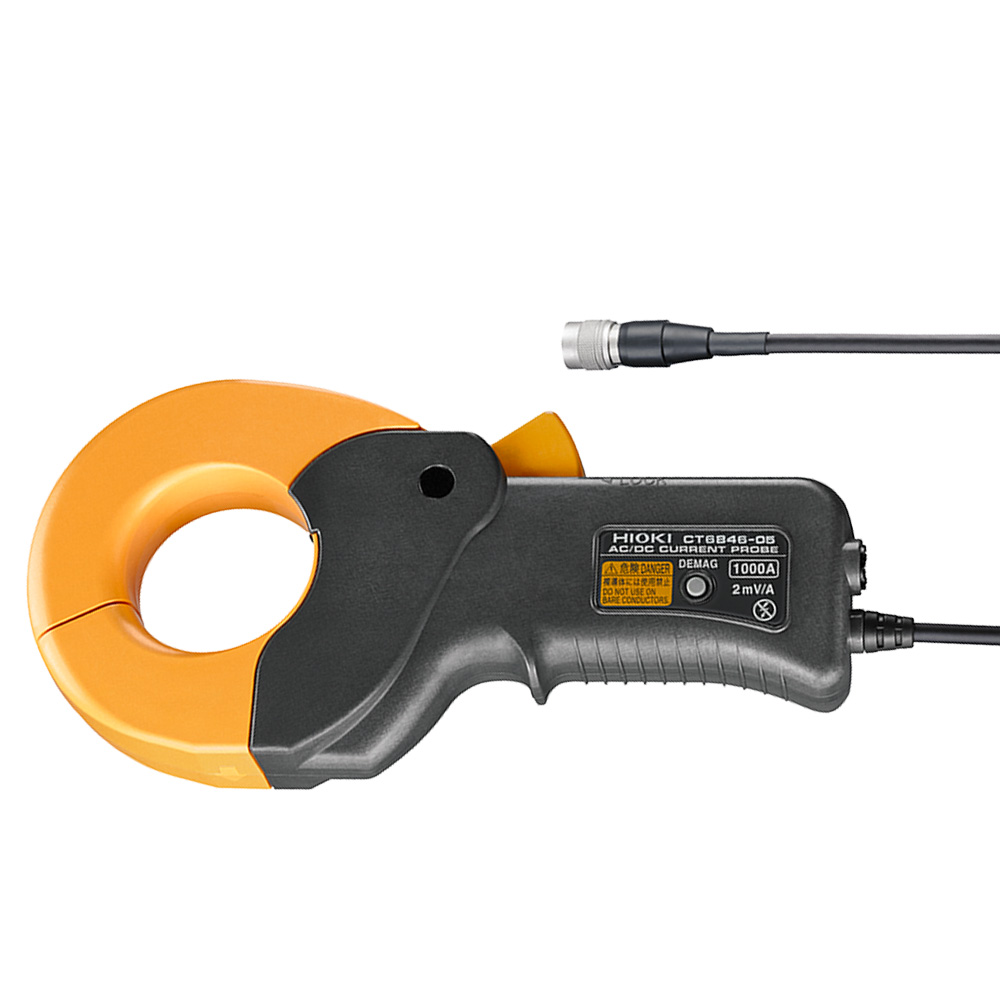

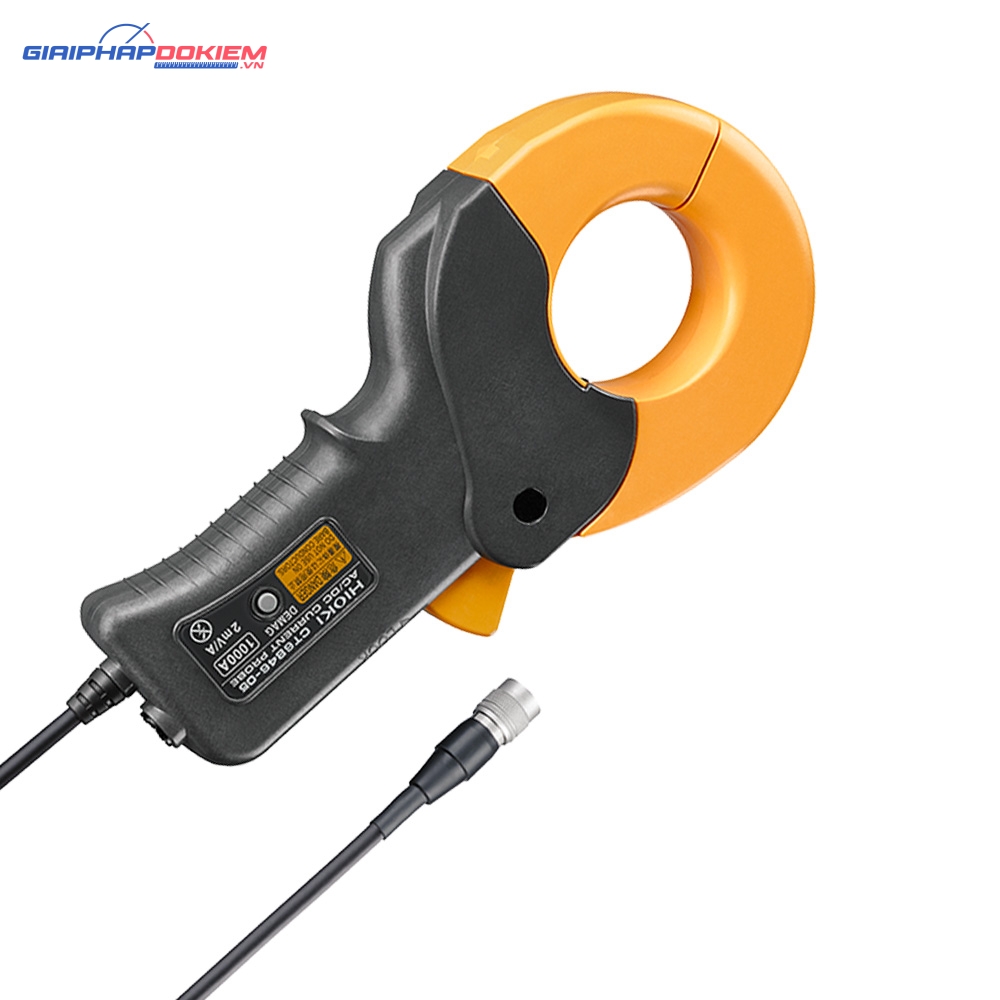

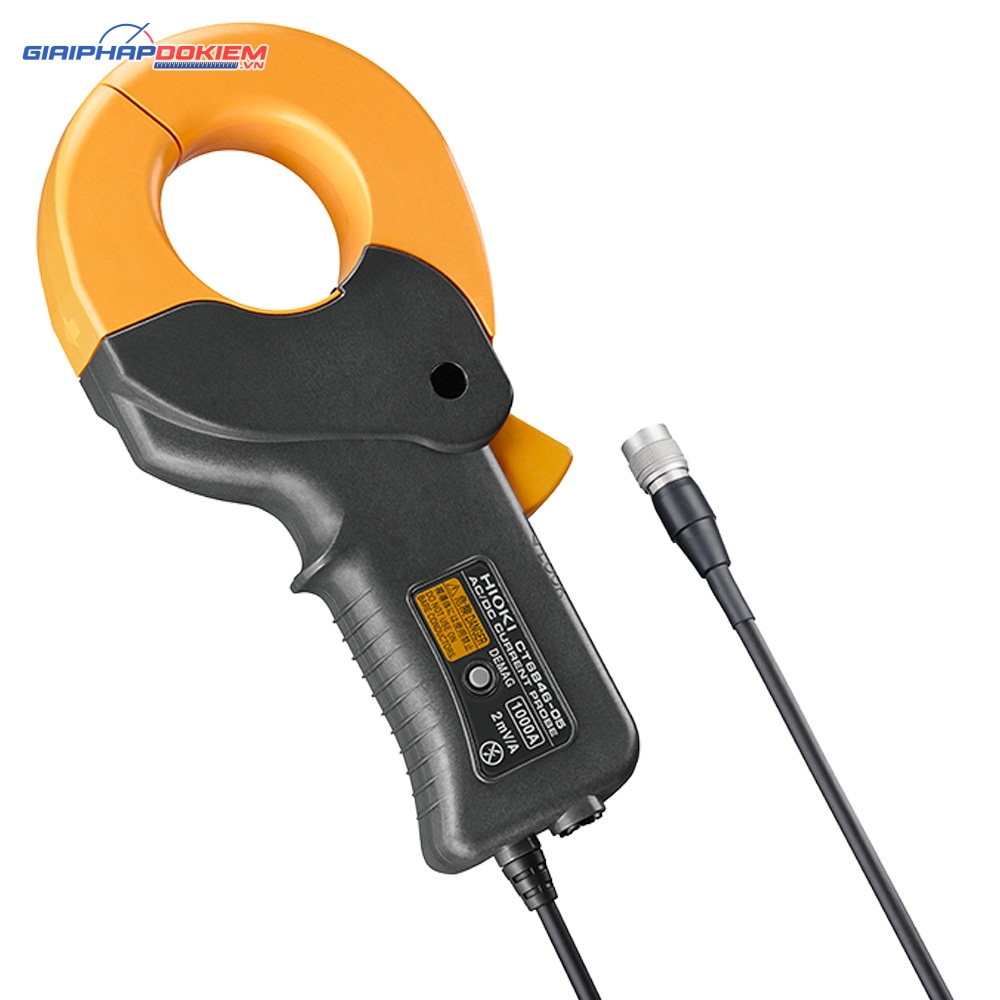

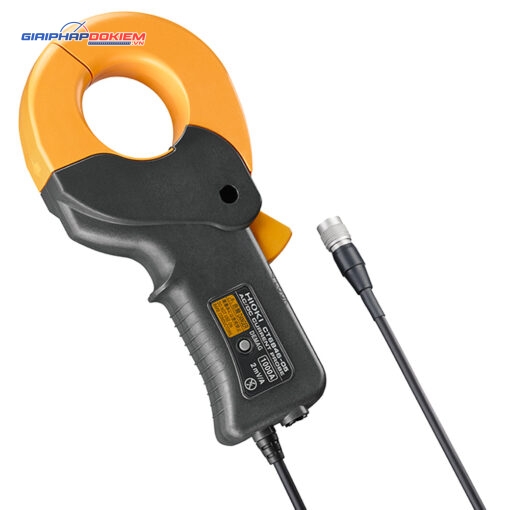

Đầu Đo Dòng Điện Dạng Kìm Hioki CT6846-05

Name: Đầu Đo Dòng Điện Dạng Kìm Hioki CT6846-05 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: CT6846-05
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: CT6846-05 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: PW6001, PW3390, PW3337, PW3336, MR8741, MR8740,…

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

AC/DC CURRENT PROBE HIOKI CT6846-05

1000 A AC/DC High-Precision Current Probe for Power Efficiency Testing

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

Rated current Hioki CT6846-05	1000 A AC/DC
Max. allowable input	1700 A peak (requires derating)
Frequency characteristics	DC to 20 kHz Phase: DC to 20 kHz
Amplitude and phase accuracy	DC ±0.3 % rdg. ±0.02 % f.s. (Phase: Not defined) DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1°) Defined to 20 kHz
Output voltage	2 mV/A (voltage output with the Sensor Uni use with a device having a 1 MΩ input resistance or higher)
Core diameter	φ 50 mm (1.97 in)
Operating temperature, humidity	-40 °C to +85 °C (-40 °F to 185 °F), 80% RH or less (with no condensation)
Power supply	±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC)
Power consumption	7 VA max. (at 1000 A/55 Hz, ±12 V power requirement)
Dimensions and mass	238 mm (9.37 in)W × 116 mm (4.57 in)H × 35 mm (1.38 in)D, 990 g (34.9 oz), cord length: 3 m (9.84 ft)
Accessories	Instruction manual ×1, Mark bands ×6, Carrying Case

Compatible models…CT6846 (-05)

Compatible models	CT6846	CT6846-05
Power Analyzer PW6001, PW3390	△ (Requires CT9900, CT ratio 2)	OK
Power Analyzer 3390	OK (CT ratio 2)	△ (Requires CT9901, CT ratio 2)
Power HiTester 3193 series	OK (CT ratio 2)	△ (Requires CT9901, CT ratio 2)
Current Unit 8971	△ (Requires the 9318, CT ratio 2)	△ (Requires the 9318, CT9901, CT ratio 2)
F/V Unit 8940	△ (Requires the 9318, 9705, CT ratio 2)	△ (Requires the 9318, 9705, CT9901, CT ratio 2)
