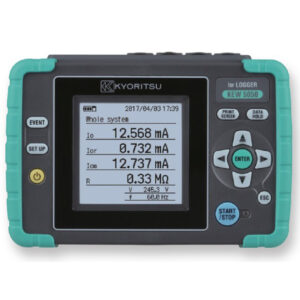

Máy Đo Phân Tích Công Suất 4 Kênh Kyoritsu 5050-01
Máy Đo Phân Tích Công Suất 4 Kênh Kyoritsu 5050-01

Máy Đo Phân Tích Công Suất 4 Kênh Kyoritsu 5050-02

Giá (chưa VAT): 46,200,000

Giá (đã VAT): 50,820,000

Model: 5050-02 Tình trạng: Còn hàng Nhà sản xuất: Xuất xứ: Nhật Bản Bảo hành: 12 tháng
Mua ngay Gọi điện xác nhận và giao hàng tận nơi

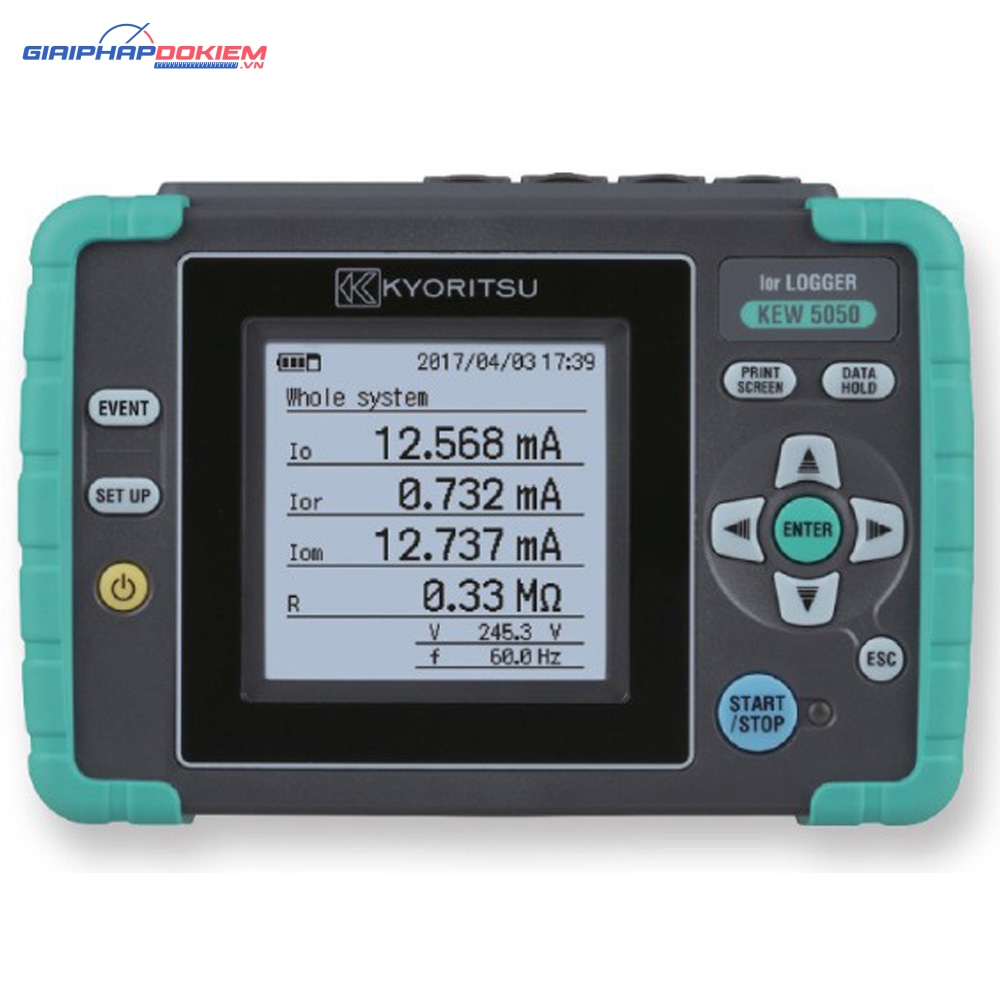

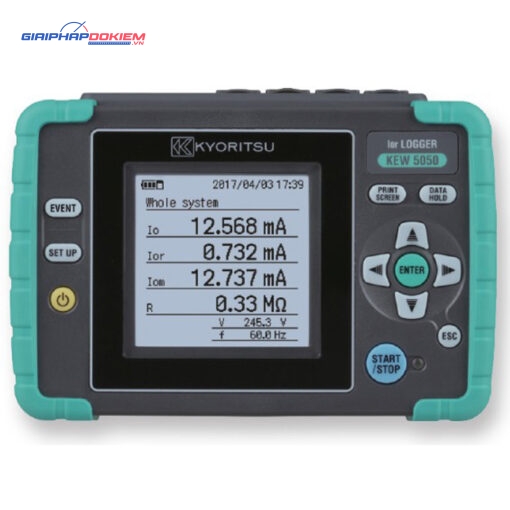

Máy Đo Phân Tích Công Suất 4 Kênh Kyoritsu 5050-02

Wiring configuration1P2W, 1P3W, 3P3W, 3P4W
Measurements and
parameters5050-02
Ior : Leakage current (Trms) with resistive components only
Io : Leakage current (Trms) with basic wave of 40 – 70Hz
Iom : Leakage current (Trms) including harmonic components
V : Reference voltage (Trms) with basic wave of 40 – 70Hz
Vm : Reference voltage (Trms) including harmonic components
R : Insulation resistance, Frequency(Hz), Phase angle(θ)
Other functionsDigital output, Print screen, Back light, Data hold
Recording Interval200/400ms/1/5/15/30s/1/5/15/30m/1/2hours
Ior
Range10.000/100.00/1000.0mA/10.000A/AUTO
AccuracyFor reference voltages of sine wave 40 – 70Hz and 90V Trms or higher,
±0.2%rdg±0.2%f.s. + clamp sensor amplitude accuracy + error
of phase accuracy*
(phase error)
* add ±2.0%rdg to measured Io value when using Ior leakage
clamp sensor.
(θ: within the accuracy of reference voltage/ current phase
difference ±1.0°)
Allowable input1% – 110% (Trms) of each range, and 200% (peak) of the range
Display range0.15% – 130% (display “0” for less than 0.15%, “OL” if the range
is exceeded)
Io *Range, Allowable input and Display Range are the same as Ior .
Accuracy±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
Iom *Range, Allowable input and Display Range are the same as Ior .
Accuracy±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
Measurement
method
Sampling speed 40.96ksps (every 24.4μs), gapless, calculate
Trms values every 200ms.
Voltage
Range1000.0V
Accuracy±0.2%rdg±0.2%f.s. * for waveforms of sine wave 40 – 70Hz
Allowable input10 – 1000V Trms, and 2000V peak
Display range0.9V – 1100.0V Trms (display “0” for less than 0.9V, “OL” if the
range is exceeded)
Phase angle(θ)
Display range0.0° – ±180.0° (regarding the phase of reference voltage as 0.0°)
AccuracyWithin ±0.5° for the inputs of 10% or higher of leakage current
range, sine wave 40 – 70Hz, reference voltage of 90V Trms or
higher.
Frequency meter range40 – 70Hz
External supplyAC100 – 240V(50/60Hz) 7VA max
Power sourceLR6(AA)(1.5V) × 6 (Battery life approx. 11h)
Display / update period160 × 160dots, FSTN monochrome display / 500ms
PC card interfaceSD card (2GB) *standard accessory
PC communication
interface
USB Ver2.0
Temperature and
humidity range
23±5°C, less than 85%RH(without condensation)
Operating temperature
and humidity range
-10 – 50°C less than 85%RH(without condensation)
Storage temperature
and humidity range
-20 – 60°C less than 85%RH(without condensation)
Applicable StandardsIEC61010-1 CATⅣ 300V , CATⅢ 600V Pollution degree 2
IEC61010-2-030 , IEC61010-031 , IEC61326
Dimension/Weight165(L) × 115(W) × 57(D)mm/approx. 680g (including batteries)
Included accessories7273(Voltage test lead)
8262(AC adapter)
8177(Ior Leakage clamp sensor 10A type Ø40mm)
7278(Earth cable)
7219(USB cable)
8326-02(SD card 2GB)

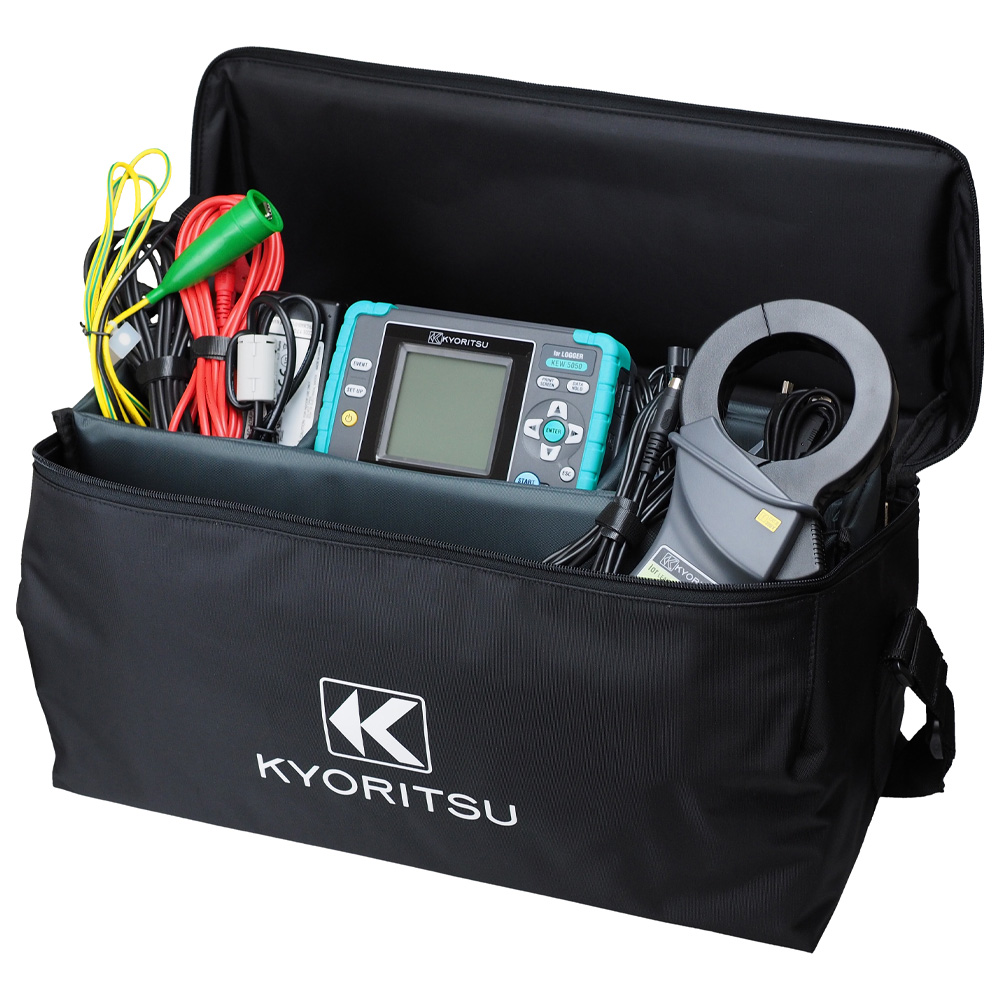

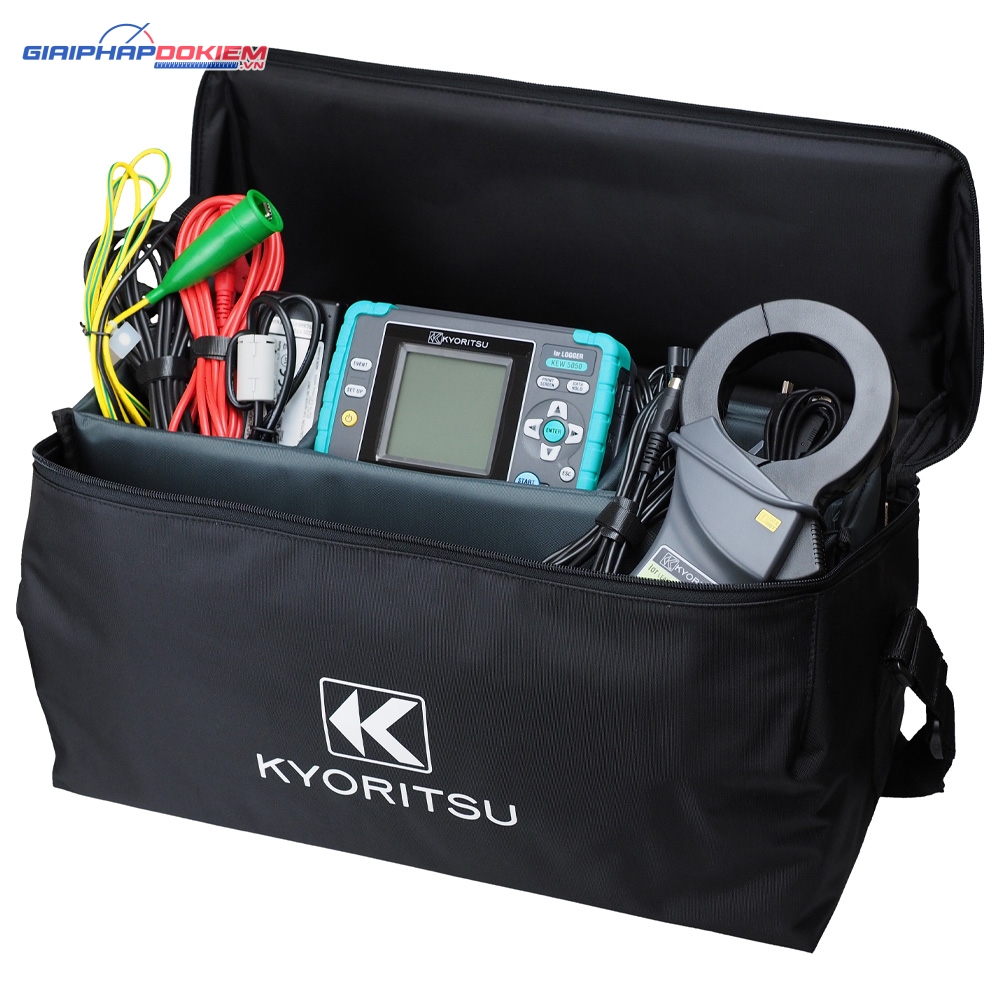

9125(Carrying case)
Instruction manual Kyoritsu 5050-02, Cable marker, Software installation manual
LR6(AA) × 6
KEW Windows for KEW 5050-02(software)
Optional accessories8178(Ior Leakage clamp sensor 10A type Ø68mm)
8329(Power supply adapter)

Kyoritsu 5050-02

Kyoritsu 5050-02

Máy Đo Phân Tích Công Suất 4 Kênh Kyoritsu 5050-02 46,200,000
