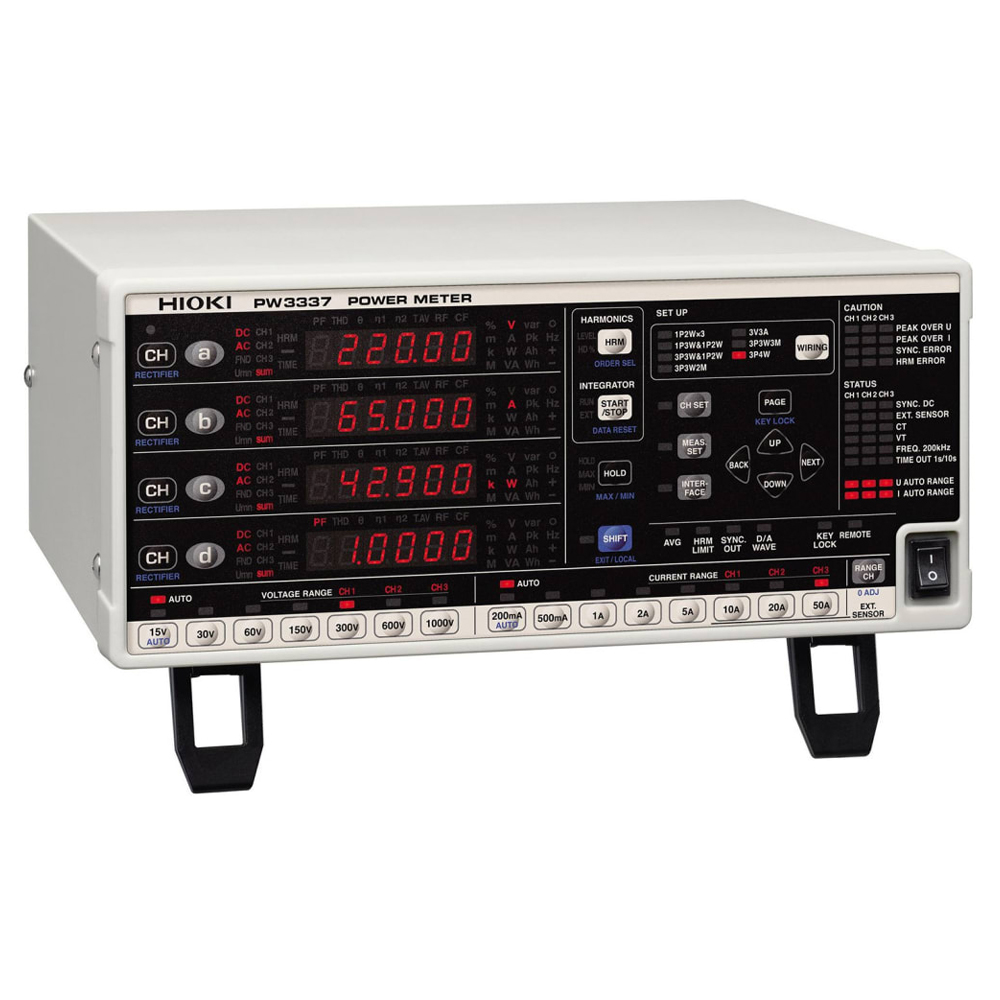

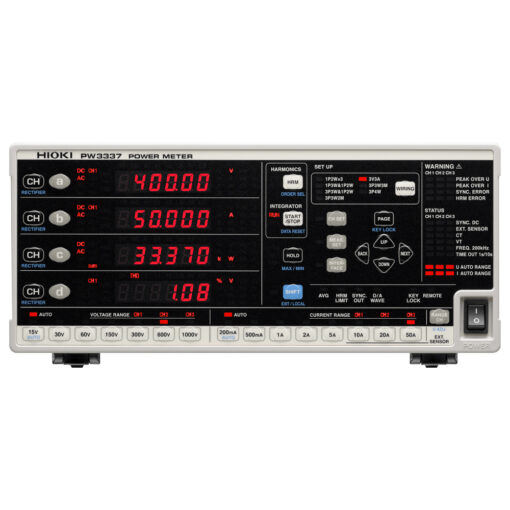

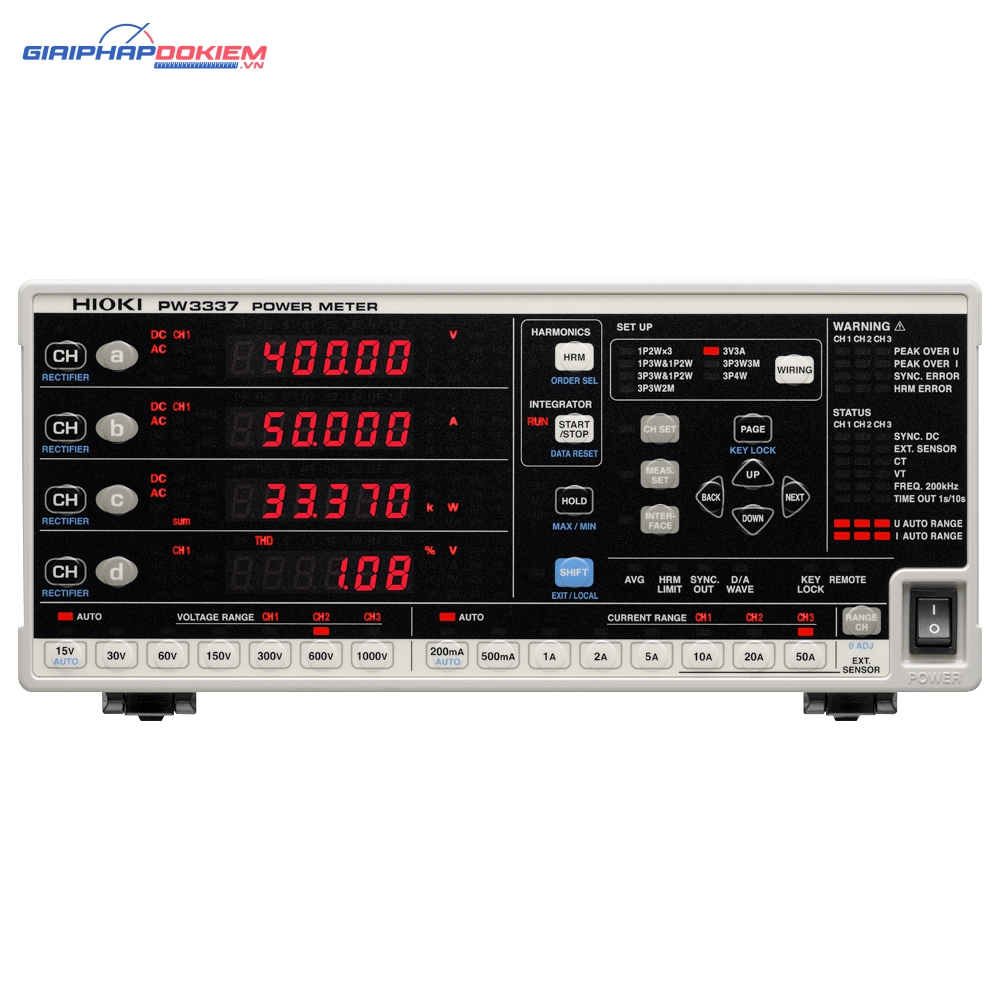

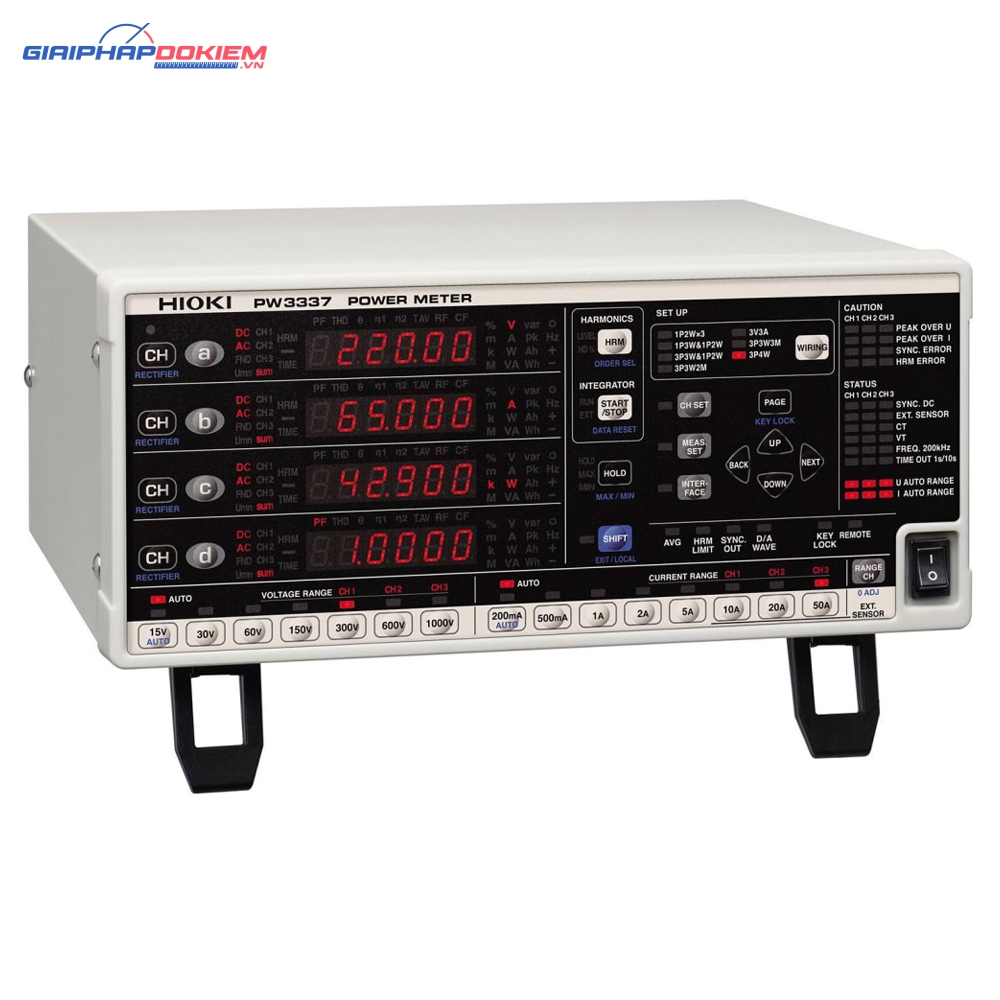

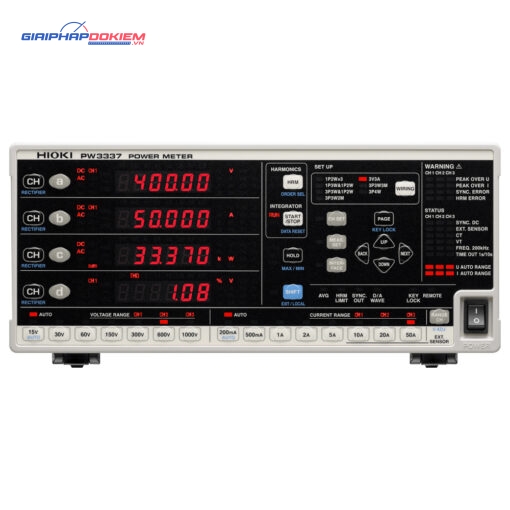

Thiết Bị Đo Công Suất Hioki PW3337

Thiết Bị Đo Công Suất Hioki PW3337

Giá (chưa VAT): Liên hệ

Model: PW3337 Tình trạng: còn 10 hàng Nhà sản xuất: Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Model (Mã đặt hàng):

PW33373ch
PW3337-013ch, built-in GP-IB
PW3337-023ch, built-in D/A output
PW3337-033ch, built-in GP-IB, D/A output

còn 10 hàng

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Thiết Bị Đo Công Suất Hioki PW3337

Hioki PW3337
                                                            Hioki PW3337

POWER METER HIOKI PW3337

3-Channel AC/DC Power Meter for Single-Phase to 3P4W Equipment such as Motors, Inverters, Power Conditioners, and Power Supplies

Model No. (Order Code)

PW33373ch
PW3337-013ch, built-in GP-IB
PW3337-023ch, built-in D/A output
PW3337-033ch, built-in GP-IB, D/A output

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 6 months
Measurement linesSingle-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, 3-phase 4-wires (voltage / current measurement range set for each wiring mode)
Measurement itemsVoltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
Harmonic parametersSynchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th
Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content % , Harmonic current content % , Harmonic active power content %
(The following parameters can be downloaded as data during PC communication but not displayed: Harmonic voltage phase angle, Harmonic current phase angle, Harmonic voltage current phase difference)
Measurement rangeVoltage range: AC/DC 15 V to 1000 V, 7 ranges
Current range: AC/DC 200 mA to 50 A, 8 ranges
Power range: 3.0000 W to 150.00 kW (Depends on combination of voltage and current range)
Integration measurement (Integration time up to 10,000 hours)[Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value)
[Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
Input resistance (50/60 Hz)[Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
Basic accuracy (Active power)±0.1% rdg. ±0.1% f.s. (DC)
±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input < 50%=””>
±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
Display refresh rate5 times/s to 20 seconds (depends on average times settings)
Frequency characteristicsDC, 0.1 Hz to 100 kHz
D/A output (-02/-03 model only)16 channels (selectable from following items), Level output DC ±2 V, Waveform output 1 V f.s.
Level output, instantaneous waveform output (voltage, current, active power)
Level output (apparent power, reactive power, power factor, or other)
High-speed active power level output
Functions[Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, or other functions
InterfacesRS-232C / LAN standard, (-01/-03 model also includes GP-IB)
Power supply100 to 240 V AC, 50/60 Hz, 40 VA max.
Dimensions and mass305 mm (12.01 in) W × 132 mm (5.20 in) H × 256 mm (10.08 in) D, 5.6 kg (197.5 oz)
Accessories Hioki PW3337Instruction manual × 1, Measurement guide × 1, Power cord × 1
