Thiết Bị Đo Và Ghi Đa Năng Hioki LR8410-20

Name: Thiết Bị Đo Và Ghi Đa Năng Hioki LR8410-20 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: LR8410-20
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: LR8410-20 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Đặt hàng Thêm vào giỏ hàng HOTLINE Gọi ngay 0901668234

Messenger

Zalo

Phụ kiện kèm theo LR8410-20

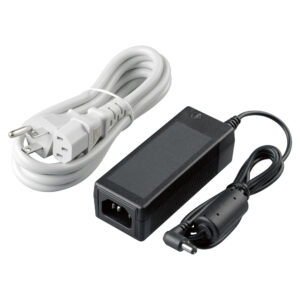

Bộ Nguồn Adapter Hioki Z1008

Liên hệ

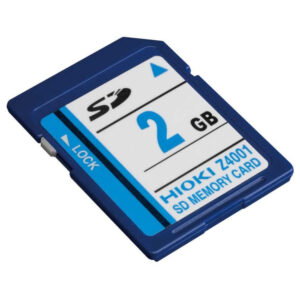

Thẻ Nhớ SD Card 2GB Hioki Z4001

3,600,000₫

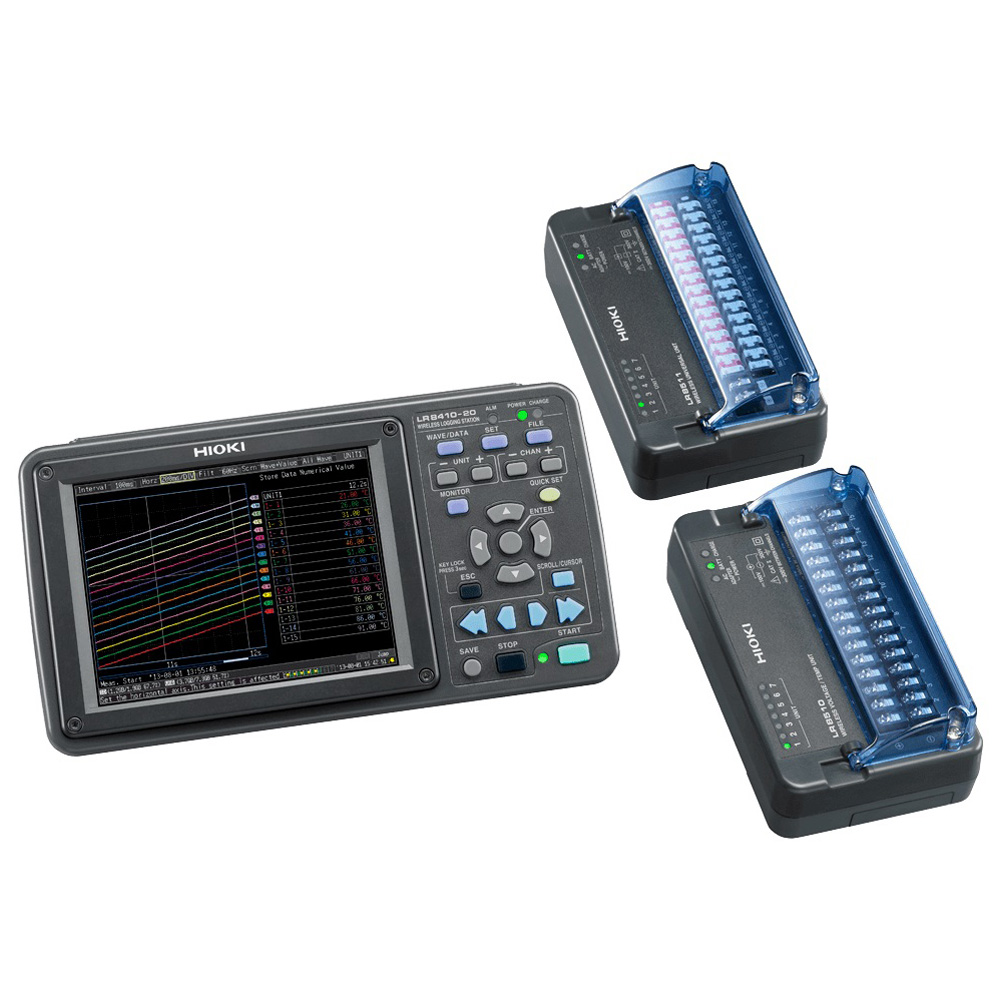

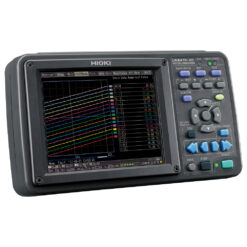

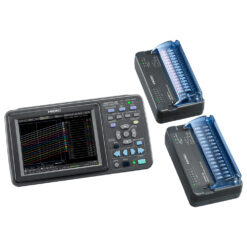

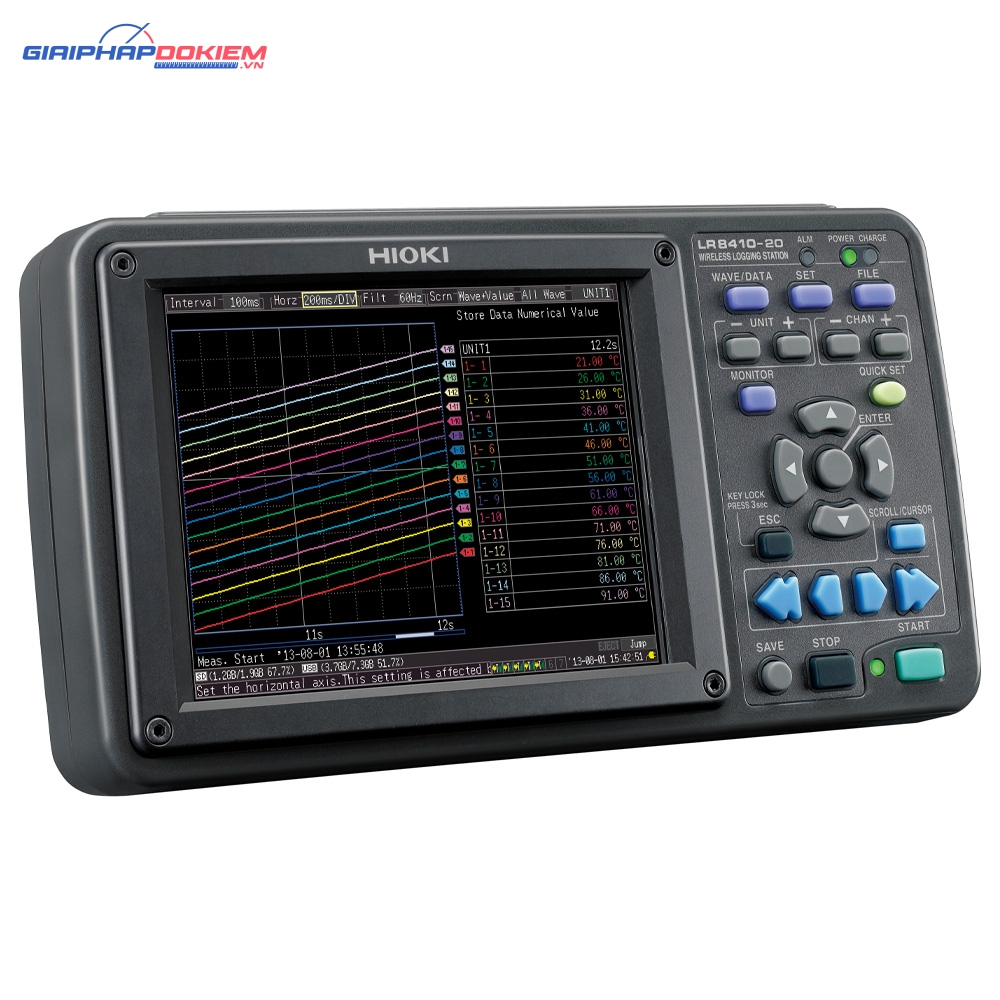

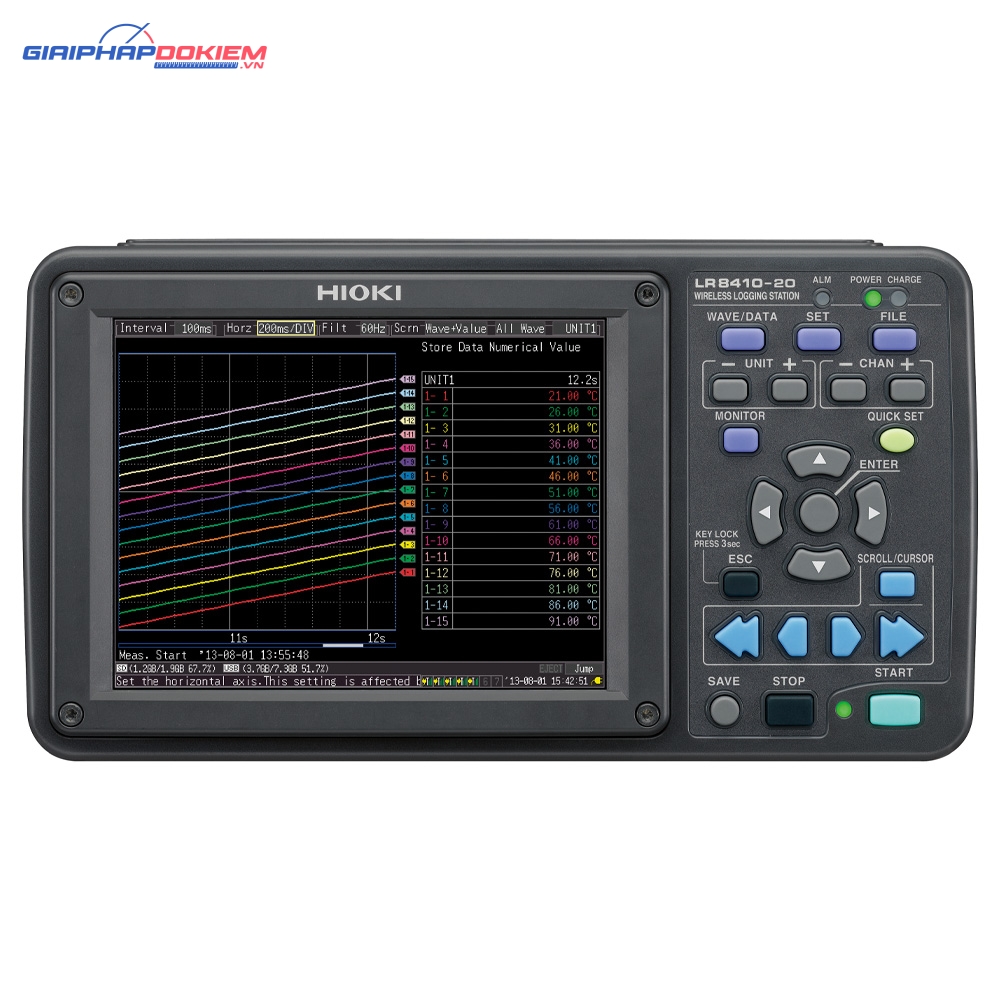

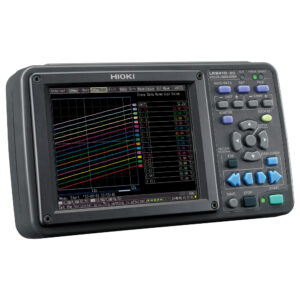

Thiết Bị Đo Và Ghi Đa Năng Hioki LR8410-20

Wireless Logging Station Hioki LR8410-20

Wireless Multi-channel Data Logger Captures Up to 105 Data Points via Bluetooth®

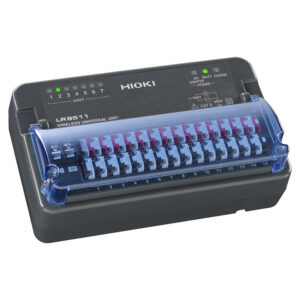

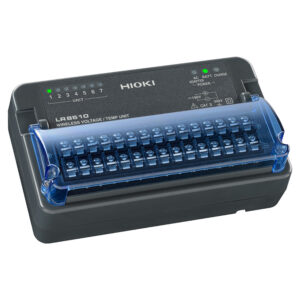

No. of measurement channels	Max. 105 ch (use 7 units of LR8510 or LR8511) One or more LR8510 or LR8511 measurement modules are required. Main unit can control up to 7 modules with Bluetooth® wireless technology, mix and match modules as needed
Pulse, digital input	[Pulse totalization] [Rotation count] Not available
Recording intervals	100 ms(2), 200 ms to 1 hour, 16 selections (All input channels are scanned within each recording interval.) (2) Setting not available when the thermocouple burnout detection setting is on
Data storage	Internal memory: 8 M-words, Data storage media: SD memory card or USB memory stick (Only data recorded to a genuine HIOKI SD memory card is guaranteed)
Interface	LAN: 100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system USB: USB 2.0 series mini-B receptacle ×1, Functions: Data acquisition using bundled software or PC commands, Transfer data from the SD memory card to a PC via USB drive mode
Display device	5.7 inch TFT color liquid crystal display (640 × 480 pixel)
Functions Hioki LR8410-20	Save waveform data in real time to the SD memory card or USB memory stick, Numerical value calculations, Waveform calculations, 4ch alarm output (not isolated, common ground), and others

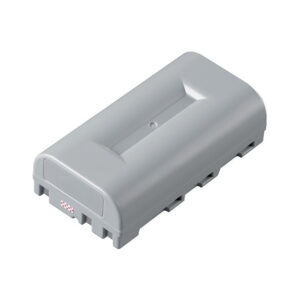

Power supply	[AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 45 VA Max. (including AC adapter), 15 VA Max. (exclusive of AC adapter) [Internal battery] Using the Battery pack Z1007 (optional accessory), 3 hours of continuous use (at 23 ˚C reference data), 7 VA Max. [External power] 10 to 28 V DC, 15 VA Max. (Please contact your HIOKI distributor for connection cord)
Dimensions and mass	230 mm (9.06 in) W × 125 mm (4.92 in) H × 36 mm (1.42 in) D, 700 g (24.7 oz) (excluding Battery pack)

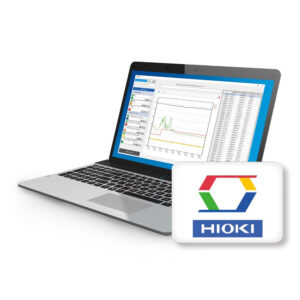

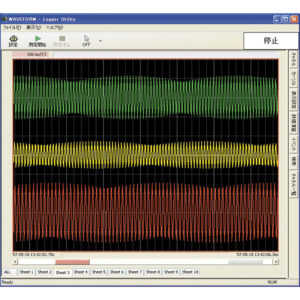

Accessories Hioki LR8410-20	Instruction manual × 1, Measurement guide × 1, SD memory card (2GB) Z4001 × 1, CD-R (data collection software “Logger Utility”) × 1, USB cable × 1, AC Adapter Z1008 × 1
