Giaiphapdokiem.vn chuyên phân phối Thiết Bị Đo Và Ghi Đa Năng Hioki LR8450-01

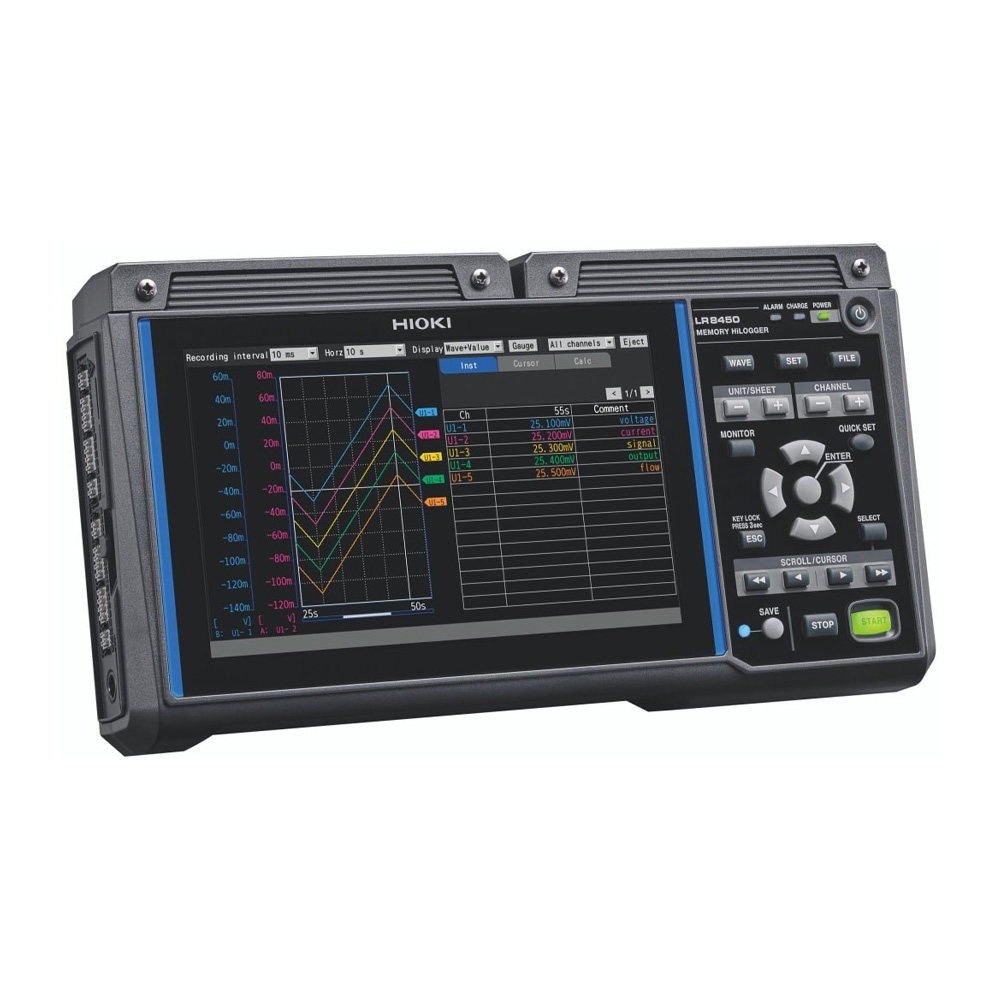

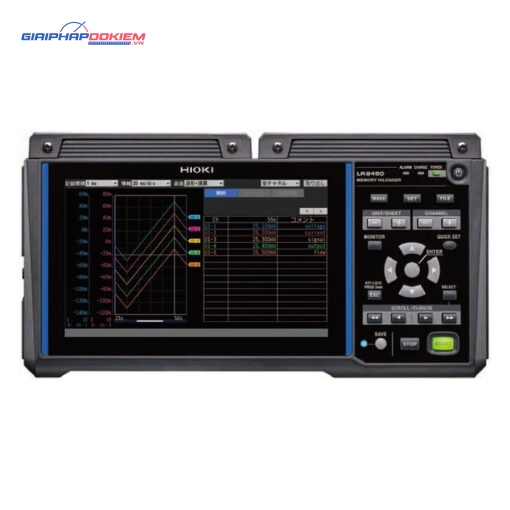

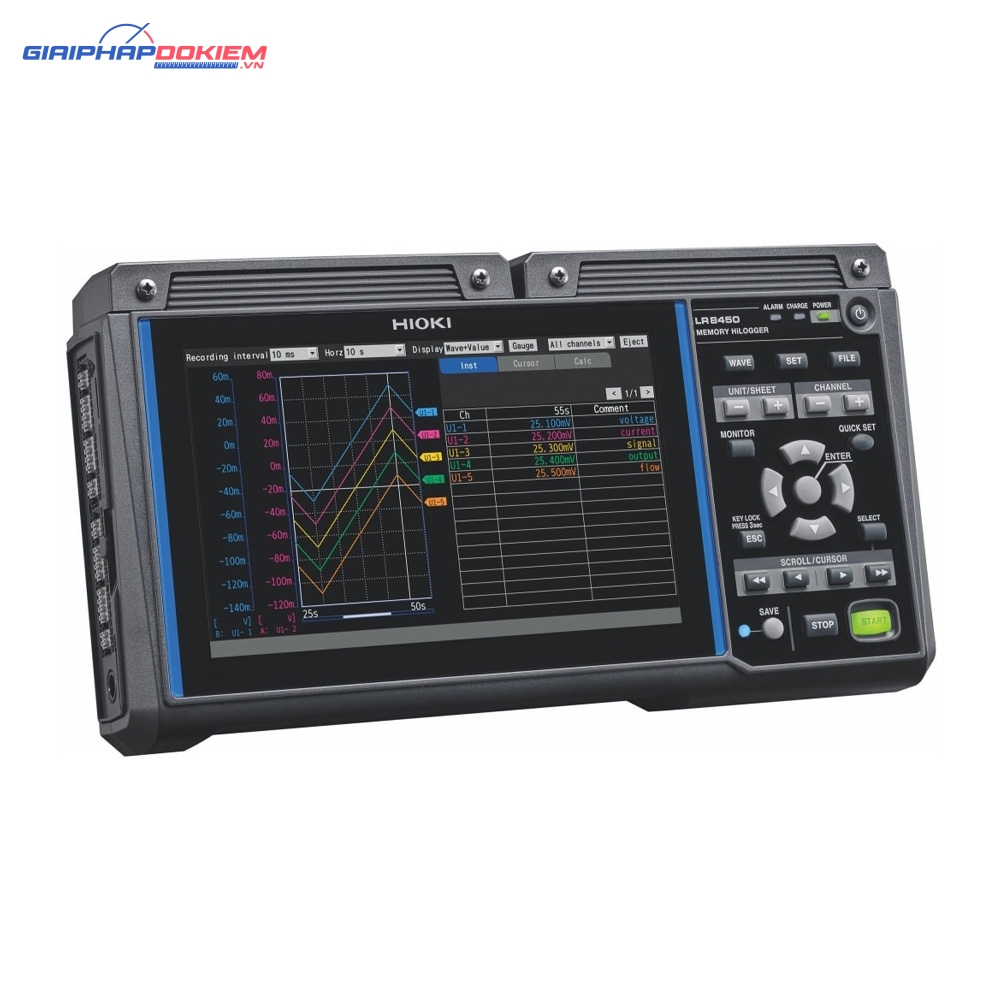

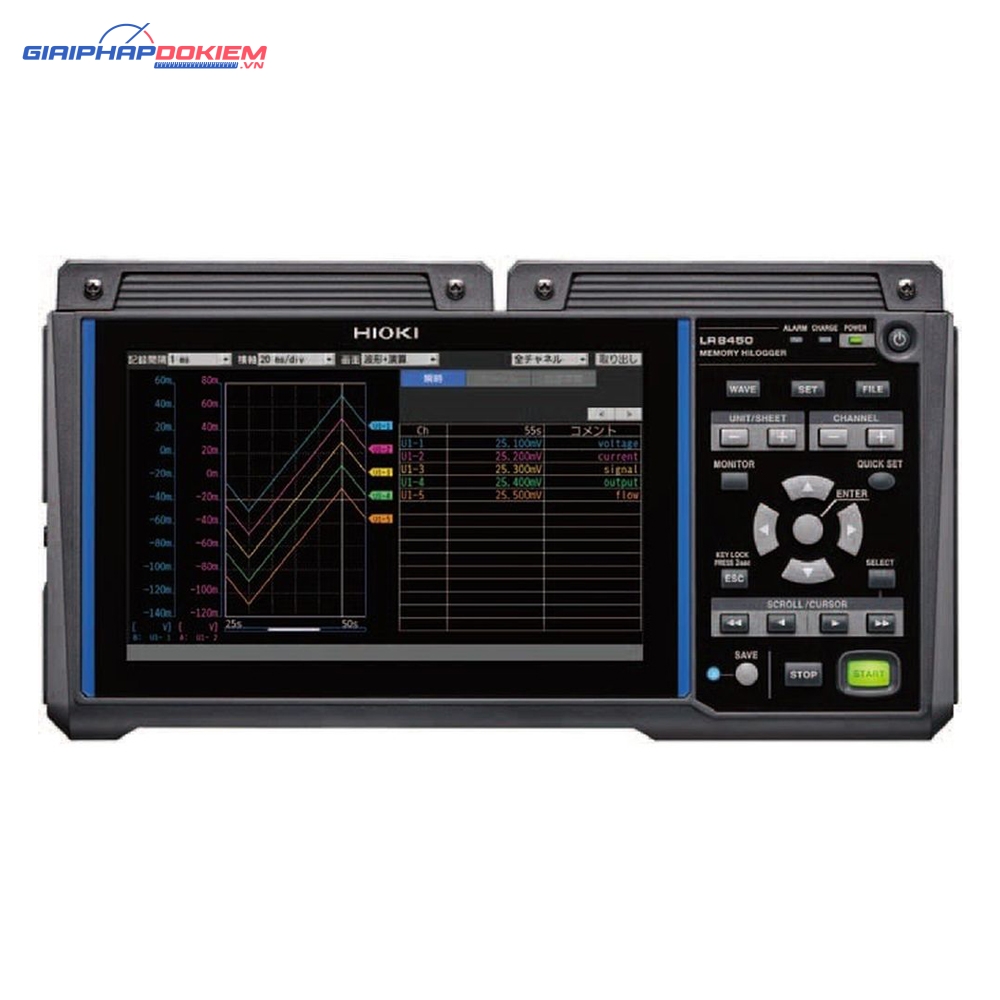

Thiết Bị Đo Và Ghi Đa Năng Hioki LR8450-01 – MEMORY HiLOGGER HIOKI LR8450-01
1 ms Sampling Portable Logger Expandable to 120 Channels with Your Choice of Plug-in Input Modules
Max. number of connectable modules | 4 plug-in input modules | |||||
---|---|---|---|---|---|---|
Connectable modules(Plug-in modules) | U8550, U8551, U8552, U8553, U8554 | |||||
No. of measurement channels | Up to 120 ch with plug-in input modules | |||||
Pulse/logic input | [Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels)[Adaptive input format] Non-voltage contact, open collector, or voltage input[Count] 0 to 1000 M pulse, 1 pulse resolution[Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000)[Logic input] Records 1 or 0 for each recording interval | |||||
Recording intervals | 1 ms*, 2 ms*, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each unit | |||||
Data storage | SD Memory Card/USB Drive (user-selectable)(Only storage media sold by HIOKI are guaranteed for operation) | |||||

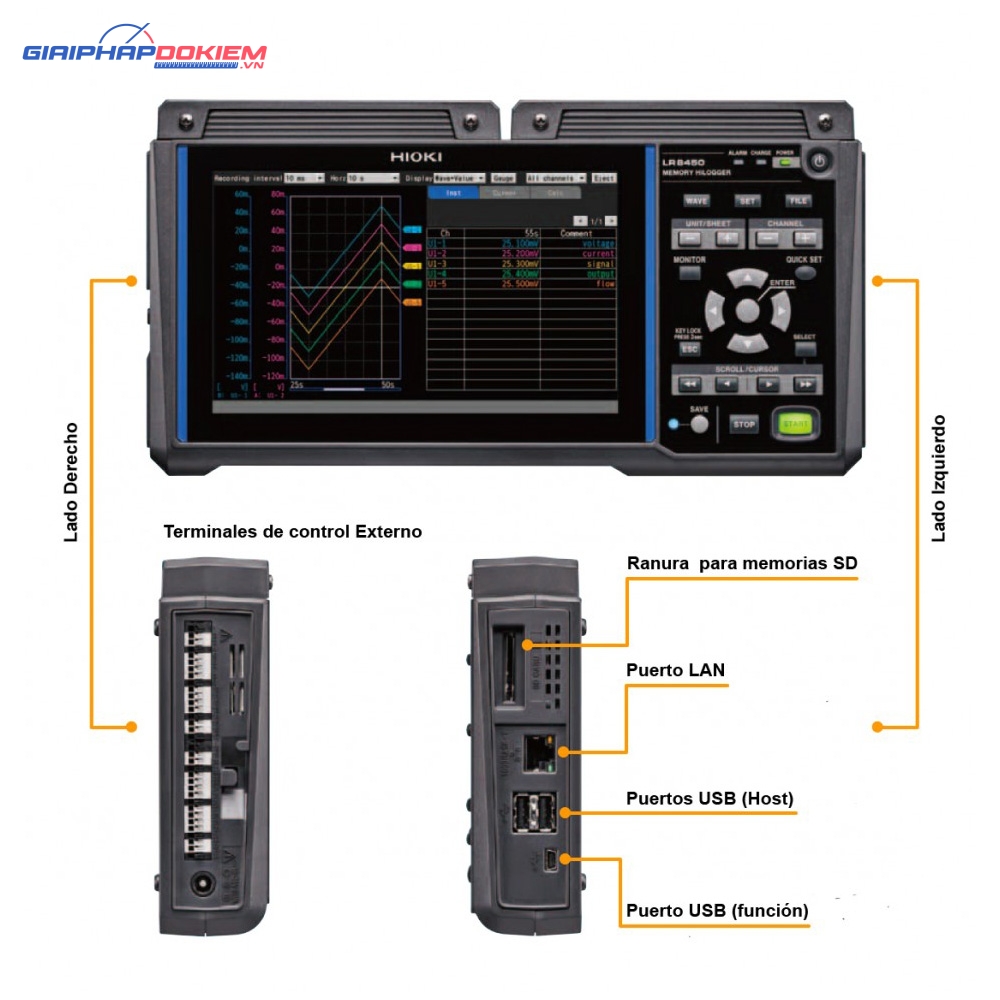

LAN interface | 100BASE-TX / 1000BASE-T, DHCP, DNS support,Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client | |||||

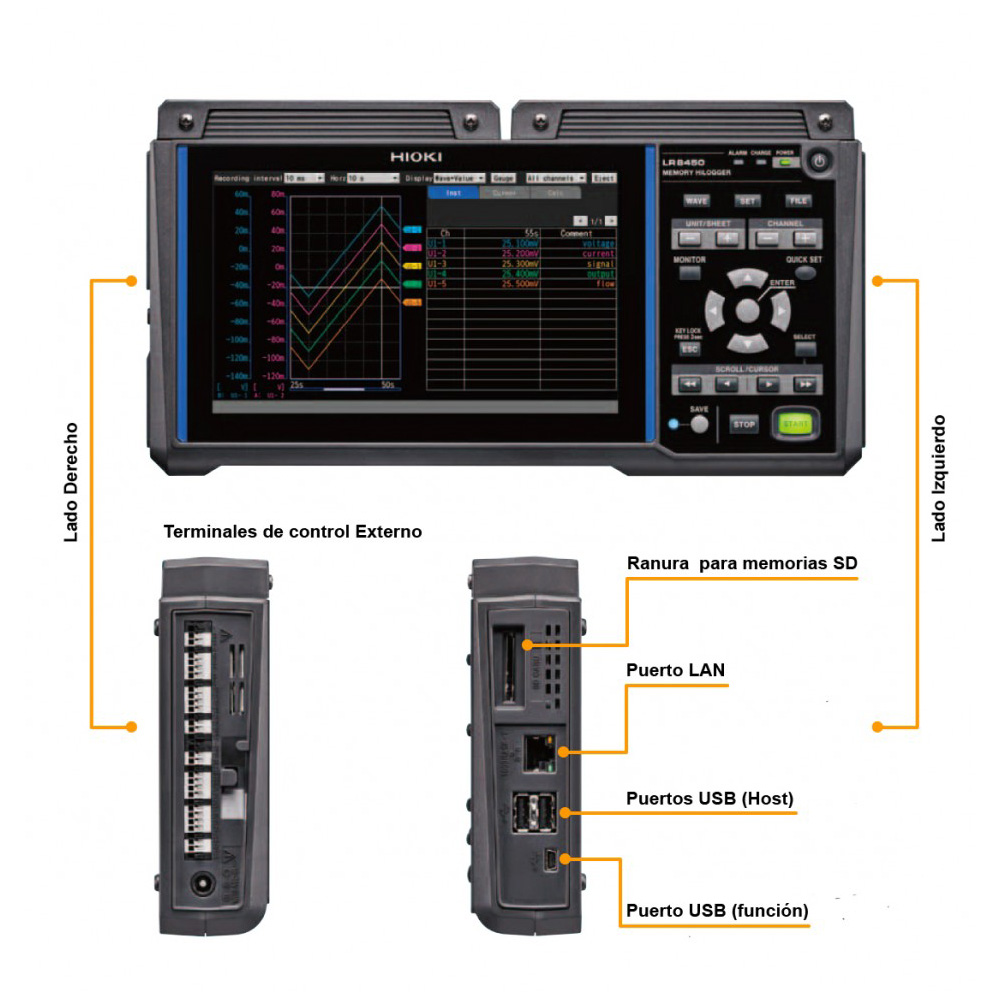

USB interface | Series A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub)Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer | |||||
SD card slot | SD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: Z4001, Z4003 | |||||
Display | 7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel) | |||||
Functions hioki LR8450 | Save waveform data in real time to the SD memory card or USB drive, numerical value calculations, waveform calculations, 8ch alarm output, voltage output ×2 (5 V /12 V /24 V selectable) | |||||
Power supply | [AC adapter] Using the Z1014 (100 to 240 V AC, 50/60 Hz), 95 VA Max. (including AC adapter), 28 VA Max. (exclusive of AC adapter)[Battery Pack] Using the Z1007 (accommodates 2 batteries), continuous use 4 hr (reference value for 2 pieces), 20 VA Max.[External power] 10 to 30 V DC, 28 VA Max. (Please contact your HIOKI distributor for connection cord) | |||||
Dimensions and mass | Without any modules: 272 mm (10.71 in) W × 145 mm (5.71 in) H × 43 mm (1.69 in) D (excluding protrusions), 1108 g (39.1 oz) (excluding battery pack)With 2 modules: 272 mm (10.71 in) W × 198 mm (7.80 in) H × 63 mm (2.48 in) D (excluding protrusions)With 4 modules: 272 mm (10.71 in) W × 252 mm (9.92 in) H × 63 mm (2.48 in) D (excluding protrusions) | |||||
Accessories Hioki LR8450 | Quick Start Manual ×1, LOGGER Application Disc (Quick Start Manual, Instruction Manual, Logger Utility, Logger Utility Instruction Manual, Communication Instruction Manual) ×1, USB Cable ×1, AC Adapter Z1014 ×1 |
