Thiết Bị Đo Và Ghi Dòng Điện Hioki LR5031

Name: Thiết Bị Đo Và Ghi Dòng Điện Hioki LR5031 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: LR5031
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: LR5031 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Đặt hàng Thêm vào giỏ hàng HOTLINE Gọi ngay 0901668234

Messenger

Zalo

Phụ kiện kèm theo LR5031

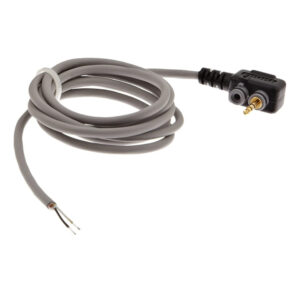

Cáp Kết Nối Hioki LR9801

Liên hệ

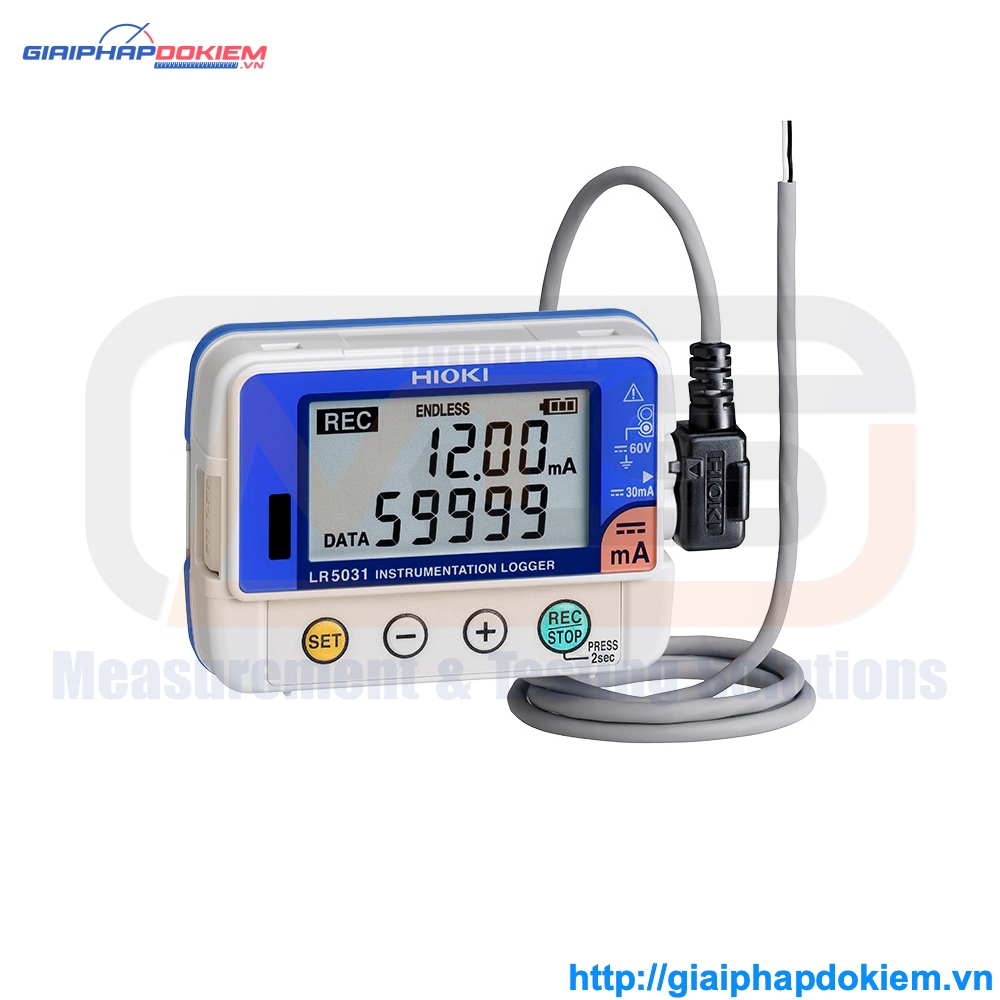

Thiết Bị Đo Và Ghi Dòng Điện Hioki LR5031

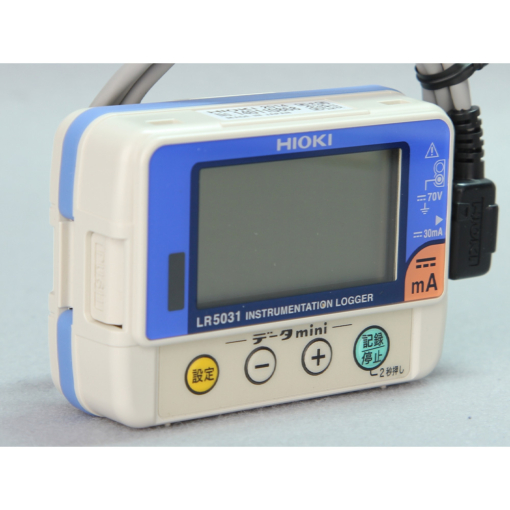

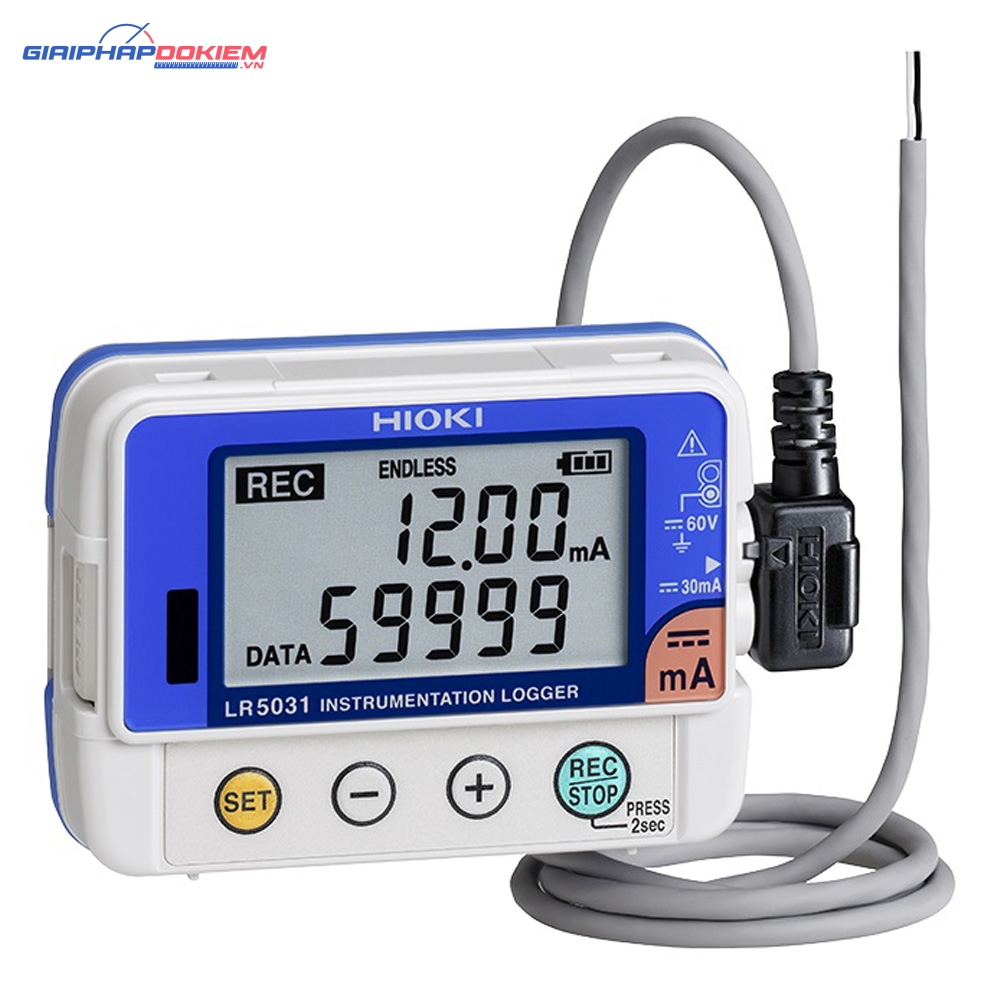

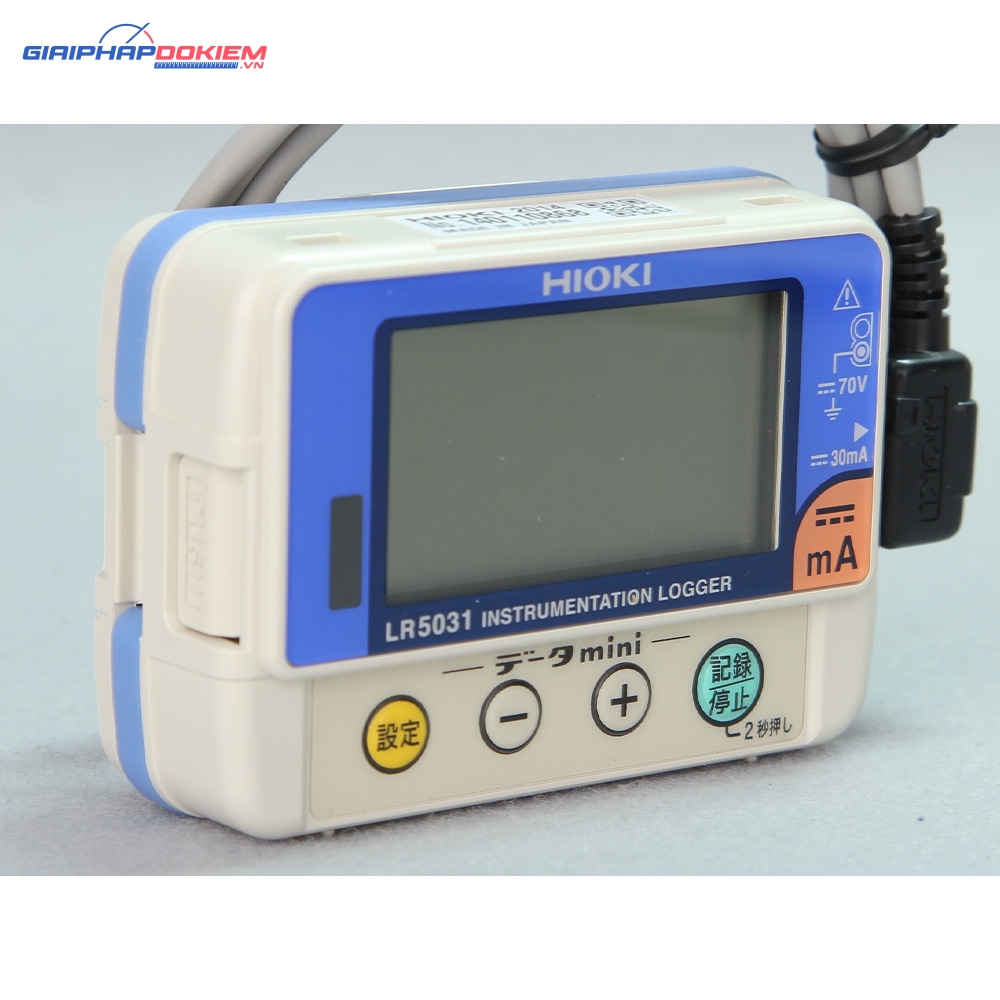

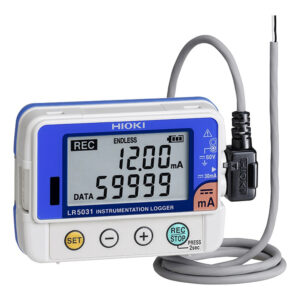

INSTRUMENTATION LOGGER HIOKI LR5031

4-20 mA Instrumentation Signal Logging

Measurement items	DC current (1 ch), for Instrumentation
Measurement range	-30.00 to 30.00 mA
Accuracy	±0.5 %rdg. ±5 dgt.
Storage capacity	Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data
Recording interval	1 to 30 sec., 1 to 60 min., 15 selections
Recording modes	Instantaneous recording: at every recording interval Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
Recording methods	One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
Other functions	Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Waterproof and dust-proof	IP54 (EN60529) (with connection cable connected, but not including cable tip)

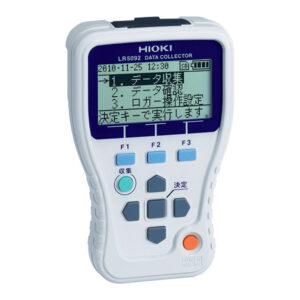

Interfaces	Infrared optical communications with LR5091, LR5092-20
Power supply Hioki LR5031	LR6 (AA) Alkaline battery ×1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and mass	79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)

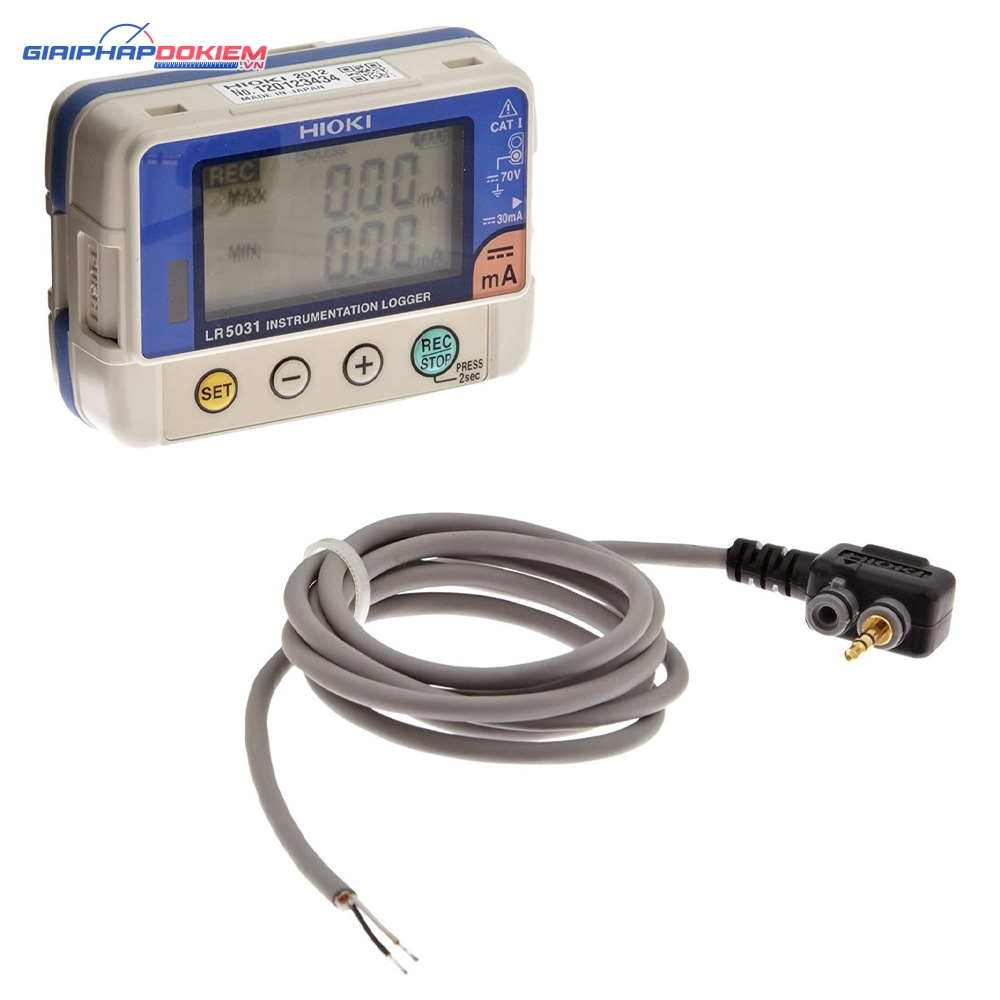

Accessories	LR6 (AA) Alkaline battery (built-in internal) ×1, Connection Cable LR9801 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1
