Giá (chưa VAT): Liên hệ

Model: LR8450 Tình trạng: Còn hàng Nhà sản xuất: Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Giá trên chỉ mang tính chất tham khảo, vui lòng liên hệ để được giá tốt nhất.

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

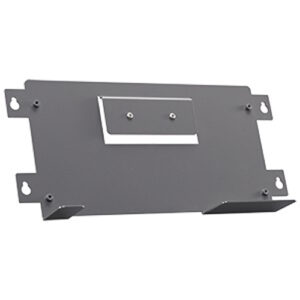

Phụ kiện kèm theo LR8450

Giaiphapdokiem.vn chuyên phân phối Thiết Bị Đo Và Ghi Đa Năng Hioki LR8450

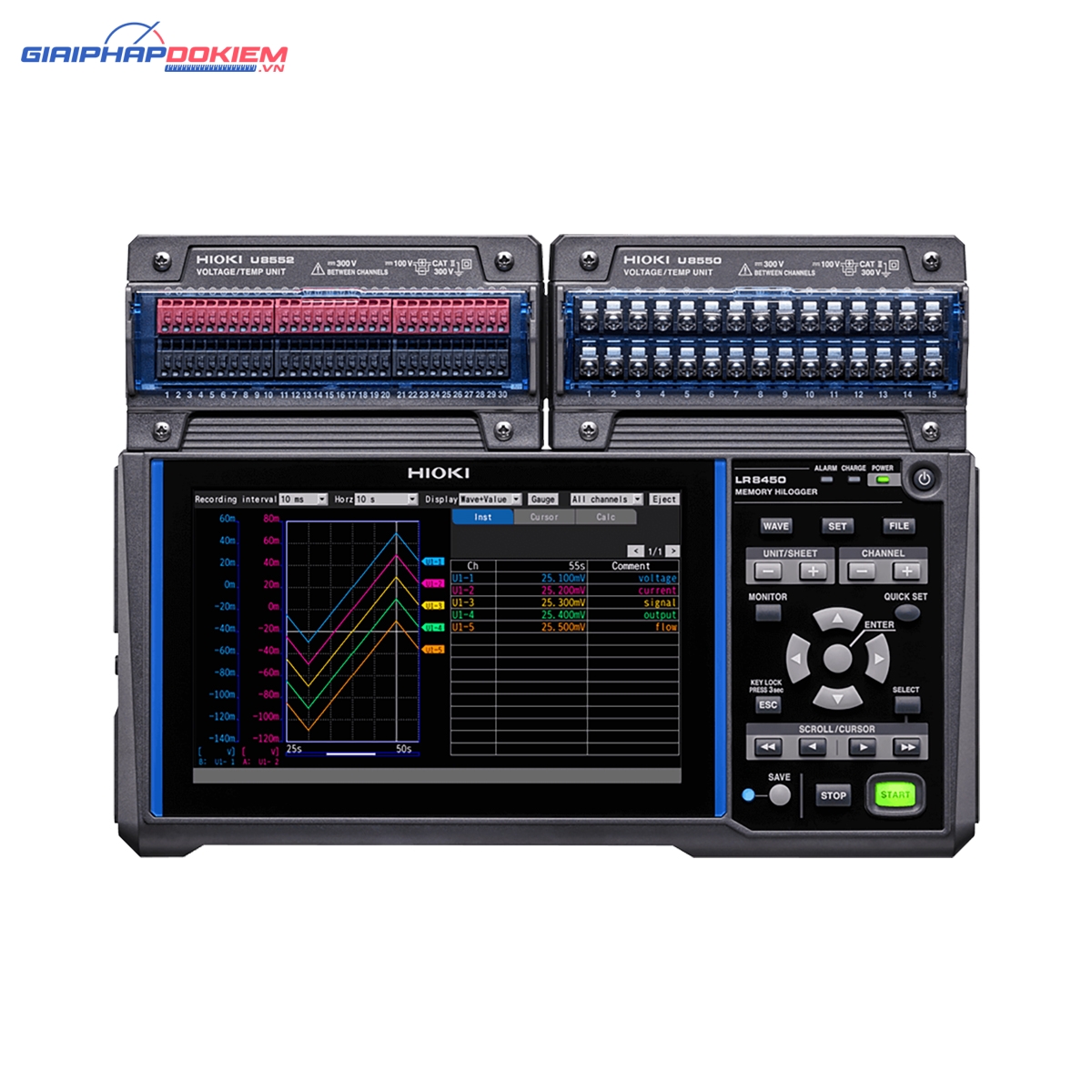

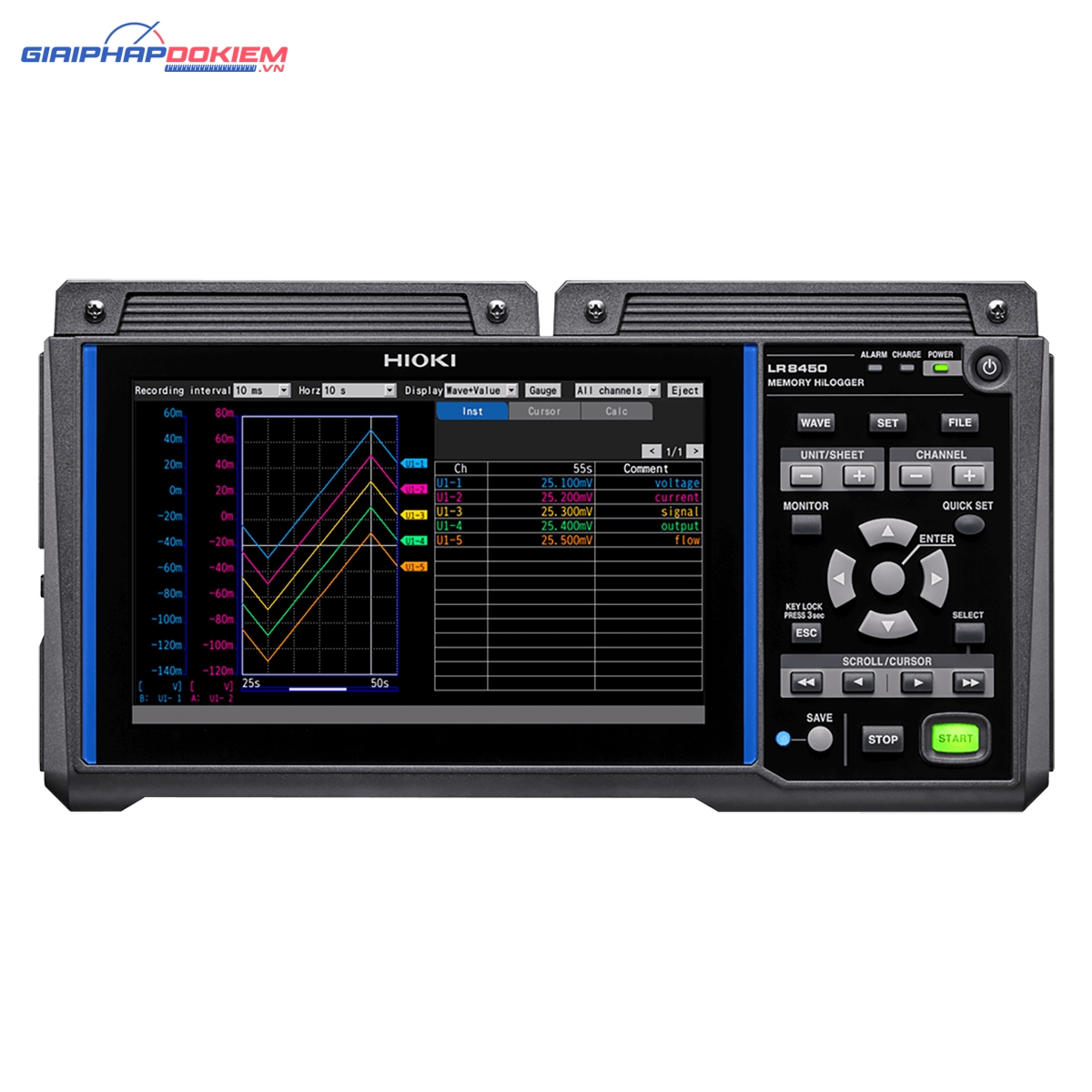

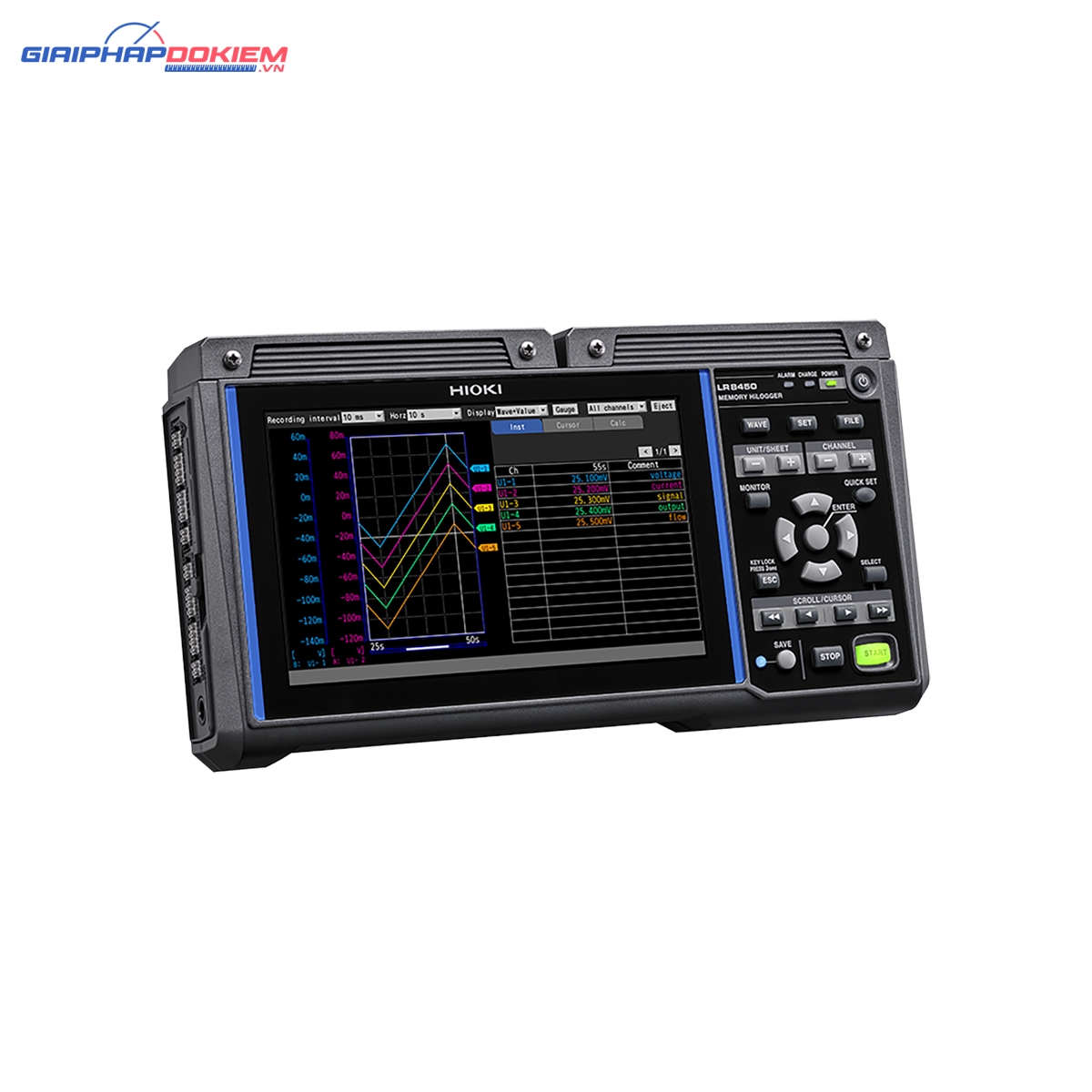

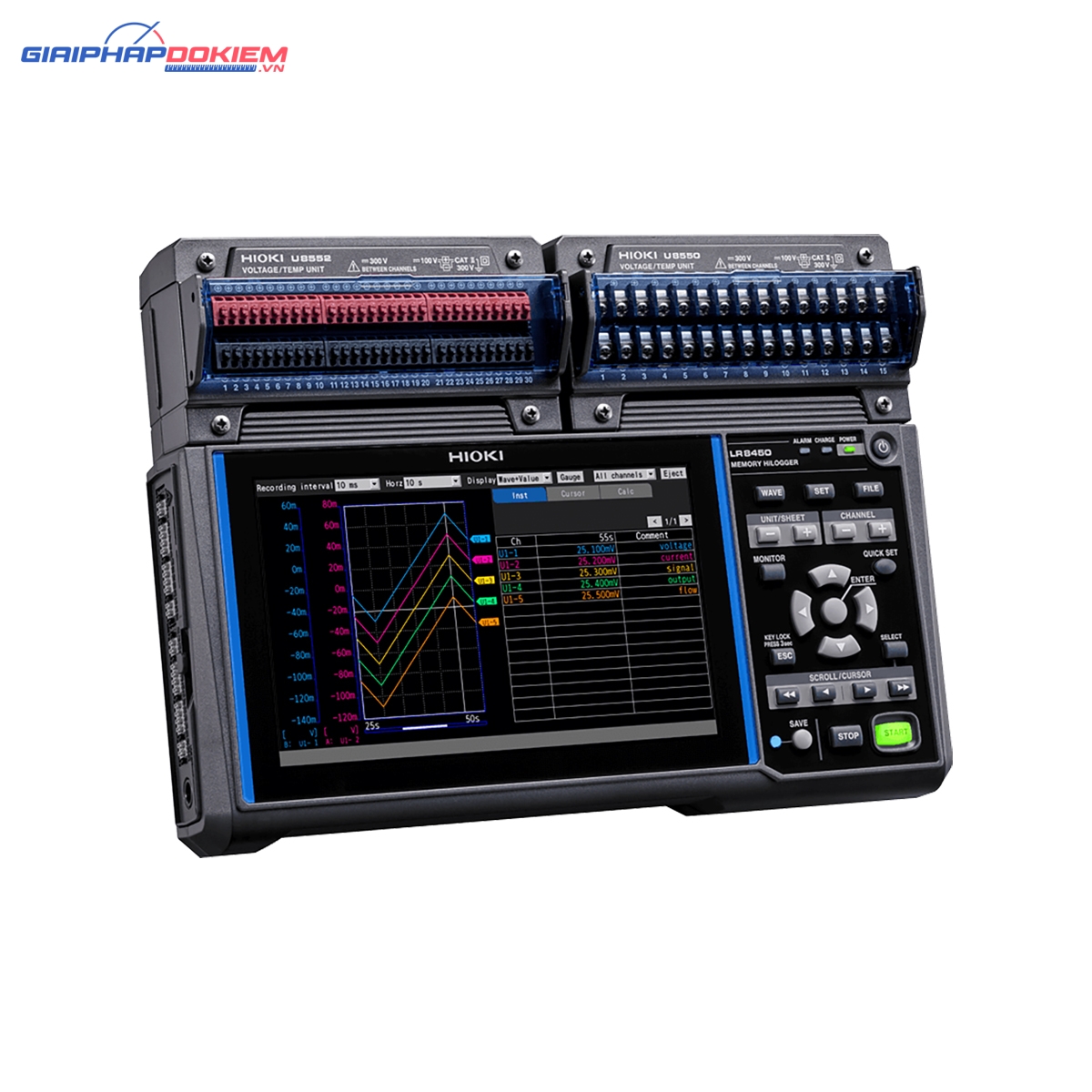

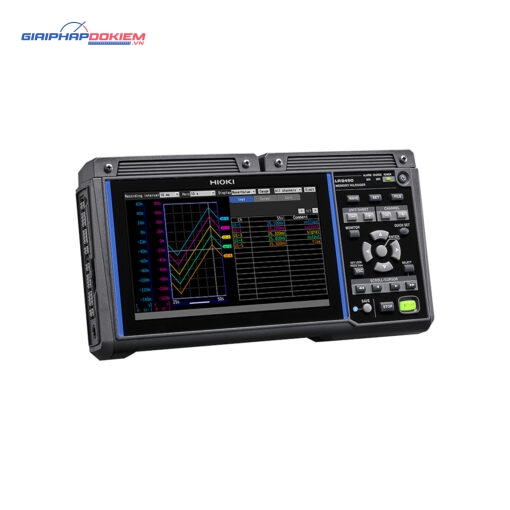

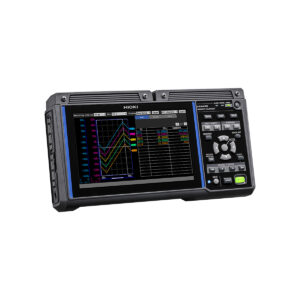

Thiết Bị Đo Và Ghi Đa Năng Hioki LR8450 – MEMORY HiLOGGER HIOKI LR8450

1 ms Sampling Portable Logger Expandable to 120 Channels with Your Choice of Plug-in Input Modules

Max. number of connectable modules4 plug-in input modules

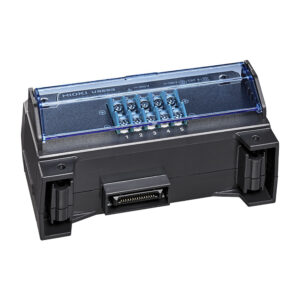

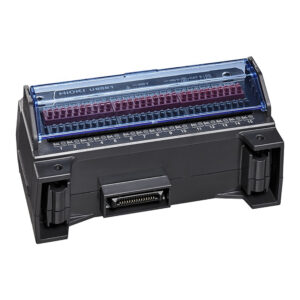

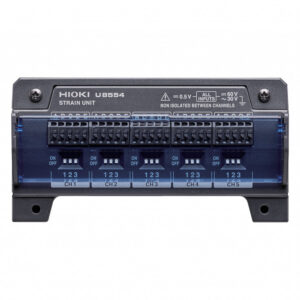

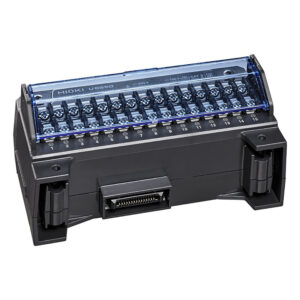

Connectable modules(Plug-in modules)U8550, U8551, U8552, U8553, U8554

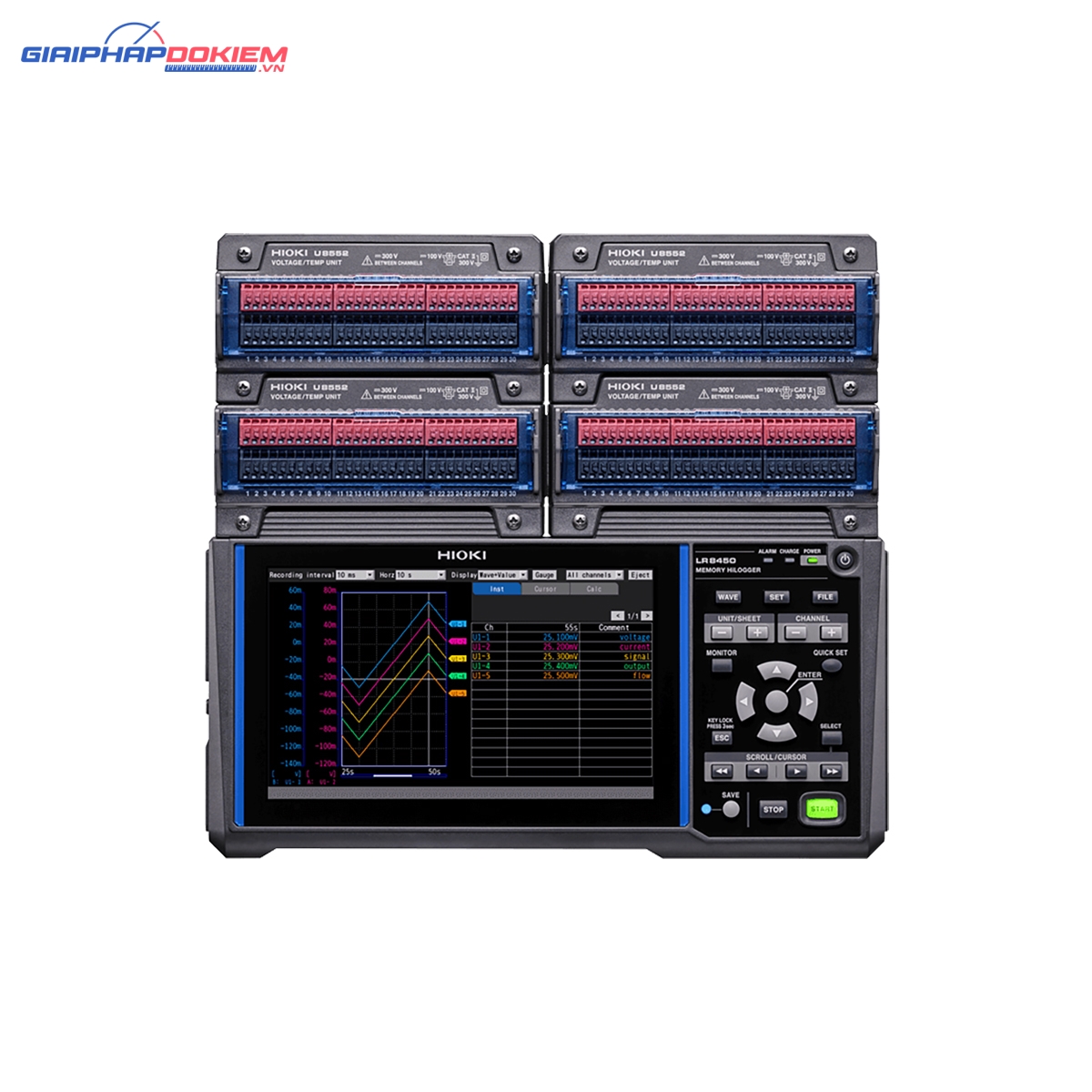

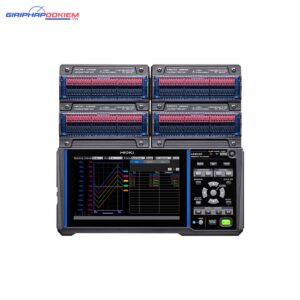

No. of measurement channelsUp to 120 ch with plug-in input modules

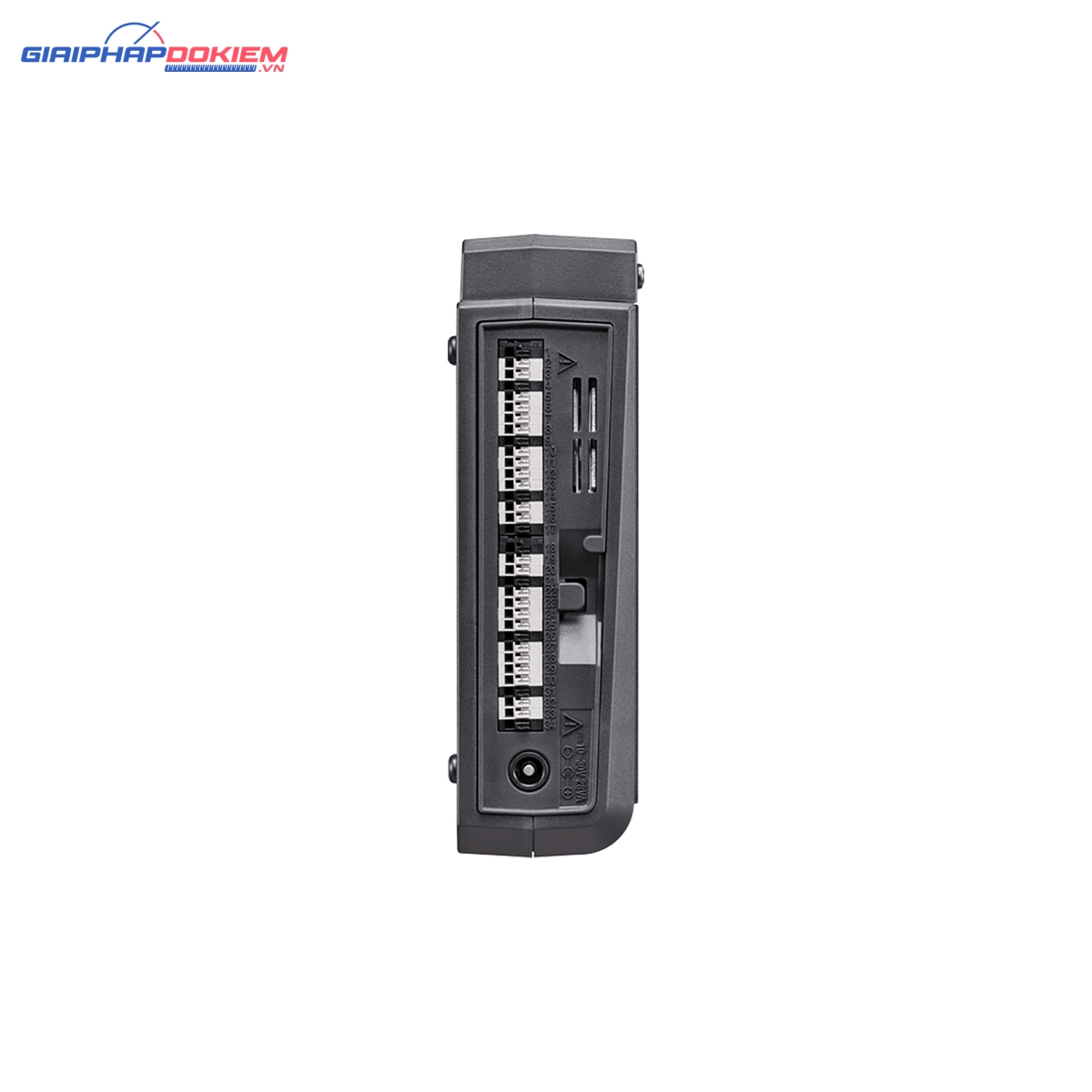

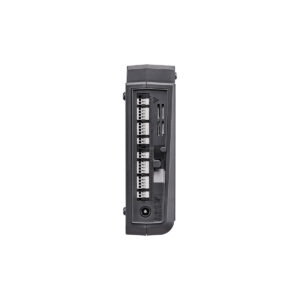

Pulse/logic input[Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels)[Adaptive input format] Non-voltage contact, open collector, or voltage input[Count] 0 to 1000 M pulse, 1 pulse resolution[Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000)[Logic input] Records 1 or 0 for each recording interval
Recording intervals1 ms*, 2 ms*, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each unit
Data storageSD Memory Card/USB Drive (user-selectable)(Only storage media sold by HIOKI are guaranteed for operation)

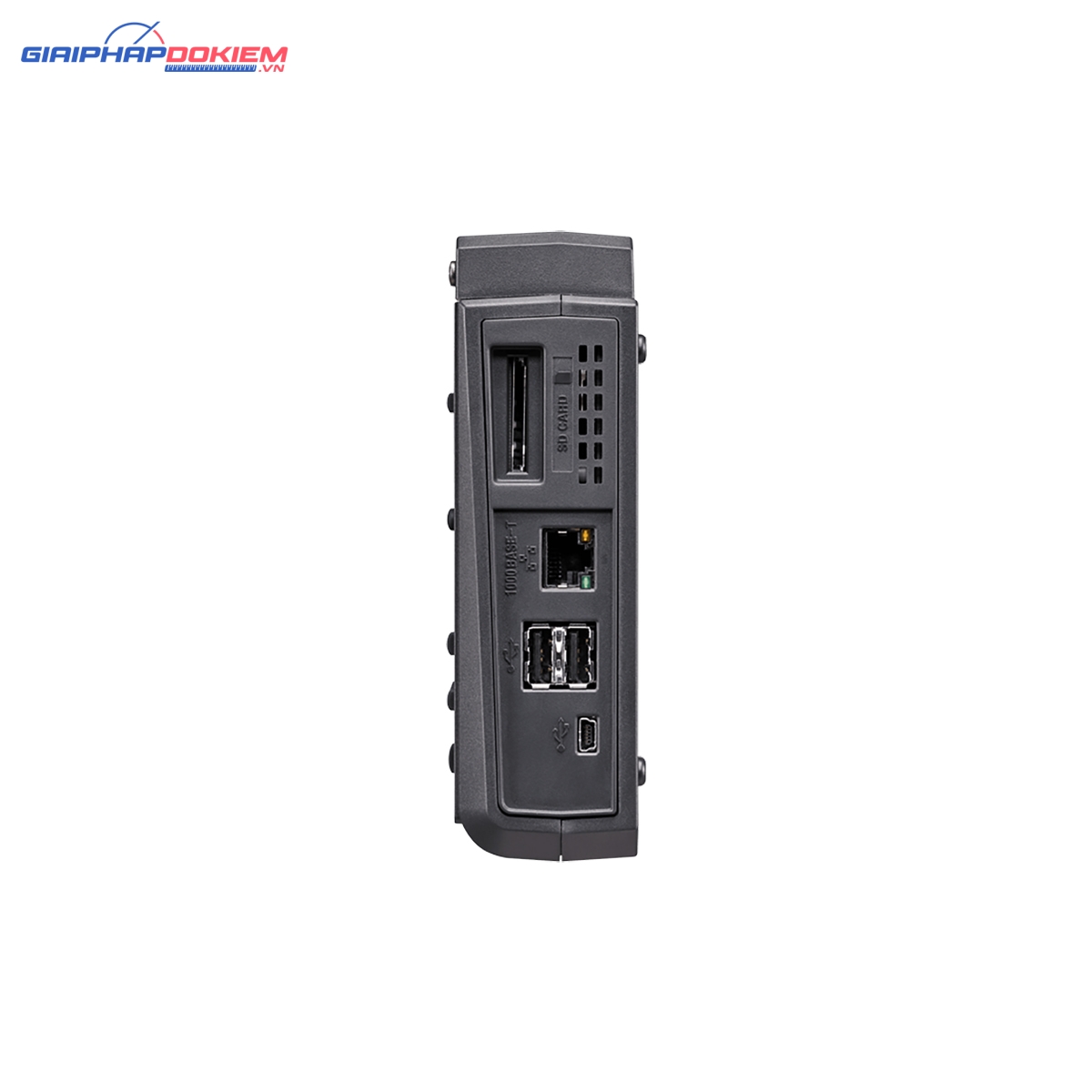

LAN interface100BASE-TX / 1000BASE-T, DHCP, DNS support,Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client

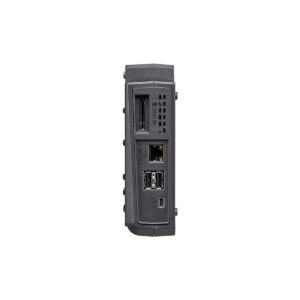

USB interfaceSeries A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub)Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer
SD card slotSD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: ‌Z4001, Z4003

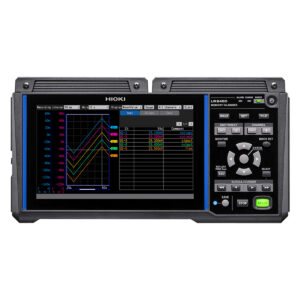

Display7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel)
Functions hioki LR8450Save waveform data in real time to the SD memory card or USB drive, numerical value calculations, waveform calculations, 8ch alarm output, voltage output ×2 (5 V /12 V /24 V selectable)

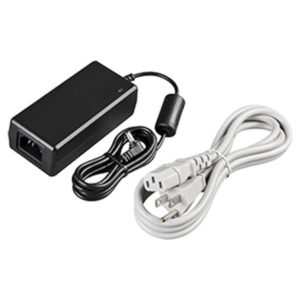

Power supply[AC adapter] Using the Z1014 (100 to 240 V AC, 50/60 Hz), 95 VA Max. (including AC adapter), 28 VA Max. (exclusive of AC adapter)[Battery Pack] Using the Z1007 (accommodates 2 batteries), continuous use 4 hr (reference value for 2 pieces), 20 VA Max.[External power] 10 to 30 V DC, 28 VA Max. (Please contact your HIOKI distributor for connection cord)

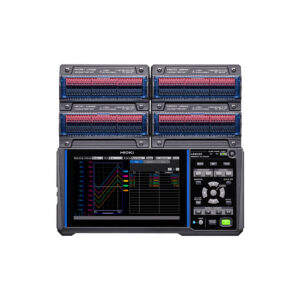

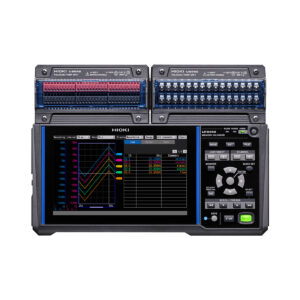

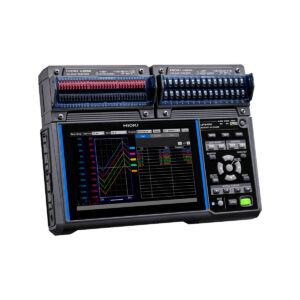

Dimensions and massWithout any modules: 272 mm (10.71 in) W × 145 mm (5.71 in) H × 43 mm (1.69 in) D (excluding protrusions), 1108 g (39.1 oz) (excluding battery pack)With 2 modules: 272 mm (10.71 in) W × 198 mm (7.80 in) H × 63 mm (2.48 in) D (excluding protrusions)With 4 modules: 272 mm (10.71 in) W × 252 mm (9.92 in) H × 63 mm (2.48 in) D (excluding protrusions)
Accessories Hioki LR8450Quick Start Manual ×1, LOGGER Application Disc (Quick Start Manual, Instruction Manual, Logger Utility, Logger Utility Instruction Manual, Communication Instruction Manual) ×1, USB Cable ×1, AC Adapter Z1014 ×1
