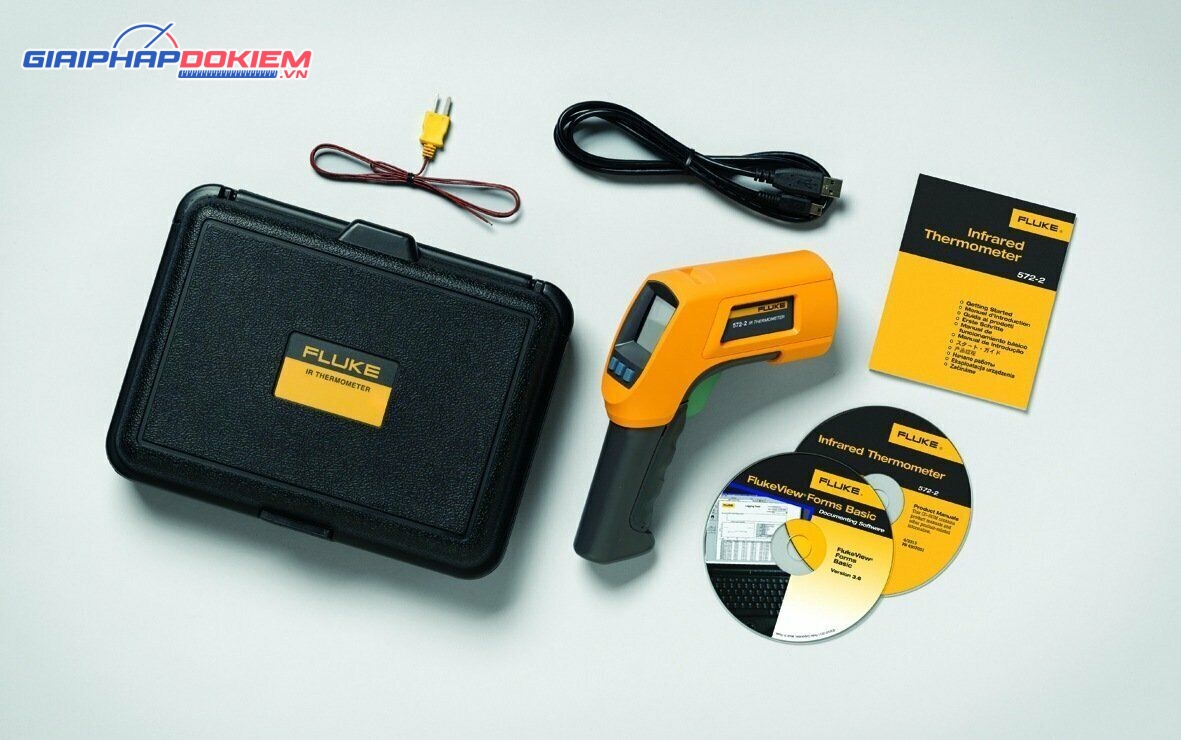

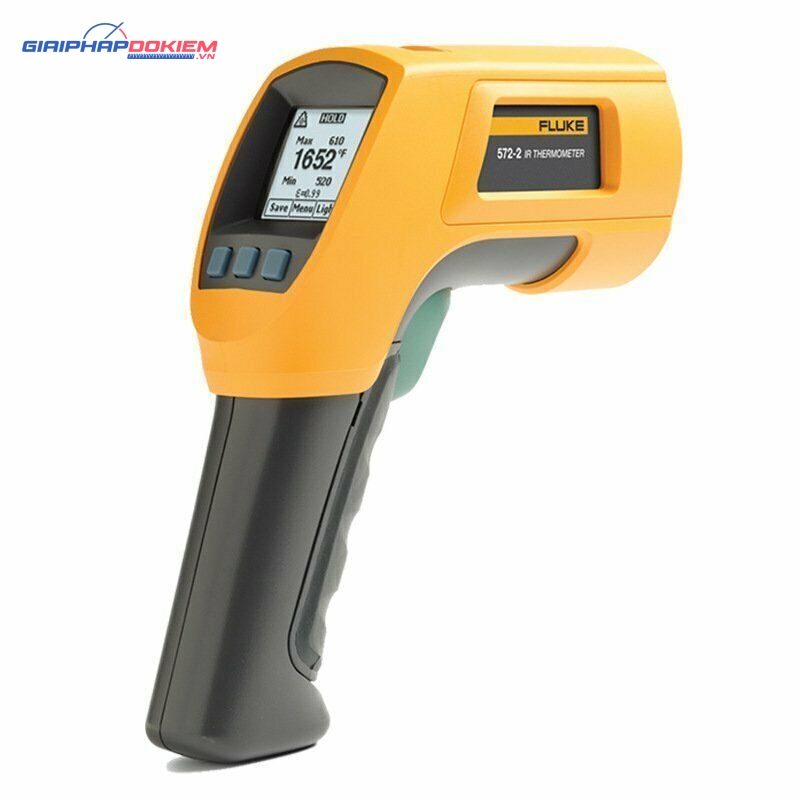

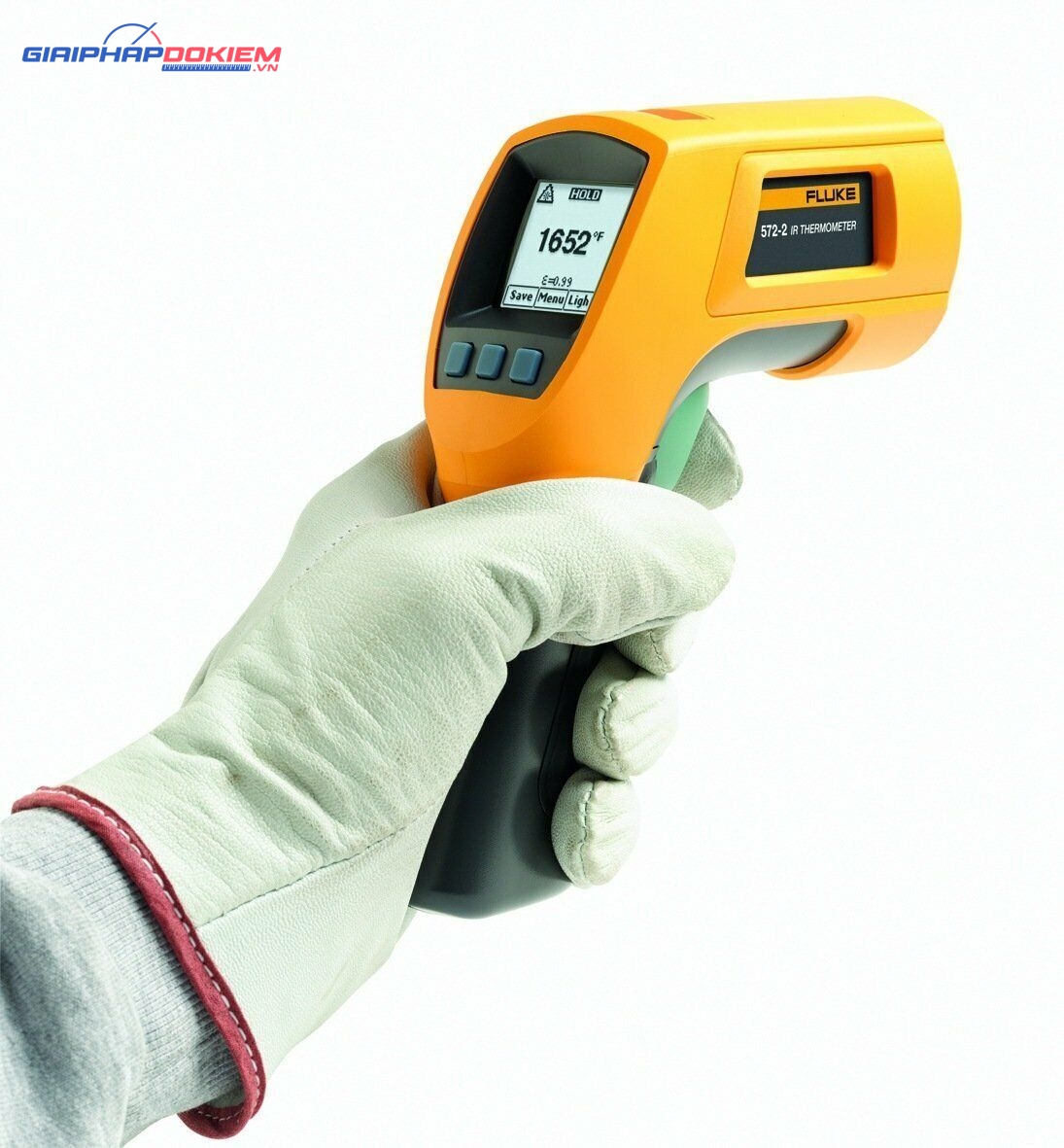

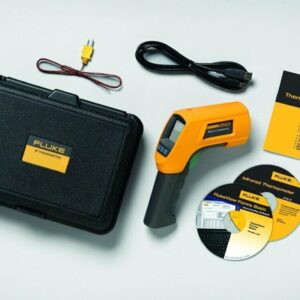

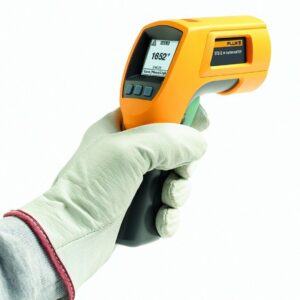

Máy đo nhiệt độ bằng hồng ngoại FLUKE 572-2 (Fluke 572-II)

Giá (chưa VAT): Liên hệ

Model: FLUKE 572-2 Tình trạng: Còn hàng Nhà sản xuất: Xuất xứ: Trung Quốc Bảo hành: 12 Tháng
  • Nhiệt kế hồng ngoại nhiệt độ cao đo từ -30°C đến 900°C (-22°F đến 1652°F)

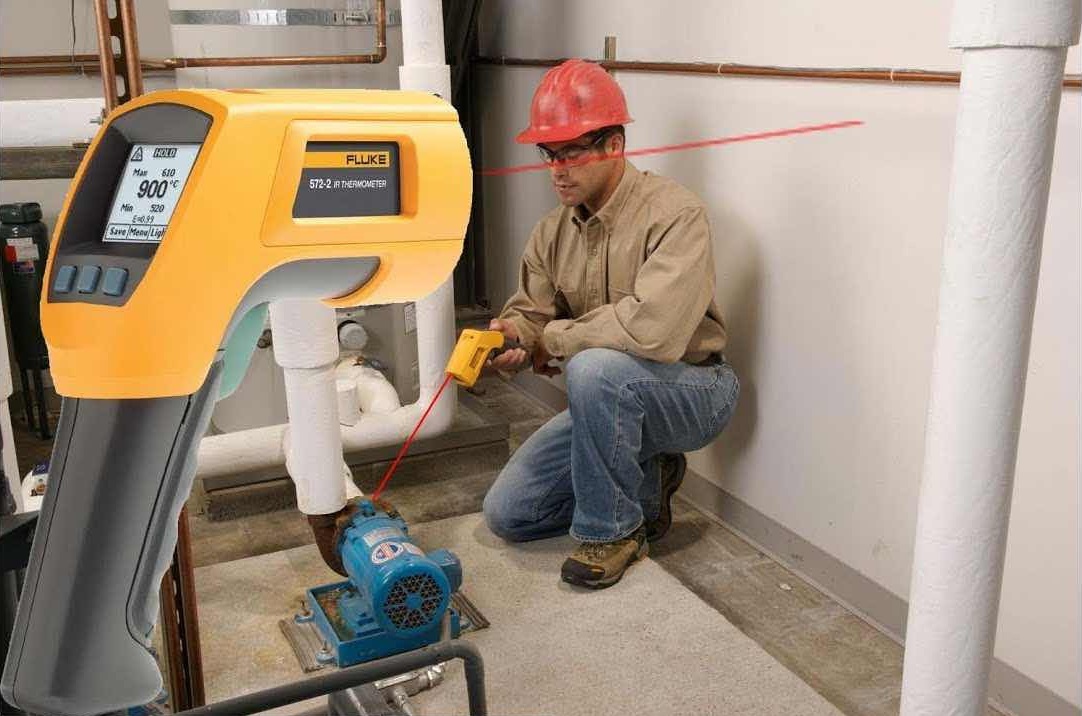

  • Cung cấp tỷ lệ khoảng cách tới điểm cực cao 60:1 với khả năng quan sát bằng laser kép để nhắm mục tiêu nhanh, chính xác
  • Có giao diện đa ngôn ngữ do người dùng lựa chọn
  • Hiển thị nhiệt độ cộng với nhiệt độ MAX, MIN, DIF, AVG
  • Cung cấp độ phát xạ có thể điều chỉnh và bảng độ phát xạ được xác định trước
Mua ngay Gọi điện xác nhận và giao hàng tận nơi


Fluke-572-2 High Temperature Infrared Thermometer measures temperatures up to 900°C

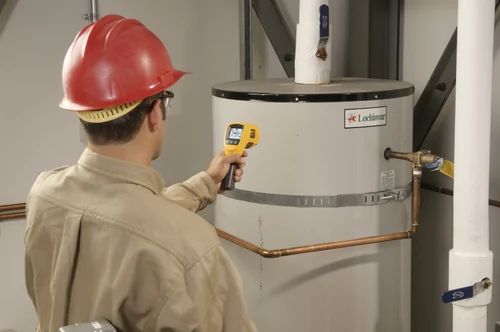

The Fluke 572-2 High-Temperature Infrared Thermometer is the ideal tool for high-temperature industrial environments all around the world. Whether you work in power utility, metal refining and smelting, glass, cement or petrochemical environments, the 572-2 offers the rugged performance accuracy you need to get the job done, backed by the most trusted name in test tools. The simple, three-button on-screen menu interface saves time and makes even complex measurements easy. With just a few pushes of a button you can adjust emissivity, start data logging, or turn on and off alarms. The 60:1 distance-to-spot ratio with dual laser sighting helps pinpoint the target fast, making it easier to measure small objects from a long distance.

Other useful features:

  • Audible and visible alarms for rapid detection of high and low temperatures outside the limits
  • Stores up to 99 data sets for review and analysis
  • Powered by two, standard AA batteries -30-
  • Presents infrared and thermocouple temperatures on a bright backlit display

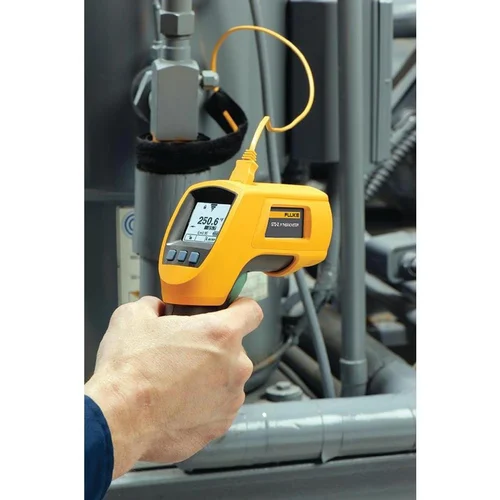

  • Is compatible with standard mini-connector K-type thermocouples, including ones you already own and have installed
  • Features last reading Hold (20 seconds)

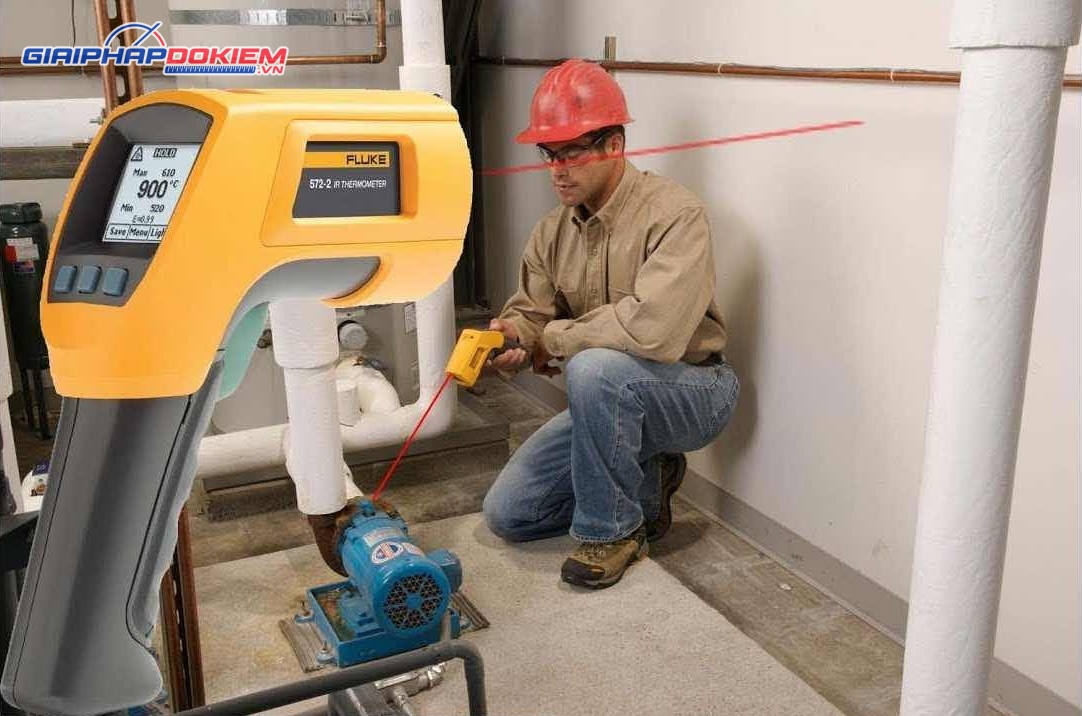

Máy đo nhiệt độ bằng hồng ngoại FLUKE 572-2
Máy đo nhiệt độ bằng hồng ngoại FLUKE 572-2


Infrared Measurements

Infrared temperature range-30°C to 900°C (-22°F to 1652°F)
IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C)≥ 0°C: ± 1°C or ± 1% of the reading, whichever is greater
≥ -10°C to < 0°C: ±2°C
< -10°C: ±3°C
≥ 32°F: ± 2°F or ± 1% of the reading, whichever is greater
≥ 14°F to < 32°F: ±4°F
< 14°F: ±6°F
IR repeatability±0.5% of reading or ±0.5°C (±1°F), whichever is greater
Display resolution0.1°C / 0.1°F
Distance: Spot60:1 (calculated at 90% energy)
Minimum spot size19 mm
Laser sightingOffset dual laser, output < 1 mW
Spectral response8 μm to 14 μm
Response time (95%)< 500 ms
EmissivityDigitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials

Contact Measurements

K-type thermocouple input temperature range-270°C to 1372°C (-454°F to 2501°F)
K-type thermocouple input accuracy (with ambient temperature 23°C ± 2°C)< -40°C: ±(1°C + 0.2° / 1°C)
≥ -40°C: ±1% or 1°C, whichever is greater
< -40°F: ±(2°F + 0.2° / 1°F)
≥ -40°F: ±1% or 2°F, whichever is greater
K-type thermocouple0.1°C / 0.1°F
K-type thermocouple repeatability±0.5% of reading or ±0.5°C (±1°F), whichever is greater

Measurement Options

Hi/Low alarmsAudible and two-color visual
Switchable celsius and fahrenheitYes
BacklightTwo levels, normal and extra bright for darker environments
Probe inputK-type thermocouple simultaneous display of probe and IR temperature
Trigger lockYes
Data storage99 points
DisplayDot matrix 98 x 96 pixels with function menus
CommunicationUSB 2.0

K-Type Thermocouple Specifications

Measurement range (bead probe)-40°C to 260°C (-40°F to 500°F)
Accuracy±1.1°C (±2.0°F) from 0°C to 260°C (32°F to 500°F). Typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
Cable length1 m (40 in) K-type thermocouple cable with standard miniature thermocouple connector and bead termination

General Specifications

Safety and complianceIEC 60825-1
FDA Laser Class II
IEC 61326-1
CE Complaint
CMC # 01120009
Operating temperature0°C to 50°C (32°F to 122°F)
Storage temperature-20°C to 60°C (-4°F to 140°F)
Relative humidity10% to 90% RH non-condensing up to 30°C (86°F)
Operating altitude2000 meters above mean sea level
Weight0.322 kg (0.7099 lb)
Power2 AA batteries
Battery life8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle (thermometer continuously on)
