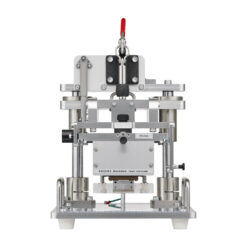

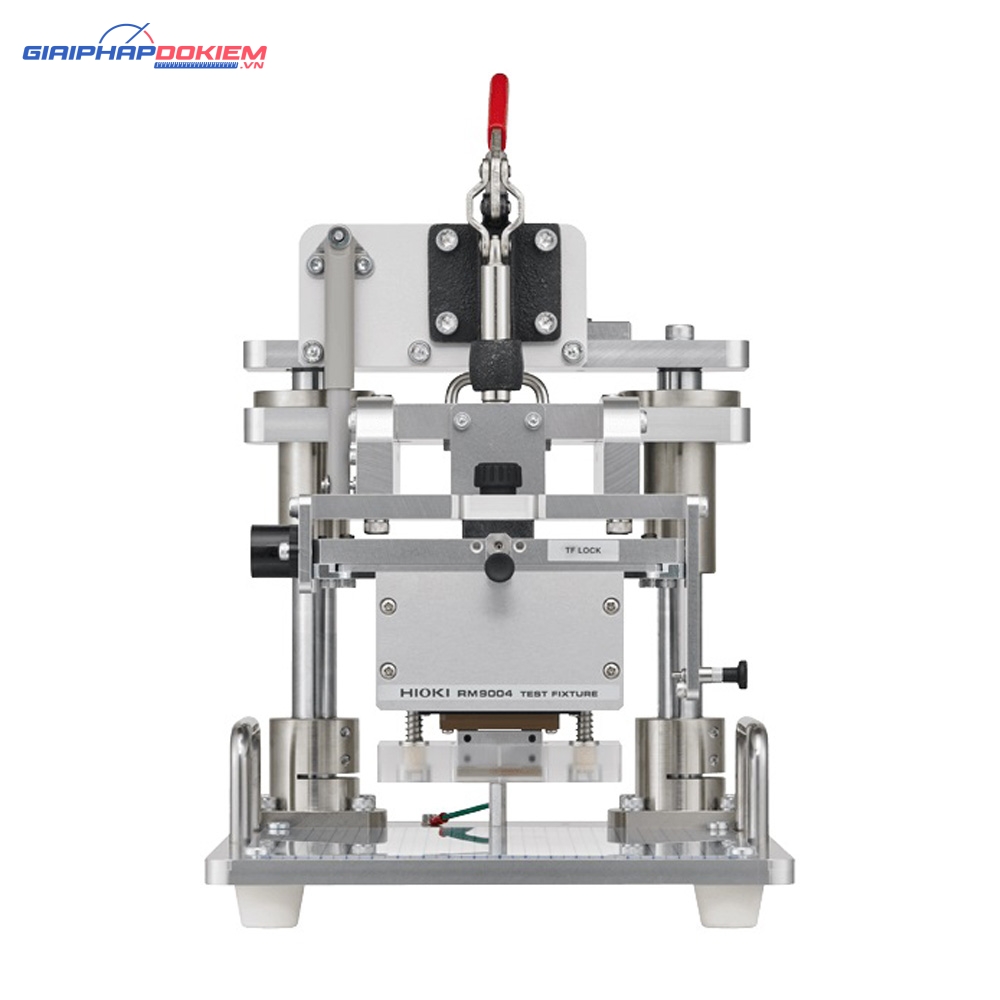

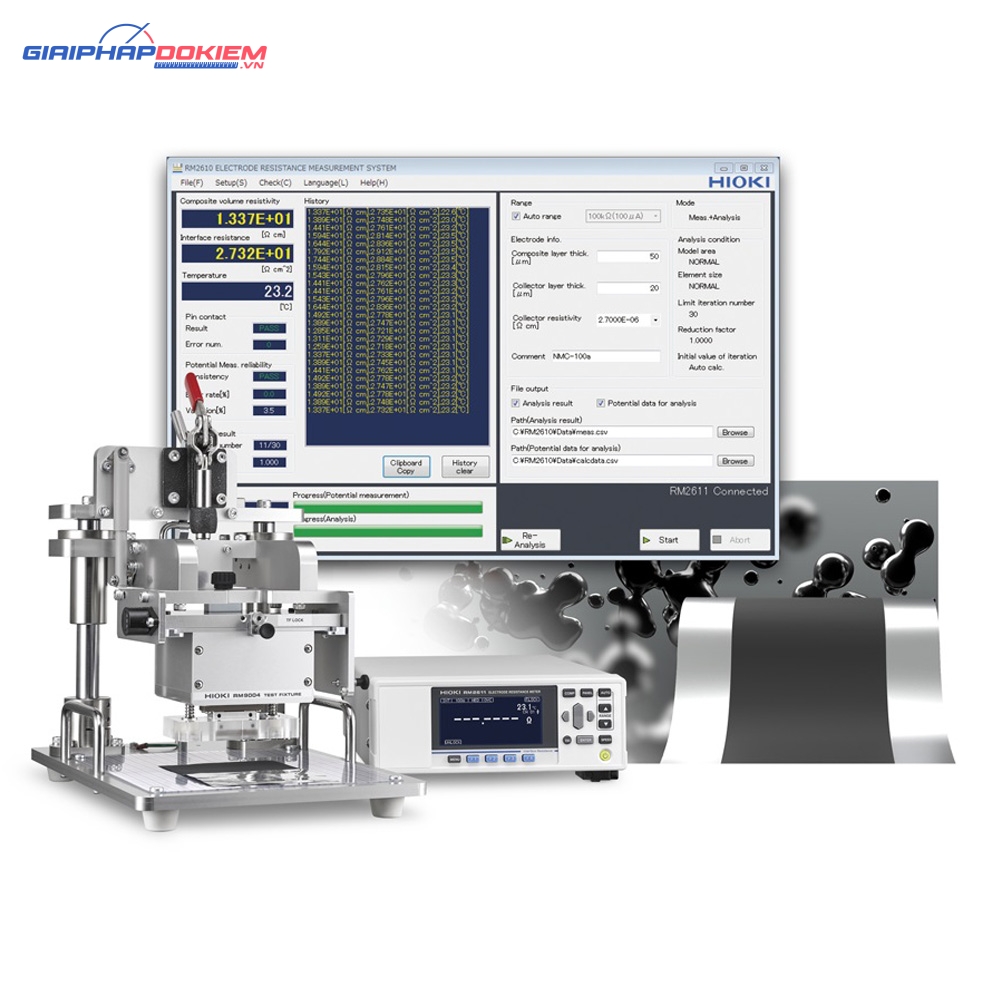

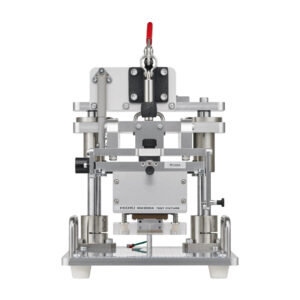

Hệ Thống Kiểm Tra Điện Trở Hioki RM2610 – ELECTRODE RESISTANCE MEASUREMENT SYSTEM HIOKI RM2610
Quantify composite layer resistance and interface resistance in Li-ion battery electrode sheets
Basic specifications
RM2611 Electrode Resistance Meter requires regular calibration. For more information about calibration, please contact your authorized Hioki distributor or reseller.
Measurement target | Positive and negative electrode sheets for rechargeable lithium-ion batteries | |||||
---|---|---|---|---|---|---|
Measurement parameters | Composite resistivity [Ωcm] Interface resistance (contact resistance) between the composite layer and current collector [Ωcm^2] | |||||
Computation method | Inverse problem analysis of potential distribution using the finite volume method | |||||
Information necessary for computation | • Composite layer thickness [μm] (for 1 side) • Current collector thickness [μm] • Current collector volume resistivity [Ωcm] | |||||
Measurement time | – Contact check + potential measurement : approx. 30 sec. – Calculation : approx. 35 sec. (on a PC with Intel core i5-7200U CPU) The measurement time may vary depending on the measurement target and the processing capacity of the PC. | |||||
Measurement current | 10 μA (min.) to 10 mA (max.) | |||||
Number of probes | 46 | |||||
Recommended PC specifications | CPU: 4 or more threads RAM: 8 GB or greater (4 GB required) Operating system: Windows 7 (64-bit), 8 (64-bit), 10 (64-bit) | |||||
Temperature measurement function | Measures temperature near the test fixture | |||||
Accessories | TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1 |
