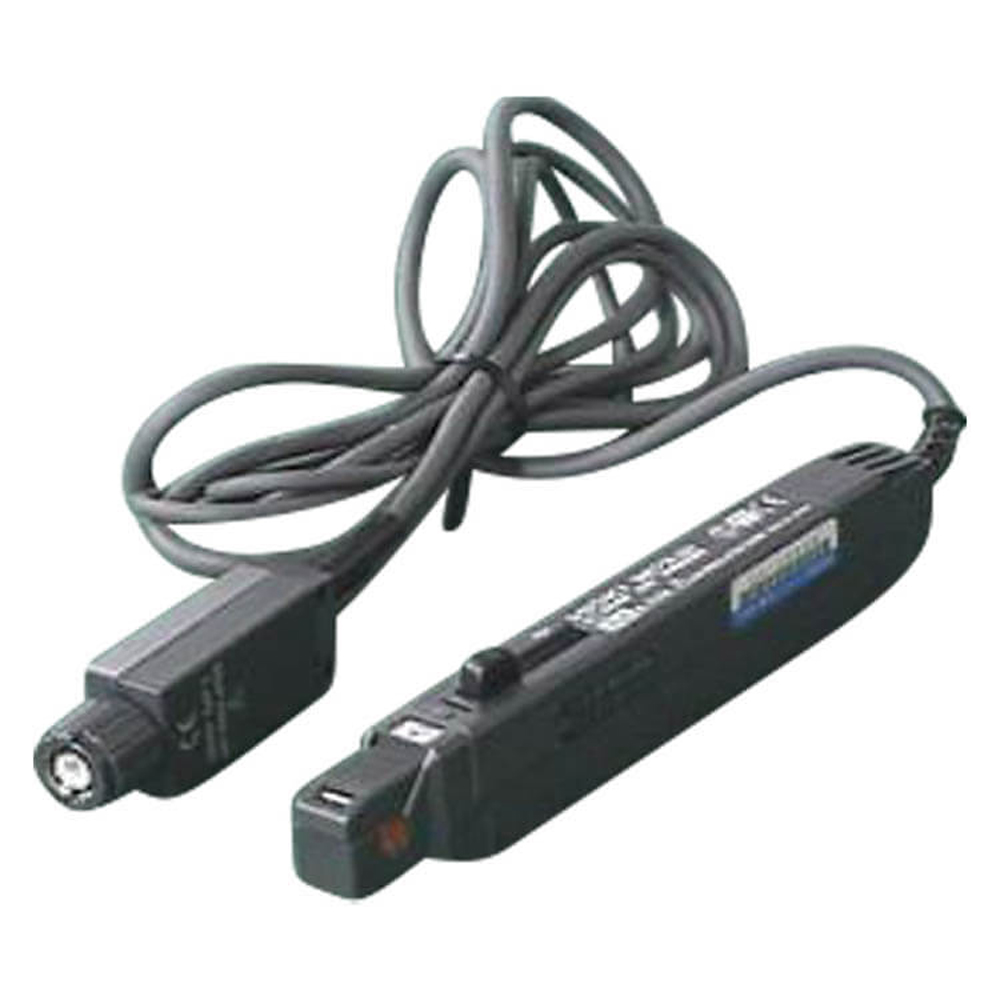

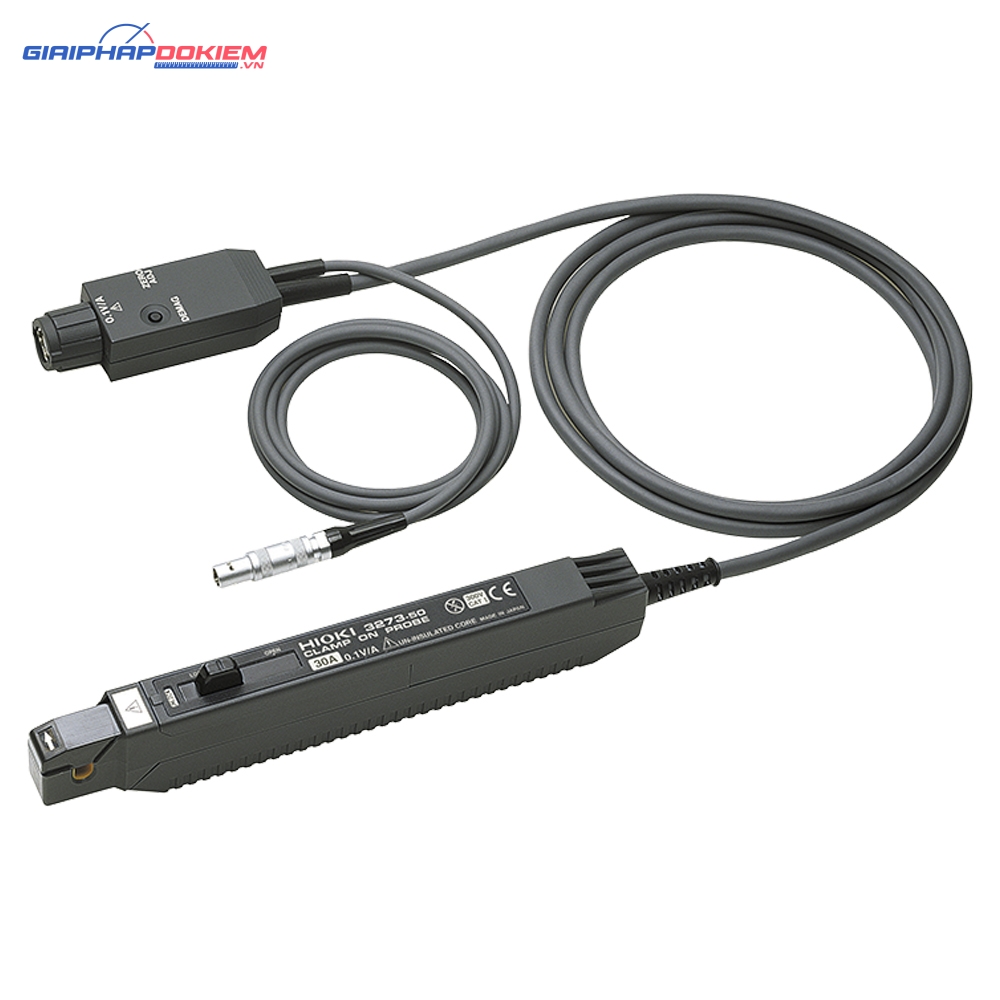

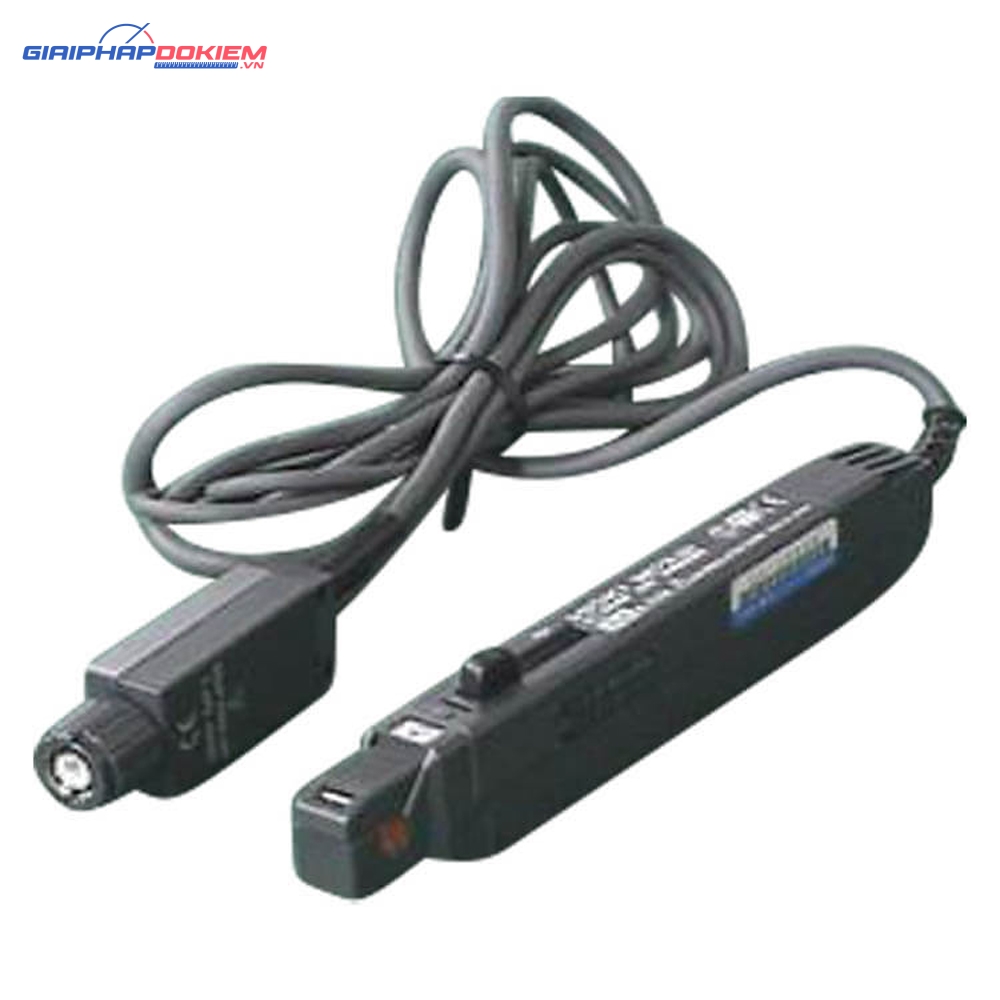

CLAMP ON PROBE HIOKI 3273-50

High S/N characteristics enable the measurement of 10 mA order current waveforms
Wideband Current Probe for Oscilloscopes

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 6 months

Frequency bandwidth	DC to 50 MHz (-3 dB)
Rise time Hioki 3273-50	7 ns or shorter
Noise level	2.5 mA rms max. (bandwidth limited to 20 MHz)
Continuous allowable input	30 A rms (requires derating at frequency)
Max. allowable peak input	50 A peak (non continuous)
Amplitude accuracy (30 min. after power-on, after degaussing and zero-adjustment)	±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 30 A rms) ±2 % rdg. (DC, 45 to 66 Hz, 30 A rms to 50 A peak)
Output rate	0.1 V/A (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)
Measurable conductors	Insulated conductor
Core diameter	φ 5 mm (0.20 in)

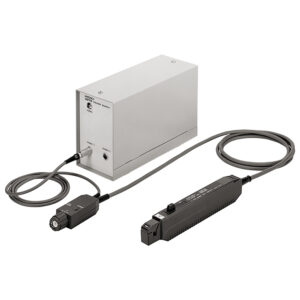

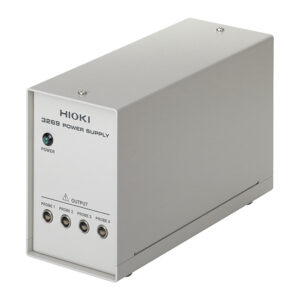

Power supply	±12 V ±0.5 V, 5.6 VA max.
Dimensions and mass	±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 30 A rms) ±2 % rdg. (DC, 45 to 66 Hz, 30 A rms to 50 A peak) Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft)
Accessories	Instruction manual ×1, Soft case × 1
