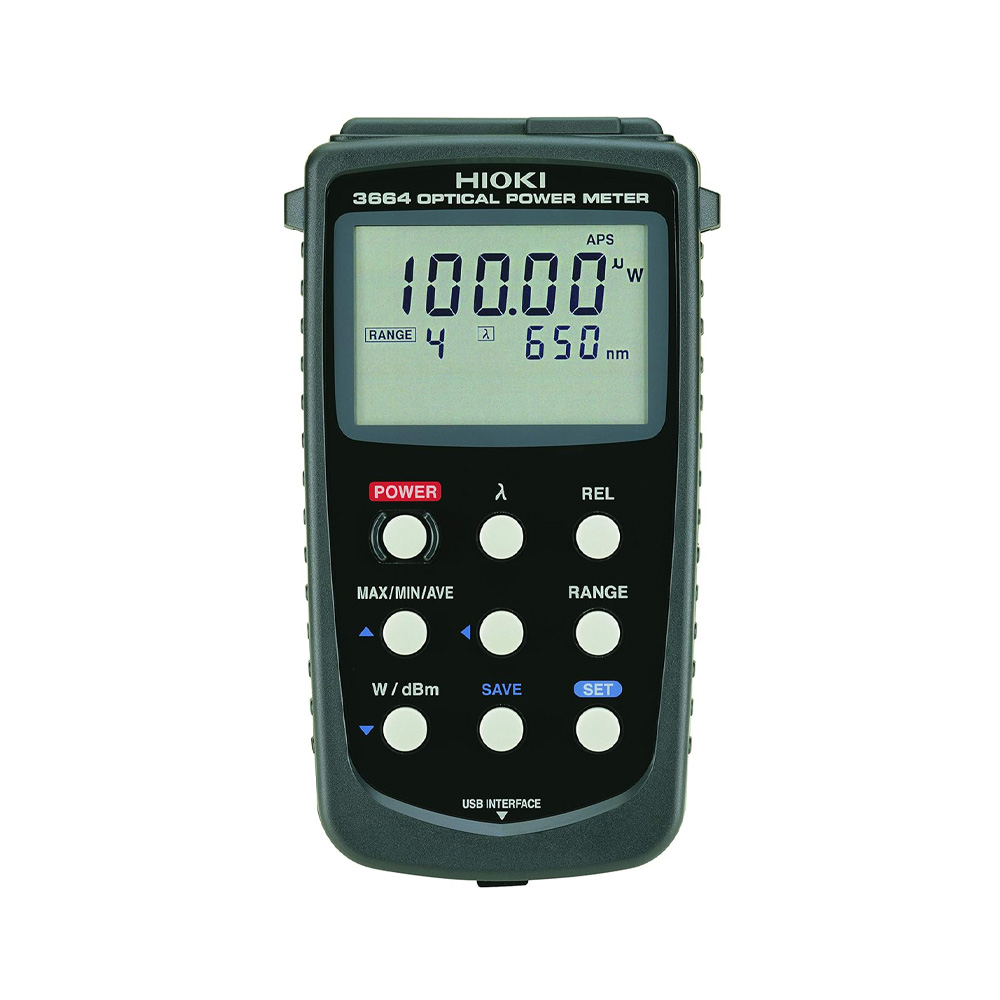

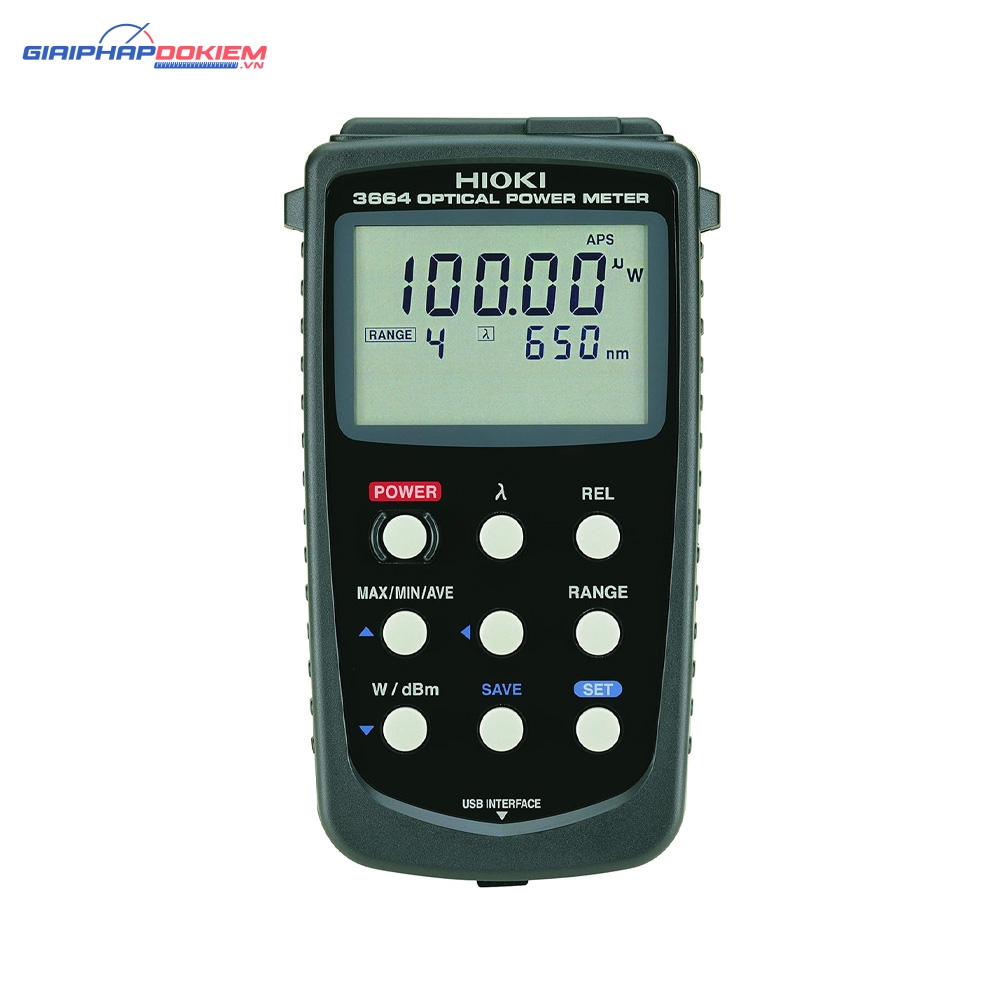

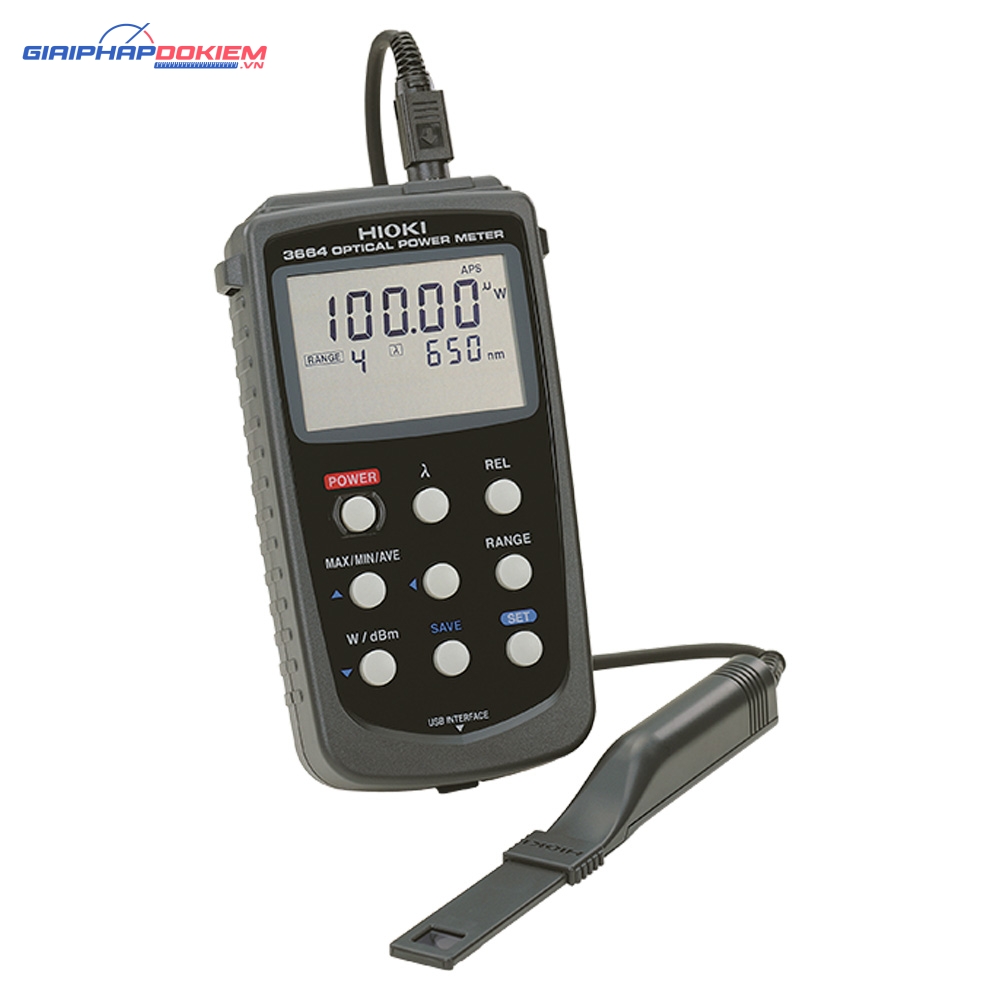

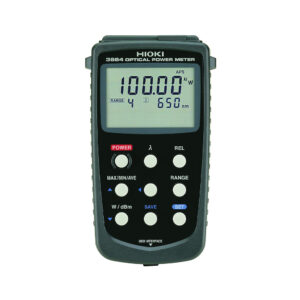

Thiết Bị Đo Công Suất Quang Hioki 3664 – OPTICAL POWER METER HIOKI 3664
Đặc tính kỹ thuật cơ bản
Độ chính xác đảm bảo trong 1 năm, thời gian đảm bảo độ chính xác sau hiệu chỉnh thực hiện bởi Hioki: 1 năm
Measurement items | Optical power (W, dBm) | |||||
---|---|---|---|---|---|---|
Measurable wavelength | Depends on optical sensor in use (option) | |||||
Measurable power | Depends on optical sensor in use (option) | |||||
Accuracy | ±0.7 % (±5 % in combination with the optional sensor) | |||||
Wavelength sensitivity compensation | Can be set for every 1 nm, Automatic compensation for the sensor’s sensitivity | |||||
Display | 19999 max. Display resolution: 0.01 dBm / 0.01 dB, Measurement display unit: nW, μW, mW, dBm, dB | |||||
Analog output | Depends on optical sensor in use (option) (1 V approx. or 0.7 V approx. when the sensor calibration point input) | |||||
Functions | Scaling, Relative measurement, Max. value/ Min. value/ Average-value display, Auto power save, Setting backup, Battery check | |||||
Interfaces | USB 1.1 (Output measurement value and remote control) | |||||

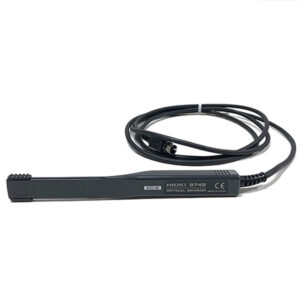

Power supply | LR6 (AA) alkaline batteries ×4, Continuous use : 60 hr (using with the 9742 optical sensor as correction input), or AC adapter 9445-02/-03, 1.6 VA max. | |||||
Dimensions and mass | 85 mm (3.35 in) W × 160 mm (6.30 in) H × 35 mm (1.38 in) D, 270 g (9.5 oz) (without batteries) | |||||

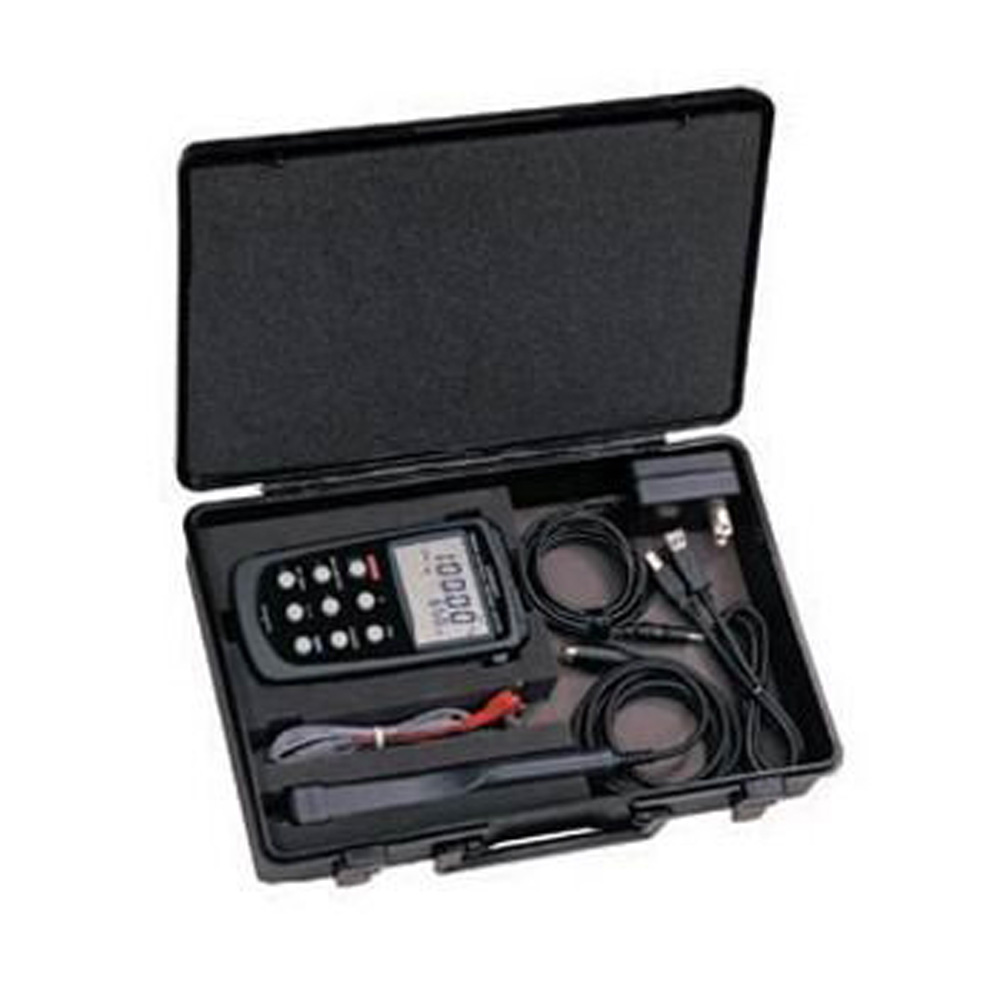

Accessories | AC adapter 9445-02 ×1, Output cord L9094 ×1, Driver software (CD-R) ×1, LR6 (AA) alkaline batteries ×4, USB cable ×1, Strap ×1, Instruction manual ×1 |
