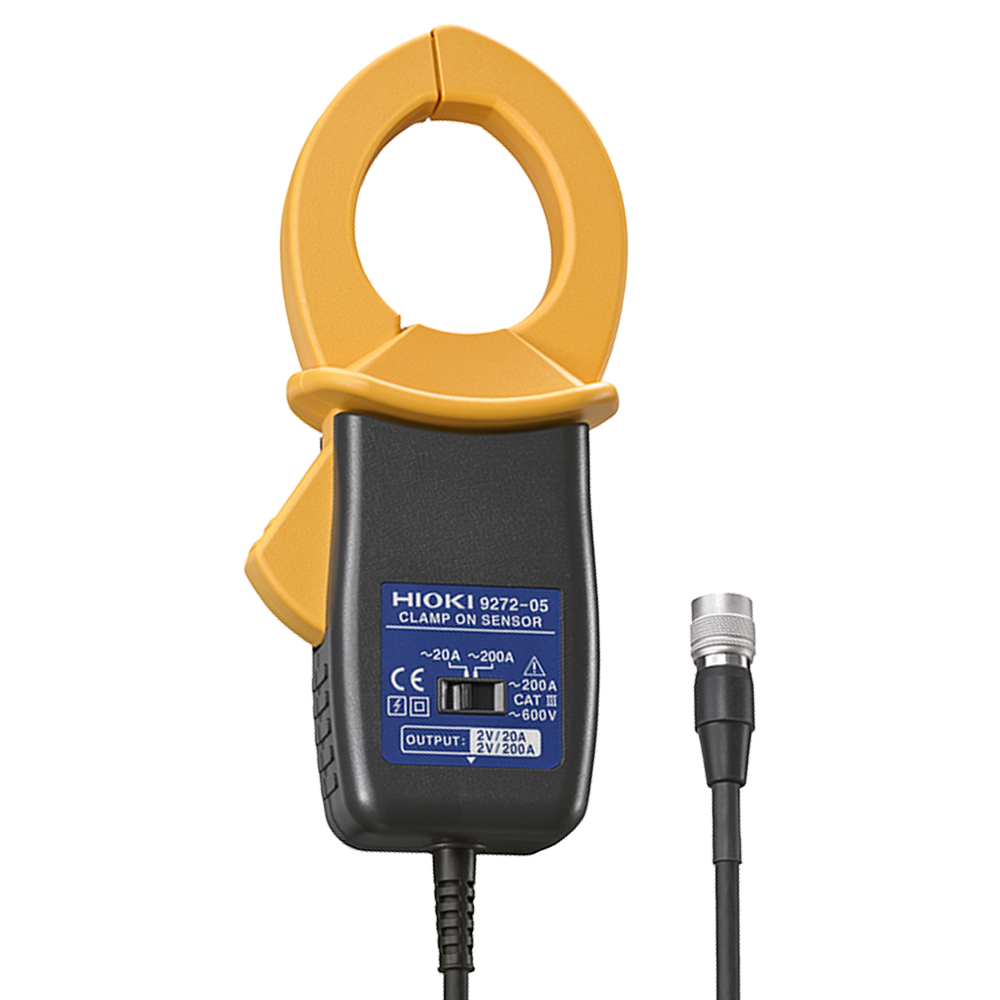

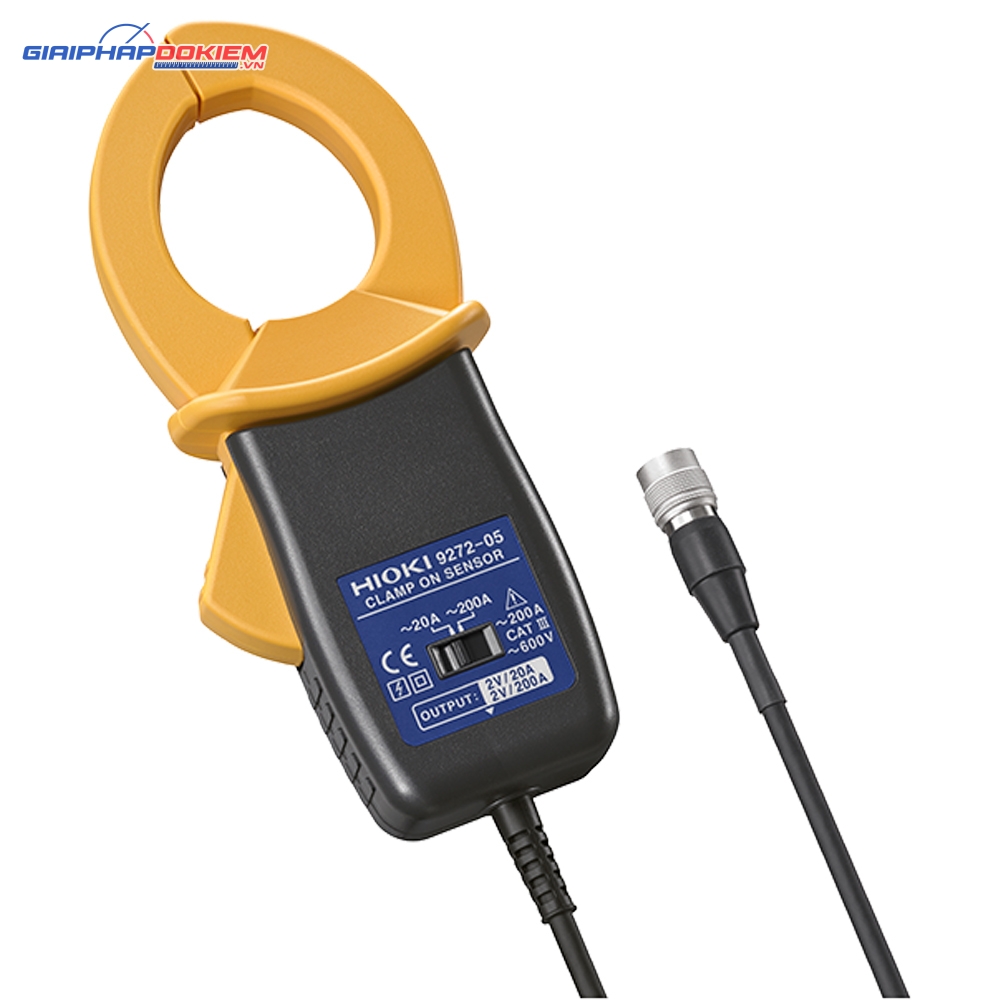

Đầu Đo Dòng Điện Dạng Kìm Hioki 9272-05
CLAMP ON SENSOR HIOKI 9272-05
Ideal for Measuring AC Current with Low Frequencies such as Inverter Control Devices
Phụ kiện cho máy: PW6001, PW3390, PW3337, PW3336, PW3335, MR8741, MR8740, MR8740T, MR8870, MR8827, MR6000, MR8847A, MR8880, U8977
Rated current | 20 A AC, or 200 A AC (selectable) | |||||
---|---|---|---|---|---|---|
Max. allowable input | 50 A rms (at 20 A range), 300 A rms (at 200 A range) | |||||
Frequency characteristics | 1 Hz (±2 % rdg. ±0.1 % f.s.) to 100 kHz (±30 % rdg. ±0.1 % f.s.) | |||||
Amplitude and Phase accuracy | Amplitude: ±0.3 % rdg. ±0.01 % f.s. Phase: ±0.2 ° (45 to 66 Hz) | |||||

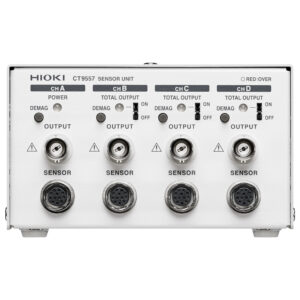

Output voltage | 2 V/20 A rated current range, or 2 V/200 A rated current range (voltage output with the Sensor Unit, use with a device having a 1 MΩ input resistance or higher) | |||||
Max. rated voltage to earth | 600 V rms (CAT III) | |||||
Core diameter | φ 46 mm (1.81 in) | |||||
Power supply | ±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC) | |||||
Power consumption | 5 VA Max. (when measuring 200 A) | |||||
Dimensions and mass | 78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 430 g (15.2 oz), cord length: 3 m (9.84 ft) | |||||

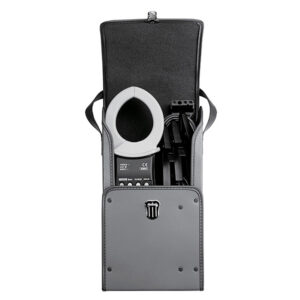

Accessories | Carrying case 9355 ×1, Instruction manual ×1, Mark bands ×6 |
Compatible models 9272-10, 9272-05
Compatible models | 9272-10 (Discontinued product) | 9272-05 | ||||
---|---|---|---|---|---|---|

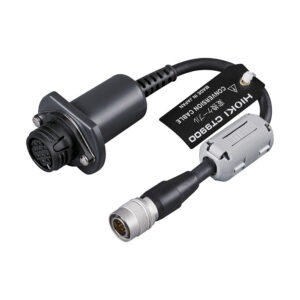

Power Analyzer PW3390 | △ (Requires CT9900) | OK | ||||

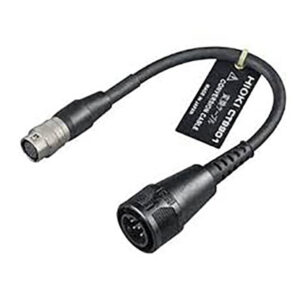

Power Analyzer 3390 | OK | △ (Requires CT9901) | ||||
Power HiTester 3193 series | OK | △ (Requires CT9901) | ||||
Current Unit 8971 | △ (Requires the 9318) | △ (Requires the 9318, CT9901) | ||||
F/V Unit 8940 | △ (Requires the 9318, 9705) | △ (Requires the 9318, 9705, CT9901) |
