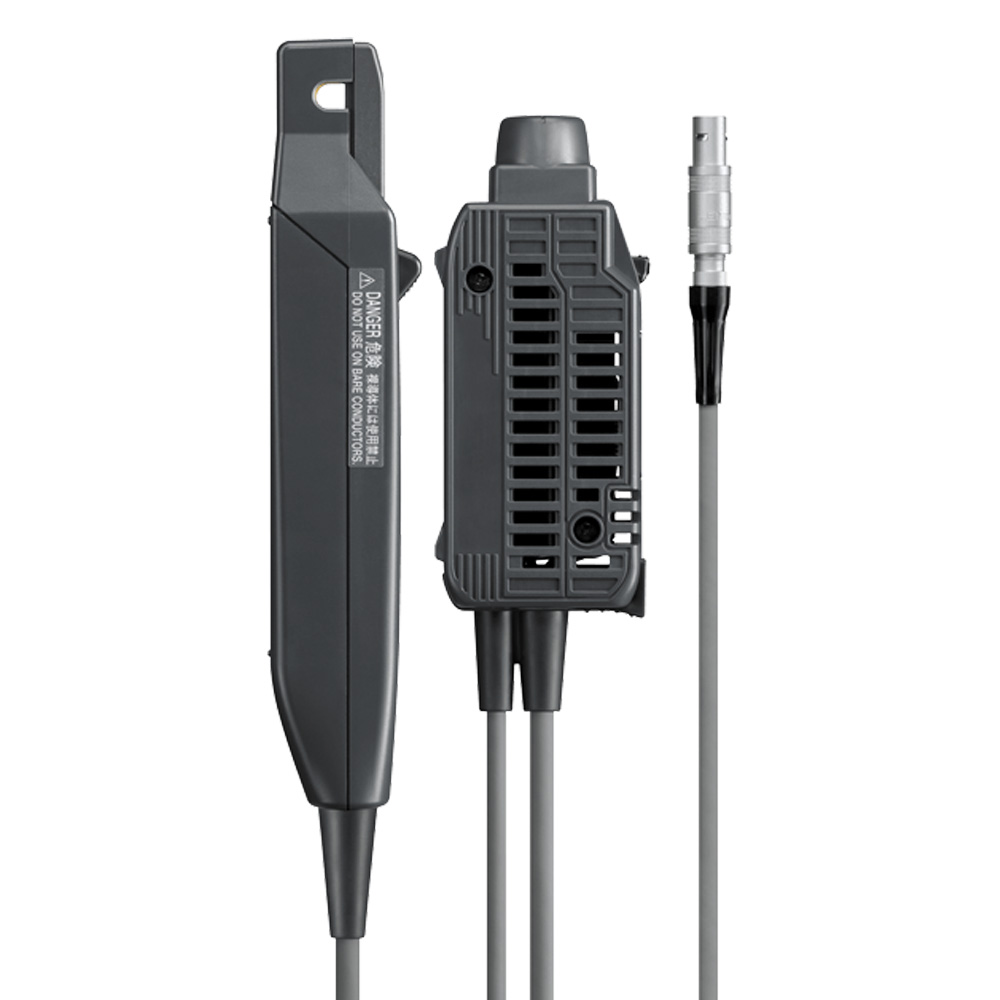

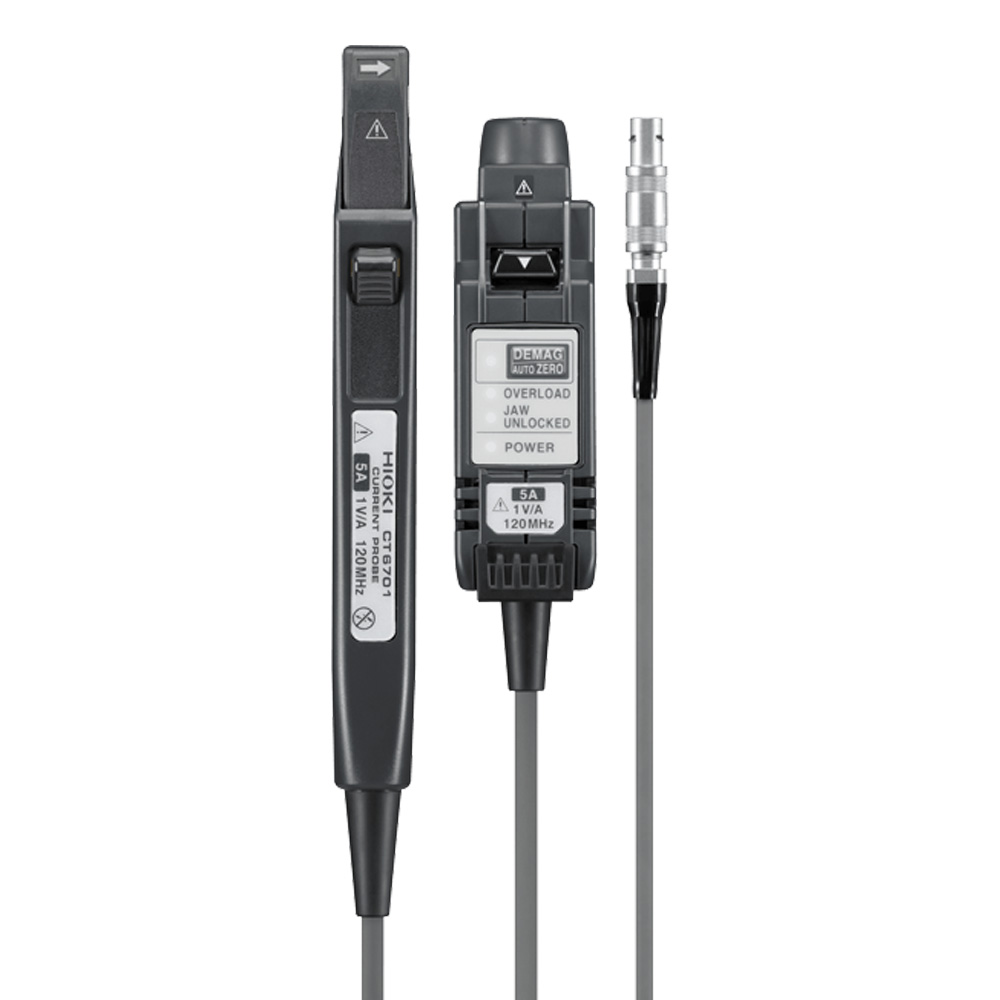

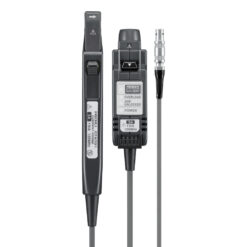

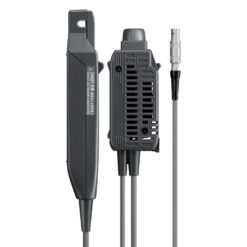

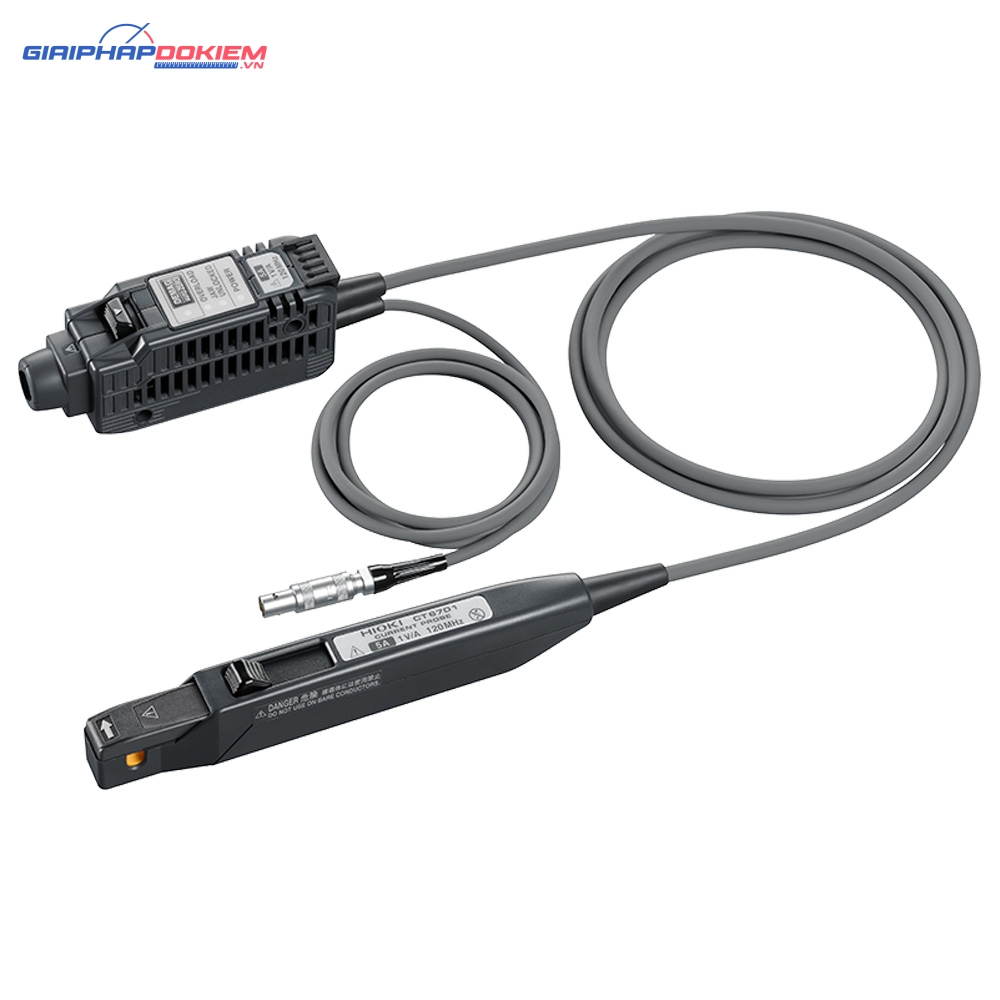

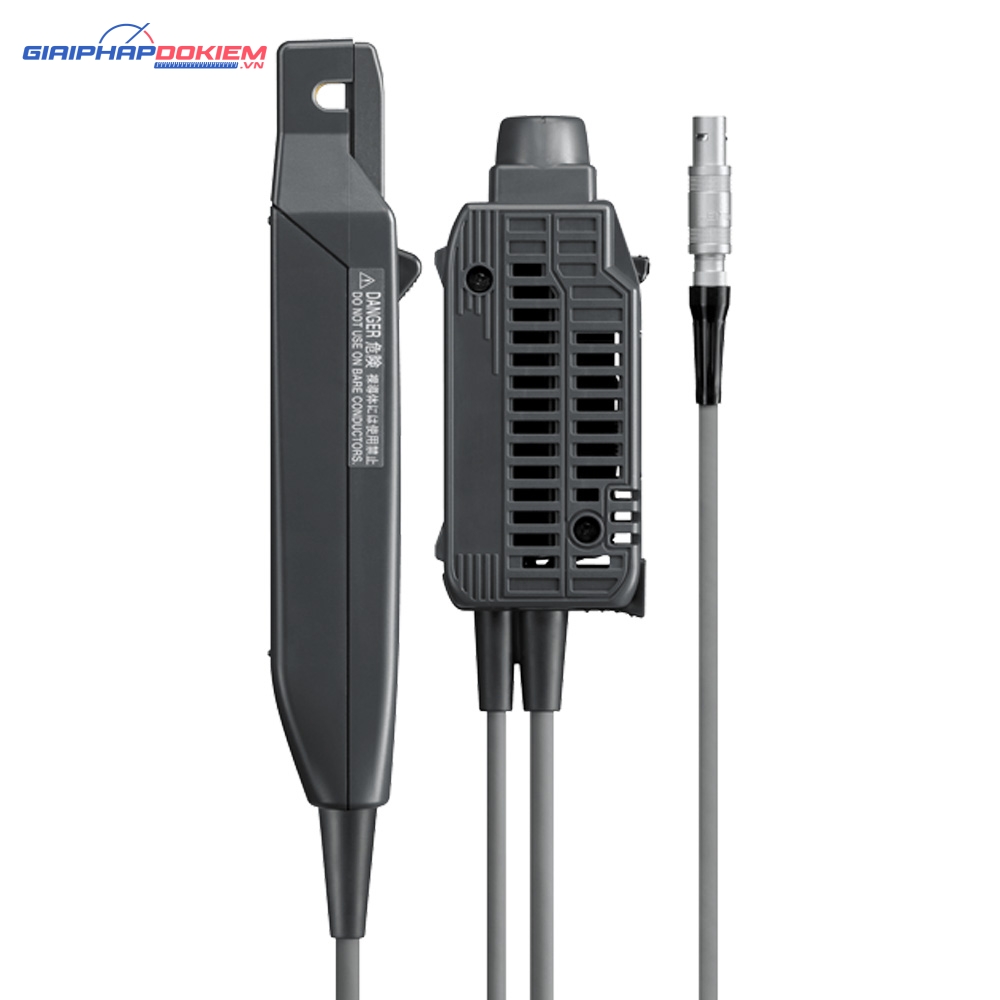

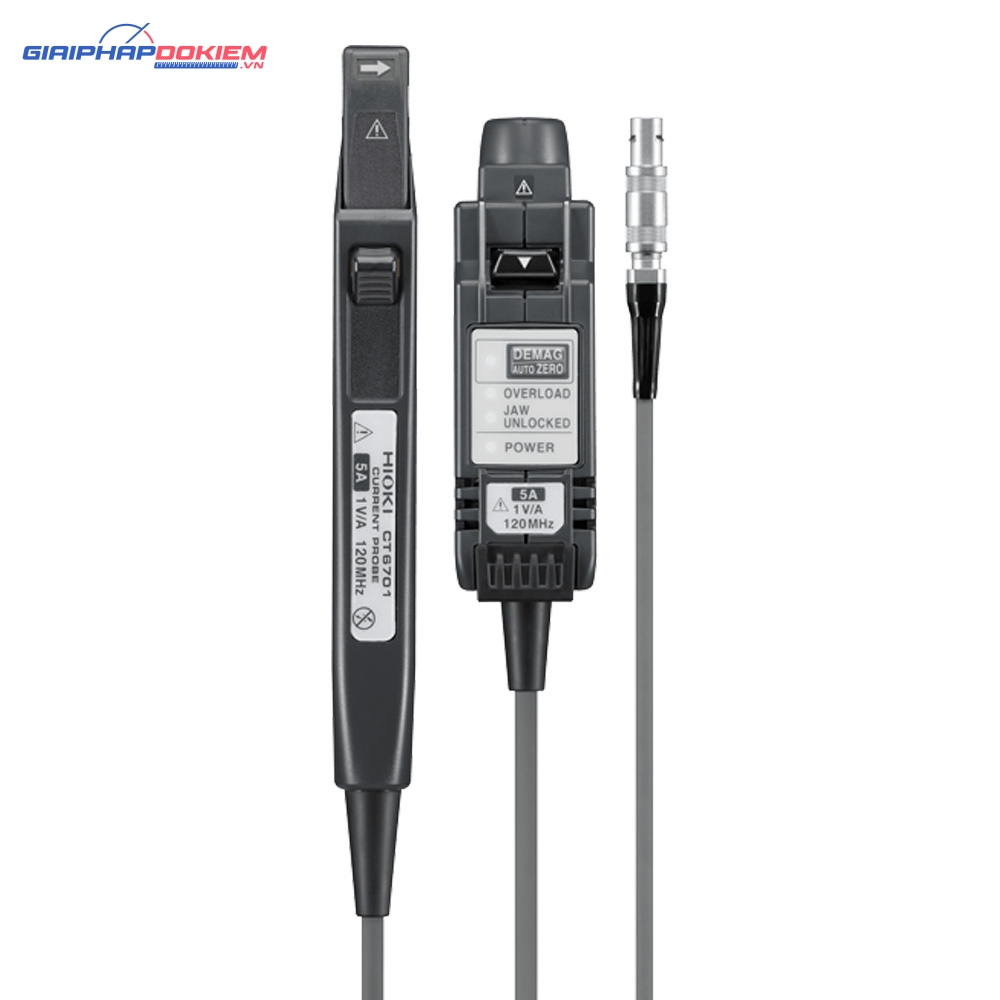

Đầu Đo Dòng Điện Dạng Kìm Hioki CT6701

Name: Đầu Đo Dòng Điện Dạng Kìm Hioki CT6701 - Giải Pháp Đo Kiểm
Brand: HIOKI
SKU: CT6701
Availability: InStock

Giá (chưa VAT): Liên hệ

Model: CT6701 Tình trạng: Còn hàng Nhà sản xuất: HIOKI Xuất xứ: Nhật Bản Bảo hành: 12 tháng

Phụ kiện cho máy: PW6001

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

AC/DC CURRENT PROBE HIOKI CT6701

High S/N characteristic ideal for ultra low 1 mA order current waveforms
Clearly Observe Even 1 mA Waveforms

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 6 months

Frequency bandwidth	DC to 120 MHz (-3 dB)
Rise time	2.9 ns or shorter
Noise level	60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument)
Continuous allowable input	5 A rms (DC, and sine wave, requires derating at frequency)
Max. allowable peak input	±7.5 A peak (non-continuous)
Amplitude accuracy	Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms) Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
Output rate	1 V/A (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)
Measurable conductors	Insulated conductor
Core diameter	φ 5 mm (0.20 in)
Power supply	±12 V ±0.5 V, 3.2 VA
Dimensions and mass Hioki CT6701	Sensor: 155 mm (6.10 in)W × 18 mm (0.71 in)H × 26 mm (1.02 in)D, Terminator: 29 mm (1.14 in)W × 83 mm (3.27 in)H × 40 mm (1.57 in)D mm, Mass: 250 g (8.8 oz), Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft), Power plug: FFA.0S.304.CLAC37Y / LEMO inc.
Accessories	Instruction manual ×1, Carrying case ×1
