Đầu Đo Dòng Điện Hioki CT6863-05

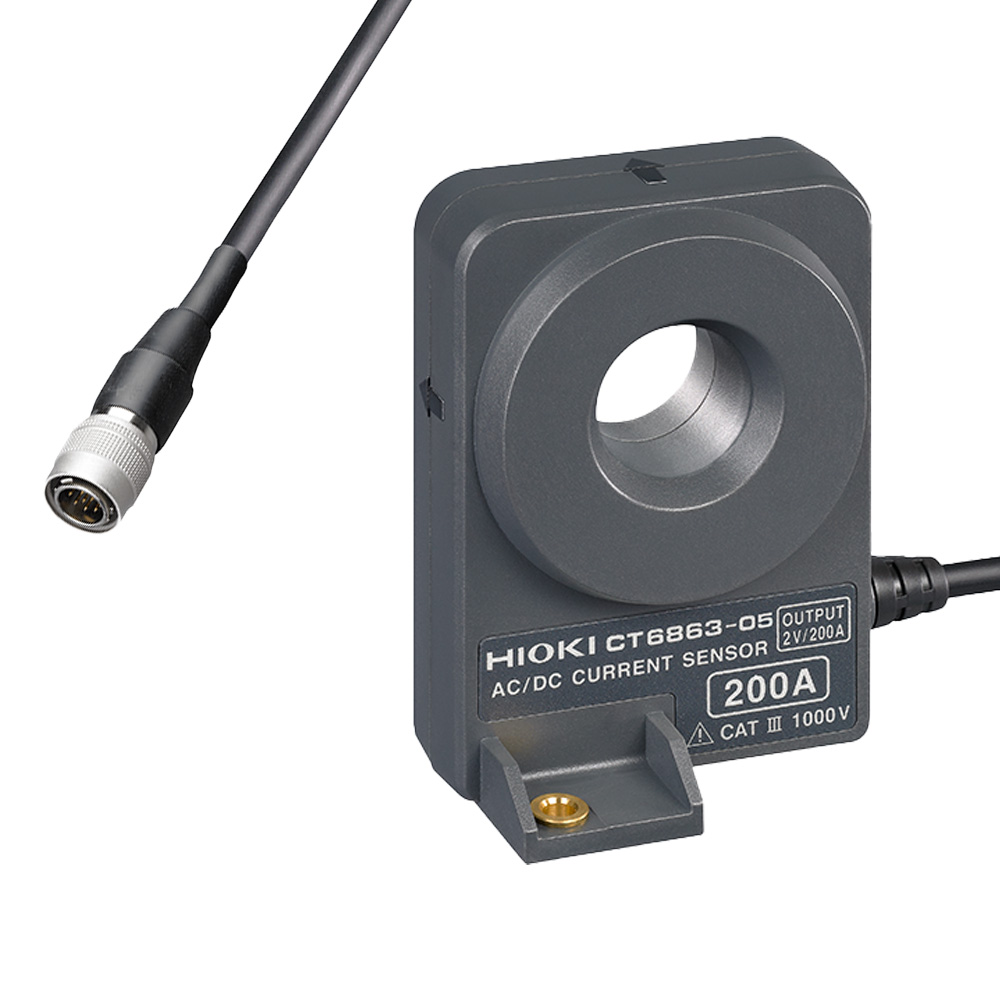

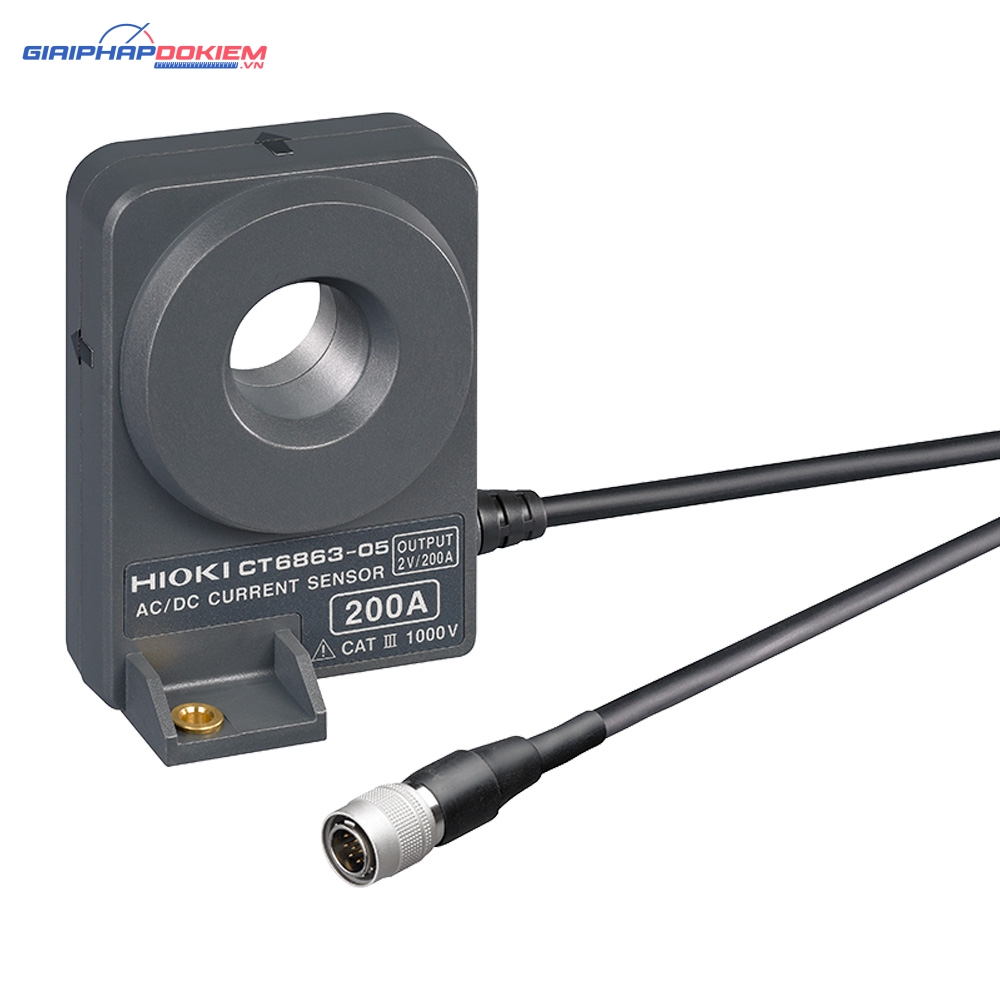

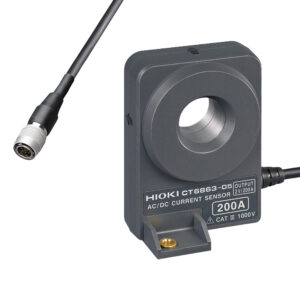

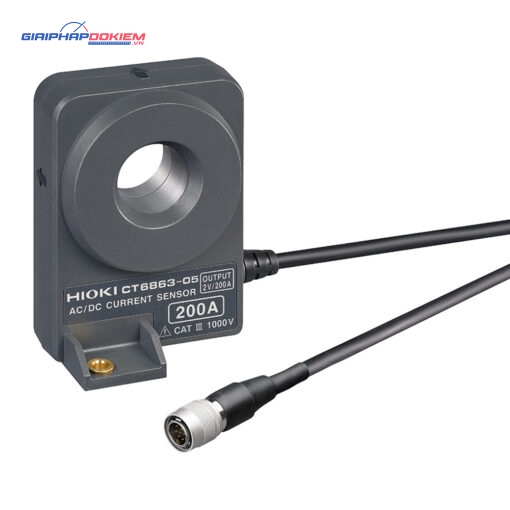

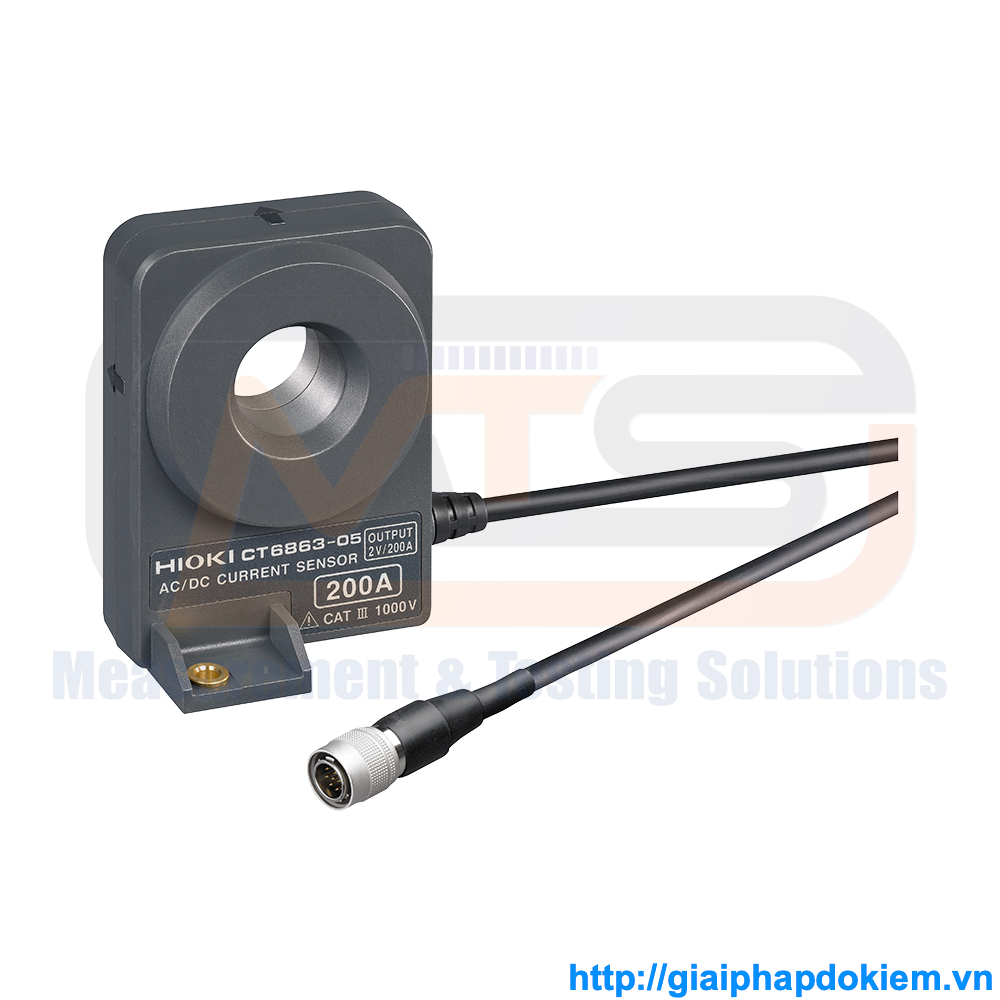

AC/DC CURRENT SENSOR HIOKI CT6863-05
Delivering Wide-Operating Temperature Range and High-precision Current Measurement
Phụ kiện cho máy: PW6001, PW3390, PW3337, PW3336, MR8741, MR8740, MR8740T, MR8870, MR8827, MR6000, MR8880, MR8847A, PW3335, U8977
Basic specifications
Rated current | 200 A AC/DC | |||||
---|---|---|---|---|---|---|
Max. allowable input | 400 A rms (requires derating) | |||||
Frequency characteristics | Amplitude: DC to 500 kHz Phase: DC to 300 kHz | |||||
Amplitude and Phase accuracy | DC ±0.05 % rdg. ±0.01 % f.s. (Phase: Not defined) 16 Hz ≤ f ≤ 400 Hz ±0.05 % rdg. ±0.01 % f.s. (Phase: ±0.2°) Defined to 500 kHz | |||||
Output voltage | 2 V /rated current value (voltage output with the Sensor Unit, use with a device having a 1 MΩ input resistance or higher) | |||||
Max. rated voltage to earth | AC/DC 1000 V (50/60 Hz, CAT III ) | |||||
Core diameter | φ 24 mm (0.94 in) | |||||
Operating temperature, humidity | -30°C to +85°C (-22°F to 185°F), 80% RH or less (with no condensation) | |||||
Power supply | ±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC) | |||||
Power consumption | 6 VA max. (at 200 A/55 Hz, ±12 V power requirement) | |||||
Dimensions and mass | 70 mm (2.76 in)W × 100 mm (3.94 in)H × 53 mm (2.09 in)D, 350 g (12.3 oz), cord length: 3 m (9.84 ft) | |||||
Accessories | Instruction manual ×1, Mark bands ×6 |
Compatible models: CT6863, CT6863-05
Compatible models | CT6863 | CT6863-05 | ||||
---|---|---|---|---|---|---|
Power Analyzer PW6001, PW3390 | △ (Requires CT9900) | OK | ||||
Power Analyzer 3390 | OK | △ (Requires CT9901) | ||||
Power HiTester 3193 series | OK | △ (Requires CT9901) | ||||
Current Unit 8971 | △ (Requires the 9318) | △ (Requires the 9318, CT9901) | ||||
F/V Unit 8940 | △ (Requires the 9318, 9705) | △ (Requires the 9318, 9705, CT9901) |
